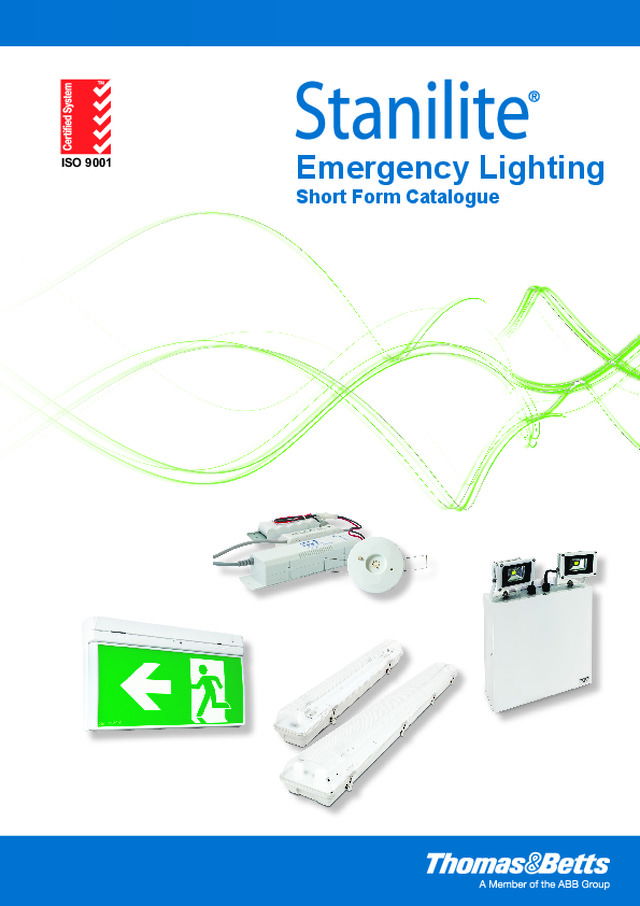

Stanilite Emergency Lighting Short Form Catalogue

Emergency Lighting Short Form Catalogue ISO 9001

1 Features • Architecturally pleasing design • Unique slide connect bracket that provides strength and enables quick and easy maintenance • LED technology 50,000 hours lamp life • Emergency classification • Includes all Pictograph diffuser options • High temperature NiCad batteries • Universal wall/ceiling mounting, can also be rod or wire suspended • Large terminal (16mm 2 ) block for easy wiring Catalogue No EELED Excel LED Economy Exit Excel LED Quickfit Exit STANILITE EXITS Features • Architecturally pleasing slim line design • Unique steel Quickfit TM mounting bracket that provides strength and enables quick and easy maintenance • EnduroLED TM LED technology 100,000 hours plus lamp life • Includes all Pictograph diffuser options for single or double sided installation • Advanced PulseTIME TM dual rate battery charger with high temperature NiCad batteries • Universal wall/ceiling mounting, can also be rod or wire suspended • Option - Standard, Nexus LX monitored or Nexus RF monitored • Retrofit capability; fits into any existing Quickfit TM mounting bracket • Frame only available for upgrade of installed product (less mounting bracket and diffusers) - will accept existing diffusers Catalogue No PQFLEDPQFNXSLEDPQFNRFLED NB: Theatre Mask Features • Unique steel Quickfit TM mounting bracket that provides strength and enables quick and easy maintenance • EnduroLED TM LED technology 100,000 hours plus lamp life • Advanced PulseTIME TM dual rate battery charger with high temperature NiCad batteries • Option - Standard, Nexus LX monitored or Nexus RF monitored • High impact chemical resistant acrylic cover or UV stabilised vandal resistant polycarbonate cover option • Can be wall or ceiling mounted and optional bracket kits available for strengthened wall and cantilever mounting Catalogue No PWQFLEDP-1PWQFLEDP-2PWQFLEDP-3PWQFLEDP-5PWQFLEDP-6 NB: Nexus LX and NexusNB: For acrylic option, Excel LED Quickfit Weatherproof Exit Excel LED Legend Quickfit Exit Features • Architecturally pleasing slim line design • Unique steel slide connect bracket that provides strength and enables quick and easy maintenance • LED technology 50,000 hours lamp life • High Emergency classification • Includes all Pictograph diffuser options • Advanced dual rate battery charger with high temperature NiMH batteries • Universal wall/ceiling mounting, can also be rod or wire suspended • Option - Standard, Nexus LX monitored or Nexus RF monitored • Retrofit capability; fits into any existing Quickfit mounting bracket Catalogue No PLQLEDPLQNXSLEDPLQNRFLED NB: Theatre Mask For more information and Stanilite’s full product range, please refer to the website www.tnbaust.com

2 Excel LED Economy Exit Excel LED Quickfit Exit Dimensions Length: 362mm Width: 100mmHeight: 224mm (Including Bracket) Photometrics C0: D2.5C90: E2.5(Preliminary Results) Accessories 03-01219: Battery Pack 3 Sub-C NiCad 3.6V 1.6Ah Description LED Economy Pictograph Dimensions Length: 379mm Width: 72mmHeight: 214mm (Including Bracket) Photometrics C0: D4C90: D3.2(Preliminary Results) Accessories 03-01218: Battery Pack 4 Cell AA NiCad 1800mAh Description LED Quickfit Pictograph LED Quickfit Nexus LX PictographLED Quickfit Nexus RF Pictograph versions also available. Excel LED Quickfit Weatherproof Exit Dimensions Length: 466mm Width: 155mmHeight: 274mm Photometrics C0: D2C90: D1.6(Preliminary Results) Accessories 03-02061: Ceiling Bracket AssemblyWQFCLH: Cantilever Mounting Bracket - Heavy DutyWQFCLL: Cantilever Mounting Bracket - Light DutyWQFWM: Wall Mount Bracket03-01218: Battery Pack 4 Cell AA NiCad 1800mAh Description LED Quickfit Weatherproof SS Polycarbonate Picto LED Quickfit Weatherproof SS Polycarbonate PictoLED Quickfit Weatherproof SS Polycarbonate Picto LED Quickfit Weatherproof DS Polycarbonate PictoLED Quickfit Weatherproof DS Polycarb AOW Picto RF versions also available.replace “P” with “A” in the part number. Excel LED Legend Quickfit Exit Dimensions Length: 379mm Width: 72mmHeight: 232mm(Including Bracket) Photometrics C0: D3.2C90: E2 Accessories 03-01213P: Battery Pack 4 Cell AA NiMH 1250mAh Description LED Legend Quickfit PictographLED Legend Quickfit Nexus LX PictographLED Legend Quickfit Nexus RF Pictograph versions also available.

3 Catalogue No PLSLEDPLSNXSLEDPLSNRFLED NB: Theatre Mask Excel LED Legend Surface Mount Exit Excel LED Jumbo Exit Features • Architecturally pleasing and lightweight design • 50,000 hour rated 8W LED lamp, 2 year warranty • High Emergency Classification • Available in all Pictograph diffuser options • High temperature NiCad batteries • Wall mount or ceiling/suspended mount versions available to cover all installation requirements • Large terminal (16mm2) block for easy wiring • Option - Standard, Nexus LX monitored or Nexus RF monitored • Viewing distance 40m • Protective wire guard available - ceiling/suspended mount and wall mount Catalogue No PEJLEDMWM-1PEJLEDMWM-2PEJLEDMWM-3PEJLEDMCM-1PEJLEDMCM-2PEJLEDMCM-3PEJLEDMCM-5PEJLEDMCM-6 NB: Nexus LX and Nexus Features • Architecturally pleasing slim line design • One-box solution, overall light weight and snap n clip mechanism allows for quick and easy installation • Surface mounted - suitable for ceilings where a recessed fitting is not feasible • LED technology 50,000 hours lamp life • High Emergency classification • Includes all Pictograph diffuser options • Suspended, wall and cantilever mounting kit options available • Option - Standard, Nexus LX monitored or Nexus RF monitored Excel LED Legend Recessed Exit Features • Architecturally pleasing slim line design • One-box solution, overall light weight and snap n clip mechanism allows for quick and easy installation • Suits ceiling thickness 1mm-19mm • LED technology 50,000 hours lamp life • High Emergency classification • 2m Flex & plug included • Includes all Pictograph diffuser options • Option - Standard, Nexus LX monitored or Nexus RF monitored Catalogue No PLRLEDPLRNXSLEDPLRNRFLED NB: Theatre Mask Quickfit Exit - One Box Solution Features • Comes complete with both single and double sided diffuser options • Universal slide connect bracket that provides strength and enables quick and easy maintenance • BBEB electronic ballast technology - providing extended lamp life • Up to 250% lower power consumption than comparable exits • Advanced variable rate battery charger with high temperature NiCad batteries Catalogue No PQF110M-1BOX For more information and Stanilite’s full product range, please refer to the website www.tnbaust.com

4 Excel LED Legend Surface Mount Exit Excel LED Jumbo Exit Dimensions Length: 375.5mm Width: 79.0mmHeight: 220.0mm Photometrics C0: D3.2C90: E2 Accessories PLSLEDCLKIT: Cantilever Mounting KitPLSLEDWMKIT: Wall Mounting Kit03-01213P: Battery Pack 4 Cell AA NiMH 1250mAh Description LED Legend Surface Mount PictographLED Legend Surface Mount Nexus LX PictographLED Legend Surface Mount Nexus RF Pictograph versions also available. Dimensions Length: 615mm Width: 123mmHeight: 310mm Photometrics C0: D4C90: E2.5(Preliminary Results) Accessories 15-10020: LED Tube 8W 5700K 600mm03-01015P: Battery Pack 3 Sub-C NiCad 3.6V 4Ah Description LED Jumbo Maintained SS Picto Wall Mount LED Jumbo Maintained SS Picto Wall Mount LED Jumbo Maintained SS Picto Wall MountLED Jumbo Maintained SS Picto Ceiling MountLED Jumbo Maintained SS Picto Ceiling MountLED Jumbo Maintained SS Picto Ceiling MountLED Jumbo Maintained DS Picto Ceiling MountLED Jumbo Maintained DS Picto AOW Ceiling Mount RF versions also available. Excel LED Legend Recessed Exits Accessories PLRLEDADAPTOR: Cover Plate LED Legend Recessed Retrofitting 03-01213P: Battery Pack 4 Cell AA NiMH 1250mAh Description LED Legend Recessed PictographLED Legend Recessed Nexus LX PictographLED Legend Recessed Nexus RF Pictograph versions also available. Dimensions Length: 370mm Width: 120mmHeight: 164mm(Including Face Plate) Photometrics C0: D3.2C90: E2 Quickfit Exit - One Box Solution Dimensions Length: 378mm Width: 72mmHeight: 212mm (Including Bracket) Photometrics Single C0: E2Single C90: E1.6Double C0: D4Double C90: E3.2 Accessories MQFCL: Cantilever BracketQFWGCM: Wire Guard - CeilingQFWGWM: Wire Guard - Wall03-01204: Battery Pack MQF 3 Cell Sub-C Description Quickfit 1x10W Maintained Picto - One Box Solution

5 Features • 50,000+ hour LED lamp life • Superior photometric classification • Spring fixing design allows for different ceiling thickness (1mm - 20mm) • White adaptors included to convert standard 60mm lamp head to 85mm diameter and 141mm diameter sizes • White square adaptor available for standard lamp head • Metal trim covers available in black or natural stainless steel finish for standard round and square lamp heads. • Metal trim covers can also be painted to any colour. Catalogue No SF1LEDSF2LEDSFNXS1LEDSFNXS2LEDSFNRF1LEDSFNRF2LED Excel LED Spitfire Recessed Excel LED Spitfire Surface Mount STANILITE RECESSED LUMINAIRES Features • 50,000+ hour LED lamp life • Superior photometric classification • Surface Mount • Vandal Resistant version available • Low Maintenance - ideal for factories and warehouses Catalogue No SFB1LEDSFB2LEDSFBNXS1LEDSFBNXS2LEDSFBNRF1LEDSFBNRF2LED Features • 50,000+ hour LED lamp life • Superior photometric classification • Surface Mount • Polycarbonate IP65 Weatherproof Enclosure • Low Maintenance - ideal for carparks and coolrooms Catalogue No SFBWP1LEDSFBWP2LEDSFBWPNXS1LEDSFBWPNXS2LEDSFBWPNRF1LEDSFBWPNRF2LED Excel LED Spitfire Weatherproof Surface Mount Excel LED Spitfire Batten Features • LED technology 50,000 hours lamp life • High Emergency classification and low maintenance cost - ideal for warehouse, supermarket, factory, carpark and open areas • High Temperature NiCad batteries • Large terminal (16mm2) block for easy wiring • Available in Standard, Nexus LX monitored or Nexus RF monitored • Wall or celing mounted • Maintained versions can be utilised for after hours and security lighting and can also be used to provide lighting during general lighting turn to delay or restrike • Protective wire guard available Catalogue No SFBAT2X2LEDSFBATNXS2X2LEDSFBATNRF2X2LEDSFBAT2X2LEDMSFBATNXS2X2LEDMSFBATNRF2X2LEDM NB: Please contact us for For more information and Stanilite’s full product range, please refer to the website www.tnbaust.com

6 Excel LED Spitfire Recessed Excel LED Spitfire Surface Mount Dimensions 60mm Standard: 50mm Ceiling Cutout85mm Adaptor: 70mm Ceiling Cutout141mm Adaptor: 130mm Ceiling Cutout Photometrics Single LED: C0: D32Single LED: C90: D32Dual LED: C0: D50Dual LED: C90: D50(Preliminary Results Dual LED) Accessories 02-SF1LSSTRIM: Single LED Round Trim S/S02-SF1LBLTRIM: Single LED Round Trim Blk02-SF2LSSTRIM: Dual LED Round Trim S/S02-SF2LBLTRIM: Dual LED Round Trim Blk02-SF1LSQSSTRIM: Single LED Sq Adaptor Trim S/S02-SF1LSQBLTRIM:Single LED Sq Adaptor Trim Blk02-SF2LSQSSTRIM: Dual LED Sq Adaptor Trim S/S02-SF2LSQBLTRIM: Dual LED Sq Adaptor Trim Blk02-SFLEDSQADAPT: White Plastic Square Adaptor for LED Spitfire 02-SFLEDLGBLKIT: Black Adaptor KitSFLEDVRWR-KIT: Vandal Resistant and Weather Resistant Kit to suit the 60mm Recessed Head03-01220: Battery Pack Description Spitfire Single LED RecessedSpitfire Dual LED RecessedSpitfire Nexus LX Single LED RecessedSpitfire Nexus LX Dual LED RecessedSpitfire Nexus RF Single LED RecessedSpitfire Nexus RF Dual LED Recessed Dimensions Length: 288mmWidth: 167mmHeight: 68mm Photometrics Single LED: C0: D32Single LED: C90: D32Dual LED: C0: D50Dual LED: C90: D50(Preliminary Results Dual LED) Accessories 03-01220: Battery Pack Description Spitfire Single LED Surface Mount Spitfire Dual LED Surface MountSpitfire Nexus LX Single LED Surface MountSpitfire Nexus LX Dual LED Surface MountSpitfire Nexus RF Single LED Surface MountSpitfire Nexus RF Dual LED Surface Mount Excel LED Spitfire Weatherproof Surface Mount Dimensions Length: 278mmWidth: 188mmHeight: 130mm Photometrics Single LED: C0: D32Single LED: C90: D32Dual LED: C0: D50Dual LED: C90: D50(Preliminary Results Dual LED) Accessories 03-01220: Battery Pack Description Spitfire Single LED Weatherproof S/M Self Contained Spitfire Dual LED Weatherproof S/M Self ContainedSpitfire Nexus LX Single LED Weatherproof S/M S/CSpitfire Nexus LX Dual LED Weatherproof S/M S/CSpitfire Nexus RF Single LED Weatherproof S/M S/CSpitfire Nexus RF Dual LED Weatherproof S/M S/C Excel LED Spitfire Batten Dimensions Length: 1220mmWidth: 118mmHeight: 43mm Photometrics C0: D100C90: D100(Preliminary Results) Accessories WG236: Wire Guard to suit LED Spitfire Batten03-01017P: Battery Pack D Cell Description Spitfire 2 x Twin LED Non-Maintained BattenSpitfire Nexus LX 2 x Twin LED Non-Maintained BattenSpitfire Nexus RF 2 x Twin LED Non-Maintained BattenSpitfire 2 x Twin LED Maintained BattenSpitfire Nexus LX 2 x Twin LED Maintained BattenSpitfire Nexus RF 2 x Twin LED Maintained Batten information on Weatherproof versions.

7 Features • Optional acrylic prismatic diffuser or galvanised white powder coated wire guard • High temperature NiCad batteries • Ferromagnetic ballast • HPF - high power factor • NEC, Philips or GEC lamps recommended Catalogue No EBAT118MEBAT118NEBAT136MEBAT136NEBAT218MEBAT236M Economy Emergency Battens Premium Emergency Battens STANILITE BATTENS Features • Superior photometric performance • Surface mount electronics • High temperature NiCad batteries • Diffused and wire guard accessories available • Electronic control gear • NEC, Philips or GEC lamps recommended Catalogue No PBAT118MPBAT118NPBAT136MPBAT136NPBAT158MPBAT158NPBAT218MPBAT236MPBAT236SPBAT258M NB: Nexus LX and NexusNB: AC versions also Features • Weatherproof rating IP65 • Cable entry at either end of base • Polycarbonate diffuser • Large 16mm 2 mains terminal for easy installation • High temperature NiCad battery for longer life • Stainless steel clips • NEC, Philips or GEC lamps recommended Catalogue No EWPB118MEWPB136MEWPB158MEWPB236MEWPB258M NB: AC versions alsoNB: ACECG versions also Economy Weatherproof Emergency Battens For more information and Stanilite’s full product range, please refer to the website www.tnbaust.com

8 Economy Emergency Battens Premium Emergency Battens Dimensions 615 x 123 x 82mm615 x 123 x 82mm1225 x 65 x 82mm1225 x 65 x 82mm615 x 123 x 82mm1225 x 123 x 82mm(L x W x H) (Width Incl Diffuser / Wire Guard 132mm) Photometrics Please refer to the Website. Accessories PR18: Diffuser Kit to suit 18W BattenPR136: Diffuser Kit to suit Single 36W BattenPR236: Diffuser Kit to suit Twin 36W BattenWG18: Wire Guard to suit 18W BattenWG136: Wire Guard to suit Single 36W BattenWG236: Wire Guard to suit Twin 36W Batten03-01208: Battery to suit 18W Economy Batten03-01209: Battery to suit 36W Economy Batten Description 1x18W Maintained Economy Bare Batten1x18W Non-Maintained Economy Bare Batten1x36W Maintained Economy Bare Batten1x36W Non-Maintained Economy Bare Batten2x18W Maintained Economy Bare Batten2x36W Maintained Economy Bare Batten Dimensions 615 x 123 x 82mm615 x 123 x 82mm1225 x 65 x 82mm1225 x 65 x 82mm1525 x 65 x 82mm1525 x 65 x 82mm615 x 123 x 82mm1225 x 123 x 82mm1225 x 123 x 82mm1525 x 123 x 82mm (L x W x H) (Width Incl Diffuser / Wire Guard 132mm) Photometrics Please refer to the Website. Description 1x18W Maintained Premium Bare Batten1x18W Non-Maintained Premium Bare Batten1x36W Maintained Premium Bare Batten1x36W Non-Maintained Premium Bare Batten1x58W Maintained Premium Bare Batten1x58W Non-Maintained Premium Bare Batten2x18W Maintained Premium Bare Batten2x36W Maintained Premium Bare Batten2x36W Sustained Premium Bare Batten2x58W Maintained Premium Bare Batten RF versions also available.available. Economy Weatherproof Emergency Battens Dimensions 675 x 166 x 100mm1278 x 112 x 100mm1278 x 166 x 100mm1578 x 112 x 100mm1578 x 166 x 100mm(L x W x H) Photometrics Please refer to the Website. Accessories 21-EWPB118: Polycarbonate Diffuser to suit 1x18W WP Batten21-EWPB136: Polycarbonate Diffuser to suit 1x36W WP Batten21-EWPB236: Polycarbonate Diffuser to suit 2x36W WP Batten03-01208: Battery to suit 18W Economy Weatherproof Batten03-01209: Battery to suit 36W Economy Weatherproof Batten Description 1x18W Maintained Economy Weatherproof Batten1x36W Maintained Economy Weatherproof Batten1x58W Maintained Economy Weatherproof Batten2x36W Maintained Economy Weatherproof Batten2x58W Maintained Economy Weatherproof Batten available.available. Accessories PR18: Diffuser Kit to suit 18W BattenPR136: Diffuser Kit to suit Single 36W BattenPR236: Diffuser Kit to suit Twin 36W BattenPR158: Diffuser Kit to suit Single 58W BattenPR258: Diffuser Kit to suit Twin 58W BattenWG18: Wire Guard to suit 18W BattenWG136: Wire Guard to suit Single 36W BattenWG236: Wire Guard to suit Twin 36W BattenWG158: Wire Guard to suit Single 58W BattenWG258: Wire Guard to suit Twin 58W Batten03-01015P: Battery to suit 18W Premium Batten03-01001P: Battery to suit 36W Premium Batten03-01013P: Battery to suit 58W Premium Batten

9 Nexus RF Premium Weatherproof Emergency Battens Features • Weatherproof rating IP65 • Large 16mm 2 mains terminal for easy installation • High temperature NiCad battery for longer life • Cable entry at either end of base • T8 standard, T5 options available • NEC, Philips or GEC lamps recommended Catalogue No WP118MWP118NWP136MWP136NWP158MWP158NWP218MWP218SWP236MWP236SWP258M NB: Nexus LX and NexusNB: AC versions alsoNB: DC versions also For more information and Stanilite’s full product range, please refer to the website www.tnbaust.com STANILITE NEXUS MONITORED SYSTEMS Are you prepared for an emergency? In the interest of public safety, the Australian Standard AS/NZS 2293.2 outlines the obligations of building owners in relation to Exit signs and Emergency Lighting, to ensure the safe evacuation of occupants in an emergency. It is the responsibility of a building owner to: • Check all emergency lighting units and conduct a discharge test every 6 months. • Clean light emitting and reflecting surfaces of all fittings every 12 months. • Keep a log book of maintenance information. Complying with these requirements can be very expensive and labour intensive, especially in larger buildings where testing requires many labour hours spent manually inspecting every emergency light. In addition, the disruption of the power supply during inspection can put public safety at risk. What is Nexus? Nexus ® , is a real-time emergency lighting monitoring system which offers building owners control over their public safety obligations, helps manage installation and directs the maintenance of an emergency lighting system. A Nexus ® network enables the user to: • Manage the installation and removal of components. • Cost effectively test and monitor the system. • Assign fittings to groups. Fittings are collected in groups so that they can be tested together in a logical manner eg: groups could represent different floors or departments. • Manage maintenance activities. Any fitting that fails a test or exhibits a fault will be automatically added to the Maintenance Group ensuring easy identification of the fittings requiring maintenance. The fittings are automatically removed from the Maintenance Group once they have been repaired and re-tested. • Ensure tests are performed properly. • Prepare reports. Testing and maintenance functions can be documented using the Nexus ® reporting functions. You can record all maintenance operations to satisfy requirements of AS/NZS 2293.2 and plan future maintenance budgets through the use of an online log book. • Log test results and print them as required.

10 Nexus RF Premium Weatherproof Emergency Battens Dimensions 666 x 170 x 108mm666 x 100 x 108mm1276 x 100 x 108mm1276 x 100 x 108mm1576 x 100 x 108mm1576 x 100 x 108mm666 x 170 x 108mm666 x 170 x 108mm1276 x 170 x 108mm1276 x 170 x 108mm1576 x 170 x 108mm(L x W x H) Photometrics Please refer to the Website. Accessories 03-01015P: Battery to suit 18W Premium Weatherproof Batten03-01001P: Battery to suit 36W Premium Weatherproof Batten03-01013P: Battery to suit 58W Premium Weatherproof Batten Description 1x18W Maintained Premium Weatherproof Batten1x18W Non-Maintained Premium Weatherproof Batten1x36W Maintained Premium Weatherproof Batten1x36W Non-Maintained Premium Weatherproof Batten1x58W Maintained Premium Weatherproof Batten1x58W Non-Maintained Premium Weatherproof Batten2x18W Maintained Premium Weatherproof Batten2x18W Sustained Premium Weatherproof Batten2x36W Maintained Premium Weatherproof Batten2x36W Sustained Premium Weatherproof Batten2x58W Maintained Premium Weatherproof Batten RF versions also available.available.available. What is Nexus RF? Until now, the Nexus ® system has relied upon a dedicated data cable as the channel for network communication. Nexus ® RF takes the time proven Nexus ® system and replaces the data cable with a radio frequency (RF) method of communication. The result is a system with numerous advantages including further cost reductions in the establishment and maintenance of an emergency lighting monitoring system. Why choose Nexus RF? There are many reasons for selecting Nexus ® RF as your Emergency Lighting Monitoring System. Simplicity • Simple Australian Standards Compliance • SPU Style Installation • Hassle Free System Commissioning • Easy System Controls • Through Life Support Flexibility • Wireless Technology • User Choice • Multi-Network Potential Endless Applications • Upgrading Existing Buildings • Small Sites • Multiple Buildings Cost Savings • Slash Installation Costs • Ongoing Labour Savings Reliability • 900 MHz Mesh Networking System • Optimum Channel Selection • Foolproof Installation • Self Monitoring • Independent System • Stanilite Reputation Nexus ® has been designed to enable maintenance personnel to easily maintain the emergency lighting system without having to walk through the building or disrupt the power supply. Nexus ® can test and report on the status of emergency lights either individually, in groups or all together.

For futher information, contact the Thomas & Betts National Support Centre onPhone 1300 666 595 Fax 1300 666 594 Email [email protected] Website www.tnbaust.comThomas & Betts Australasia Pty Ltd Head Office,Unit D3, 3-29, Birnie Avenue, Lidcombe NSW 2141 Australia ABN 62 074 810 898 All technical claims in this document are based upon technical information available at the time of publication. This information may change over time and comparisons may therefore vary. EMERGENCY LIGHTING SPACING TABLE   Mounting height, metres, above floor Classification 2.1 2.4 2.7 3.0 3.3 3.6 4.0 4.5 5.0 6.0 7.0 8.0 9.0 10.0 15.0 20.0 B16 6.4 6.8 7.2 7.6 7.9 8.2 8.6 9.0 9.3 9.6 9.7 9.6 9.1 8.2 B20 6.7 7.2 7.7 8.1 8.4 8.8 9.2 9.6 10.0 10.5 10.8 10.9 10.7 10.2 B25 7.1 7.6 8.1 8.5 9.0 9.3 9.8 10.3 10.7 11.4 11.9 12.1 12.2 12.0 5.7 B32 7.5 8.1 8.6 9.1 9.5 10.0 10.5 11.1 11.6 12.4 13.1 13.5 13.7 13.8 10.6 B40 7.8 8.5 9.0 9.6 10.1 10.5 11.1 11.7 12.3 13.3 14.1 14.7 15.1 15.3 13.8 B50 8.2 8.9 9.5 10.1 10.6 11.1 11.7 12.4 13.1 14.2 15.1 15.9 16.4 16.9 16.6 11.1 B63 8.6 9.3 10.0 10.6 11.2 11.7 12.4 13.2 13.9 15.2 16.2 17.1 17.8 18.4 19.2 16.2 B80 9.1 9.8 10.5 11.2 11.8 12.4 13.1 14.0 14.7 16.2 17.4 18.4 19.3 20.0 21.8 20.4 B100 9.5 10.3 11.0 11.7 12.4 13.0 13.8 14.7 15.6 17.1 18.4 19.6 20.6 21.5 24.1 23.9 B125 9.9 10.7 11.5 12.3 13.0 13.6 14.5 15.5 16.4 18.0 19.5 20.8 22.0 23.0 26.3 27.2 C16 8.3 8.8 9.3 9.7 10.0 10.3 10.7 11.0 11.3 11.6 11.6 11.3 10.7 9.6 C20 8.9 9.4 9.9 10.3 10.7 11.1 11.5 12.0 12.3 12.8 13.0 13.0 12.7 12.0 C25 9.4 10.0 10.5 11.0 11.5 11.9 12.4 12.9 13.4 14.0 14.4 14.6 14.5 14.2 6.6 C32 10.0 10.7 11.3 11.8 12.3 12,8 13.4 14.0 14.5 15.4 16.0 16.4 16.5 16.5 12.3 C40 10.6 11.3 12.0 12.6 13.1 13.6 14.3 15.0 15.6 16.6 17.4 17.9 18.3 18.5 16.2 C50 11.3 12.0 12.7 13.4 14.0 14.5 15.2 16.0 16.7 17.9 18.8 19.6 20.1 20.4 19.6 12.9 C63 11.9 12.8 13.5 14.2 14.9 15.5 16.2 17.1 17.9 19.2 20.3 21.2 22.0 22.5 22.9 18.9 C80 12.7 13.5 14.4 15.1 15.8 16.5 17.3 18.3 19.1 20.7 22.0 23.0 23.9 24.7 26.1 24.0 C100 13.4 14.3 15.2 16.0 16.8 17.5 18.4 19.4 20.4 22.1 23.5 24.8 25.8 26.7 29.1 28.4 C125 14.1 15.1 16.1 16.9 17.7 18.5 19.5 20.6 21.7 23.5 25.1 26.5 27.7 28.8 32.1 32.5 D16 12.1 12.6 13.0 13.3 13.6 13.9 14.1 14.6 14.6 14.6 14.4 13.8 12.9 11.5 D20 13.1 13.6 14.1 14.5 14.8 15.1 15.5 15.8 16.1 16.4 16.3 16.0 15.4 14.5 D25 14.2 14.7 15.3 15.7 16.1 16.5 16.9 17.3 17.7 18.1 18.3 18.2 17.9 17.3 7.7 D32 15.4 16.1 16.7 17.2 17.6 18.0 18.5 19.1 19.5 20.2 20.6 20.7 20.6 20.3 14.6 D40 16.7 17.4 18.0 18.6 19.1 19.6 20.1 20.8 21.3 22.1 22.7 23.0 23.1 23.1 19.4 D50 18.0 18.7 19.4 20.1 20..7 21.2 21.8 22.5 23.2 24.2 24.9 25.4 25.7 25.9 23.7 15.2 D63 19.4 20.3 21.1 21.8 22.4 23.0 23.7 24.5 25.2 26.4 27.4 28.1 28.6 28.9 28.0 22.5 D80 21.1 22.0 22.8 23.6 24.3 25.0 25.8 26.7 27.5 28.9 30.0 30.9 31.6 32.1 32.4 28.9 D100 22.7 23.7 24.6 25.5 26.3 27.0 27.9 28.9 29.8 31.4 32.7 33.7 34.6 35.3 36.5 34.5 D125 24.5 25.6 27.5 28.3 29.1 30.1 31.2 32.2 34.0 35.5 36.7 37.8 38.6 40.8 40.0 Maximum spacing between fittings, metres EL Spacing Table Australian Standard AS2293.1-2005 Australian Standard AS2293.1-2005 specifies that the light level at the floor, under emergency lighting conditions, must be a minimum of 0.2 lux. The illuminance level at the floor will be dependent upon both the light output of the fitting and the height at which the fitting is mounted above the floor. Emergency light fittings are tested and based on performance, assigned classifications in a number of classes (Class A to Class E). Fittings with a single light source are generally classified in two axis, C0 and C90. Fittings with two light sources such as a 2x36W batten are generally assigned classifications in three axis – C0, C90 and C180 as the light distribution is not symmetrical. The spacing tables in Australian Standard AS2293.1-2005 can be used to determine the maximum spacing between fittings in each of the several axis, dependent upon the classification of the fitting. 12 September 2012 NB: Refer to the Australian Standard AS2293.1-2005 for complete data.
