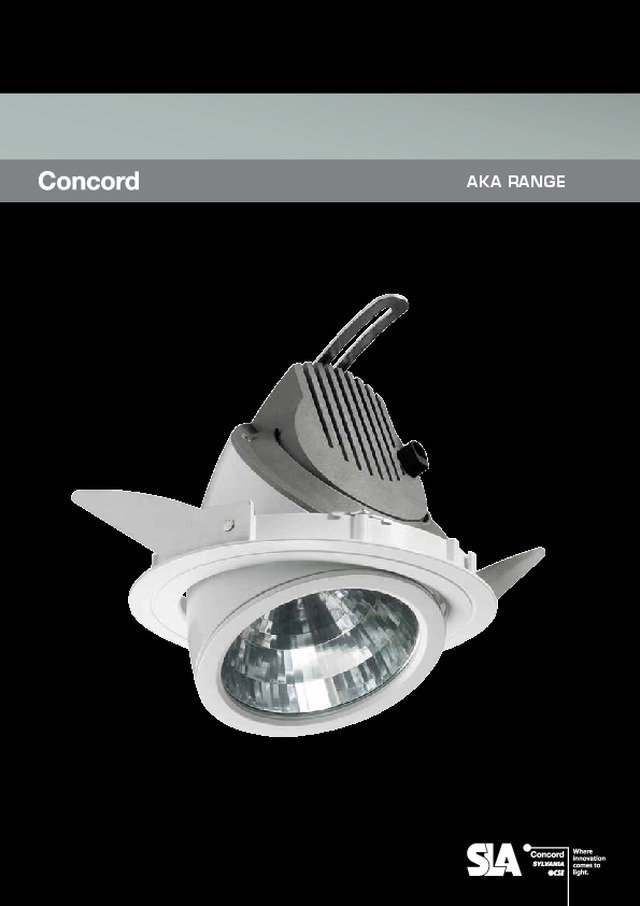

Aka Catalogue

AKA RANGE

AKA APPLICATIOnS:   ¨ Shops   ¨ Restaurants   ¨ Hotels   ¨ Offices   ¨ Showrooms   ¨ Reception Areas   ¨ Capable of being fully recessed for clean ceiling lines   ¨ Well established, reliable lamp technology   ¨ Smooth friction action ensures selected tilt and rotation settings remain constant   ¨ For non LED IP44 rating allow installation under canopies   ¨ 15º and 60º reflector versions for display lighting flexibility   ¨ Suitable for mounting into all common ceiling types   ¨ Durable all metal construction   ¨ Easy lamp change from the front  No need to access rear of fixture   ¨ Reflector housing assembly equipped with retaining  cable to allow hands free suspension during lamp  change operations   ¨ White only, silver versions available on request Control gear:  Wire wound / Electronic Reflector:  Aluminium Safety Lens:  borosilicate glass Housing:  All metal Finish:  Powder coated white    RAL 9016 leD & hiD recessed

DOWnLIgHT  / ACCEnT  & WALL WASHERS 54  54w 3K 54w 4K 38° 360° AKA leD Features   ¨ Available LED colour temperature 3000k & 4000k   ¨ 3000k 54w 3100m   ¨ 4000k 54w 4400lm   ¨ 58° beam distribution   ¨ ‘Easy’ tiltable to 70° from the horizontal with a 358° rotation   ¨ Enclosed LED IP44   ¨ All pressure die cast aluminium bezel & mandrel in Concord white finish   ¨ Available non dim    ¨ Tool less plug and play format. Driver – mains side, is fitted with a flex and plug. Secondary side is fitted with a quick connect socket. Fixture is fitted with a long tail and quick connect plug   ¨ Suitable for ceiling thickness up to 30mm   ¨ 50,000hr rated life AKA AKA 170mm Ø185mm 130mm Tilt 70° Cut out 172mm   ¨ APPLICATIOnS RETAIL / OFFICES / HOTEL & LEISuRE / EDuCATIOnAL / PubLIC buILDIngS / HEALTHCARE 1810436  • • 1810446  • • orDer coDeS 54W 3000K 4000K ip44 ecG  180º 120º 90º 60º 30º  0º 30º 60º 90º 120º cd/klm 1000 h (m) 0.5 1.0 1.5 2.0 2.5 3.0 Emax (lx) 9358 0.55m 1.11m 1.66m 2.22m 2.77m 3.33m 2339 1040 585 374 260 Offset Illuminance Cone Width  180º 120º 90º 60º 30º  0º 30º 60º 90º 120º cd/klm 1000

55  DOWnLIgHT  / ACCEnT & WALL WASHERS 38° 360° AKA hiD Features   ¨ Capable of being fully recessed for clean ceiling lines   ¨ Well established, reliable lamp technology   ¨ Smooth friction action ensures selected tilt and rotation settings remain constant   ¨ IP44   ¨ 15º and 60º reflector versions for display lighting flexibility   ¨ Suitable for mounting into all common ceiling types   ¨ Durable all metal construction   ¨ Easy lamp change from the front. No need to access rear of fixture   ¨ Reflector housing assembly equipped with retaining cable to allow hands free suspension during lamp change operations   ¨ White only, silver versions available on request   ¨ 350º rotation and 70º vertical tilt provides optimum display lighting flexibility   ¨ White only, silver versions available upon request AKA CMI/CDM-TCMI-T/HIT-CE 35/70wg1235w = 3400 lm70w = 6200 lm 15º Spot  70w 60º Flood  70w AKA iTeM  WeiGhT  15° SpoT  60° FlooD 35/70w HIT-CE  1.01kg  2041978  2041979 170mm Ø185mm 130mm Tilt 70° Cut out 172mm   ¨ APPLICATIOnS RETAIL / OFFICES / HOTEL & LEISuRE / EDuCATIOnAL / PubLIC buILDIngS / HEALTHCARE ecG ip44
