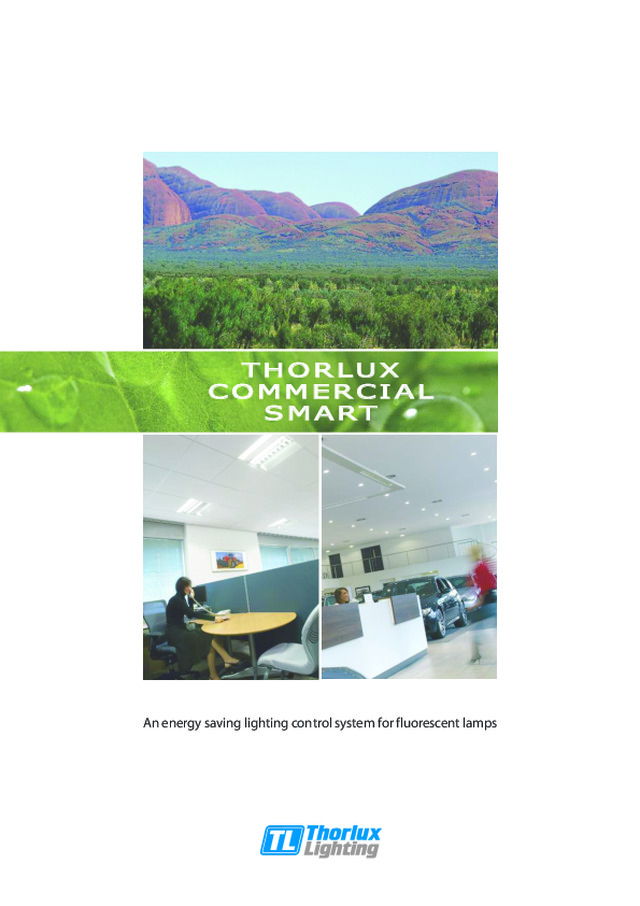

Thorlux Commercial Lighting Control System

An energy saving lighting control system for fluorescent lamps T T H H O O R R L L U U X X C C O O M M M M E E R R C C I I A A L L S S M M A A R RT T

What is Smart? The world’s ever increasing demand for energy is rapidly changing our environment and the need for energy efficiency in every aspect of ourdaily lives has never been greater. The Thorlux Smart System combines the latest “Digital Technology” to provide a simple, effective method of lighting control which minimises energy consumption whilst retaining high levels of user comfort. A discrete sensor integral to the luminaire monitors ambient light and presence, to control output to the correct level, and to ensure thatthe area is only illuminated when occupied. Lighting can account for a high percentage of energy consumed withina building, especially if uncontrolled discharge luminaires or old technology switch start luminaires are installed. Savings by installation of automatic lighting control systems can reach 70%. save energy save money save environment save energy save money save environment save energy save money save environment save energy save money save environment save energy save money save environment save energy save money save environment save energy save money save environment save energy save money save environment T T H H O O R R L L U U X X C C O O M M M M E E R R C C I I A A L L S S M M A A R RT T An energy saving lighting control system for fluorescent lamps 3 2

T T H H E E S S M M A A R RT T S S Y Y S S T T E E M M Passive infra-red detection 5 T T H H E E S S M M A A R RT T S S Y Y S S T T E E M M Daylight compensation Daylight linking When daylight enters an area the sensors will take this light into account and gradually dim the lamps, saving energy whilst maintaining the required light level.Changes in light levels are made gradually for the comfort of users. Each luminaire in the Thorlux Smart System measures and adjusts independently according to the ambient light in its immediate surroundings. This provides good uniformity across the working planeeven in situations where the natural daylight ingress is varied across the area. Bright out feature In the event of excess natural light, for more than 10 minutes, the Smart luminaire will switch off completely, saving a further 20% energy and prolonging lamp life. Maintained illuminance Accumulation of dirt and lamp lumen depreciation causes light loss and uncontrolled schemes are initially ‘overlit’ to compensate, resulting in wasted energy over the maintenance cycle.The Thorlux Smart System avoids this waste of energy and over lighting by allowing installations to be initially dimmed to the requiredlight level. This level is sustained throughout the maintenance cycle by thesystem automatically increasing lamp output. Maintained Illuminance LI G H T LE VE L MAINTENANCE CYCLE VARYING LEVEL WITHOUT SMART CONTROL OVERLIGHTING MAINTAINED ILLUMINANCE LEVEL CONTROLLED BY THE SENSOR AVOIDS OVERLIGHTING - SAVING ENERGY TIME AVAILABLE DAYLIGHT CAN REDUCE ARTIFICIAL LIGHTING LOAD MAINTAINED ILLUMINANCE LEVEL CONTROLLED BY THE SENSOR SAVING ENERGY WHEN DAYLIGHT IS AVAILABLE DAWN MID-DAY DUSK Daylight Linking LI G H T LE VE L Jubilee-XL with Smart Micro-pod Sensor Daylight ingress saves energy The Thorlux difference Individual Thorlux Smart luminaires may be linked into a grouped system using a “Motionline” two wire lowvoltage bus allowing luminaires to communicate within a group. If any one luminaire detects movement all connected luminaireswithin the group will illuminate. This valuable feature is designed toeliminate the possibility of a user being isolated in a small pool oflight, surrounded by intimidating darkness. The Motionline ensuresthat there will always be a well lit comfortable environment. Once the last person leaves an area the luminaire waits for a pre-programmed period before switching off or dimming to a userpre-defined level. A manual override facility can be provided. Operation Energy savings accrue primarily due to the grouped luminaires not being illuminated during periods of non-occupation,but the adaptable Smart system can be programmed using the“Smart-Programmer” to offer other energy saving and safety orientated configurations. Luminaires within a group are programmable individually and may be set to dim to any chosenlevel between 1 and 100% rather than to extinguish after the time-out period. Some luminaires may be programmed to stay on,after the time-out period at a high level of illumination for pilotlighting purposes. The Smart sensor detects small movements at mounting heightsup to 4 metres and large movements at mounting heights up to 10metres. Absence detection The Thorlux Smart System can also be programmed for absence detection only. A switch connected to theMotionline is required to turn an installation on but if the room isleft unoccupied the lights will automatically switch off after the pre-determined time. Without Motionline each luminaire will only turn on if a person is withinits immediate area. Figure 2: Modular wiring With Motionline a group of luminaires can be switched on when any onesensor detects movement. By isolating the Motionline signal (see Figure 1)separate zones can be achieved whilst using a common mains supply. For modular wiring use the Signal-Isolator ( LCM 10803 ) which permits mains supply from adjacent zone whilst isolating the Motionline controlsignal (see Figure 2). ZONE 2 ZONE 1 Fast, error-free, factory pre-made connections 6-WAY MAINS/CONTROL LEAD LCM 11030 - 4 metre SIGNAL-ISOLATOR LCM 10803 T-PIECE fitted to the back of each recessed Smart luminaire 6-WAY MAINS PLUG WITH 4 CORE INPUT LEAD LCM 12749 - 3 metre 4 RACKING RACKING RACKING Figure 1: Wiring of separate zones

7 T T H H E E S S M M A A R RT T S S Y Y S S T T E E M M Smart programmable features T T H H E E S S M M A A R RT T S S Y Y S S T T E E M M Manual dimming using retractive switch or remote control Thorlux Smart luminaires can be controlled manually using a retractive(push to make) switch or the Smart-Remote infra-red handset. Manual dimming via switch Any number of retractive switches can be connected to the Motionline to provide group dimming control of the Smart luminaires. In normal operation the Smart luminaires will be automatically adjustingtheir own luminance level to suit their local immediate requirement. When controlled via the switch all the luminaires will initially synchroniseto the same lighting level which can then be varied from 100% to 1% andoff. Group dimming control is activated by pressing and holding theswitch. Once the area is vacated and the installation has subsequently turned off,the system will revert to automatic mode. Automatic mode can also be selected by one single momentary press of the switch. The Smart-Remote can be used to dim and switch individual luminaires or the group as a whole. Motionline connection into the 6 way mains input plug. Motionline connection into any 6 way plug/socket. 5 amps max. or 20 luminaires A Modular Wired Applications Mains circuit (L,E,N) 5 amps max. Motionline - max. 25 luminaires Connect switch(es) anywhere in Motionline circuit retractive switch Hard Wired Applications Manual dimming via the remote controller The Thorlux Smart-Remote can be used to controlindividual fittings or the group as a whole. It provides full control with on, off, raise and lowerfeatures. The Smart-Remote is supplied with a wall mounting bracket. A locking key kit ECO 9724 is available if required . Smart-Remote LCM 13479 A 6-way mains plug with 4 core input lead LCM 12749B - 3m B 6-way mains/control lead LCM 11030B - 4m Features programmable during commissioning G No presence delay After a delay which is variable between 30 secondsand 1 hour the luminaires will go to the area vacant condition. Factory setting - 10 minutes. G Area vacant condition Off or minimum level. Factory setting - off. G Security setting delay This allows an interim delay (30 seconds to 1 hour, or continuous) at a selected level (anywhere between minimumand maximum) following no presence detection and prior to the area vacant condition. Factory setting - disabled. For example, all luminaires in a building may be set to switch off except for exit routes which will reduce to 50%, for a further hour (assuming no presence detected). Alternatively as a security feature, perhaps 1 in 20 lights may be kept on continuously at any chosen level. G Light level setting Completely variable or may be set to maximum continuously. G Bright out setting Lamps will be switched off (particularly those nearest the window) if excess daylight is present for more than 10 minutes. Luminaires can also be programmed to simply dim and not switch off. G Automatic setting retention If lighting is manually overridden,e.g. for a presentation, following a subsequent area vacant switch off, the system will revert back to automatic mode. It may alternativelybe set to retain manually overridden settings. Installation commissioning using the Smart-Programmer LCM 10777 6 Modular wiring offers significant savings on installation costs andalso enables easy reconfiguration of the layout should the workingarea change. Typically the installation of 25 recessed XL-Five Smart luminaires would take 2 contractors just 2 hours to complete.

Smart saves energy, in addition, HF T5 digital technology realises the following benefits: G Instant white light G Instant re-strike G Power factor 0.95 G Supply voltage range from 198V to 264V (220/240V +/- 10%) G 30,000 hour T5 lamp life G 10% total harmonic distortion G Integral emergency options G Lower cost of lamp maintenance The Smart range of luminaires combines the latest lamp and digitalgear technology with automated control to provide significant savings for both the end user and the environment.The following example shows typical savings that can be made. Building Specification The office is 15m wide with a ceiling height of 2.8m. Windows down both 30m lengths of office The design luminance level is 320 Lux. Scheme 1 Luminaire: 3 x 18W Radiance (switch start)72 luminaires are required to achieve 320 lux The total circuit wattage for each luminaire is 82.5WThe total wattage for the installation is 5.94kWIf the building is used for 365 days a year: 12 hours / day 18 hours / day 24 hours / day Approximateenergy used 26,017kWh 39,026kWh 52,034kWh S S A AV V E E E E N N E E R R G G Y Y Scheme 2 - Smart Fluorescent Option Luminaire: 3 x 14W T5 XL-Five Smart60 luminaires are required to achieve 320 luxThe total circuit wattage for each luminaire is 51.6WThe total circuit wattage for the installation is 3.09kWAssuming a 50% energy saving due to maintained illuminance and daylight linking and a 25% energy saving due to presence detection thefollowing savings can be realised for various burning hours. 12 hours / day 18 hours / day 24 hours / day Energy used 5,085kWh 10,170kWh 15,255kWh Energy saved 20,932kWh 28,856kWh 36,779kWh S S A AV V E E M M O O N N E E Y Y Saving assuming 14c per kilowatt-hour 12 hours / day 18 hours / day 24 hours / day Money savedper luminaire $38.72 $52.16 $65.60 over 365 daysTotal saving $2,930.48 $4,039.76 $5,149.04 S S A AV V E E T T H H E E E E N N V V I I R R O O N N M M E E N N T T An average tree can absorb 1121kg of carbon dioxide throughout its lifetime. Each kWh of electricity generated produces 1.054kg of CO 2 . The following shows how many trees would have to be planted every year to offset the carbon produced from running this installation: 12 hours / day 18 hours / day 24 hours / day Scheme 1 24 Trees 37 Trees 49 Trees Scheme 2 5 Trees 10 Trees 14 Trees Based on U.S. Department of Energy Report on Greenhouse Gases 1998. Based on Victoria Government figures. C C A A S S E E S S T T U U D D Y Y School Laboratory - 75% Energy Saving 9 S S A AV V E E E E N N E E R R G G Y Y,, S S A AV V E E M M O O N N E E Y Y,, S S A AV V E E T T H H E E E E N N V V I I R R O O N N M M E E N N T T !! Example 8 Main Results G 25% reduction in installed load by replacing the luminaires. G 75% total reduction in energy when combined with Smartcontrols. G 75% reduction in CO 2 emissions. West Kirby Grammar School for Girls, UK Wirral Borough Council has recently undertaken the refurbishment of thelighting in the laboratories at West Kirby Grammar School for Girls. The old 2 x 58W T8 batten luminaires have been replaced on a one for onebasis by 2 x 49W T5 Smart Jubilee luminaires. The change of luminaire type alone resulted in a 25% reduction in loadwith no change to the general light level. The laboratories benefit from good levels of daylight making Smart luminaires an ideal choice and provides significant additional energy savings. Dual Control Features Movement Sensing. Any luminaire detecting movement switches all fittings within the group on together. If no movement is detected by anyof the luminaires for a period of five minutes the lights will dim down andswitch off until a further movement detection is made. Daylight Dimming. Depending upon ambient daylight, each luminairewill brighten or dim independently to maintain a pre-set light level. Should ambient daylight exceed the programmed level for more than tenminutes the individual luminaires, due to the Thorlux “bright out” functionality, will switch off until ambient light levels drop once morebelow the pre-set level. Data Logging A data logger connected to a CT Clamp was used to monitor the currentdrawn by the lights. It recorded at 2 minute intervals and was left in place,during late October (Autumn), for 7 days. A 75% average energy saving was achieved, with 82% saved on the bestday and 60% on the worst. We anticipate savings will increase during thesummer. OLD NEW Luminaires 12 qty 2 x 58W 12 qty 2 x 49W Surface batten Jubilee Smart Total maximum load 1.68kW 1.27kW kWh per annum 2673 668 Annual Electricity Cost $374.22 $93.52 Annual CO 2 production 1416kg 354kg Reduction in CO 2 1062kg No. of trees required per annum 1.4 0.35 Assuming 14c per kWh

Features G Shallow body depth, 135mm G Hi-Style luminaires project no more than 53mm below ceiling G Suitable for most ceiling types; lay-in or pull-up with optional side arm suspensions G Single lamp solution provides high efficiency and reliability G Carefully controlled optics G All versions have wide distribution and avoid harsh contrast G Glass-like trim and secondary optics G Supplied with T-piece connector for quick installation (See Figure 1) G Louvres - vibrant appearance, zero iridescence, 94% reflectivity. New surface coating technology is finger mark resistant G Fitted with lamp High performance recessed luminaires for professional lighting solutions Specification G ‘Glo-glass’ and ‘Plus-glass’ panels, are UV stabilised, fire retardant polycarbonate G Steel body is zinc plated finished satin white (RAL9016) non-yellowing full polyester powder coat G Fused connector as standard G Standards - AS/NZ 60598 2-1, classified IP20, CE and F-marked G Performance figures are based on Philips PL-L lamps Smart Micro-Pod in louvre Smart Micro-Pod in basket COM SMART Page 12 PRO SMART Page 14 GLO SMART Page 16 PLUS SMART Page 18 H H I I - - S S T T Y Y L L E E S S M M A A R RT T R R A A N N G G E E 11 Figure 1

G Steel body finished satin white (RAL9016) G Broad distribution provides excellent illumination of corridors and circulation areas with good vertical illumination of upper walls G High uniformity luminance at all angles gives a low brightness effect G Body depth 135mm G Supplied with T-piece connector for quick installation G Fitted with 4000K lamp NOMINAL APPROX. SIZE (mm) LAMP CAT. No. kg 600 x 600 1 x 55W TC-L HI 12295D 5.2 CIRCUIT: D - high frequency regulating ACCESSORY - Optional side arm suspension kit, HI 12349 (4 arms per kit) (Not required for lay-in situations) Range SPACING LUX AVERAGE LUX AVERAGE LAMP (Metres) 70/50/20 80/60/30 OPEN PLAN 1 x 55W TC-L 3.0 x 2.4 300 350 2.4 x 2.4 370 420 CORRIDOR 1 x 55W TC-L 5.4 110 130 Performance Guide Typical task area illuminance assuming an open area with good reflection factors, 0.85 maintenance factor and a 2.65 metre ceiling height CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL 1 LAMP - 55W D.L.O.R. 50% Dimensions and Mounting Arrangements - see page 18 H H I I- - S S T T Y Y L L E E C C O O M M S S M M A A R RT T Recessed TC-L luminaires 13 Photometric Guide

SPACING LUX AVERAGE LUX AVERAGE LAMP (Metres) 70/50/20 80/60/30 OPEN PLAN 1 x 40W TC-L 3.0 x 2.4 360 410 2.4 x 2.4 440 490 Performance Guide Typical task area illuminance assuming an open area with good reflection factors, 0.85 maintenance factor and a 2.65 metre ceiling height NOMINAL APPROX. SIZE (mm) LAMP CAT. No. kg 600 x 600 1 x 40W TC-L HI 12305D 5.0 CIRCUIT: D - high frequency regulating ACCESSORY - Optional side arm suspension kit, HI 12349 (4 arms per kit) (Not required for lay-in situations) Range CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL 1 LAMP - 40W D.L.O.R. 78% G Steel body finished satin white (RAL9016) G High performance with light output ratio up to 78% G Perforated steel side baffles finished satin white G Anodised zero iridescence louvre G Direct/indirect illumination with soft modelling effects G Body depth 135mm G Supplied with T-piece connector for quick installation G Fitted with 4000K lamp Dimensions and Mounting Arrangements - see page 18 H H I I- - S S T T Y Y L L E E P P R R O O S S M M A A R RT T Recessed TC-L luminaires suitable for VDT environments 15 Photometric Guide

G Steel body finished satin white (RAL9016) G High performance with light output ratio up to 80% G Extruded ‘Glo-glass’ side baffles give excellent low glare yet vibrant glass-like appearance G Anodised zero iridescence louvre G Excellent wall illumination athigh angles G Balanced direct/indirect luminance control above 65 o G Body depth 135mm G Supplied with T-piece connector for quick installation G Fitted with 4000K lamp NOMINAL APPROX. SIZE (mm) LAMP CAT. No. kg 600 x 600 1 x 40W TC-L HI 12323D 4.9 CIRCUIT: D - high frequency regulating ACCESSORY - Optional side arm suspension kit, HI 12349 (4 arms per kit) (Not required for lay-in situations) Range SPACING LUX AVERAGE LUX AVERAGE LAMP (Metres) 70/50/20 80/60/30 OPEN PLAN 1 x 40W TC-L 3.0 x 2.4 370 420 2.4 x 2.4 450 510 Performance Guide Typical task area illuminance assuming an open area with good reflection factors, 0.85 maintenance factor and a 2.65 metre ceiling height CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL 1 LAMP - 40W D.L.O.R. 80% Dimensions and Mounting Arrangements - see page 18 H H I I- - S S T T Y Y L L E E G G L L O O S S M M A A R RT T Recessed TC-L luminaires suitable for VDT environments with ‘Glo-glass’ feature providing efficient lively appearance 17 Photometric Guide

G Steel body finished satin white (RAL9016) G High performance with light output ratio up to 76% G ‘Plus-glass’ wings give upward light contributing to ceiling illumination G ‘Glo-glass’ side baffles give low glare yet vibrant glass-like appearance G Anodised zero iridescence louvre G Excellent wall illumination athigh angles G Balanced direct/indirect luminance control above 65 o G Body depth 135mm G Supplied with T-piece connector for quick installation G Fitted with 4000K lamp SPACING LUX AVERAGE LUX AVERAGE LAMP (Metres) 70/50/20 80/60/30 OPEN PLAN 1 x 40W TC-L 3.0 x 2.4 350 400 2.4 x 2.4 430 480 Performance Guide Typical task area illuminance assuming an open area with good reflection factors, 0.85 maintenance factor and a 2.65 metre ceiling height CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL 1 LAMP - 40W D.L.O.R. 75% U.L.O.R. 0.8% NOMINAL APPROX. SIZE (mm) LAMP CAT. No. kg 600 x 600 1 x 40W TC-L HI 12337D 6.3 CIRCUIT: D - high frequency regulating ACCESSORY - Optional side arm suspension kit, HI 12349 (4 arms per kit) (Not required for lay-in situations) Range Dimensions and Mounting Arrangements - see page 18 H H I I - - S S T T Y Y L L E E P P L L U U S S S S M M A A R RT T Recessed TC-L luminaires suitable for VDT environments with ‘Plus-glass’ feature providing an upward light component 19 Mounting Arrangements 600 CRS. 600 CRS. Exposed T bar (15 or 24) Spring Tee 600 CRS. Concealed 20 29 6 577 597 x 597 25 x 25 nogging 15 Plasterboard Ceiling Lay-in on Exposed T bar (15 or 24) 600 CRS. Side arm suspension adjustment range COM PRO and GLO PLUS 16 43 553 106 135 112 597 571 597 89 118 Dimensions COM PRO and GLO PLUS 16 43 553 106 135 112 597 571 597 89 118 18 Photometric Guide

600 CRS. 38 Exposed T-bar (15 or 24) 600 CRS. 45 Spring Tree 25 x 25 nogging 15 577 597 x 597 Plasterboard Ceiling 600 CRS. 38 Lay-in on Exposed T bar (15 or 24) 600 CRS. Concealed G Steel body finished white G VDT louvre, faceted crossblade or flat polycarbonate prismatic controller versions G Louvres - vibrant appearance, 94% reflectivity - finger mark resistant G Perforated canopy creates soft modelling with a measure of upward light G Air-handling versions (available on request) G Lay-in or pull-up using side arm suspension kit (order separately see below) G ‘Peel-off’ film protects louvre and canopy during installation G Supplied with T-piece connector for quick installation G Fitted with 4000K lamps SPACING LUX AVERAGE LUX AVERAGE LAMP (Metres) 70/50/20 80/60/30 VDT LOUVRE 3.0 x 2.4 410 460 3 x 14W T5 2.4 x 2.4 490 550 3.0 x 3.0 320 360 FACETED CROSSBLADE LOUVRE 3.0 x 2.4 380 420 3 x 14W T5 2.4 x 2.4 450 510 3.0 x 3.0 310 350 Performance Guide CANDELAS PER 1000 LUMENS 80 160 240 320 TRANSVERSE AXIAL 600 x 600mm Mounting Arrangements Photometric Guide 3 x 14W T5 VDT LOUVRE D.L.O.R. 82% 300 x 1200mm version LOUVRE VERSIONS VDT FACETED NOMINAL LOUVRE CROSSBLADE APPROX. SIZE (mm) LAMP VERSION VERSION kg 600 x 600 3 x 14W T5 XL 14275D XL 14276D 6.6 300 x 1200 2 x 28W T5 XL 14267D - 7.1 Louvre Range Typical task area illuminance assuming an open area with good reflection factors, 0.85 maintenance factor and a 2.65 metre ceiling height CANDELAS PER 1000 LUMENS 80 160 240 320 TRANSVERSE AXIAL 3 x 14W T5 FACETED CROSSBLADE D.L.O.R. 79% CANDELAS PER 1000 LUMENS 80 160 240 320 TRANSVERSE AXIAL 2 x 28W T5 VDT LOUVRE D.L.O.R. 80% X X L L- - F F I I V V E E S S M M A A R RT T Semi-recessed luminaires for use with T5 lamps 21 20 CANDELAS PER 1000 LUMENS 80 160 240 320 TRANSVERSE AXIAL 4 x 14W T5 PRISMATIC CONTROLLER D.L.O.R. 66% 571 600 x 600 VERSIONS 1171 300 x 1200 VERSION 1195 550 110 87 88 92 297 272 115 65 493 CRS. 597 513 CRS. 597 571 4 x 7 dia. holes VDT louvre version only Smart Micro-pod 335 Flush 60 dia. Smart Pod on prismatic panel version NOMINAL APPROX. SIZE (mm) LAMP CAT. No. kg 600 x 600 4 x 14W T5 XL14289D 5.0 CIRCUIT: D - high frequency regulating ACCESSORY - Optional side arm suspension kit, XL 11138 (4 arms per kit) (Not required for lay-in situations) Prismatic Range PRISMATIC CONTROLLER VERSION

Range NOMINAL LENGTH APPROX SIZE (mm) LAMP CAT. No. (mm) kg 1200 1 x 28W T5 JUB 13077D 1245 4.0 2 x 28W T5 JUB 13078D 4.1 1500 1 x 35W T5 JUB 13079D 1545 5.0 2 x 35W T5 JUB 13080D 5.1 CIRCUIT: D - high frequency regulating LAMPS MUST BE ORDERED SEPARATELY G Shallow profile with co-extruded ‘Satin-Glo’ polycarbonate controller G Steel body finished full polyester powder coated white Smart Micro-Pod Dimensions and Photometric Guide - see page 29 J J U U B B I I L L E E E E S S M M A A R RT T T5 surface mounted shallow profile controller luminaires 23

G ‘Satin-Glo’ polycarbonate side controllers provide high angle illuminance G Vibrant appearance louvre made from high reflectivity Miro aluminium G Finger mark resistant coating on louvre G High light output ratio - up to 94% G Steel body finished full polyester powder coated white Range NOMINAL LENGTH APPROX. SIZE (mm) LAMP CAT. No. (mm) kg 1200 1 x 28W T5 JUB 13083D 1195 4.4 2 x 28W T5 JUB 13084D 4.5 1500 1 x 35W T5 JUB 13085D 1495 5.4 2 x 35W T5 JUB 13086D 5.5 CIRCUIT: D - high frequency regulating LAMPS MUST BE ORDERED SEPARATELY Smart Micro-pod Dimensions and Photometric Guide - see page 29 J J U U B B I I L L E E E E X X L L S S M M A A R RT T T5 surface mounted controller/louvre luminaires 25

Smart Micro-pod (Jubilee version only) 600 CRS. 28W - 982 CRS. 2 x slots 5.5 x 10.5 50 1200 VERSION (Jubilee and Jubilee XL versions) Smart Micro-pod (Jubilee version only) 1200 CRS. 35 & 49W - 1282 CRS. 2 x slots 5.5 x 10.5 50 1500 VERSION (Jubilee and Jubilee XL versions) 21 dia. hole 300 Single or twin lamp 200 78 JUBILEE XL JUBILEE Knockouts each end for M20 conduit 100 200 Single or twin lamp CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL FACTORS: 2 x 35W = 1.10 2 x 28W D.L.O.R. 66% U.L.O.R. 9% CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL Jubilee Photometric Guide 1 x 28W D.L.O.R. 77% U.L.O.R. 11% FACTORS: 1 x 35W = 0.91 FACTORS: 1 x 35W = 0.91 CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL Jubilee XL Photometric Guide XL 1 x 28W D.L.O.R. 91% U.L.O.R. 3% FACTORS: 2 x 35W = 1.10 CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL XL 2 x 28W D.L.O.R. 74% U.L.O.R. 3% Dimensions and Fixings J J U U B B I I L L E E E E S S M M A A R RT T a a n n d d J J U U B B I I L L E E E E X X L L S S M M A A R RT T Photometric guide and dimensions 27

G Steel body, reflector and end caps finished fullpolyester powder coated white G Ultra slim profile G Polycarbonate controllers G Unique patented, Duo-flux®controller design reduces glare and increases downward light efficiency Range NOMINAL LENGTH APPROX. SIZE (mm) LAMP CAT. No. (mm) FIXINGS kg 1200 2 x 28W T5 KB 13259D 1258 600 to 610mm centres 3.0 CIRCUIT: D - high frequency regulating LAMPS MUST BE ORDERED SEPARATELY CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL Photometric Guide 2 x 28W T5 POLYCARBONATE D.L.O.R. 61% U.L.O.R. 14% 80 85 K K A A N N B B Y Y- -T T 5 5 S S M M A A R RT T T5 controller luminaires 29

A A- - L L I I N N E E X X L L S S M M A A R RT T Surface mounted luminaires with increased optical efficiency 31 G Robust and durable extruded aluminium bodywith die-cast ends G High impact resistant textured, flame-retardantpolycarbonate covers G Individual or group PIR control and daylight linking G High efficiency specular MIRO aluminium reflector G Removable fused gear tray retained on suspension straps NOMINAL LENGTH APPROX. SIZE (mm) LAMP CAT. No. (mm) kg 1200 2 x 28W T5 AL 14279D 1298 6.4 CIRCUIT: D - high frequency regulating LAMPS MUST BE ORDERED SEPARATELY Range TRANSVERSE AXIAL CANDELAS PER 1000 LUMENS 320 240 160 80 80 CANDELAS PER 1000 LUMENS TRANSVERSE AXIAL Photometric Guide 2 x 28W T5 D.L.O.R. 75% U.L.O.R. 12% 121 158 Internal Miro aluminium XL reflector IK 06

33 32 D D I I S S C C O O S S M M A A R RT T Circular T5 luminaires suitable for surface or semi-recessed mounting G G E E N N E E R R A A L L I I N N F F O O R R M M A AT T I I O O N N Ordering Order by catalogue number and add suffix/prefix as required. Lamps If not included with luminaire, lamps must be ordered separately (see relevant luminairebullet points). Illustrations Due to our ongoing policy of constant review and improvement we reserve the right to supply luminaires which may vary in detail from the illustrations shown.All dimensions shown on line drawings are in millimetres. Control Gear All standard control gear is of high quality, supplied by European manufacturers and is generally ENEC approved. High frequency fluorescent control gear is warm start for extended lamp life. Installation and Maintenance Instruction leaflets for all luminaires are available by download from www.thorlux.com.au Materials and Finishes Steel - Sheet steel is generally 0.7mm minimum zinc coated and may be finished in fullpolyester non-colour degrading powder coat. Aluminium - Louvres/reflectors are anodised aluminium in specular or satin finish. Castingsand extrusions unless specifically detailed are of alloys chosen as most satisfactory for theirpurpose. Finishes may be surface modification pre-treatment or anodising and/or full noncolour degrading polyester powder coat.Controllers - Polycarbonate and acrylic controllers are UV stabilised. Polycarbonate controllers comply with the 850 degree hot wire test as specified in IEC60695-2-12.Fasteners - External fasteners are generally stainless steel. Standards All luminaires comply with AS/NZ 60598, are classified for ingress protection (IP code) as indicated and F marked (suitable for mounting on combustible surfaces) where appropriate. Voltage High frequency regulating (D) fluorescent-220/240V, 50/60Hz. Photometric Data Photometric data on all luminaires in this catalogue is available by download fromwww.thorlux.com.au Range APPROX. LAMP CAT. No. kg 22W Circular T5 DC 14253D 2.3 CIRCUIT: D - high frequency regulating G Spun aluminium body finished full polyester powder coated white as standard (internal and external) G Opal polycarbonate cover G Fitted with 4000K lamp 452 dia. Shoulder provides light trap 2 x 6 dia. holes 38 116 200 CRS. 50 Smart Micro-pod CANDELAS PER 1000 LUMENS Photometric Guide 22W T5 LAMP D.L.O.R. 62%

35 34 Q Q U U A A L L I I T T Y Y The Thorlux range of luminaires is designed,manufactured and distributed by ThorluxLighting, a division of the F.W. Thorpe plcGroup. Thorlux luminaires have been manufacturedcontinuously since 1936, the year FrederickWilliam Thorpe founded the company. The Company now operates from the Group’smodern 14,410 square metre self-containedfactory in Redditch, Worcestershire, centralEngland. Thorlux is well known throughout the worldand provides a comprehensive range of professional lighting and control systems for architectural, commercial, floodlighting, industrial and tunnel applications. T T H H O O R R L L U U X X L L I I G G H H T T I I N N G G D D E E S S I I G G N N a a n n d d D D E E V V E E L L O O P P M M E E N N T T The Company is assessed to BS EN ISO 9001:2000., which is the customers assurance that Thorlux luminaires are subject to the most stringent quality control. L L I I G G H H T T I I N N G G D D E E S S I I G G N N Our award winning Lighting Design Department will prepare lighting scheme proposals to meet the unique needs of each project including energy saving controls where appropriate. Cost effective lighting, low cost of ownership and user comfort are three key elements accounted for in our designs. For those wishing to produce their own schemes our lighting design computersoftware is available upon request, free of charge. IES files are available fordownload from our website. We are both Dialux and Relux partners. CERTIFICATION BSI KITEMARK ENEC ISO 14001 Photometric Data Our B.S.I. (British Standard Institute) registered Photometric Test Laboratory houses a sophisticatedgoniophotometer for the fast and accurate measurement of luminaire light distribution and efficiency. Results, in digital or hard copy format, areavailable for those wishing to plan a lighting schemeusing our products. Product Testing Rigorous product testing is essential in maintainingour reputation for reliability and quality. Testing covers all aspects of the service conditions a product may experience including extreme ambienttemperatures, dust/water ingress where appropriateand also compliance testing with internationallighting equipment standards. Design 3D computer-aided design is used to develop andmodel new products, with high specification materials and components. Computer simulationtechniques are also used to achieve the photometricperformance required. Pre-production models are fully assessed for electrical, thermal and mechanical characteristics before final production. GONIOPHOTOMETER INVENTOR 9 INTEGRATING SPHERE
