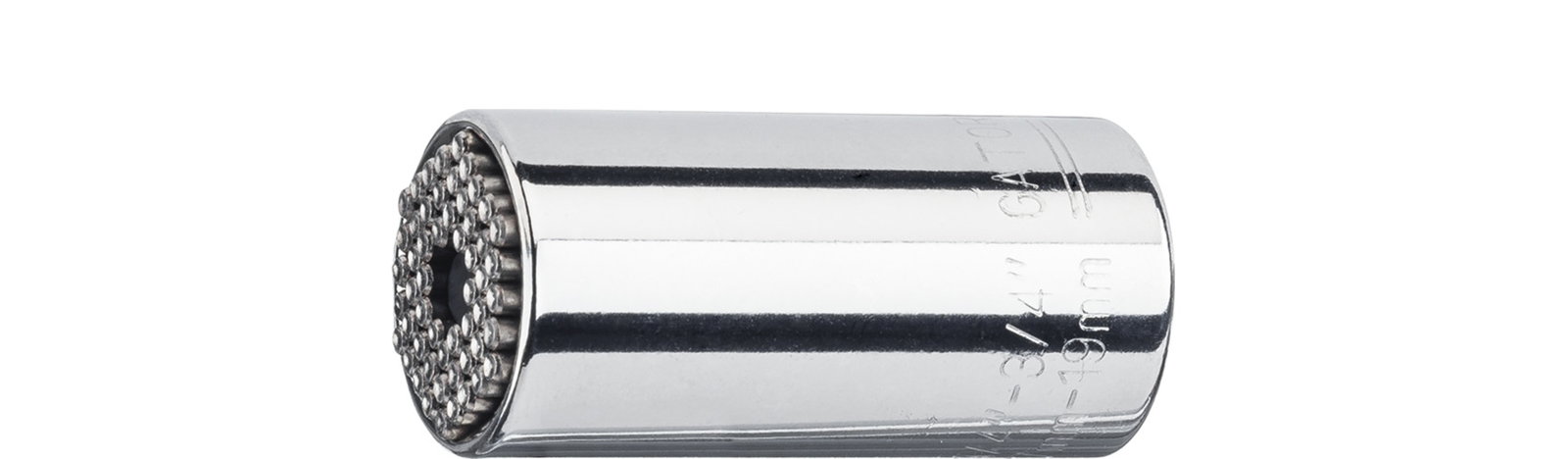

Wiha Nut driver insert gripper 3/8" in blister pack 53.5 mm (09400)

Wiha Nut driver insert gripper 3/8" in blister pack 53.5 mm (09400)

Drive: DIN 3120, style C 10.

Application: The alternative to a nut driver insert when out on jobs. Ideal for fastening uncommon screw types such as hooks or eye bolts.

Extra: Enables a torque transmission of up to 80 Nm.

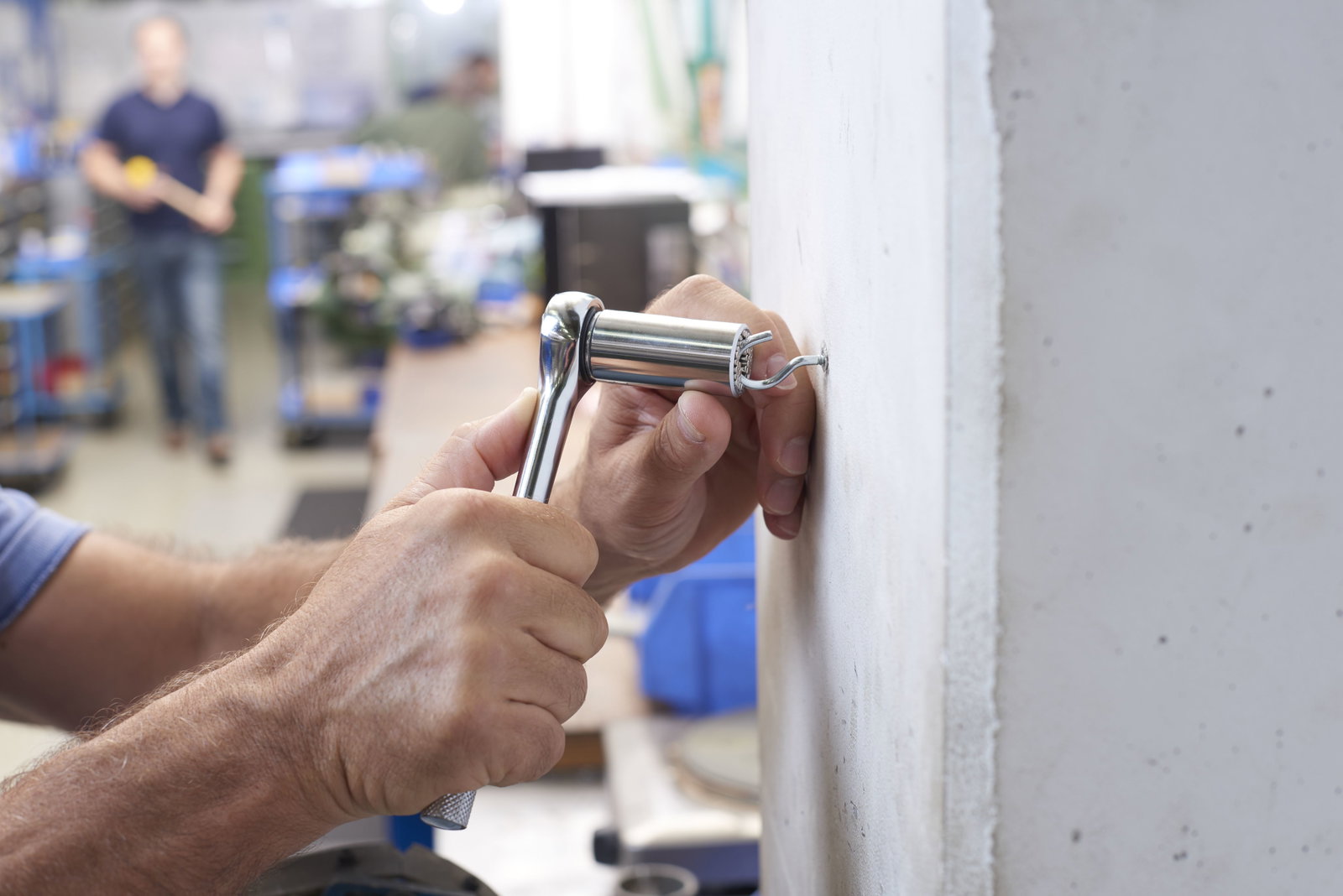

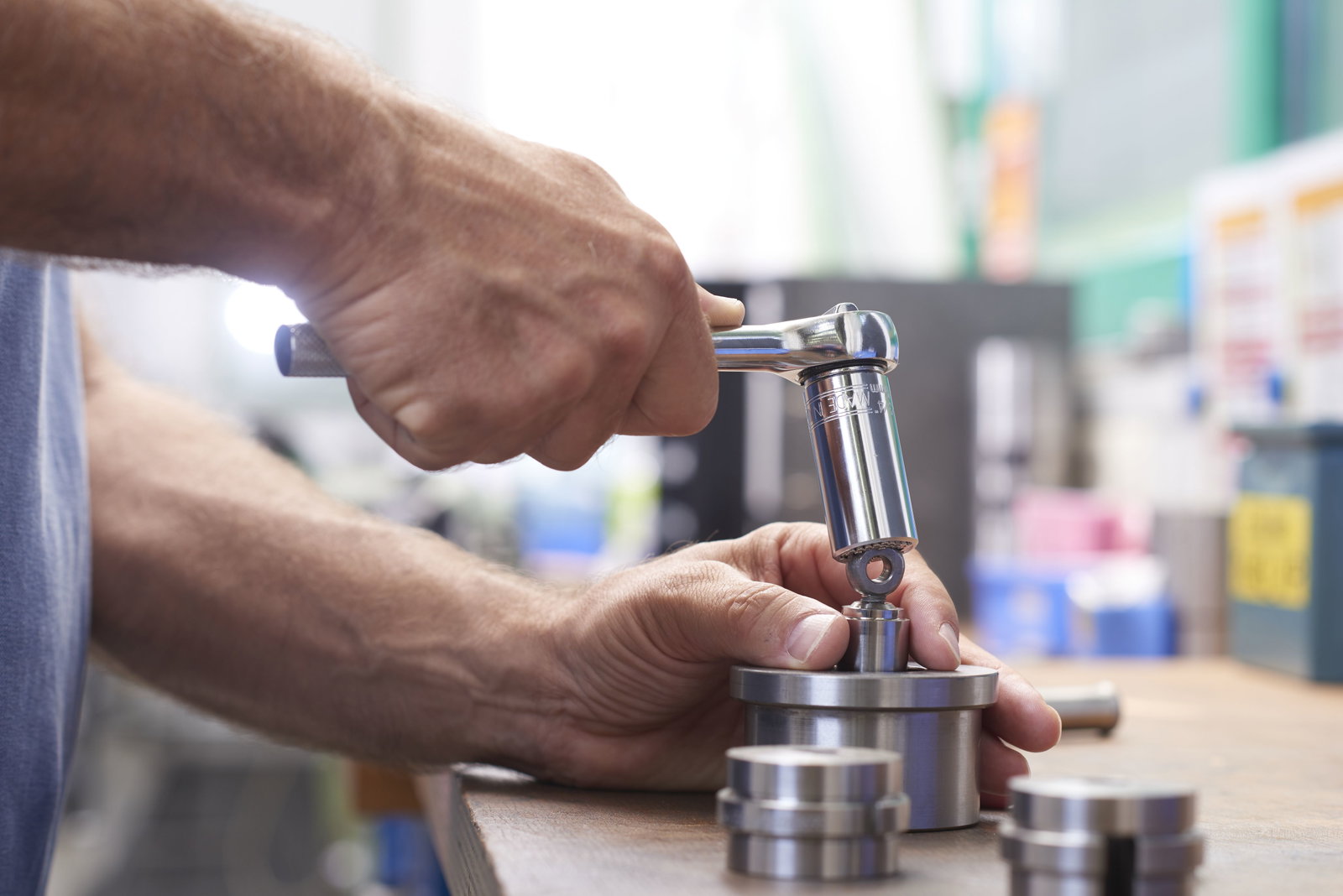

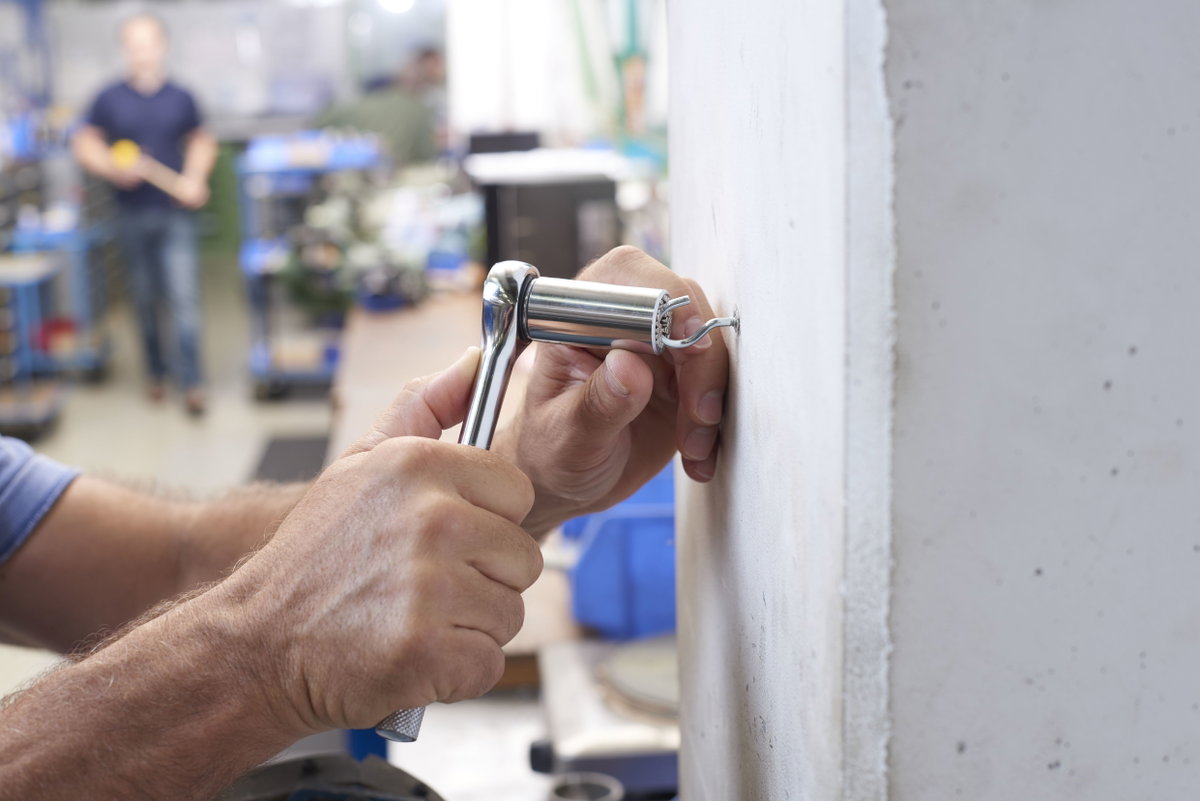

Extra: The Gripper also works on hooks or eyebolts.

Material: Housing made from alloyed steel. 54 spring-loaded hardened steel pins.

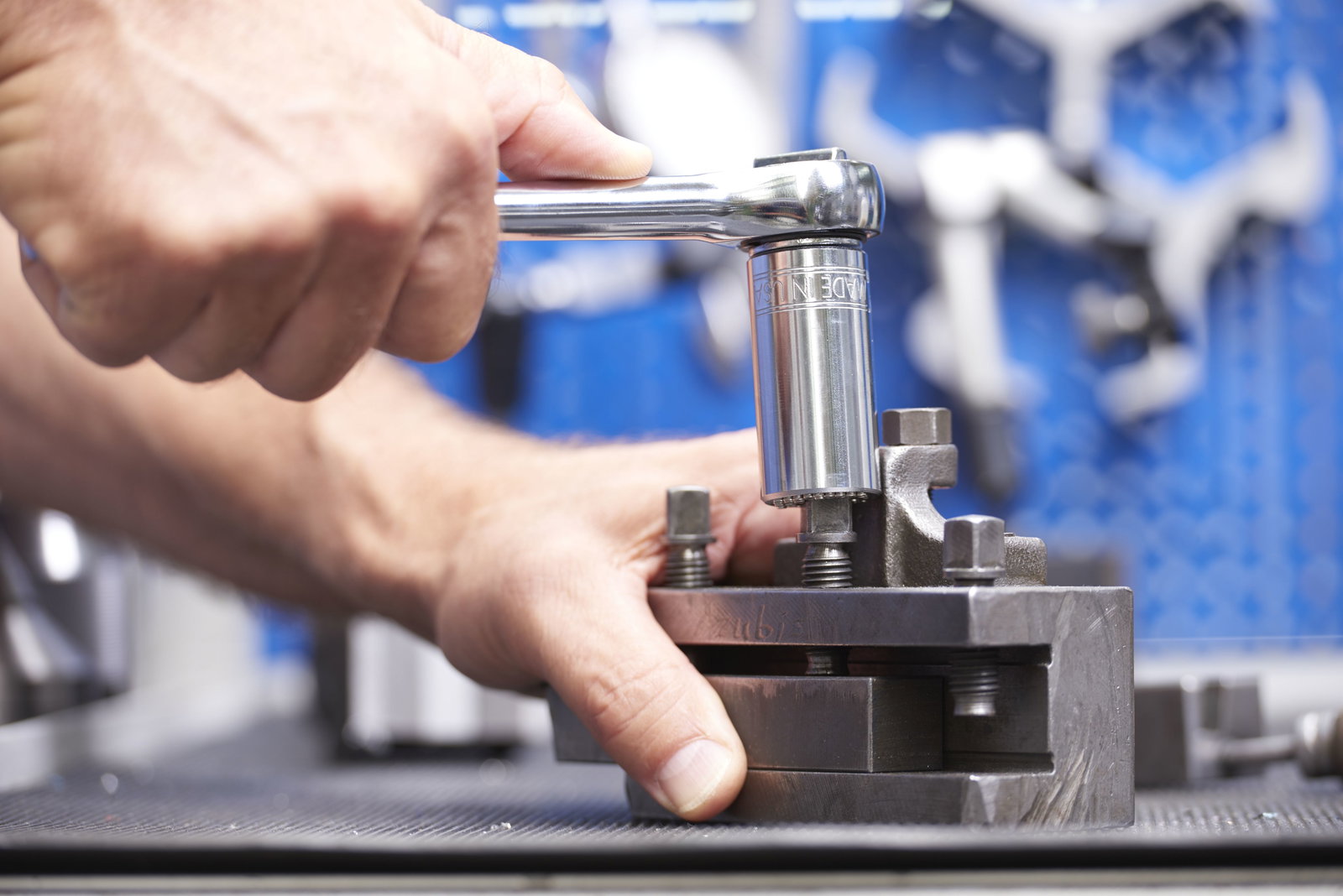

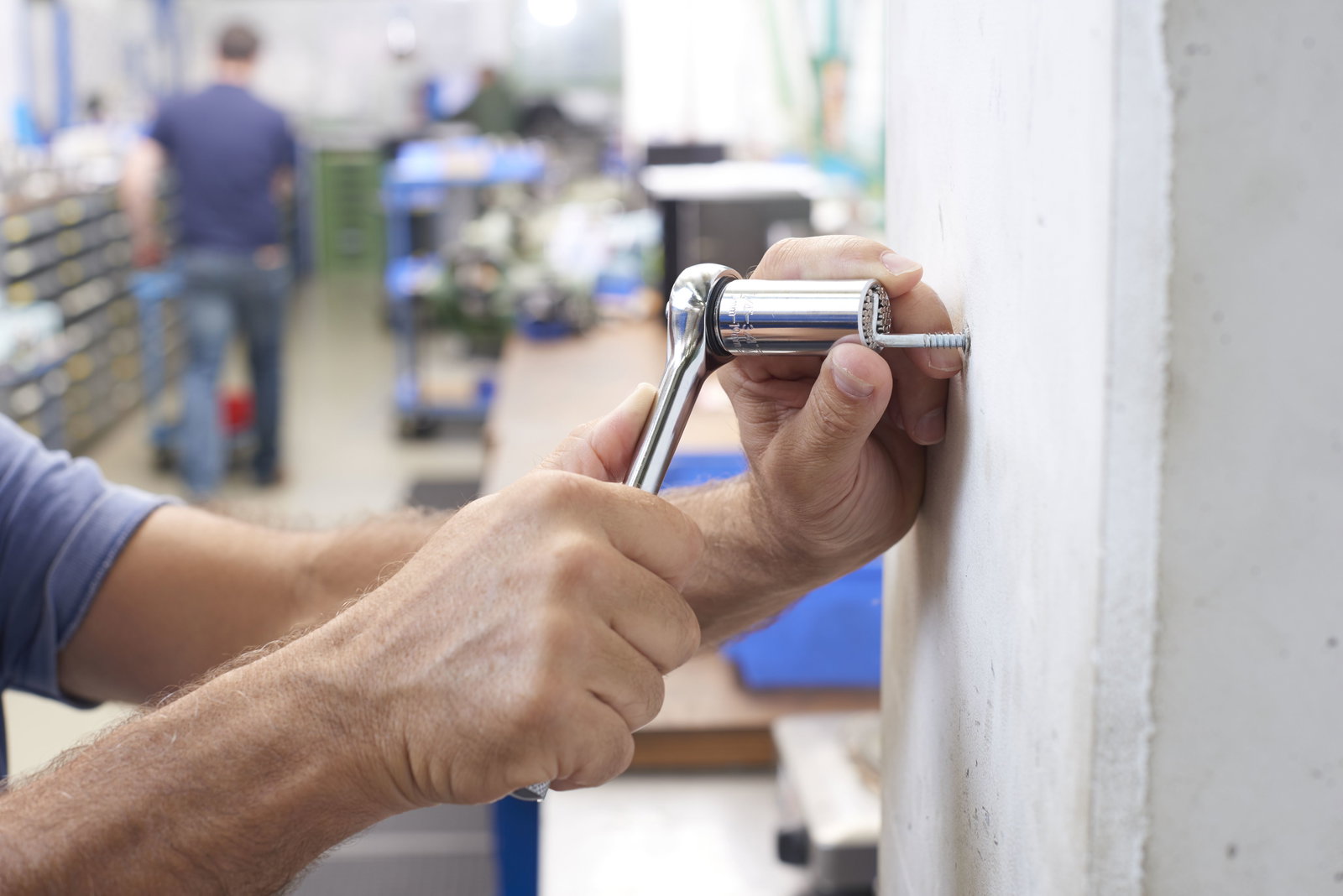

You won't get far with a standard nut driver insert when fastening or undoing uncommon screw types such as eye bolts. Wiha presents the optimum solution with its multi-functional nut driver insert gripper. Thanks to its 54 spring-loaded steel pins, the gripper adjusts to any nut with an external profile or any screw up to 8 mm high. Even uncommon profiles such as hooks or eye bolts do not present a problem for the gripper. It replaces nuts between 7 and 19 mm, regardless of whether dimensions are metric or imperial. Torques up to 80 Nm can also be applied. The nut driver insert fits on 3/8" square tool holders. Thanks to its compact size, the universal gripper provides a space- and weight-saving alternative to a nut driver insert, ideal for carrying around.

Product identifiers

SKU: 09400
EAN: 4010995094003
GTIN: 4010995094003

Specifications

ESD article No
Hexagon head (mm) 19
Tool for electrics No
Overall length (mm) 53.5
Hexagon head min (mm) 7
Outside square (inch) 3/8"
Self service - packing No
Round blade diameter (mm) 25.4
with battery / rechargeable battery No
