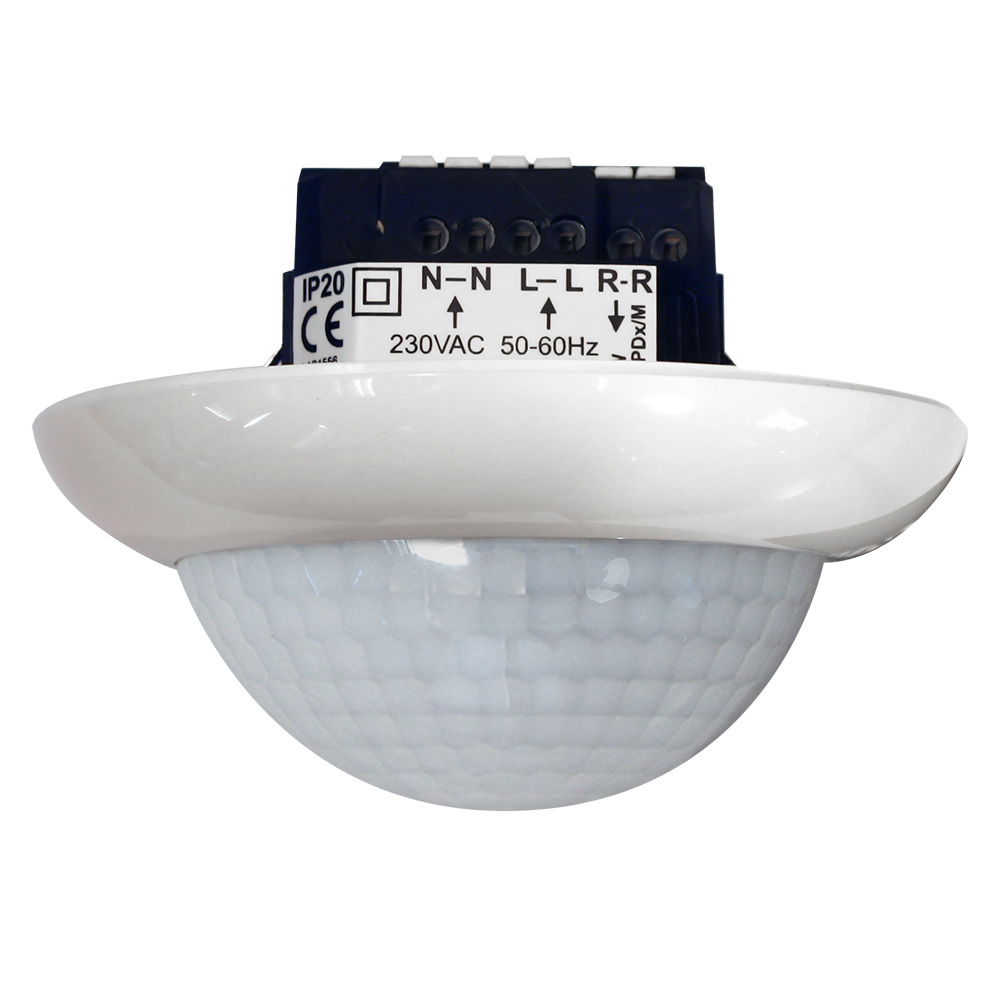

Slave device 360° FM white IP20 24m 1Channel

Name: Slave device 360° FM white IP20 24m 1Channel
Brand: B.E.G.
SKU: 92163

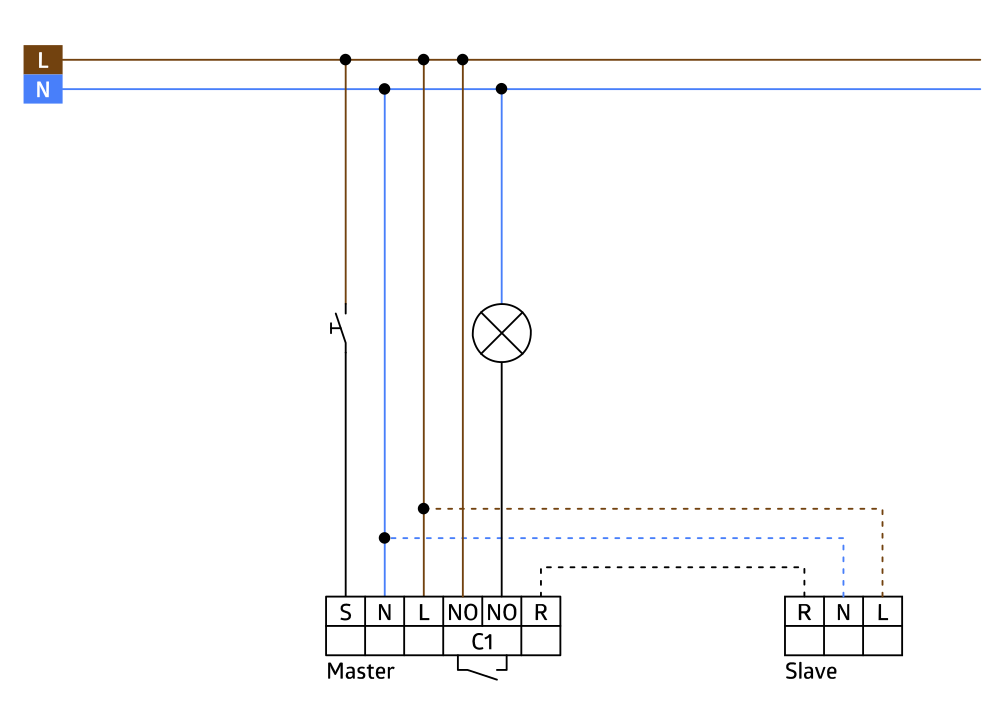

Slave device detector with extended detection area, For extending the detection area of a Master device, Trigger pulse to master device upon detected movement independent of the ambient light level, Compatible with 230 V devices. Concerning exceptions please see the respective master device.

Product identifiers

SKU: 92163

EAN: 4007529921638

GTIN: 4007529921638

MPN: PD4-S-FM

Specifications

Depth	-
Model	Movement sensor
Width	-
Colour	White

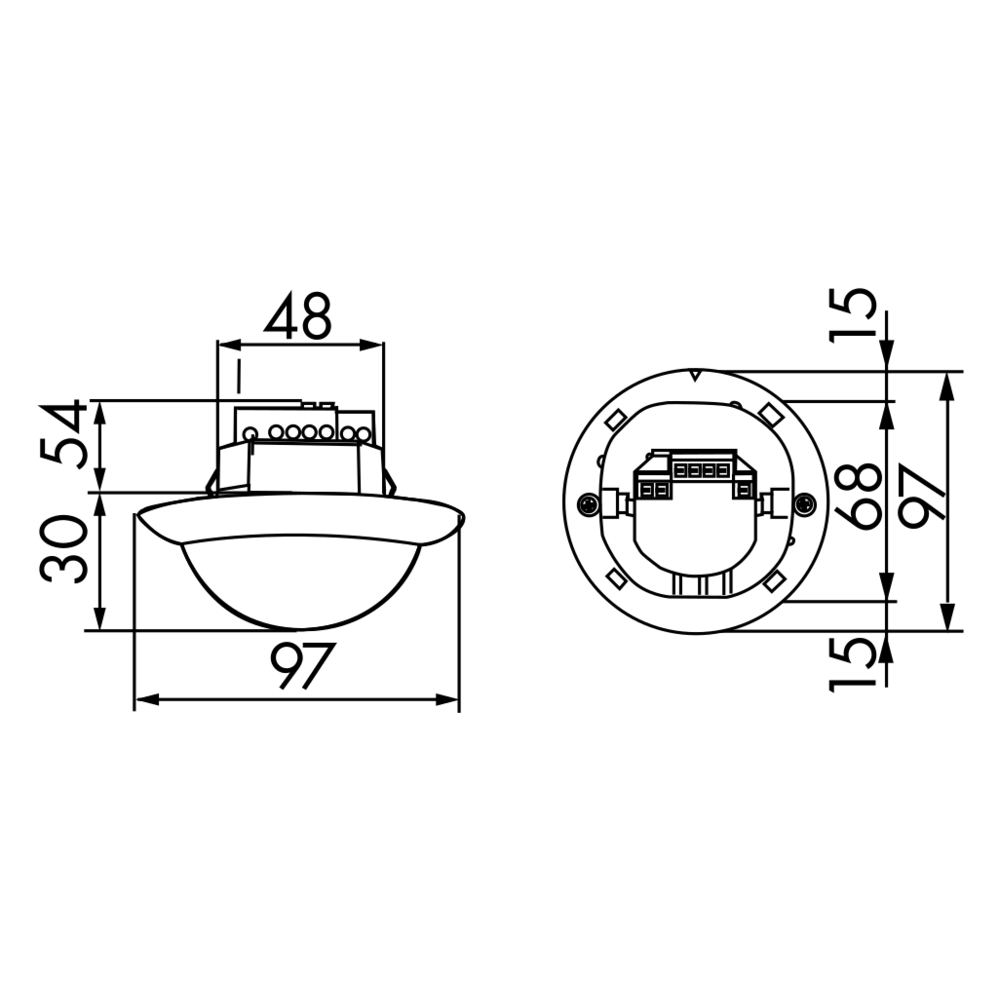

Height	84.0
Diameter	97.0
Material	Plastic
Frequency	50 - 60
Diameter 1	97.0
Diameter 2	-
Scan angle	-
Animal zone	no
Networkable	no
Sensor type	Passive infrared
Temperature	-25 - 50
Transparent	no
HVAC-control	no
Halogen free	yes
Voltage type	AC
Built-in depth	-
Built-in width	-
Surface height	-
Bridging switch	no
Built-in length	-
Connection type	-
Control current	1
Impact strength	IK04
Max. duty cycle	-
Mounting method	EV000383
Nominal voltage	110.0 - 240.0
Forced switch on	-
Material quality	Other
Operating height	-
Remote operation	no
Substation input	-
Switch-off delay	0
With signal unit	no
Built-in diameter	-
Forced switch off	-
Surface finishing	Matt
Surface protection	Untreated
Switching-on delay	0
Max. presence range	32.0
Max. reach sideways	12
Min. switch-on time	-
Suitable for C-load	no
With DALI interface	no
With alarm function	no
With remote control	no
Max. reach frontally	8
Max. switching power	-
RAL-number (similar)	9010
With acoustic sensor	no
Background monitoring	no
Max. starting current	-
Min. starting current	-
With connection cable	no
Constant light control	-
Creep-under protection	no
Connection cable length	0

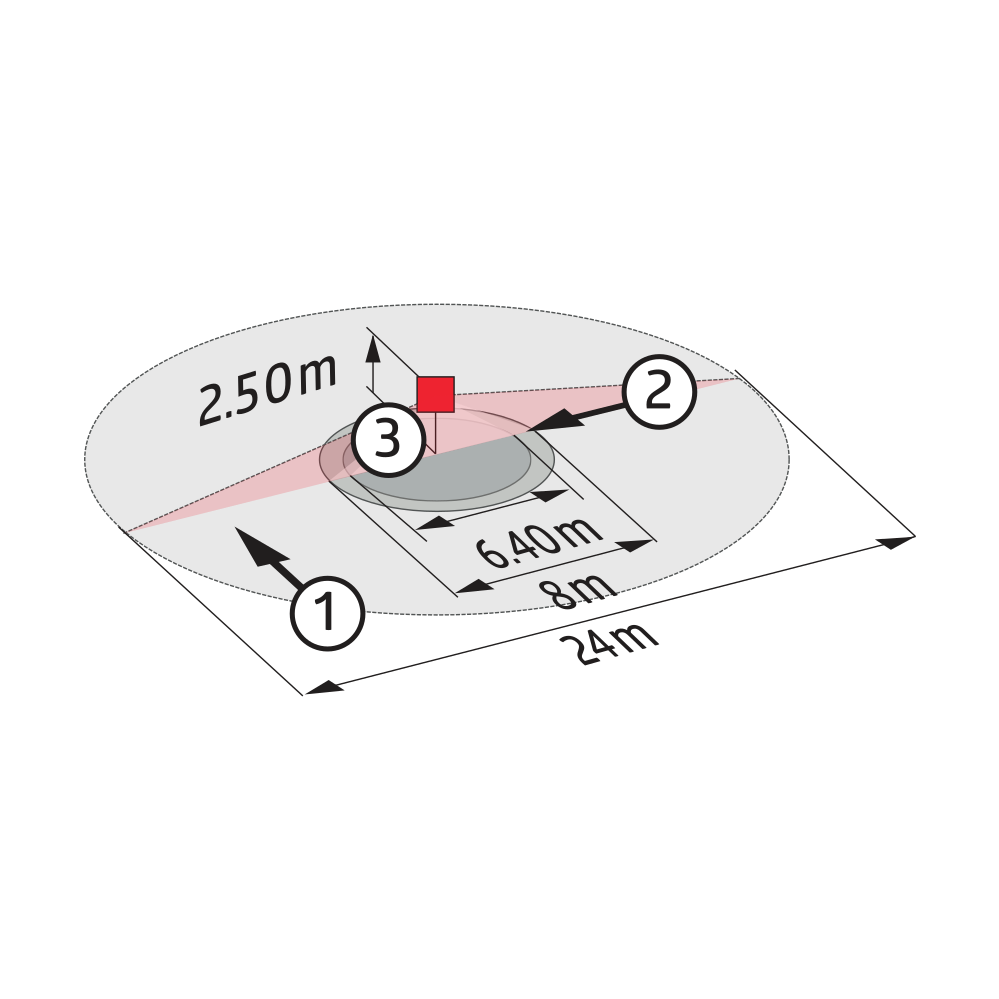

Diameter reach on floor	24
IFTTT support available	no
Optimum mounting height	2.5
Anti-bacterial treatment	no
Max. switching power LED	-
Degree of protection (IP)	IP20
Number of switching zones	450.0
Response value luminosity
Detection angle horizontal
Staircase light controller	yes
Suitable for wall mounting	no
Compatible with Amazon Alexa	no
Compatible with Apple HomeKit	no
Suitable for ceiling mounting	yes
Pivoting range sensor, vertical
Compatible with Google Assistant	no
Pivoting range sensor, horizontal
Suitable for wireless transmission	no
Response value luminosity adjustable	no
Response value sensitivity adjustable	-
Dim function with dimmer basic element	no
Min. depth of built-in installation box	-
Teach-function for response value luminosity	no
