B.E.G.

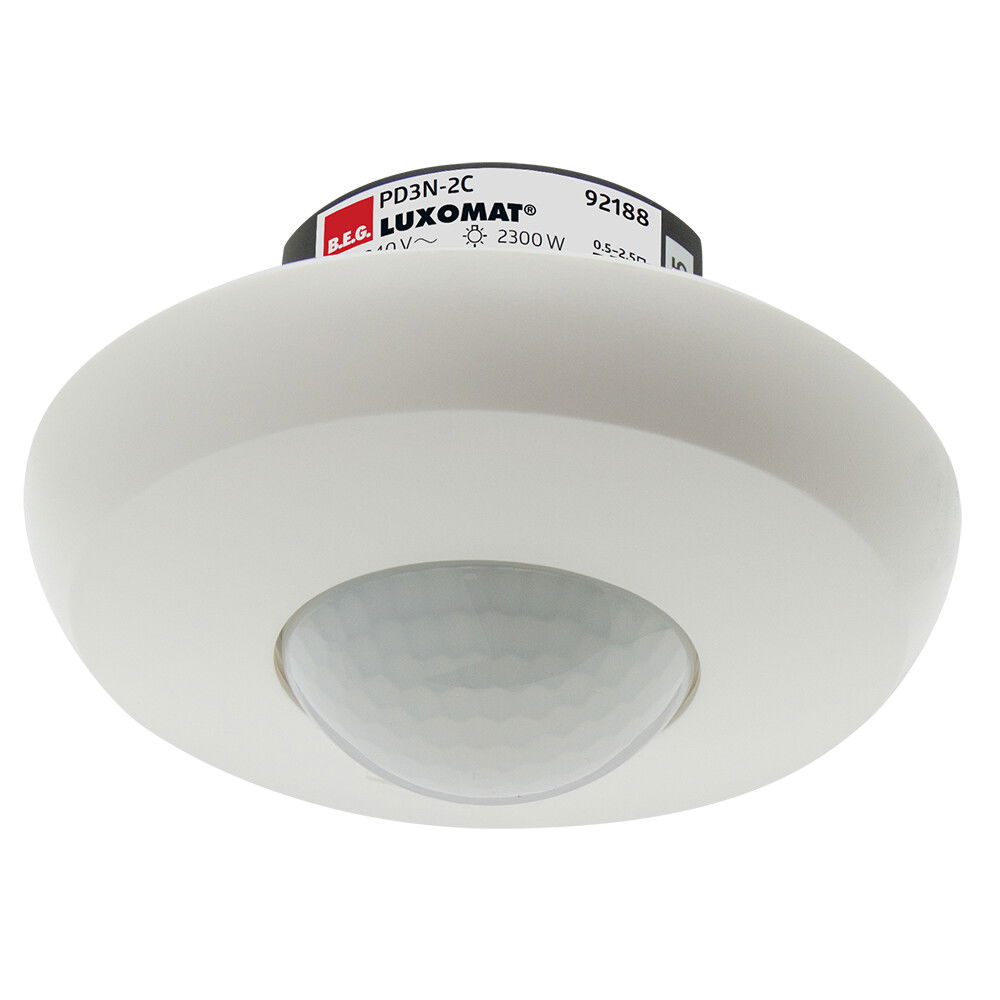

Motion Detector Ceiling mounting 360° FM white IP20 10m 2Channel

Remote control-capable ceiling motion detector, One channel for light switching, Zero crossing switching, One additional potential-free (dry) contact for HVAC, Additional functions can be set up using the optional remote control.

Product identifiers

SKU: 92188
EAN: 4007529921881
GTIN: 4007529921881
MPN: PD3N-2C-FM

Categories

Building Controls & Automation Lighting Control Systems

ETIM group

Domestic switching devices

Specifications

Depth -
Model Movement sensor
Width -
Colour White

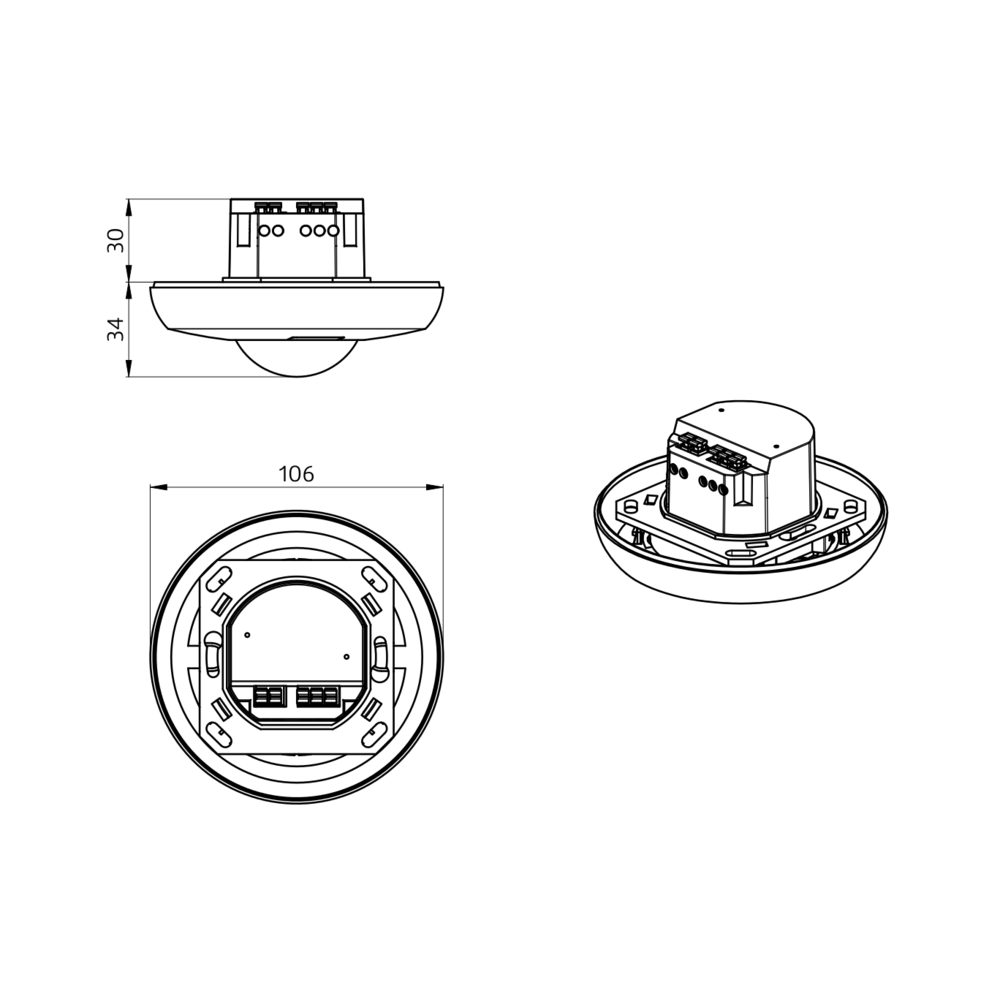

Height 63.0
Diameter 106.0
Material Plastic
Frequency 50 - 60
Diameter 2 -
Animal zone no
Sensor type Passive infrared
Transparent no
Halogen free yes
Built-in depth -
Surface height -
Built-in length -
Control current 2
Max. duty cycle 30
Nominal voltage 110.0 - 240.0
Material quality Other
Remote operation yes
Switch-off delay 0
Built-in diameter -
Surface finishing Matt
Switching-on delay 0

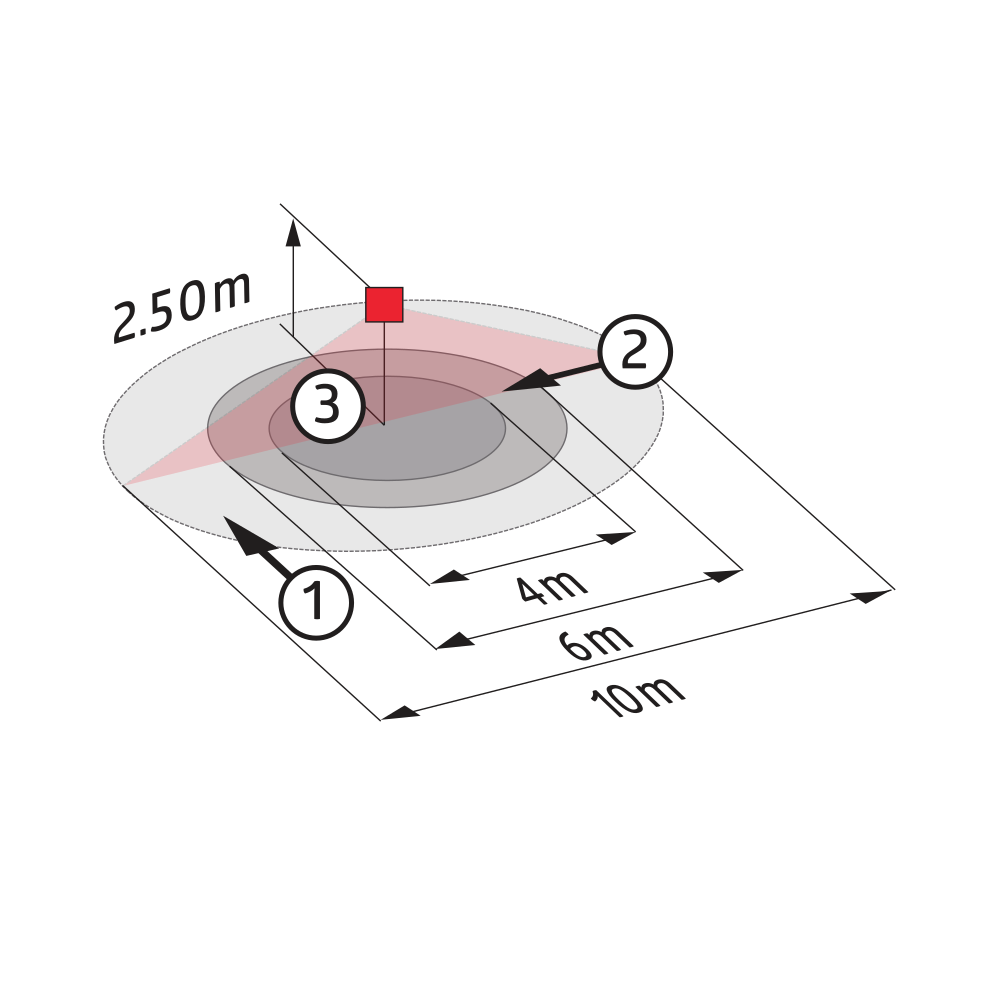

Max. reach sideways 5
Suitable for C-load no
With alarm function yes
Max. reach frontally 6
RAL-number (similar) 9010
Background monitoring no
Min. starting current -
Constant light control -
Connection cable length 0
IFTTT support available no
Anti-bacterial treatment no
Degree of protection (IP) IP20
Response value luminosity 20 - 2000
Staircase light controller yes
Compatible with Amazon Alexa no
Suitable for ceiling mounting yes
Compatible with Google Assistant no
Suitable for wireless transmission no
Response value sensitivity adjustable yes
Min. depth of built-in installation box -
