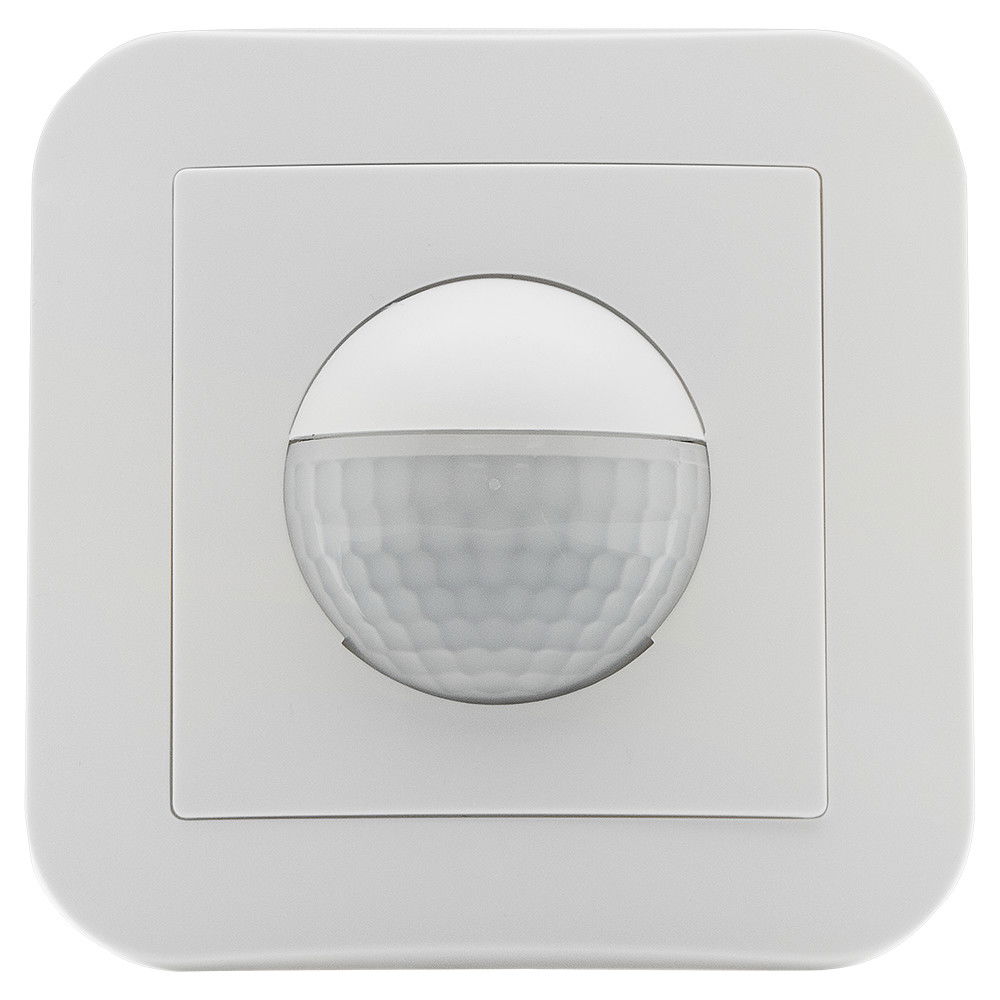

Wall switch R 10A 180° FM pure white IP20 10m 1Channel

Wall switch R 10A 180° FM pure white IP20 10m 1Channel

Wall motion detector with acoustic sensor, Relay version with three-wire technology, Acoustic sensor independently adjustable, Noise automatically extends follow-up time, Manual switching via push-button possible, Available with covering (centre plate dimensions 60 x 60 mm) or without covering for use with covering (centre plate dimensions 50 x 50 mm) in 5 different colours, In combination with centre plates usable with current frame systems of various manufacturers, B.E.G. frames and centre plates for combination with other frame systems available

Product identifiers

SKU: 92623
EAN: 4007529926237
GTIN: 4007529926237
MPN: Indoor 180-R covering included

Specifications

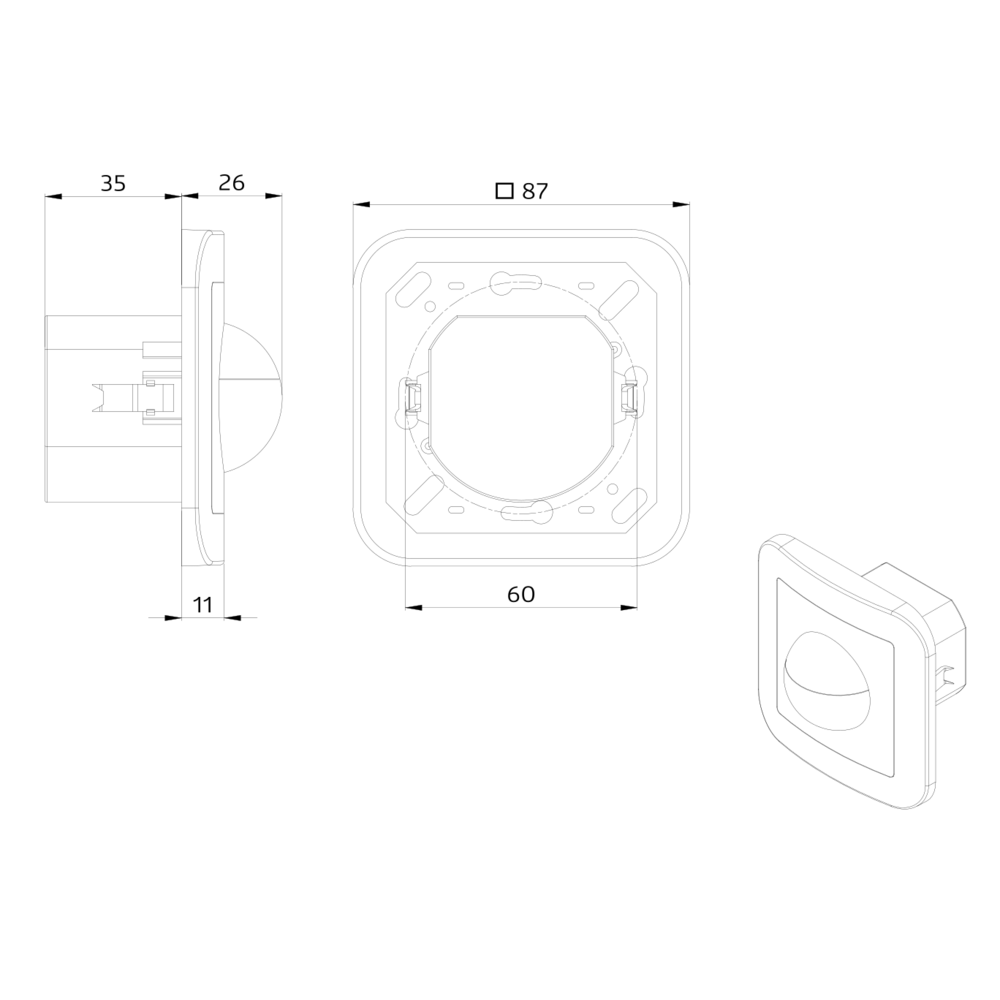

Depth 87.0
Model Movement sensor
Width 87.0
Colour White
Height 61.0
Diameter -
Material Plastic
Eye width -
Eye height -
Animal zone yes
Networkable no
Temperature -25 - 50
Frame height -
Halogen free yes
Built-in depth -
Surface height -
Built-in length -
Control current 2
Max. duty cycle 16
Nominal voltage 110.0 - 240.0
Material quality Other
Remote operation no
Switch-off delay 0
Built-in diameter -
Surface finishing Matt
Switching-on delay 0
Max. reach sideways 10
Suitable for C-load no
With alarm function no
Max. reach frontally 3
RAL-number (similar) 9010
Background monitoring no
Max. starting current 165
With connection cable no
Creep-under protection no
Diameter reach on floor 10
Optimum mounting height 1.1000000000000001
Max. switching power LED 800.0
Number of switching zones 150.0
Detection angle horizontal
Suitable for wall mounting yes
Compatible with Apple HomeKit no
Pivoting range sensor, vertical
Pivoting range sensor, horizontal
Response value luminosity adjustable no
Dim function with dimmer basic element no
Teach-function for response value luminosity no
