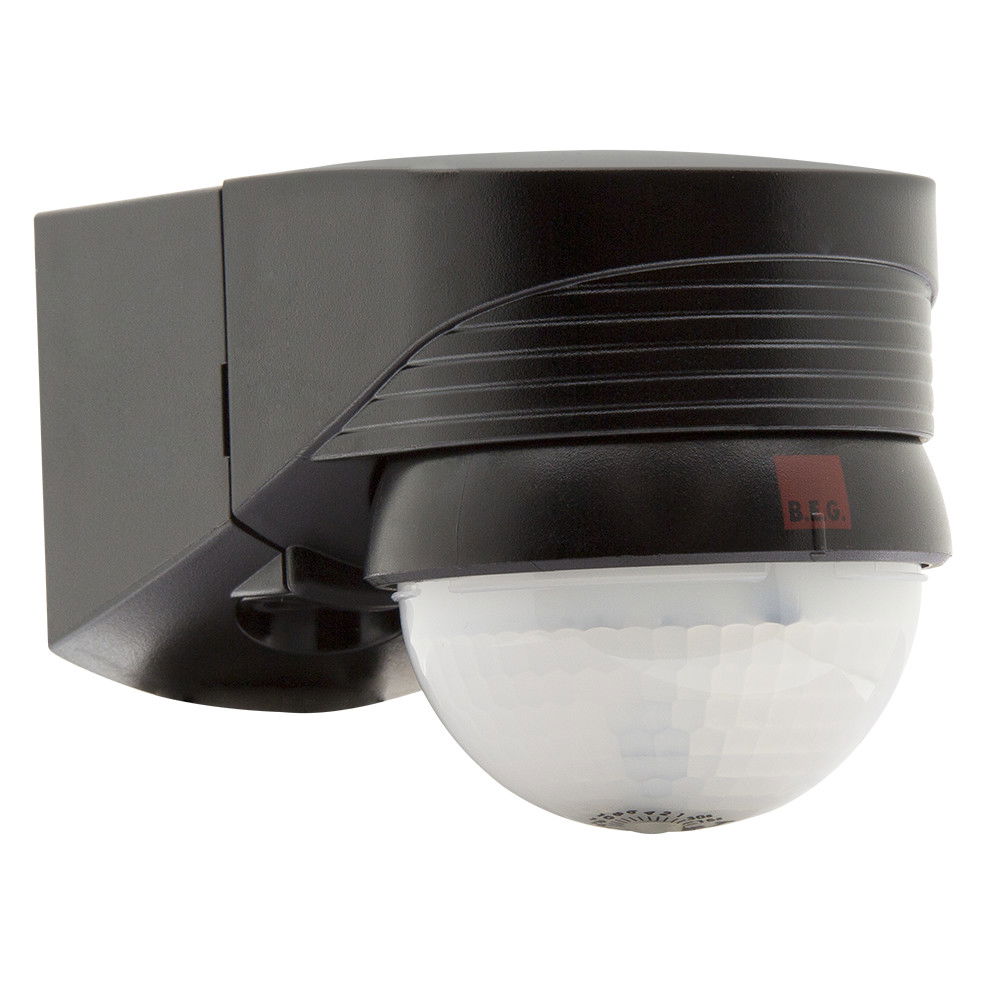

Motion Detector 280° Mounting bracket f. black IP54 16m 1Channel

Name: Motion Detector 280° Mounting bracket f. black IP54 16m 1Channel
Brand: B.E.G.
SKU: 91028

Motion detector with downward detection for gapless monitoring, Adjustable ball head, Zero crossing switching, Additional functions can be set up using the optional remote control., Easy mounting thanks to plug-in base, Detection area can be restricted with blinds, Special socket for external corner mounting included, Factory settings 3 min and 20 lux

Product identifiers

SKU: 91028

EAN: 4007529910281

GTIN: 4007529910281

MPN: LC-plus 280 black

Specifications

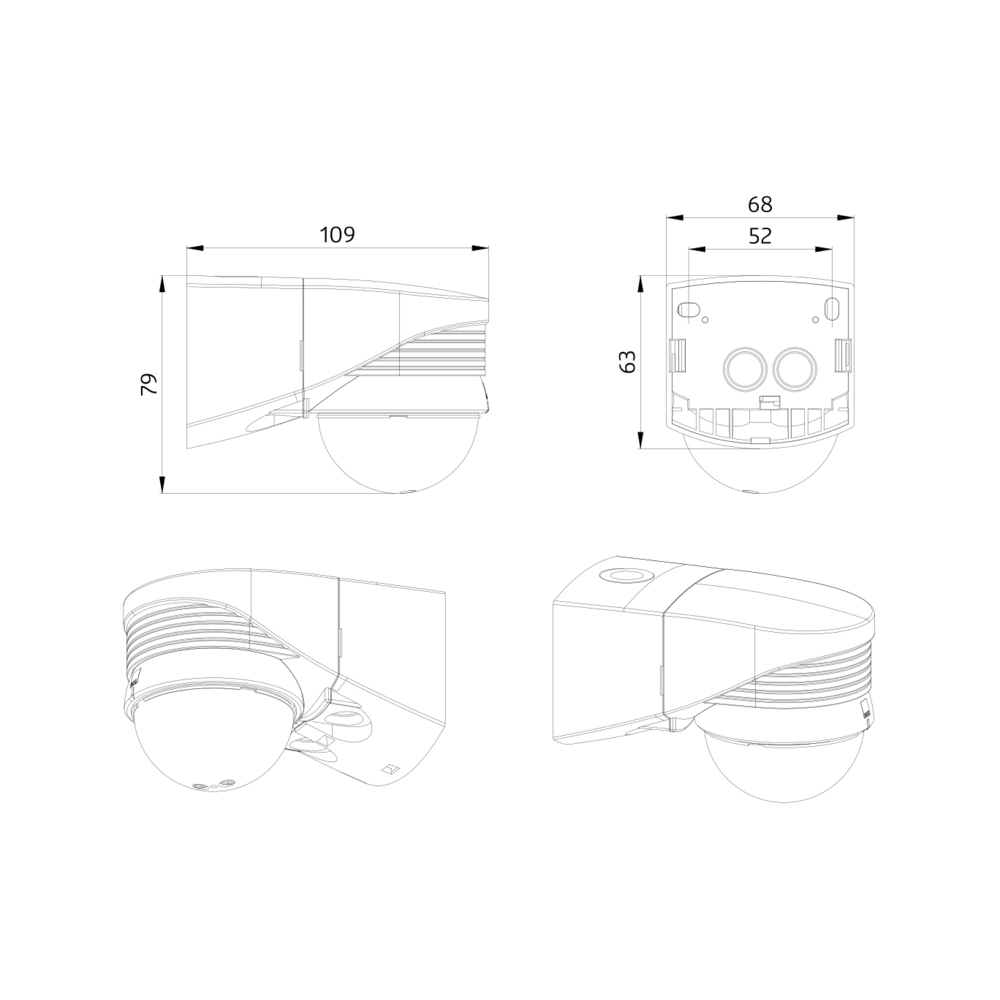

Depth	110.0
Model	Movement sensor
Width	68.0
Colour	Black
Height	78.0
Diameter	-
Material	Plastic
Frequency	50 - 60
Diameter 1	-
Diameter 2	-
Scan angle	-
Animal zone	no
Networkable	no
Sensor type	Passive infrared
Temperature	-25 - 50
Transparent	no
HVAC-control	no
Halogen free	yes
Voltage type	AC
Built-in depth	-
Built-in width	-
Surface height	-
Bridging switch	no
Built-in length	-
Connection type	-
Control current	2
Impact strength	IK02
Max. duty cycle	16
Mounting method	-
Nominal voltage	110.0 - 240.0
Forced switch on	-
Material quality	Other
Operating height	-
Remote operation	yes
Substation input	no
Switch-off delay	0
With signal unit	no
Built-in diameter	-
Forced switch off	-
Surface finishing	Matt
Surface protection	Untreated
Switching-on delay	0
Max. presence range	0

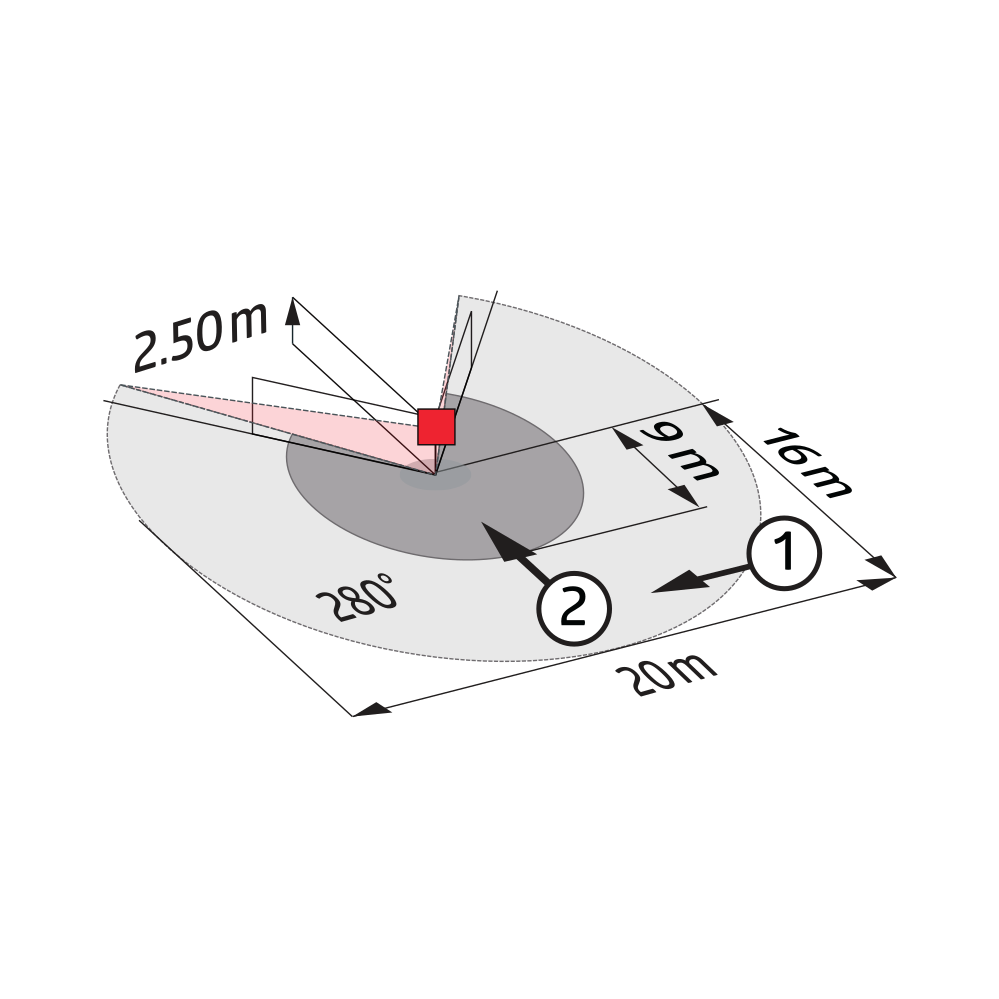

Max. reach sideways	16
Min. switch-on time	15
Suitable for C-load	no
With DALI interface	no
With alarm function	no
With remote control	no
Max. reach frontally	9
Max. switching power	2000
RAL-number (similar)	9005
With acoustic sensor	no
Background monitoring	no
Max. starting current	-
Min. starting current	-
With connection cable	no
Constant light control	-
Creep-under protection	no
Connection cable length	0
Diameter reach on floor	20
IFTTT support available	no
Optimum mounting height	2.5
Anti-bacterial treatment	no
Max. switching power LED	400.0
Degree of protection (IP)	IP54
Number of switching zones	620.0
Response value luminosity	2 - 500
Detection angle horizontal
Staircase light controller	yes
Suitable for wall mounting	yes
Compatible with Amazon Alexa	no
Compatible with Apple HomeKit	no
Suitable for ceiling mounting	no
Pivoting range sensor, vertical
Compatible with Google Assistant	no
Pivoting range sensor, horizontal
Suitable for wireless transmission	no
Response value luminosity adjustable	yes
Response value sensitivity adjustable	yes
Dim function with dimmer basic element	no
Min. depth of built-in installation box	-
Teach-function for response value luminosity	yes
