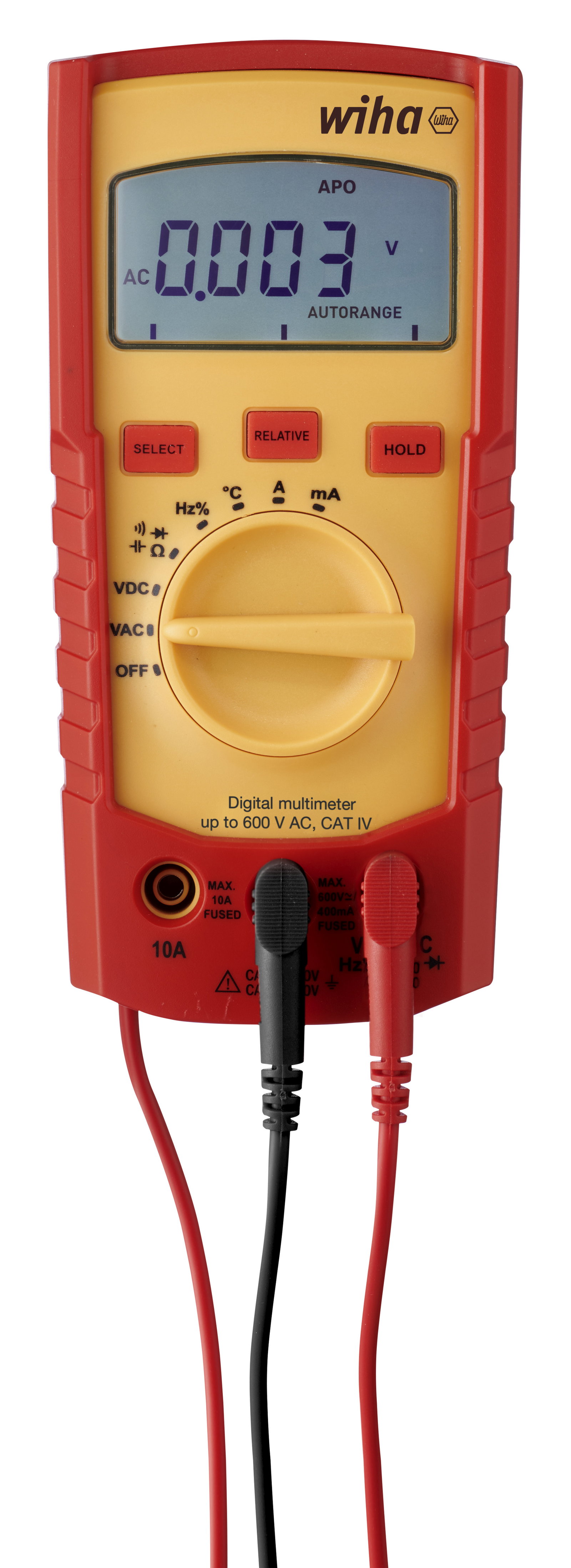

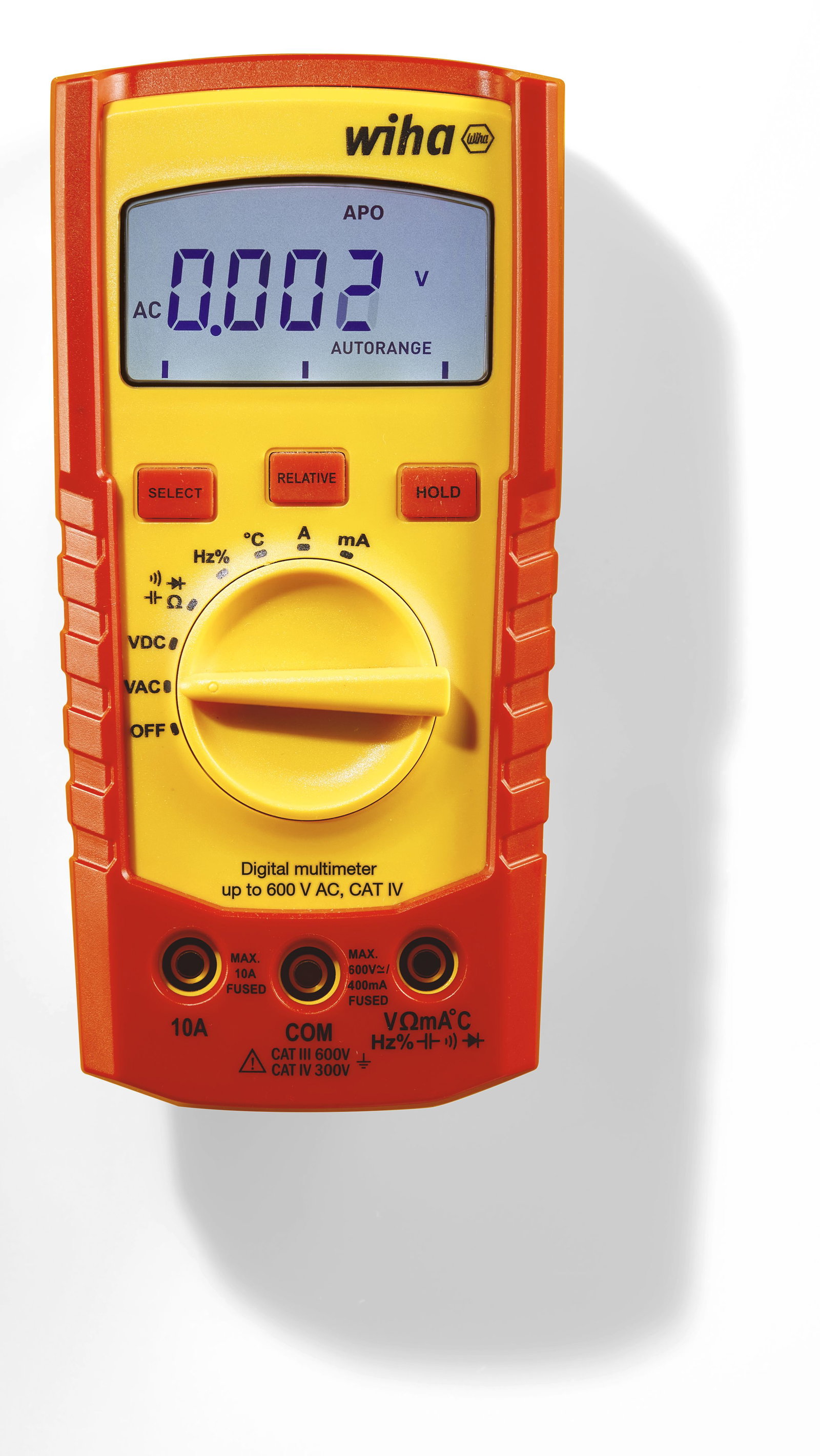

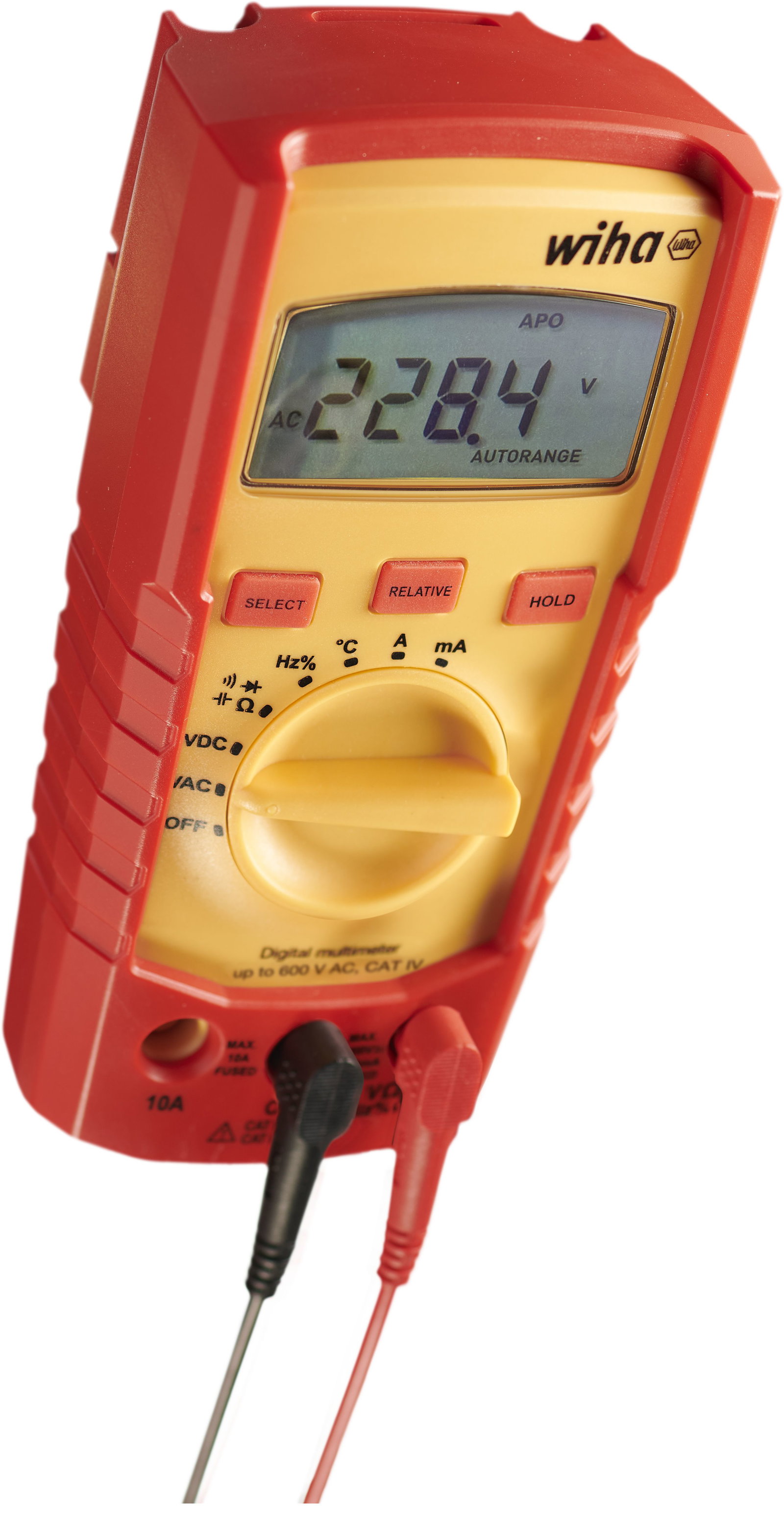

Wiha Digital multimeter up to 600 V AC, CAT IV incl. 2x AAA batteries (45218)
Increases your efficiency: All relevant measurement functions in a single measuring device.
Makes handling easier: Automatic measuring range setting saves the manual pre-selection.
Simplifies your work: Simplifies storage and relative value measurement and expedites the comparison of measured values.
Product dimensions: 150 x 80 x 45 mm
Application: For multi-functional use in different application locations.
Measuring category: CAT IV 600 V
Standards:
600 V AC / 600 V DC
CAT IV 600 V
Current measurement 600 µA - 10 A
Automatic measurement range selection
Temperature measurement
High-voltage current measurement

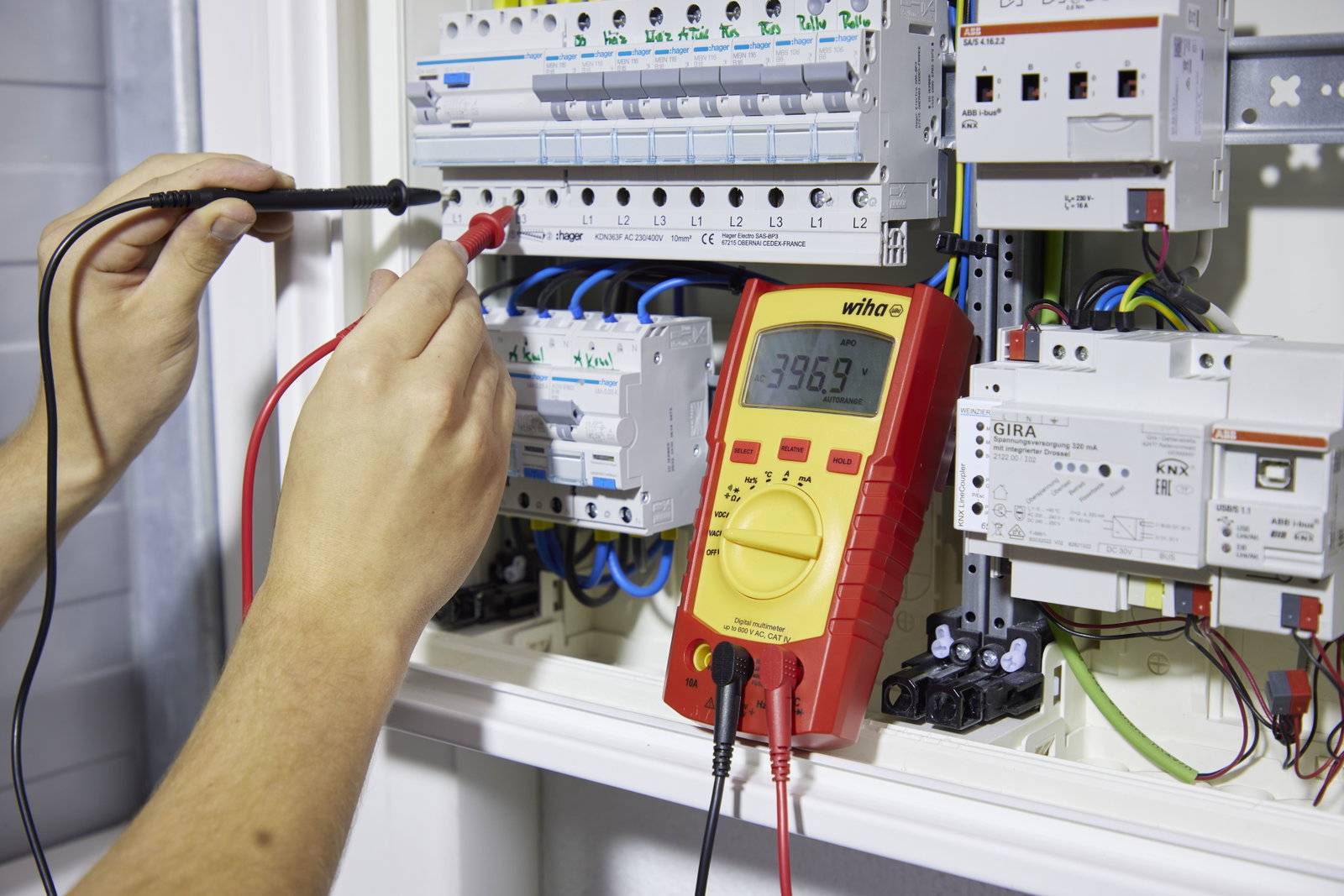

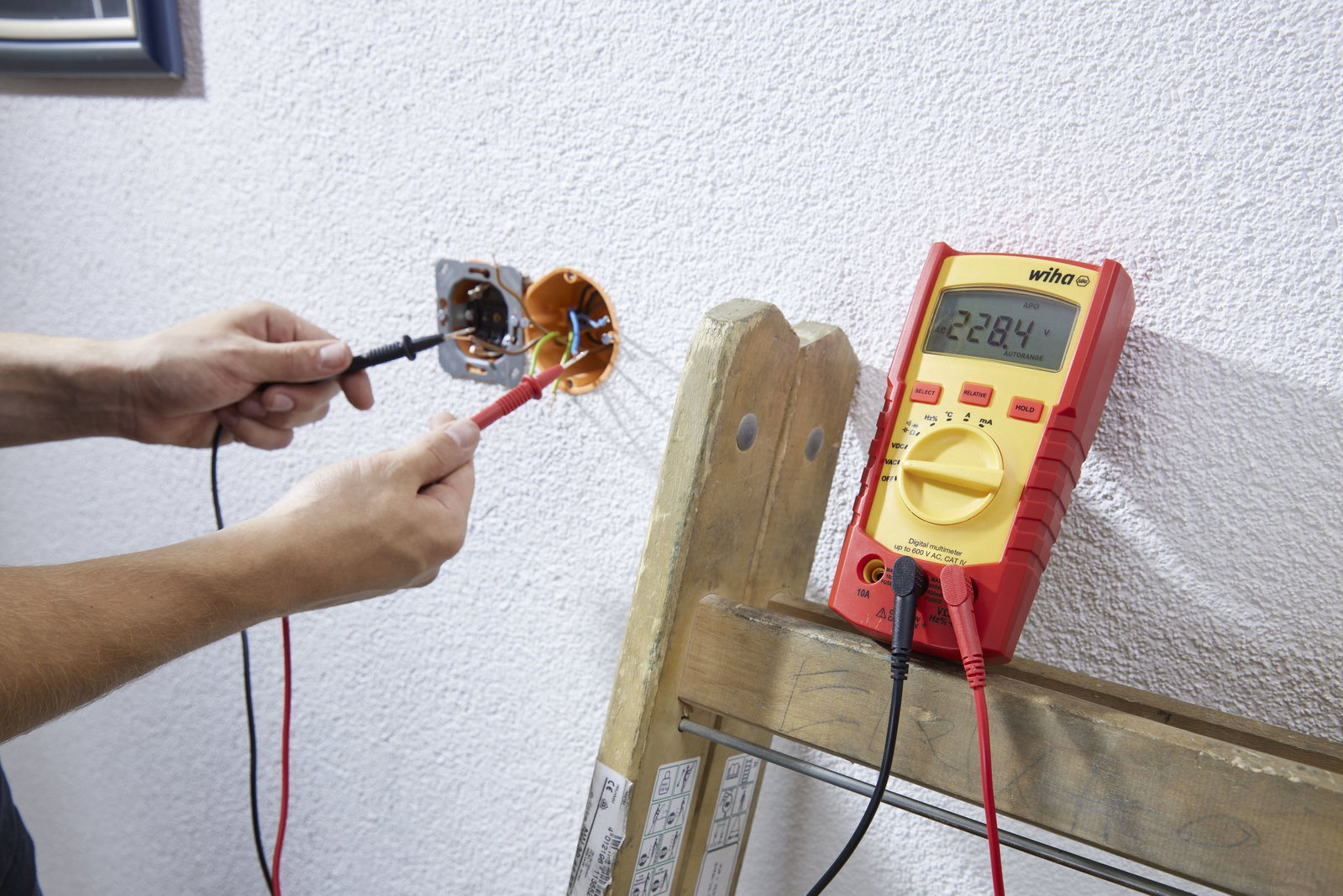

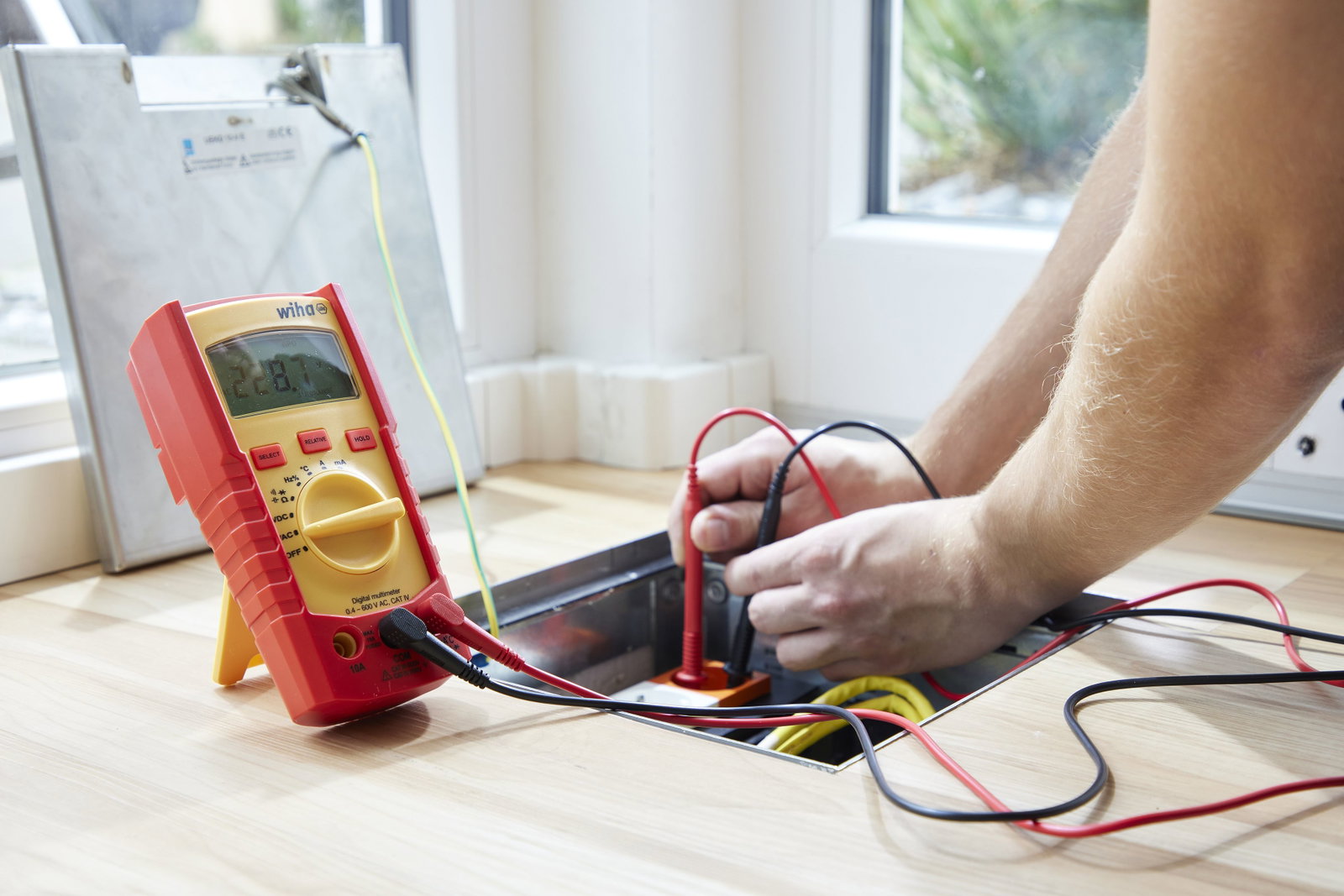

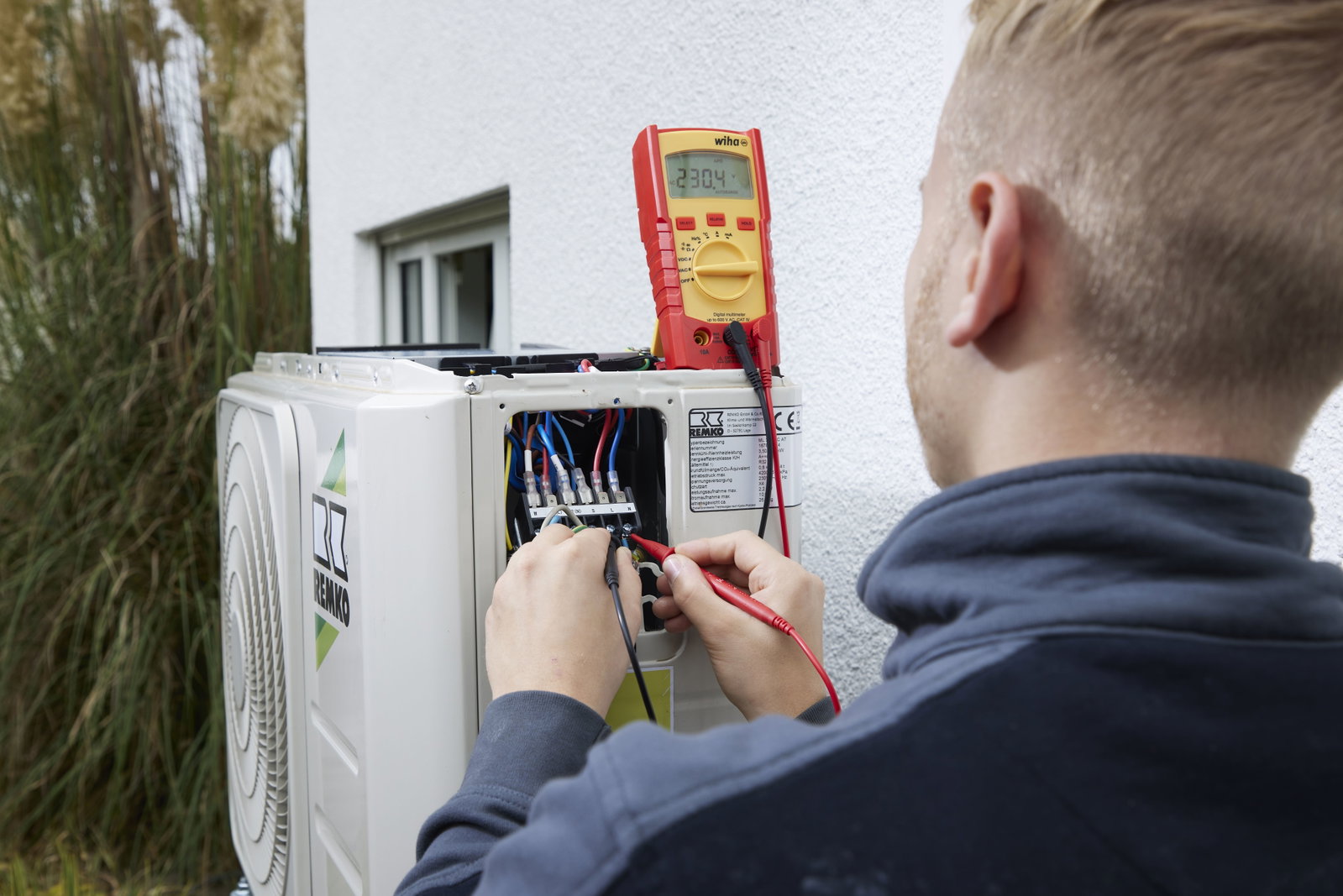

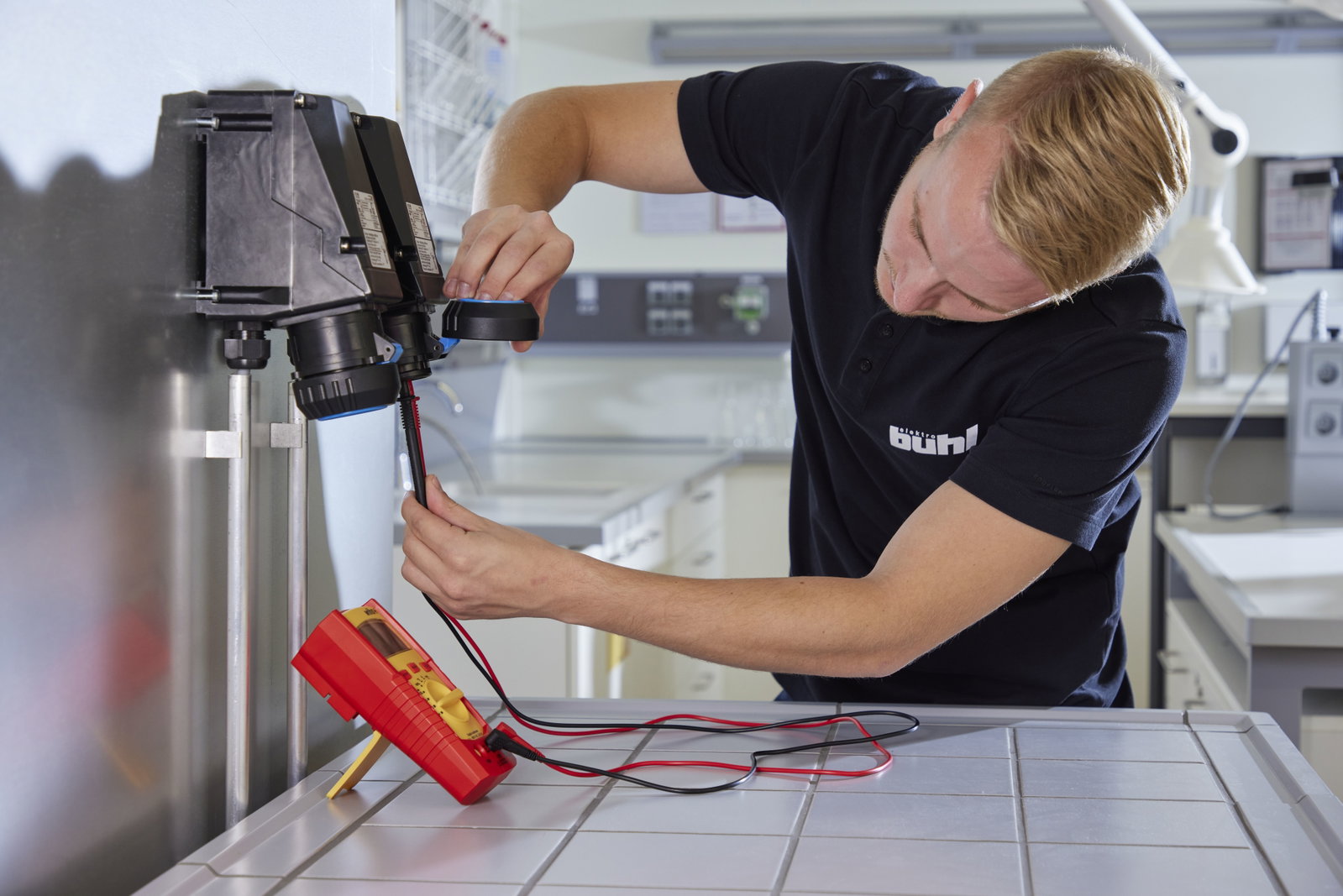

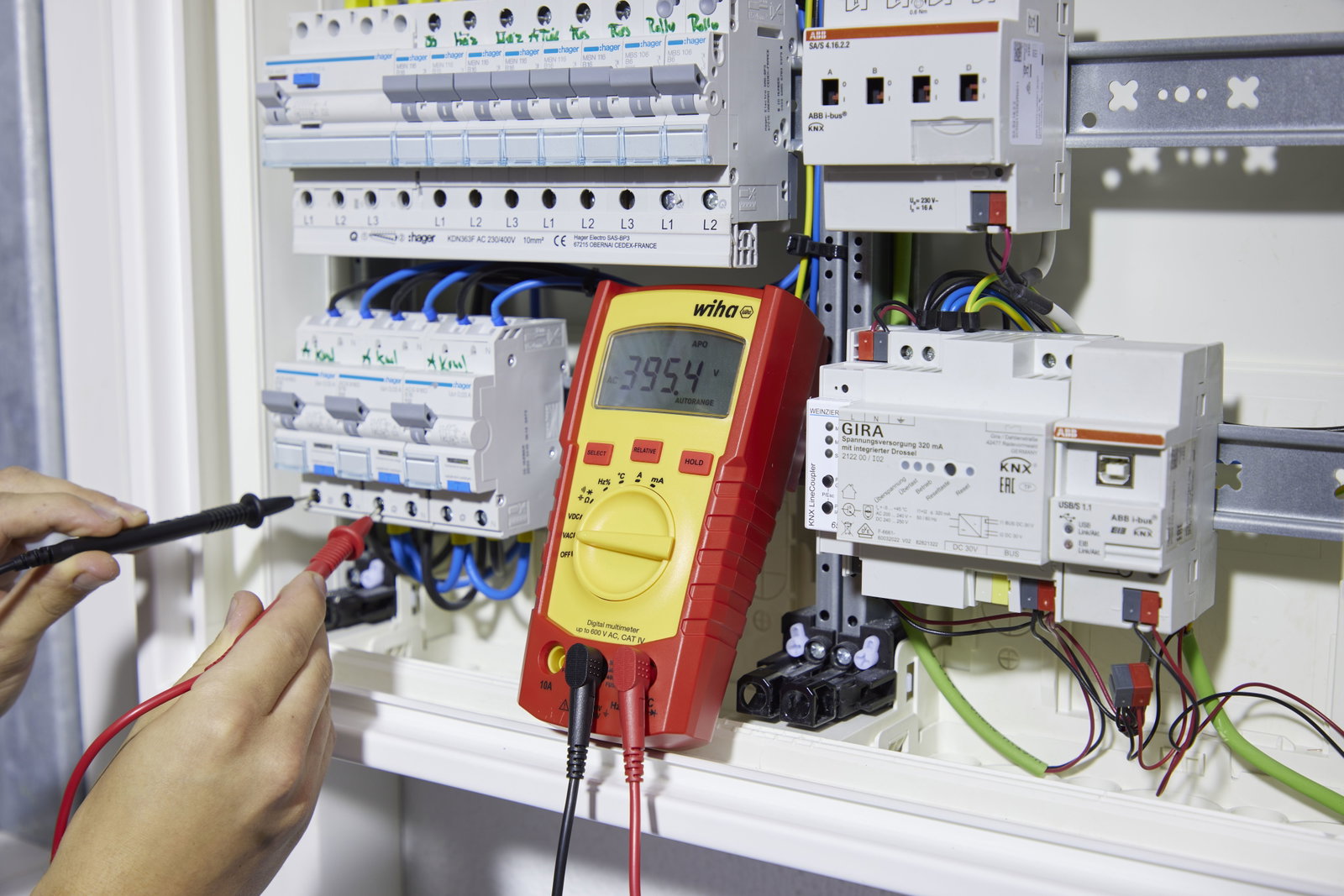

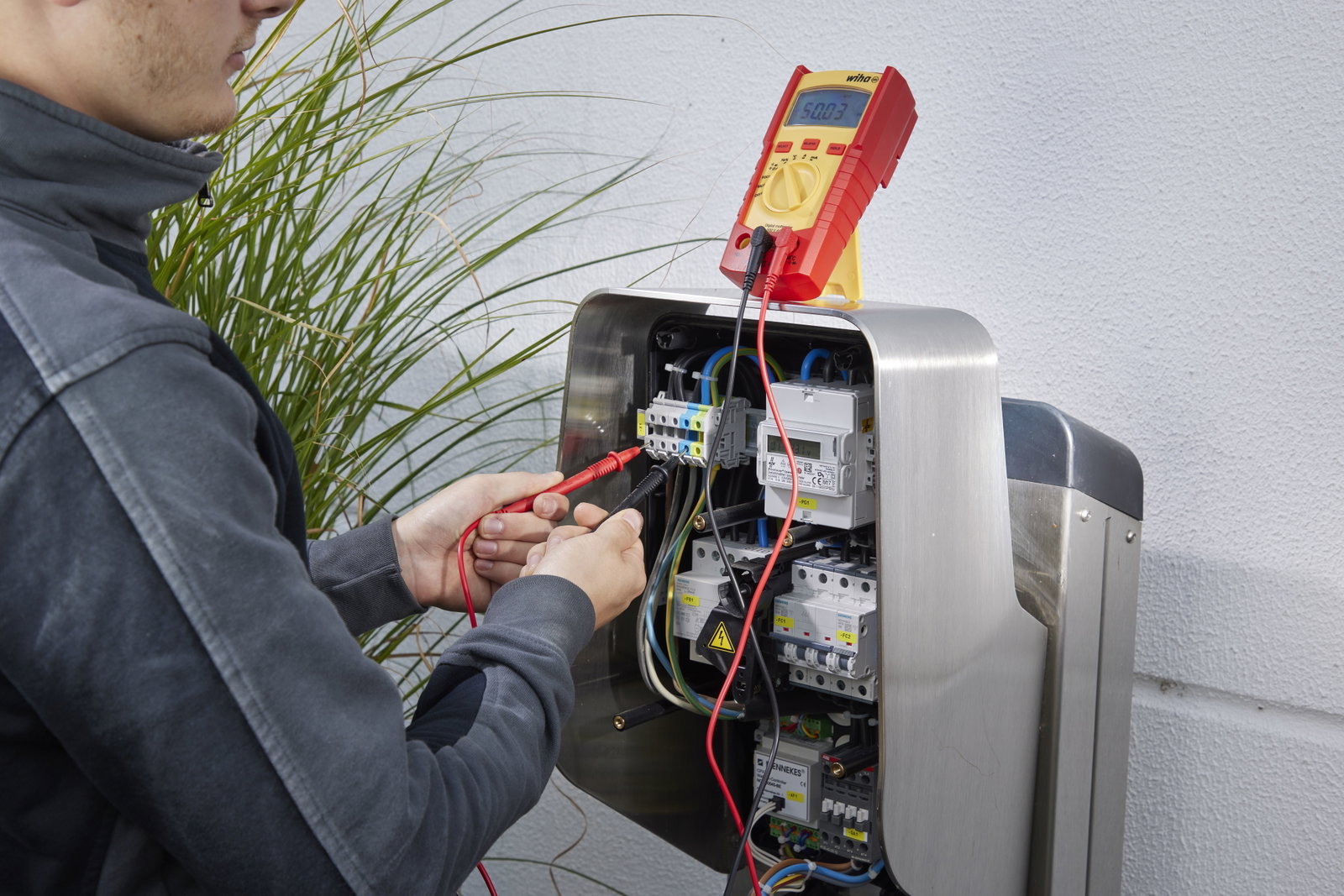

Are you looking for a multimeter that covers the relevant measurement variables needed during the workday of an electrician? The digital multimeter from Wiha optimally equips you for a wide variety of measurements. This single tool can be used to make voltage, current, resistance, frequency, capacity, and temperature measurements. In addition, continuity and diode tests are also possible. A large LCD display makes the measurement results immediately readable even beyond the measurement process. An additional signal sound indicates the current flow during the continuity check. Thanks to the automatic measuring range selection, the manual pre-selection of specific measurement ranges is no longer required. The relative value measurement offers another advantage. The storage of previous measurement values and their comparison to future measurement results allows a variety of control options. According to the measurement categories CAT III up to 600 V and CAT IV up to 300 V, the digital multimeter from Wiha offers maximum safety for working on building installations and directly on the sources of low-voltage installations.
IEC/EN 61010-1, IEC/EN 61010-2-033, IEC/EN 61010-031, IP 40, CE, GS
Product identifiers
Categories
Features
|
Fuse
|
F 400 mA / 600 V Ceramic 6,3 x 32 mm and F 10 A / 600 V Ceramic 6,3 x 32 mm
|
|
Display
|
4,000 digits
|
|
True RMS
|
No
|
|
Data HOLD
|
Yes
|
|
Diode test
|
Yes, up to 2V
|
|
Width (mm)
|
80
|
|
Height (mm)
|
45
|
|
Current A AC
|
10
|
|
Current A DC
|
10
|
|
Capacity (nF)
|
100
|
|
Acoustic signal
|
Yes
|
|
Frequency (MHz)
|
5
|
|
Number of cells
|
2
|
|
Watt/hour (w/h)
|
1.95
|
|
Max. measurement
|
No
|
|
Min. measurement
|
No
|
|
Resistance (MΩ)
|
40
|
|
Battery weight (g)
|
8
|
|
Measuring category
|
CAT IV 300 V / CAT III 600 V
|
|
Voltage V AC (max)
|
600
|
|
Voltage V DC (max)
|
600
|
|
"Battery" or "cell"
|
Battery
|
|
Battery designation
|
R03
|
|
Battery voltage (V)
|
1.5
|
|
Contamination level
|
2
|
|
Overall length (mm)
|
150
|
|
Remote voltage test
|
No
|
|
Battery manufacturer
|
Pairdeer industrials
|
|
Protection class IP
|
IP40
|
|
Battery capacity (Ah)
|
1.3
|
|
Battery capacity (mAh)
|
1300
|
|
Battery status display
|
Yes
|
|
Height above sea level
|
2000
|
|
Self service - packing
|
No
|
|
Background illumination
|
No
|
|
Temperature measurement
|
-20 - 500°C
|
|
Voltage V AC min – max
|
0 - 600
|
|
Voltage V DC min – max
|
0 - 600
|
|
Relative value measurement
|
Yes
|
|
Measurement range selection
|
automatically
|
|
Battery included in package?
|
Yes
|
|
Storage temperature min (°C)
|
-10
|
|
Battery type (IEC designation)
|
2x AAA batteries
|
|
Total weight battery in product (g)
|
16
|
|
with battery / rechargeable battery
|
Yes
|
|
Operating temperature min - max (°C)
|
0 - 50
|
