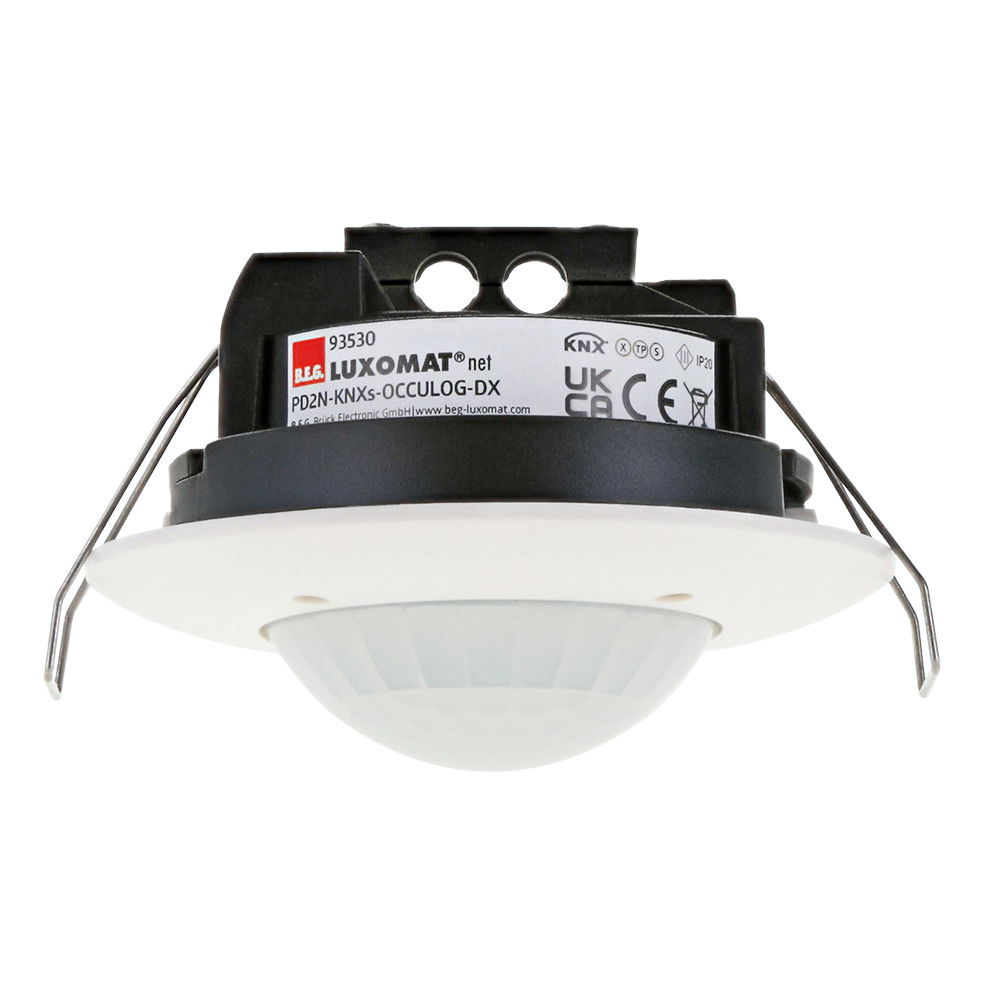

Occupancy detector OCCULOG-DX 360° FC white IP20 KNX Secure 10m 4Cha.
KNX occupancy detector with integrated KNX bus connector, Low installation depth, 1 x light output (for regulating or switching), 1 x slave output, 3 x HVAC outputs (separately programmable), Intelligent semi-automatic mode, occupancy-independent regulating mode (photoelectric switch), full automatic mode, Two logic modules, Individual adaption of the PIR sensor sensitivity, Mixed light measurement with internal and external light sensor, Various locking functions, Status LEDs can be activated / deactivated, Programming button (phys. address) can be operated via remote control, Regulation of up to three lighting groups using offset (external influence possible), Short presence, self-adjusting follow-up time, corridor function, Recall of light scenes, Temperature- and noise sensor, Measurement of air quality based on volatile organic compounds (VOC), Up to 4 limit values possible, Measurement of relative air humidity, All values can be sent to the bus and used for HVAC applications, Controller for temperature, air quality and humidity, Spring-clamps, Blinds
Product identifiers
SKU: 93530
EAN: 4007529935307
GTIN: 4007529935307
MPN: PD2N-KNXs-OCCULOG-DX-FC
ETIM Group
Specifications
| Depth | - |
| Model | Presence detector |
| Width | - |
| Colour | White |

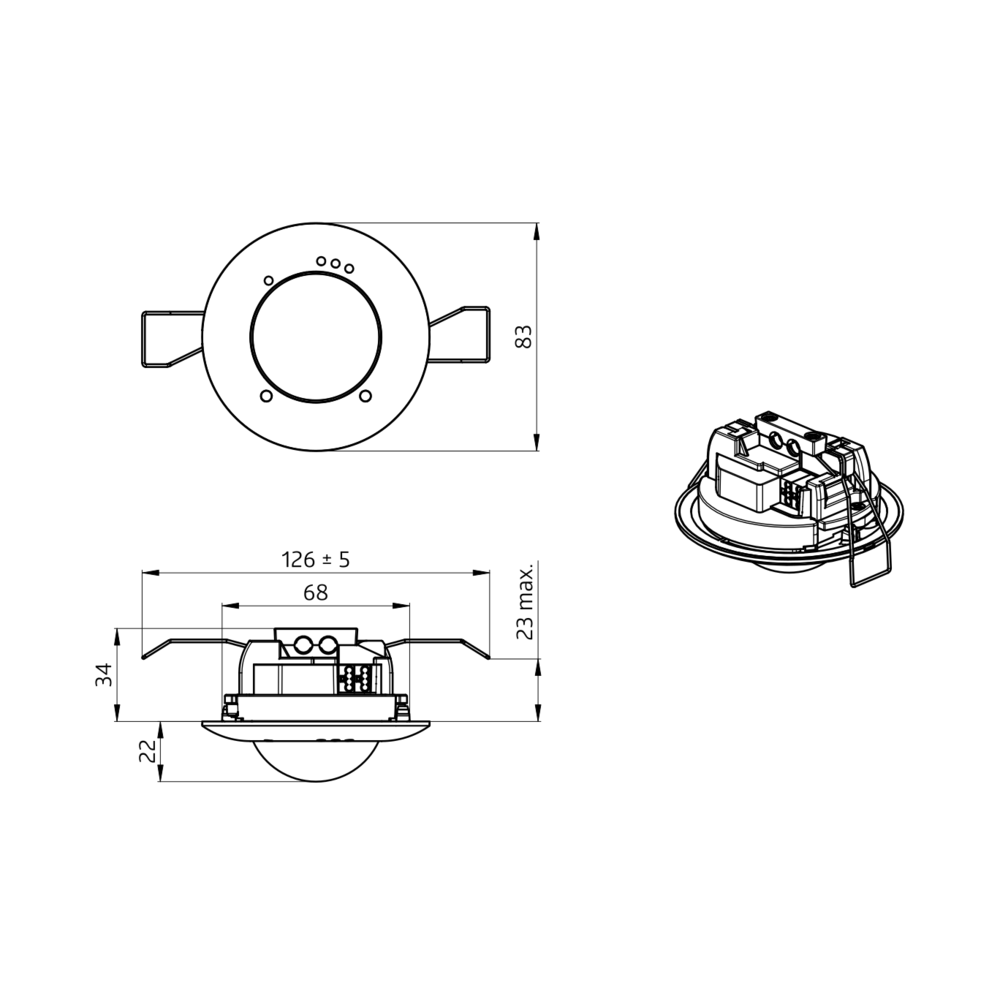

| Height | 55.0 |
| Diameter | 83.0 |
| Material | Plastic |
| Diameter 1 | 83.0 |
