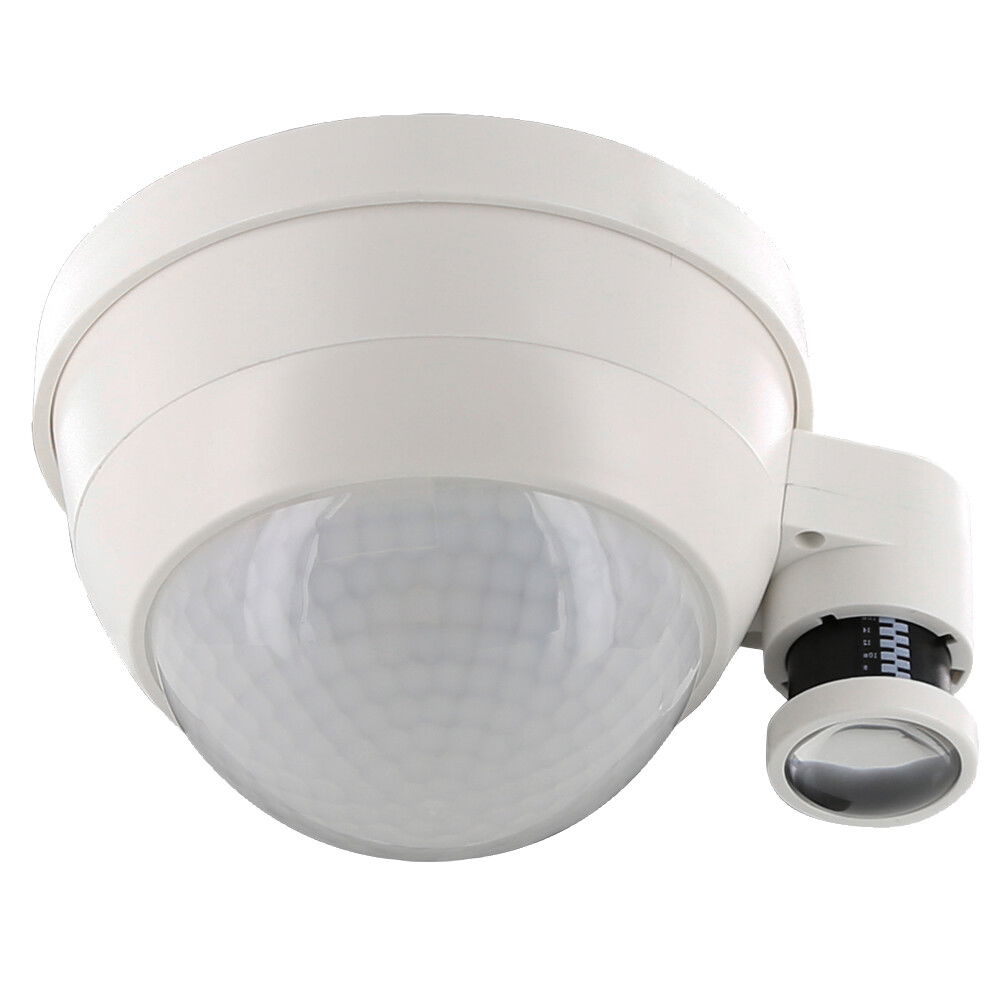

Multi-sensor high-bay storages 360° SM white IP54 DALI-2 30m
DALI-2 multisensor (input device) for surface mounting in large mounting heights, DALI-2 certified product, Powered via DALI bus, External telescopic light sensor for a mounting height between 5 and 16 m (mechanically adjustable) for measuring the light according to the application., Bright LED indication for commissioning, DALI multimaster technology according to IEC 62386 part 103, Instance 0 provides information regarding occupancy and movement for the DALI-Bus according to IEC 62386 part 303, Instance 1 provides LUX values for the DALI-Bus according to IEC 62386 part 304, Parameterisation is possible via mandatory Multimaster-Application-Controller of any manufacturer. This controller must support IEC 62386 parts 101/103/303/304., Mixed light measurement with external light sensor, Detection area can be restricted with blinds, There are markings to ensure correct alignment during installation, When used in high-bay warehouses, care should be taken that, in the cross-aisles of the warehouse, detectors are installed that can detect movement only in the desired aisle locations, by using blinds or other technical arrangements., Individual adaption of detection sensitivity for each PIR sensor, Status LEDs can be activated / deactivated
Product identifiers
SKU: 93545
EAN: 4007529935451
GTIN: 4007529935451
MPN: PD4-BMS-GH-SM DALI-2
Categories
Features
|
Depth
|
-
|
|
Model
|
Other
|
|
Width
|
-
|
|
Colour
|
White
|
|
Height
|
76.0
|
|
Diameter
|
101.0
|
|
Material
|
Plastic
|
|
Diameter 1
|
101.0
|
|
Diameter 2
|
-
|
|
Animal zone
|
no
|
|
Transparent
|
no
|
|
Built-in depth
|
-
|
|
Built-in width
|
-
|
|
Bus system KNX
|
no
|
|
Bus system LON
|
no
|
|
Surface height
|
38.0
|
|
Built-in length
|
-
|
|
Max. duty cycle
|
30
|
|
Mounting method
|
EV000384
|
|
Switching power
|
-
|
|
DALI-2 certified
|
yes
|
|
Material quality
|
Other
|
|
Operating height
|
76.0
|
|
Substation input
|
no
|
|
Built-in diameter
|
-
|
|
Other bus systems
|
Other
|
|
Surface finishing
|
Matt
|
|
Number of channels
|
1
|
|
Surface protection
|
Other
|
|
Bus system Powernet
|
no
|
|
Max. reach sideways
|
15
|
|
Min. switch-on time
|
1
|
|
With bus connection
|
yes
|
|
Max. reach frontally
|
30
|
|
RAL-number (similar)
|
9010
|
|
With acoustic sensor
|
no
|
|
Background monitoring
|
no
|
|
Operation mode switch
|
no
|
|
With connection cable
|
no
|
|
Creep-under protection
|
yes
|
|
Connection cable length
|
0
|
|
Diameter reach on floor
|
30
|
|
Optimum mounting height
|
14
|
|
Voltage supply over bus
|
yes
|
|
Detection angle vertical
|
|
|
Bus system radio frequency
|
no
|
|
Detection angle horizontal
|
|
|
Staircase light controller
|
yes
|
|
Suitable for wall mounting
|
no
|
|
Radio frequency bidirectional
|
no
|
|
Suitable for ceiling mounting
|
yes
|
|
Switch-off delay self-learning
|
no
|
|
Bus system KNX-RF (Radio Frequency)
|
no
|
|
Response value luminosity adjustable
|
no
|
|
Min. depth of built-in installation box
|
-
|
|
Teach-function for response value luminosity
|
no
|
