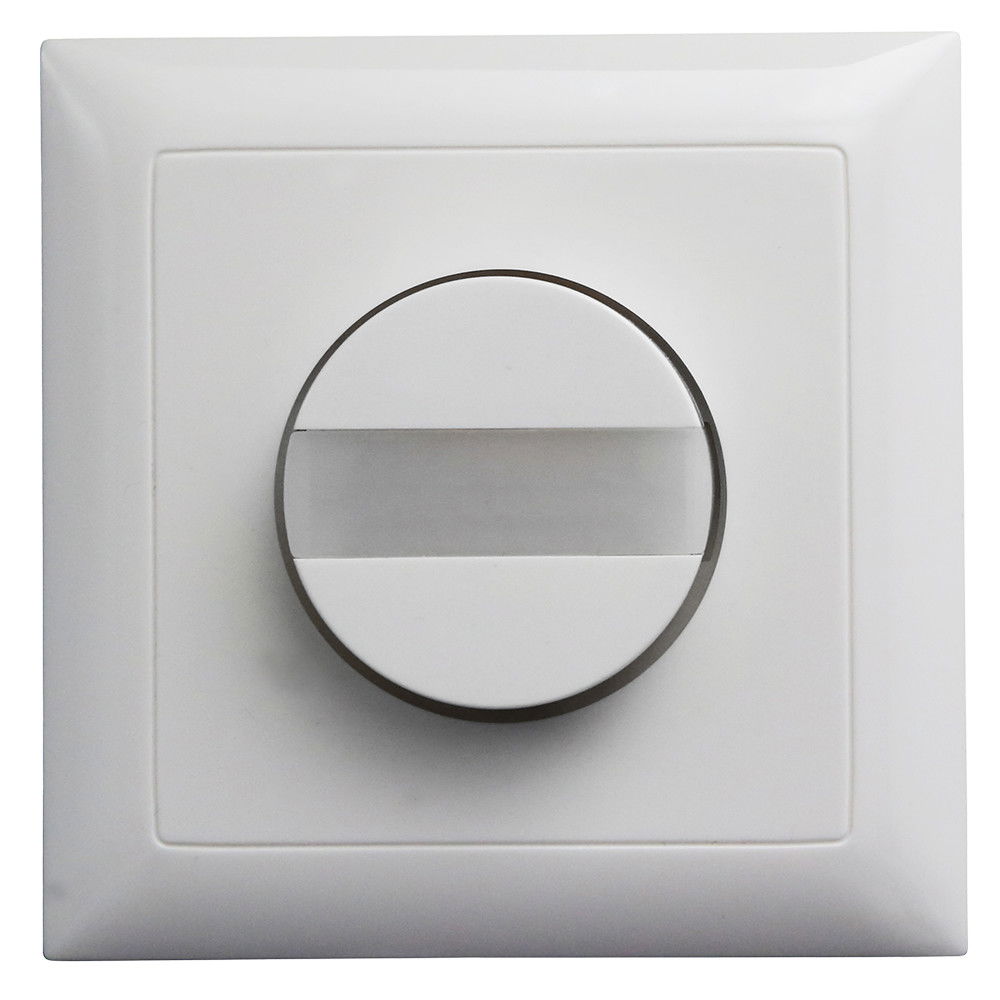

Wall switch 120° FM pure white IP20 8m 1Channel

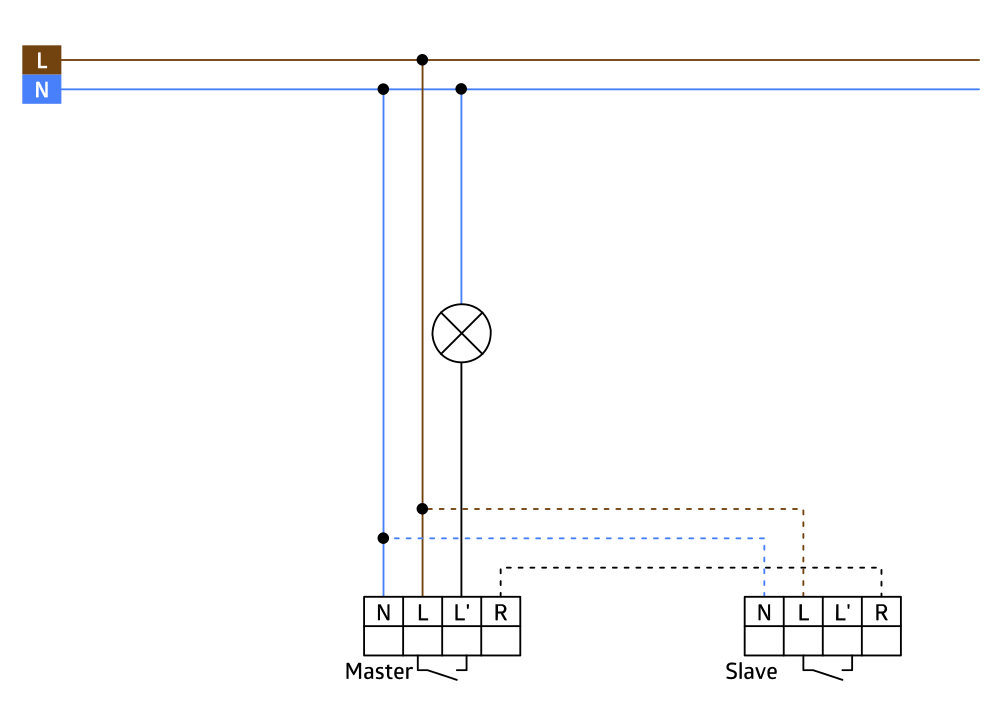

Wall-mounted occupancy detector with integrated pushbutton, One channel for switching light (selectively main light or orientation light), Integrated downlight with the function of an orientation or a night light, Extension of the detection range possible by using up to 5 other Indoor 140-L, Can be used as either Master device or Slave device, Relay with tungsten pre-make contact, optimised for LED loads, Available with covering (centre plate dimensions 60 x 60 mm) or without covering for use with covering (centre plate dimensions 50 x 50 mm) in 4 different colours, Please order coverings for EU version separately; available in various colours, In combination with centre plates usable with current frame systems of various manufacturers, B.E.G. frames and centre plates for combination with other frame systems available
Product identifiers
SKU: 94328
EAN: 4007529943289
GTIN: 4007529943289
MPN: Indoor 140-L covering included
Categories
Features
|
Depth
|
88.0
|
|
Model
|
-
|
|
Width
|
88.0
|
|
Colour
|
White
|
|
Height
|
52.0
|
|
Diameter
|
-
|
|
Material
|
-
|
|
Eye width
|
-
|
|
Frequency
|
50 - 60
|
|
Eye height
|
-
|
|
Scan angle
|
-
|
|
Animal zone
|
no
|
|
Frame width
|
-
|
|
Networkable
|
no
|
|
Sensor type
|
Passive infrared
|
|
Temperature
|
-25 - 50
|
|
Transparent
|
no
|
|
Frame height
|
-
|
|
HVAC-control
|
no
|
|
Halogen free
|
yes
|
|
Voltage type
|
AC
|
|
Built-in depth
|
-
|
|
Built-in width
|
-
|
|
Surface height
|
-
|
|
Bridging switch
|
no
|
|
Built-in length
|
-
|
|
Connection type
|
-
|
|
Control current
|
2
|
|
Impact strength
|
IK07
|
|
Max. duty cycle
|
30
|
|
Mounting method
|
EV000383
|
|
Nominal voltage
|
110.0 - 240.0
|
|
Forced switch on
|
-
|
|
Material quality
|
Other
|
|
Operating height
|
-
|
|
Remote operation
|
no
|
|
Substation input
|
yes
|
|
Switch-off delay
|
0
|
|
With signal unit
|
no
|
|
Built-in diameter
|
-
|
|
Forced switch off
|
-
|
|
Surface finishing
|
Glossy
|
|
Surface protection
|
Untreated
|
|
Switching-on delay
|
0
|
|
Max. presence range
|
0
|
|
Max. reach sideways
|
8
|
|
Min. switch-on time
|
15
|
|
Suitable for C-load
|
no
|
|
With DALI interface
|
no
|
|
With alarm function
|
no
|
|
With remote control
|
no
|
|
Max. reach frontally
|
3
|
|
Max. switching power
|
2000
|
|
RAL-number (similar)
|
9010
|
|
With acoustic sensor
|
no
|
|
Background monitoring
|
no
|
|
Distance eccentricity
|
-
|
|
Max. starting current
|
165
|
|
Min. starting current
|
-
|
|
With connection cable
|
no
|
|
Constant light control
|
-
|
|
Creep-under protection
|
no
|
|
Connection cable length
|
0
|
|
Diameter reach on floor
|
10
|
|
IFTTT support available
|
no
|
|
Optimum mounting height
|
1.1000000000000001
|
|
Anti-bacterial treatment
|
no
|
|
Max. switching power LED
|
800.0
|
|
Degree of protection (IP)
|
IP20
|
|
Number of switching zones
|
67.0
|
|
Response value luminosity
|
|
|
Detection angle horizontal
|
|
|
Staircase light controller
|
yes
|
|
Suitable for wall mounting
|
yes
|
|
Compatible with Amazon Alexa
|
no
|
|
Compatible with Apple HomeKit
|
no
|
|
Suitable for ceiling mounting
|
no
|
|
Pivoting range sensor, vertical
|
|
|
Compatible with Google Assistant
|
no
|
|
Pivoting range sensor, horizontal
|
|
|
Suitable for wireless transmission
|
no
|
|
Response value luminosity adjustable
|
no
|
|
Response value sensitivity adjustable
|
-
|
|
Dim function with dimmer basic element
|
no
|
|
Min. depth of built-in installation box
|
-
|
|
Teach-function for response value luminosity
|
no
|
