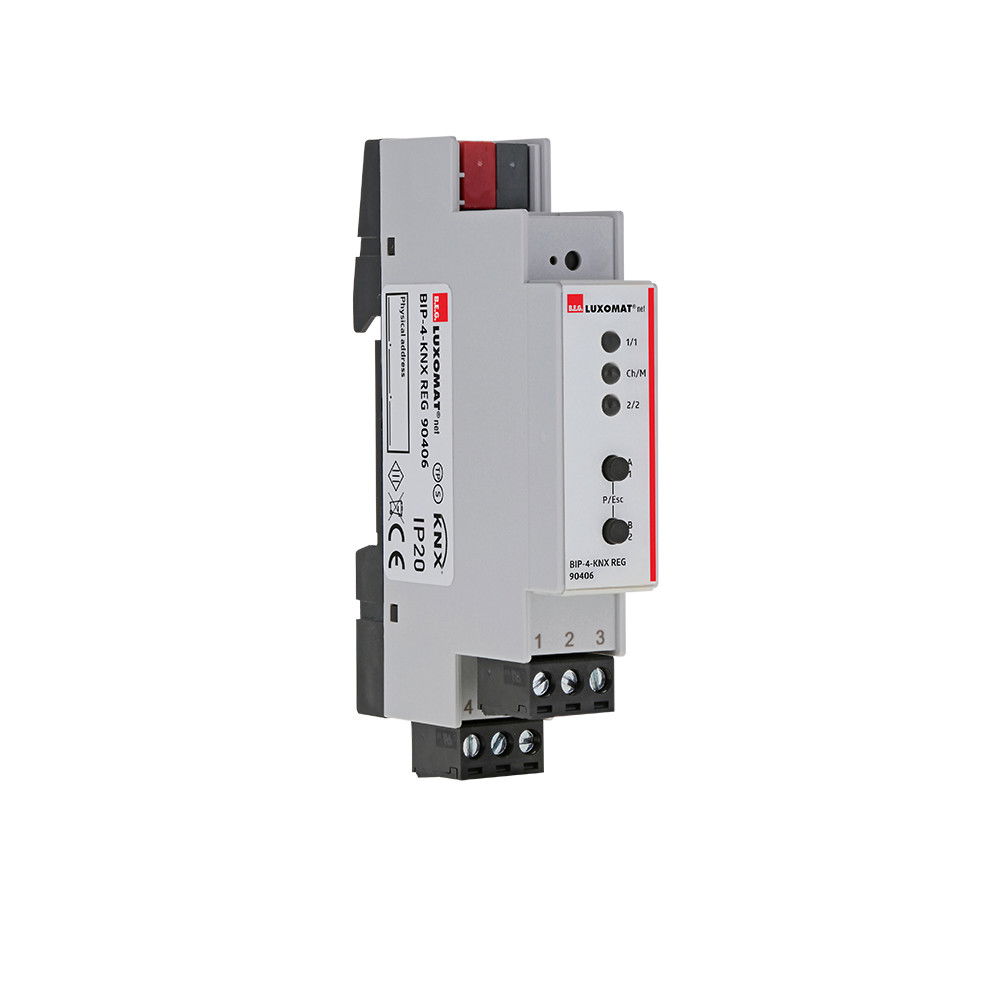

KNX binary input device P SM white IP20 KNX 4Channel
Compact binary input with 4 channels for controlling luminaires, blinds, etc, Inputs are designed for dry contacts, Use as a pulse counter is possible, Two push-buttons and three LEDs enable local operation and visualisation of the unit's status, In addition to the input channels, the unit contains 16 independent logic or time functions
Product identifiers
SKU: 90406
EAN: 4007529904068
GTIN: 4007529904068
MPN: BIP-4-KNX REG
Categories
Features
|
Input voltage
|
|
|
Bus system KNX
|
yes
|
|
Bus system LON
|
no
|
|
LED controlling
|
no
|
|
Mounting method
|
Other
|
|
Number of inputs
|
4
|
|
Other bus systems
|
None
|
|
Power consumption
|
-
|
|
Bus system Powernet
|
no
|
|
With LED indication
|
yes
|
|
With bus connection
|
yes
|
|
Bus module detachable
|
no
|
|
Degree of protection (IP)
|
IP20
|
|
Bus system radio frequency
|
no
|
|
Radio frequency bidirectional
|
no
|
|
Type of voltage (input voltage)
|
DC
|
|
External signal voltage necessary
|
no
|
|
Bus system KNX-RF (Radio Frequency)
|
no
|
|
Width in number of modular spacings
|
1
|
|
Min. depth of built-in installation box
|
-
|
