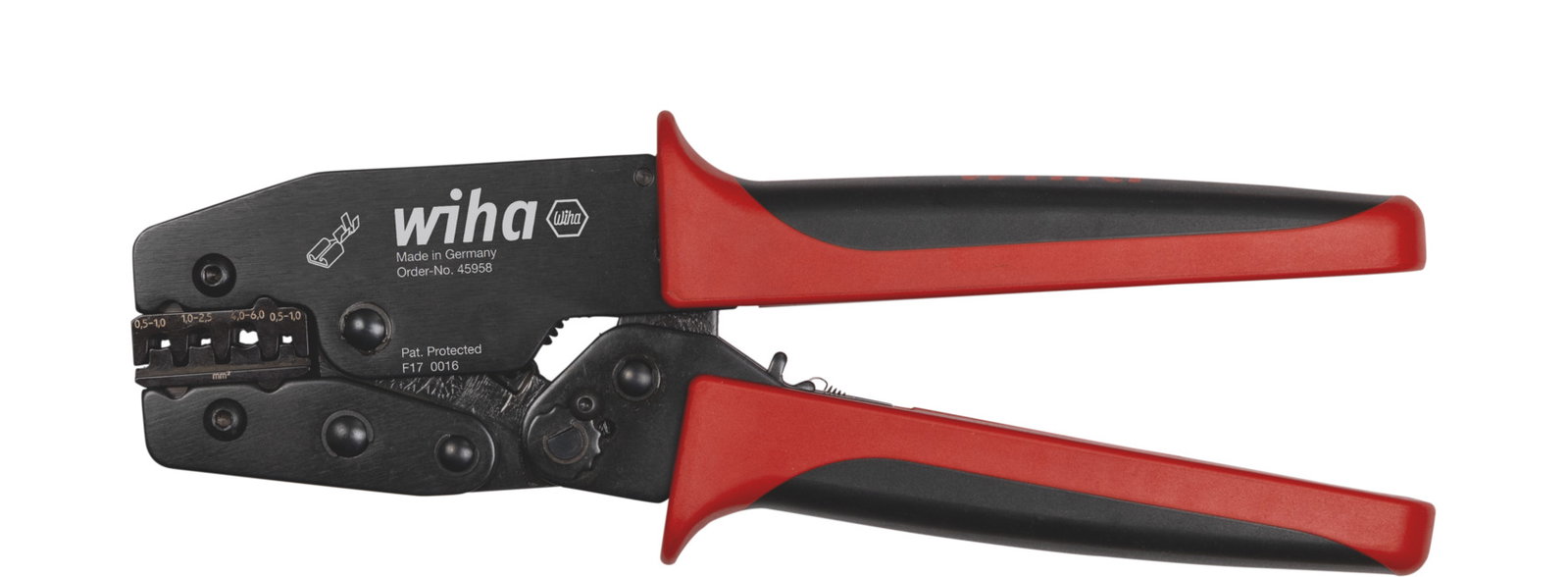

Wiha Crimp tool for non-insulated male blade connectors and female blade connectors 220 mm, 0.25 - 6 (45958)
Product dimensions: 80 x 220 x 25 mm
Application: For processing non-isolated male blade connectors and female blade connectors.
For processing wire-end sleeves with and without insulating collar 0.5 - 6.0 mm²
High quality crimping thanks to automatically adjusted pressure force
Cancel manually by emergency unlocking
Conventional use of crimping pliers poses a risk that male blade connectors will snag in the pliers or be crimped incorrectly. The crimping pliers with B/F pressing from Wiha can eliminate unnecessary waste of cable and wire-end sleeves. It has a crimping range from 0.5 to 6.0 mm², which covers a large part of all possible applications. The high crimping quality results from the automatically adjusted pressure force and the option of interrupting the crimping process manually by an emergency release function.
Crimping according to DIN 46247 for DIN tab widths F2.8, F4.8, F6.3, F9.5 as well as other various electronic contacts.
Product identifiers
Categories
Features
|
Width (mm)
|
80
|
|
ESD article
|
No
|
|
Height (mm)
|
25
|
|
Max AWG size
|
10
|
|
Min AWG size
|
24
|
|
VDE certified
|
No
|
|
Tool for electrics
|
Yes
|
|
Overall length (mm)
|
220
|
|
Min. - Max. AWG size
|
24 - 10
|
|
Self service - packing
|
No
|
|
Area stripped, cross section max (mm²)
|
6
|
|
Area stripped, cross section min (mm²)
|
0.25
|
|
Area stripped, cross section min – max (mm²)
|
0.25 - 6
|
