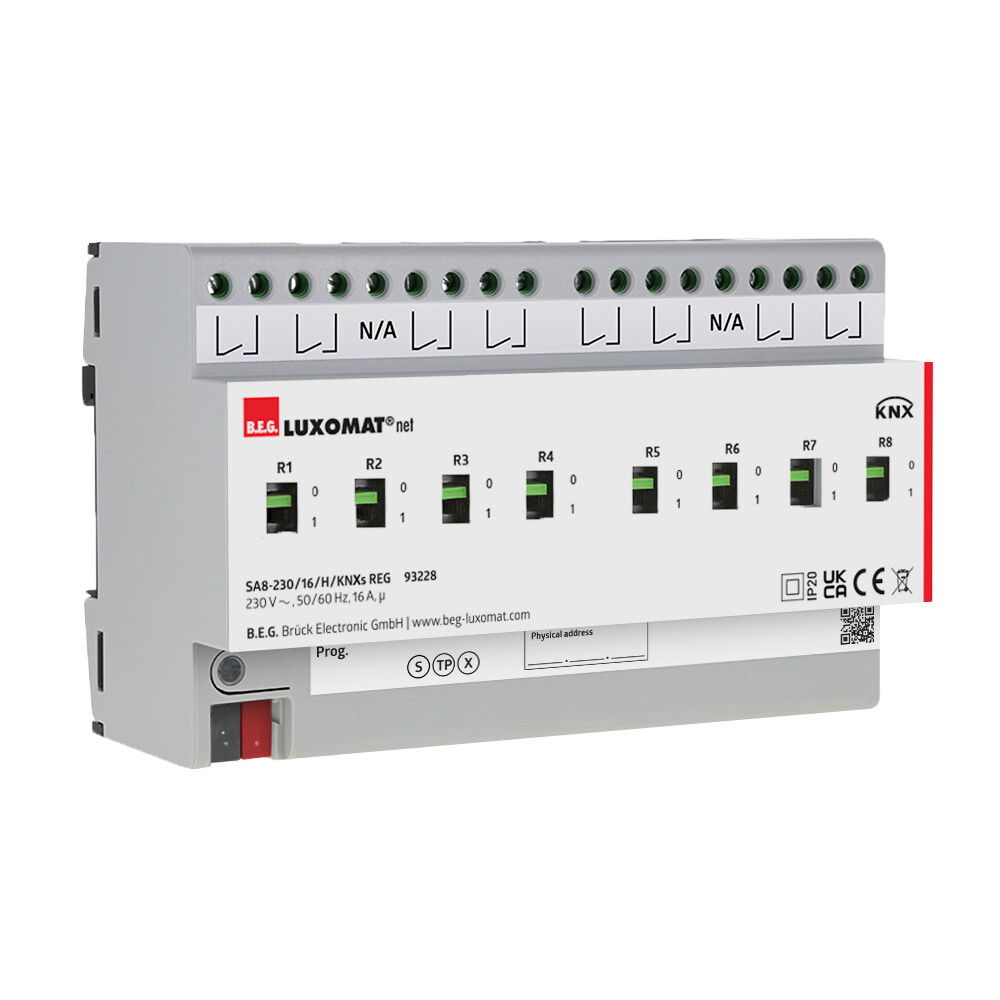

Switching actuator DIN-rail (TH35 EN . - IP20 KNX Secure 8Channel
B.E.G.

Switching actuator DIN-rail (TH35 EN . - IP20 KNX Secure 8Channel

Switching actuator for switching loads, KNX Secure ready, Industrial quality, KNX rail-mounting device for mounting on a DIN rail (TH 35 according to EN 60715) for installation in the distribution board, The device has 8 independant potential-free NO contacts, The switching contacts are optimised for capacitive loads, Manual switches for switching without bus tension, Powered via KNX bus, Connection of the outputs via screw terminals

Product identifiers

SKU: 93228
EAN: 4007529932283
GTIN: 4007529932283
MPN: SA8 - 230 / 16 / H / KNXs REG

Categories

Building Controls & Automation Lighting Control Systems

Specifications

Output power 3680
Rated current 16
Bus system KNX yes
Bus system LON no
Mounting method DRA (DIN-rail adapter)
Other bus systems None
Power consumption -
Bus system Powernet no
With LED indication yes
Max. switching power 3680
Modular expandability no
Rated operating voltage 30 - 30
Number of digital inputs -
Bus system radio frequency no
Radio frequency bidirectional no
Max. number of switching contacts 8
Width in number of modular spacings 8
