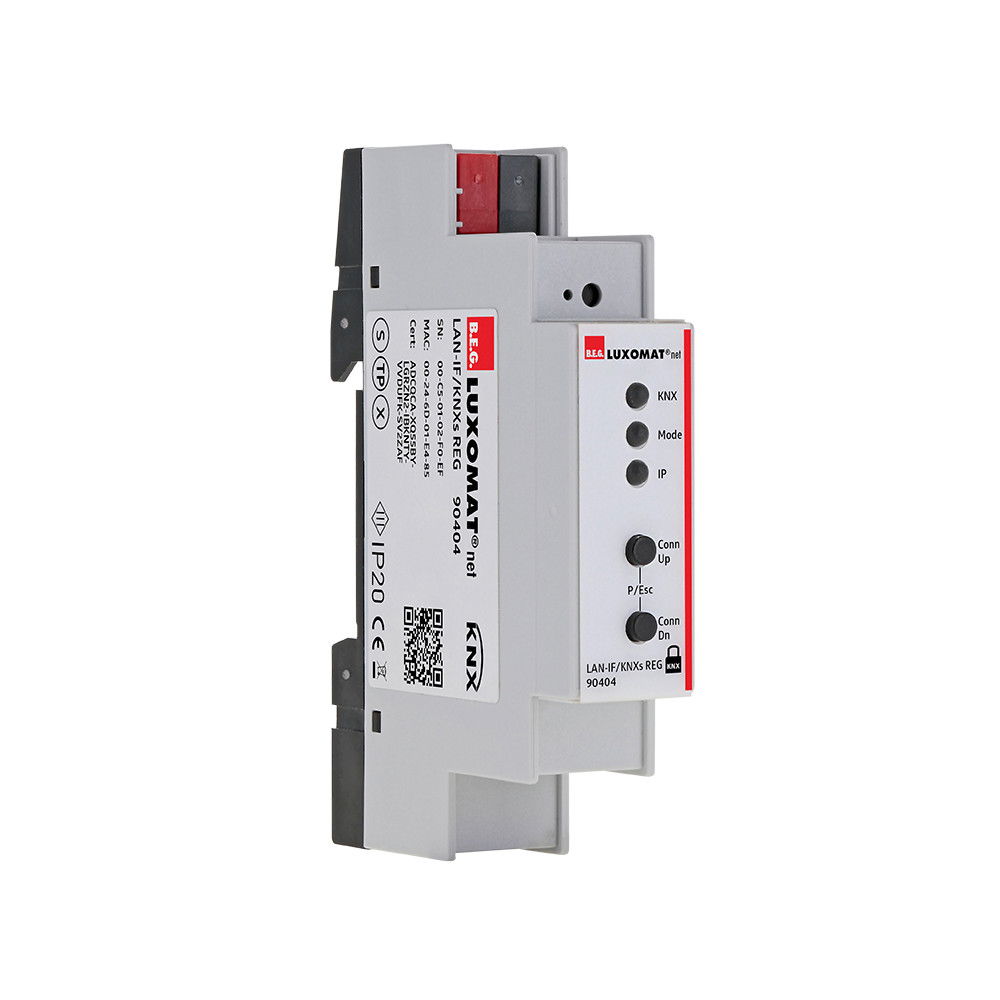

KNX IP interface DIN-rail (TH35 EN . - IP20 KNX Secure
The LAN-IF/KNXs REG serves as a secure interface between a LAN (IP, Ethernet) and KNX, Can be used as programming interface for the ETS, As KNX Secure Interface (tunneling) the device prevents unauthorized access to the system, Up to 8 connections simultaneously, The security option can be activated or deactivated in the ETS., The LEDs indicate operating conditions as well as communication errors on the KNX bus
Product identifiers
SKU: 90404
EAN: 4007529904044
GTIN: 4007529904044
MPN: LAN-IF/KNXs REG
ETIM Group
Specifications
| Bus system KNX | yes |
| Bus system LON | no |
| Mounting method | DRA (DIN-rail adapter) |
| Other bus systems | None |
| Bus system Powernet | no |
| Bus system radio frequency | no |
| Bus system KNX-RF (Radio Frequency) | no |
| Width in number of modular spacings | 1 |
