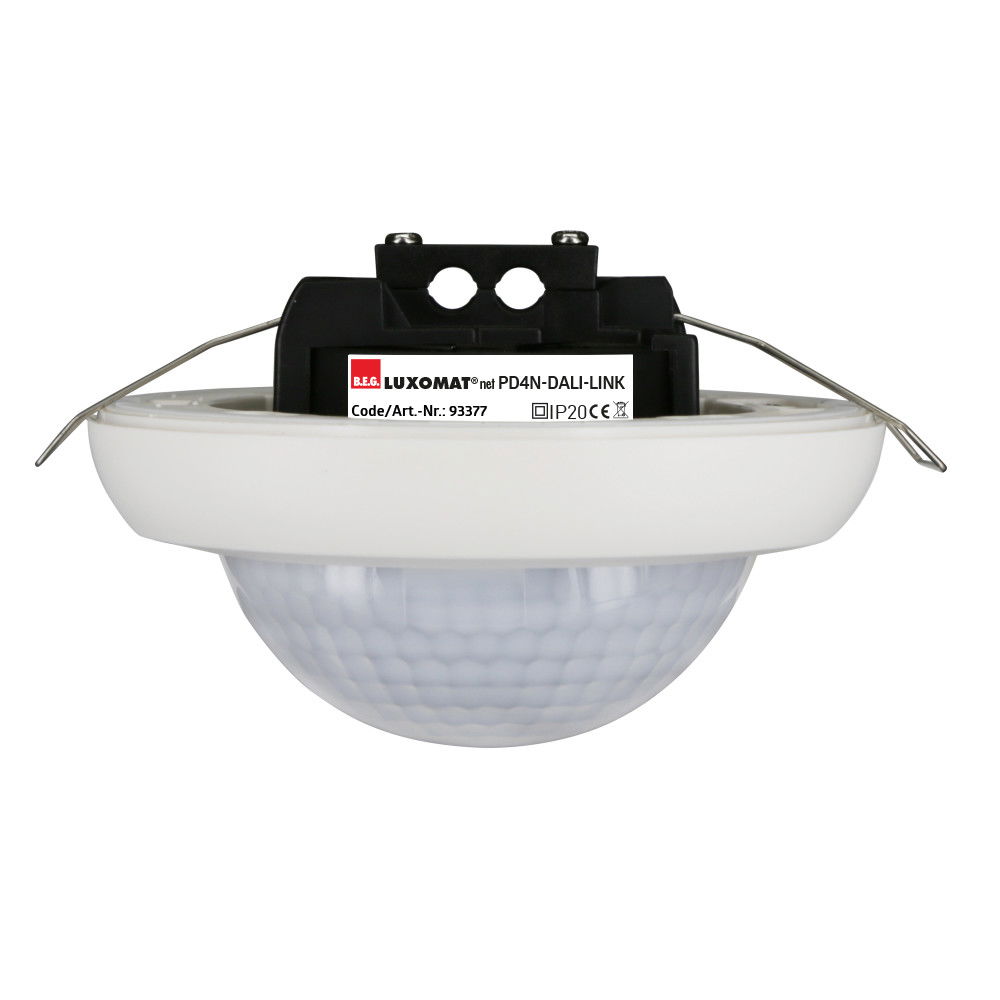

Occupancy detector 360° white IP20 DALI-LINK 24m
Wide motion detection range DALI multisensor, Powered via DALI bus, Seemless integration in DALI lighting control system B.E.G. LUXOMAT(R)net DALI-LINK as modular multimaster option, Detection area can be extended thanks to master-slave-mode, Mixed light measurement with internal and external light sensor, Semi-automatic, full-automatic or twilight switch mode, Integrated daylight harvesting circuit (or switch output), Guided Light, Soft-Start PLUS, Orientation light PLUS, Works out-of-the box for easy installation check, Full range of functions can only be activated with other products of the product group B.E.G. LUXOMAT(R)net DALI-LINK, Detection area can be restricted with blinds, This article is a component of a lighting control system from B.E.G., which supports the use of DALI control gear (luminaires, relays) from other manufacturers, The use of DALI application controllers from other manufacturers is not supported, The use of DALI input devices (sensors, push-buttons) from other manufacturers is not supported, Additional system components (hardware) from B.E.G. are required, Additional free software from B.E.G. is required
Product identifiers
SKU: 93377
EAN: 4007529933778
GTIN: 4007529933778
MPN: PD4N-DALI-LINK
Categories
Features
Depth
|
-
|
Model
|
-
|
Width
|
-
|
Colour
|
-
|
Height
|
68.0
|
Diameter
|
106.0
|
Material
|
Plastic
|
Diameter 1
|
106.0
|
Diameter 2
|
-
|
Animal zone
|
no
|
Transparent
|
no
|
Built-in depth
|
-
|
Built-in width
|
-
|
Bus system KNX
|
-
|
Bus system LON
|
-
|
Surface height
|
-
|
Built-in length
|
-
|
Max. duty cycle
|
-
|
Mounting method
|
-
|
Switching power
|
-
|
DALI-2 certified
|
no
|
Material quality
|
-
|
Operating height
|
-
|
Substation input
|
-
|
Built-in diameter
|
-
|
Other bus systems
|
Other
|
Surface finishing
|
Matt
|
Number of channels
|
-
|
Surface protection
|
Untreated
|
Bus system Powernet
|
-
|
Max. reach sideways
|
12
|
Min. switch-on time
|
-
|
With bus connection
|
-
|
Max. reach frontally
|
4
|
RAL-number (similar)
|
9010
|
With acoustic sensor
|
no
|
Background monitoring
|
no
|
Operation mode switch
|
no
|
With connection cable
|
no
|
Creep-under protection
|
-
|
Connection cable length
|
0
|
Diameter reach on floor
|
24
|
Optimum mounting height
|
2.5
|
Voltage supply over bus
|
yes
|
Detection angle vertical
|
|
Bus system radio frequency
|
-
|
Detection angle horizontal
|
|
Staircase light controller
|
yes
|
Suitable for wall mounting
|
no
|
Radio frequency bidirectional
|
-
|
Suitable for ceiling mounting
|
yes
|
Switch-off delay self-learning
|
-
|
Bus system KNX-RF (Radio Frequency)
|
-
|
Response value luminosity adjustable
|
no
|
Min. depth of built-in installation box
|
-
|
Teach-function for response value luminosity
|
no
|
