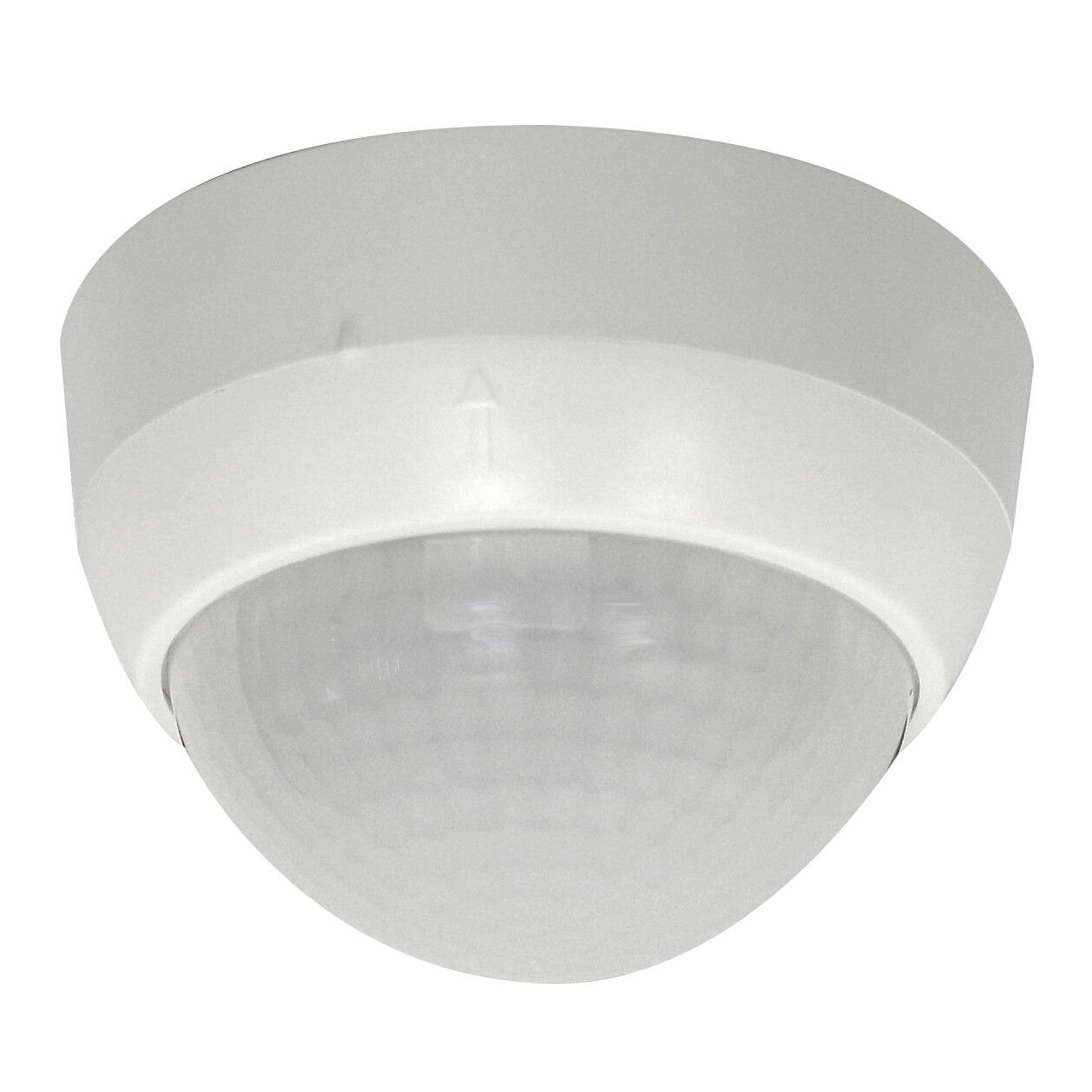

Occupancy detector high-bay storages 360° SM white IP20 30m 1Channel

Occupancy detector high-bay storages 360° SM white IP20 30m 1Channel

Occupancy detector designed for high-bay warehouses, One potential-free (dry) switching contact, Version as master device, Detection area can be extended by using slave devices, Easy operation with remote control (required), Manual switching via push-button possible, There are markings to ensure correct alignment during installation, When used in high-bay warehouses, care should be taken that, in the cross-aisles of the warehouse, detectors are installed that can detect movement only in the desired aisle locations, by using blinds or other technical arrangements., Factory settings 3 min and 1000 lux

Product identifiers

SKU: 92245
EAN: 4007529922451
GTIN: 4007529922451
MPN: PD4-M-1C-GH-SM

Specifications

Depth -
Model Presence detector
Width -
Colour White

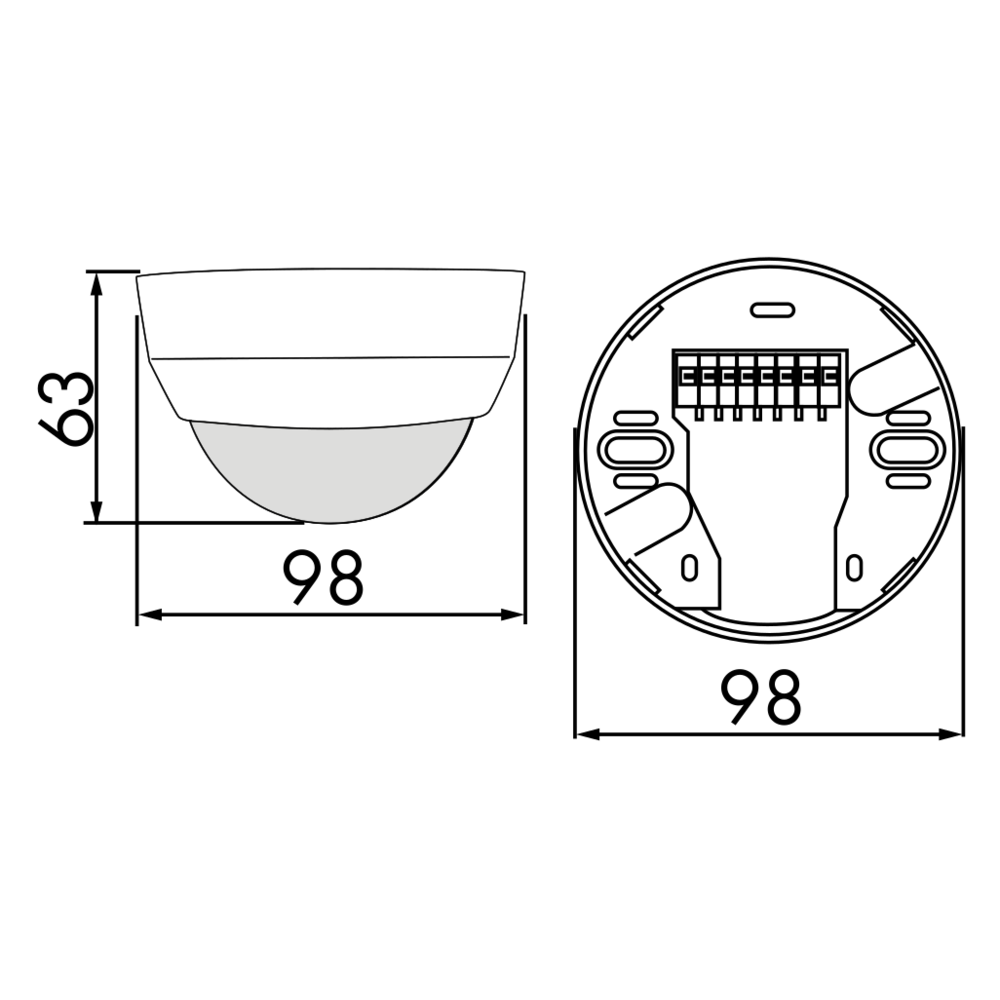

Height 63.0
Diameter 98.0
Material Plastic
Frequency 50 - 60
Diameter 2 -
Animal zone no
Sensor type Passive infrared
Transparent no
Halogen free yes
Built-in depth -
Surface height 32.0
Built-in length -
Control current 2
Max. duty cycle 30
Nominal voltage 110.0 - 240.0
Material quality Other
Remote operation yes
Switch-off delay 0
Built-in diameter -
Surface finishing Matt
Switching-on delay 0
Max. reach sideways 22
Suitable for C-load no
With alarm function no
Max. reach frontally 30
RAL-number (similar) 9010
Background monitoring no
Min. starting current -
Constant light control -
Connection cable length 0
IFTTT support available no
Anti-bacterial treatment no
Degree of protection (IP) IP20
Response value luminosity 20 - 2000
Staircase light controller yes
Compatible with Amazon Alexa no
Suitable for ceiling mounting yes
Compatible with Google Assistant no
Suitable for wireless transmission no
Response value sensitivity adjustable yes
Min. depth of built-in installation box -
