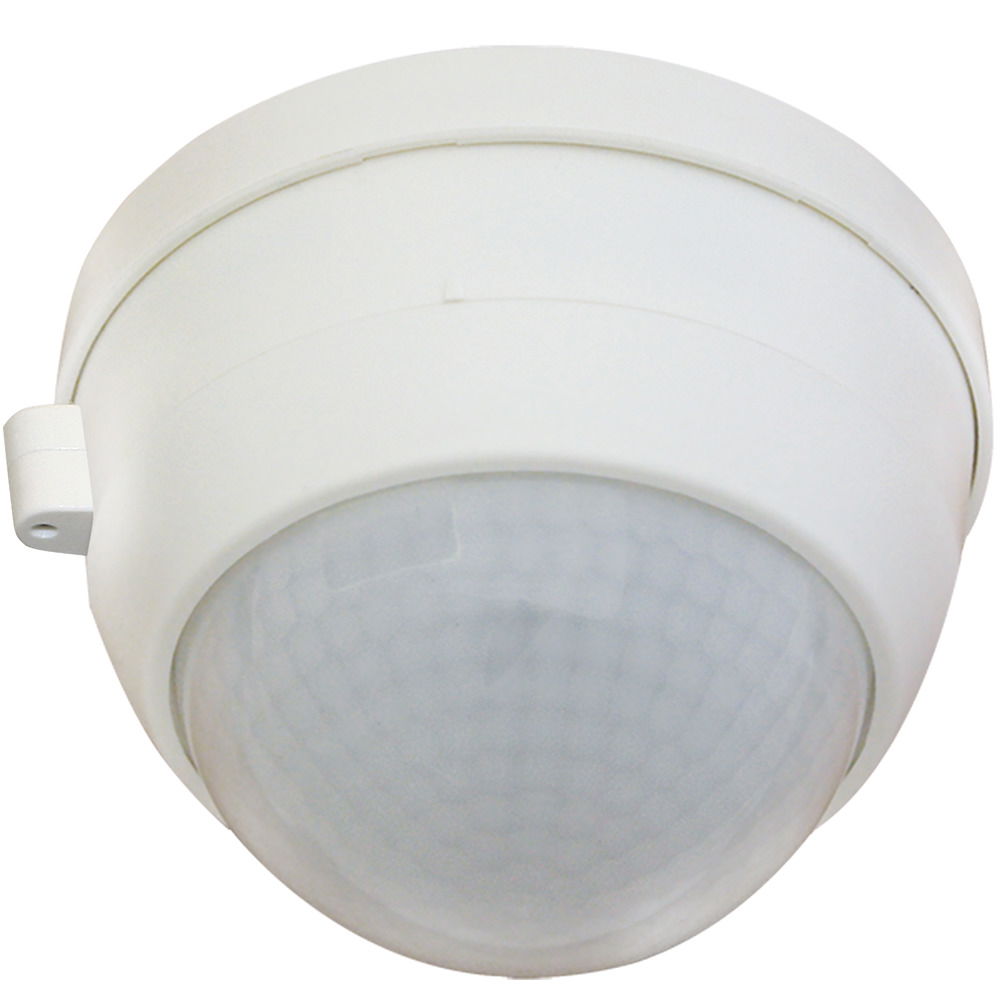

Slave device 360° SM white IP54 24m
DALI bus operated slave device, For extension of the detection area of a master device PD4-M-DAA4G / PD4-M-HCL, Trigger pulse to master device upon detected movement independent of the ambient light level, Automatic test mode via master device, Plug & Play - no parameterisation required, Easy to mount, False ceilling or surface mount version available
Product identifiers
SKU: 92759
EAN: 4007529927593
GTIN: 4007529927593
MPN: PD4-S-DAA4G-SM
Categories
Features
|
Depth
|
-
|
|
Model
|
Movement sensor
|
|
Width
|
-
|
|
Colour
|
White
|
|

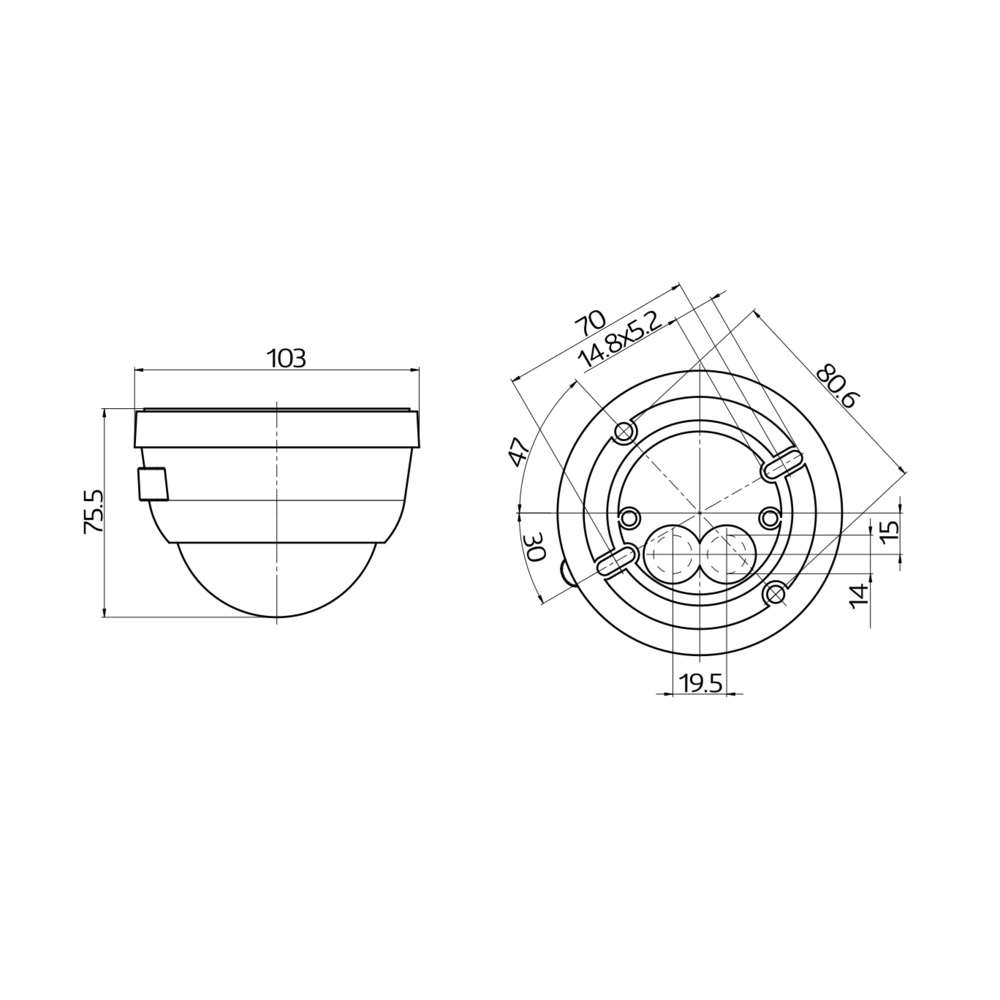

Height
|
76.0
|
|
Diameter
|
103.0
|
|
Material
|
Plastic
|
|
Diameter 1
|
103.0
|
|
Diameter 2
|
-
|
|
Animal zone
|
no
|
|
Transparent
|
no
|
|
Built-in depth
|
-
|
|
Built-in width
|
-
|
|
Bus system KNX
|
no
|
|
Bus system LON
|
no
|
|
Surface height
|
38.0
|
|
Built-in length
|
-
|
|
Max. duty cycle
|
1
|
|
Mounting method
|
EV000384
|
|
Switching power
|
-
|
|
DALI-2 certified
|
no
|
|
Material quality
|
Other
|
|
Operating height
|
76.0
|
|
Substation input
|
no
|
|
Built-in diameter
|
-
|
|
Other bus systems
|
Other
|
|
Surface finishing
|
Matt
|
|
Number of channels
|
1
|
|
Surface protection
|
Untreated
|
|
Bus system Powernet
|
no
|
|
Max. reach sideways
|
12
|
|
Min. switch-on time
|
1
|
|
With bus connection
|
yes
|
|
Max. reach frontally
|
4
|
|
RAL-number (similar)
|
9010
|
|
With acoustic sensor
|
no
|
|
Background monitoring
|
no
|
|
Operation mode switch
|
no
|
|
With connection cable
|
no
|
|
Creep-under protection
|
yes
|
|
Connection cable length
|
0
|
|

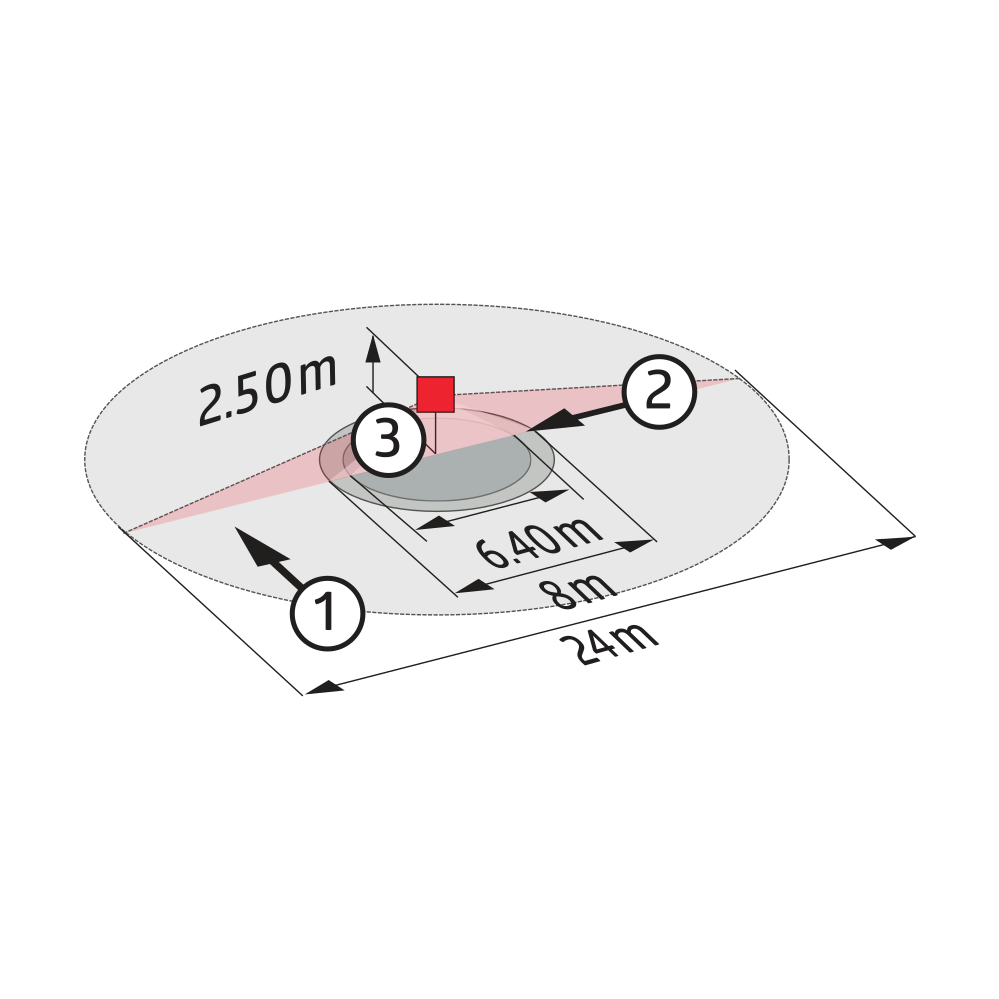

Diameter reach on floor
|
24
|
|
Optimum mounting height
|
2.5
|
|
Voltage supply over bus
|
yes
|
|
Detection angle vertical
|
|
|
Bus system radio frequency
|
no
|
|
Detection angle horizontal
|
|
|
Staircase light controller
|
yes
|
|
Suitable for wall mounting
|
no
|
|
Radio frequency bidirectional
|
no
|
|
Suitable for ceiling mounting
|
yes
|
|
Switch-off delay self-learning
|
no
|
|
Bus system KNX-RF (Radio Frequency)
|
no
|
|
Response value luminosity adjustable
|
no
|
|
Min. depth of built-in installation box
|
-
|
|
Teach-function for response value luminosity
|
no
|
