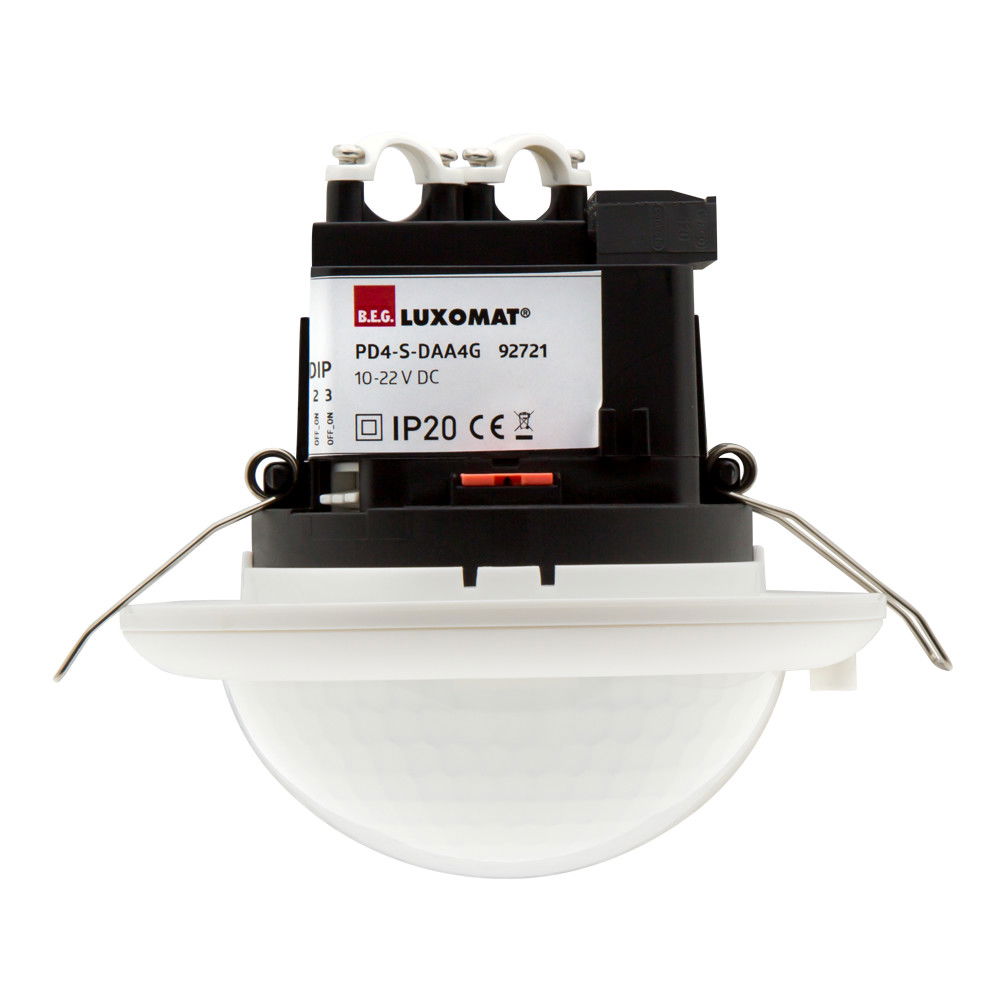

Slave device 360° FC white IP20 24m

Slave device 360° FC white IP20 24m

DALI bus operated slave device, For extension of the detection area of a master device PD4-M-DAA4G / PD4-M-HCL, Trigger pulse to master device upon detected movement independent of the ambient light level, Automatic test mode via master device, Plug & Play - no parameterisation required, Easy to mount, False ceilling or surface mount version available

Product identifiers

SKU: 92721
EAN: 4007529927210
GTIN: 4007529927210
MPN: PD4-S-DAA4G-FC

Specifications

Depth -
Model Movement sensor
Width -
Colour White

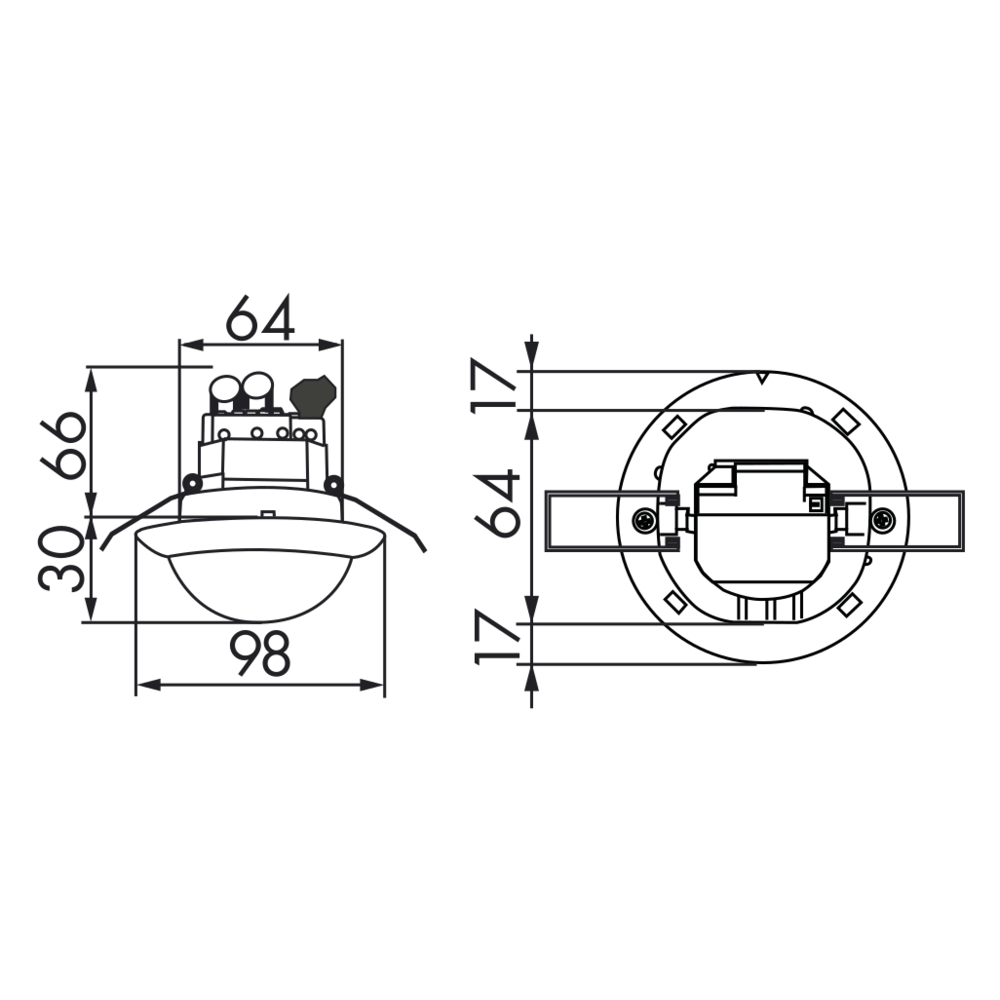

Height 96.0
Diameter 98.0
Material Plastic
Diameter 1 98.0
Animal zone no
Built-in depth -
Bus system KNX no
Surface height -
Max. duty cycle 1
Switching power -
Material quality Other
Substation input no
Other bus systems Other
Number of channels 1
Bus system Powernet no
Min. switch-on time 1
Max. reach frontally 4
With acoustic sensor no
Operation mode switch no
Creep-under protection yes
Diameter reach on floor 24
Voltage supply over bus yes
Bus system radio frequency no
Staircase light controller yes
Radio frequency bidirectional no
Switch-off delay self-learning no
Response value luminosity adjustable no
Teach-function for response value luminosity no
