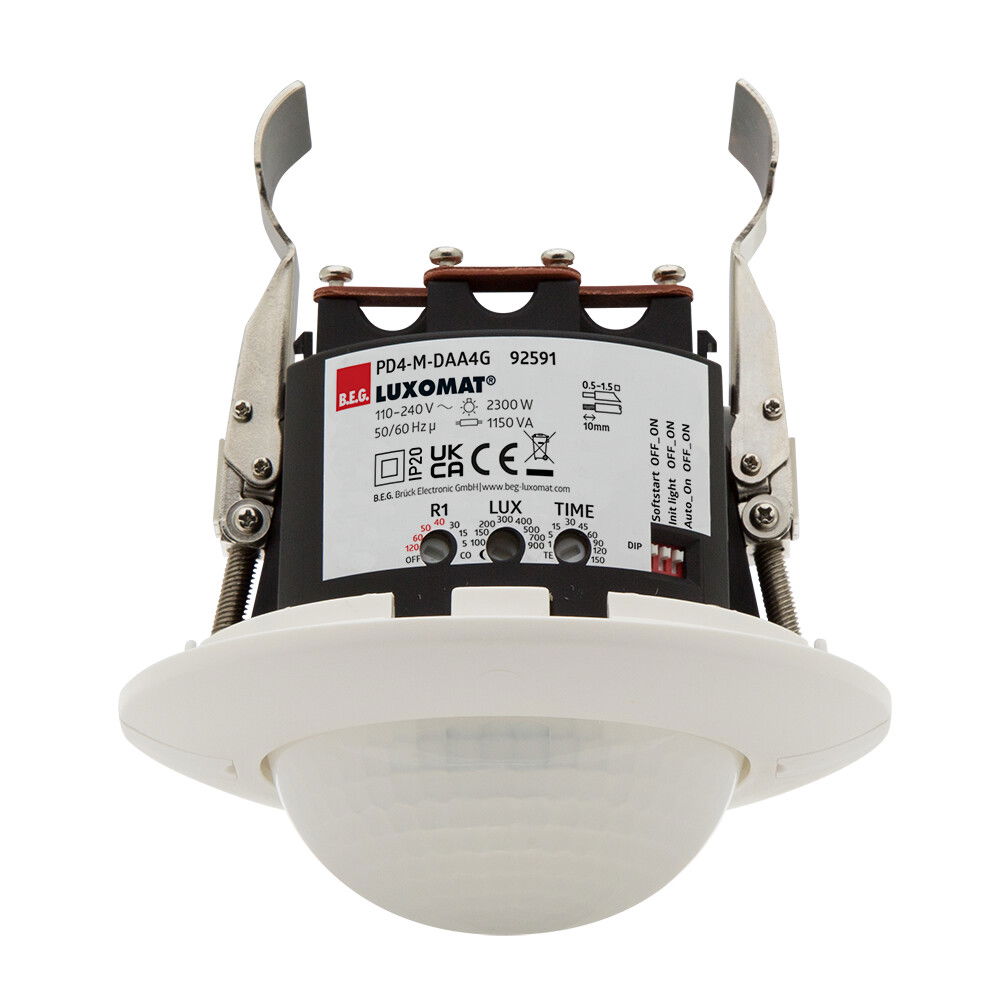

Occupancy detector 4G, 1C 360° FC white IP20 DALI 24m 1Channel

Flexible DALI Compact solution designed for conference rooms, training rooms and classrooms, High-sensitivity occupancy detector with the capability to address up to 64 DALI electronic ballasts (EB) automatically, with segmented control via 4 groups, Quick commissioning and maintenance processes via Smartphone/Tablet App (Android, iOS) - No PC-Tool required, 3 lighting zones:, A for main lighting with segmented constant light regulation via 3 DALI groups and offset control,, B for lectern or blackboard lighting via separate DALI group,, C for lectern or blackboard lighting by integrated relay, Powerful switching relay for different operating modes, e.g. Cut-off function for DALI ballasts, HVAC, blackboard illumination., Manual switching or dimming via conventional pushbuttons, Detection area can be extended with up to four Slave devices of type PD4-S-DAA4G, Complete range of functions can only be activated using the B.E.G. IR Adapter or the BLE-IR-Adapter and a compatible Smartphone or Tablet (Android, iOS)., External light sensor can be swivelled by 45, Avoidance of standby losses of the lighting system in accordance with EnEV DIN V 18599-4
