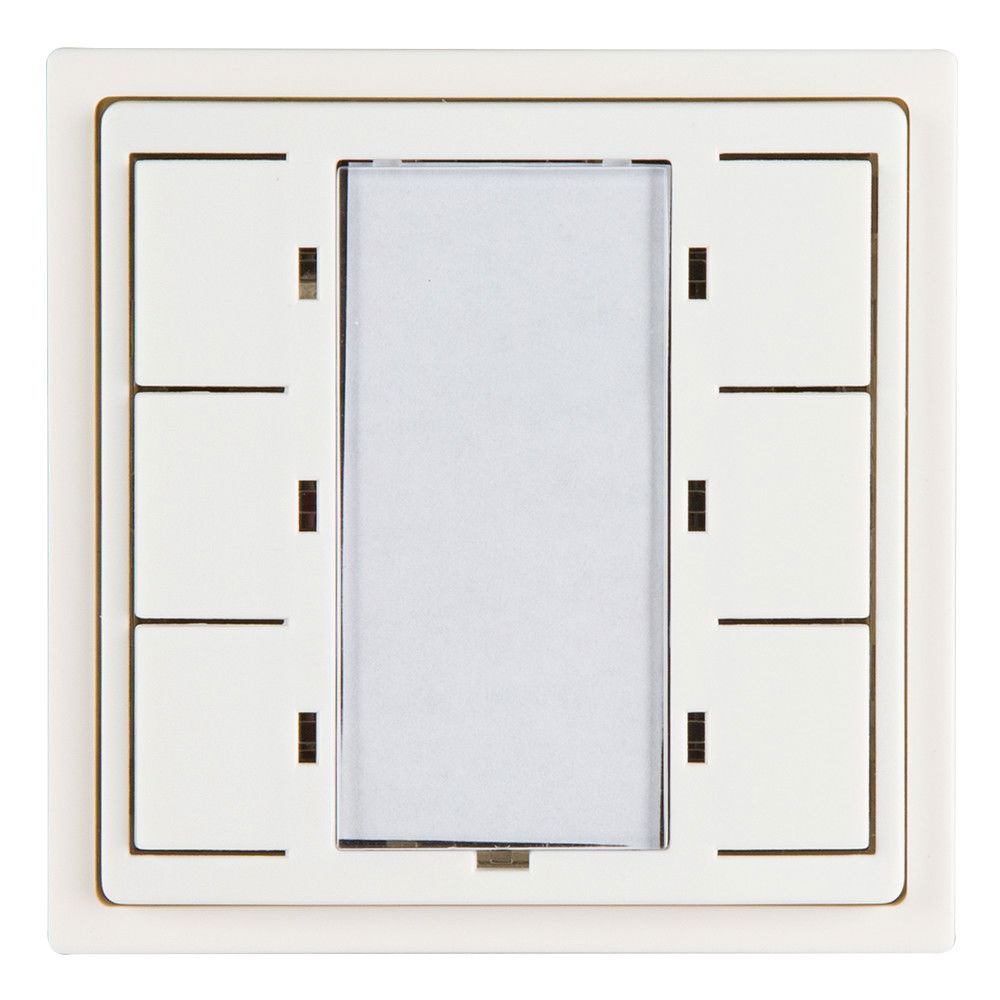

Push button FM white IP20 KNX 6Channel
Binary input device (multi-point pushbutton) for use in 60 mm flush-mounted boxes, Suitable for switch ranges 55x55, Adapter for switch ranges 64x64 included, User-friendly ETS interface, The following functions are possible:, - Switching, - Forced operation, - Percentage, - Temperature, - HVAC mode, - Dimming, - Blinds control, - Scene, - Edge function, - Counter, Settings ex ETS 4 for integration in KNX systems, The product database for import into the ETS database can be downloaded from the B.E.G. homepage.
Product identifiers
SKU: 93176
EAN: 4007529931767
GTIN: 4007529931767
MPN: PB6-KNX-ST
Categories
Features
|
Colour
|
White
|
|
Material
|
Plastic
|
|
Transparent
|
no
|
|
With display
|
no
|
|
Bus system KNX
|
yes
|
|
Bus system LON
|
no
|
|
With IR sensor
|
no
|
|
Mounting method
|
Flush-mounted
|
|
With label area
|
yes
|
|
Material quality
|
Other
|
|
Number of buttons
|
6
|
|
Other bus systems
|
None
|
|
Power consumption
|
-
|
|
Surface finishing
|
Matt
|
|
Surface protection
|
Other
|
|
Bus system Powernet
|
no
|
|
With LED indication
|
yes
|
|
With bus connection
|
yes
|
|
RAL-number (similar)
|
-
|
|
Degree of protection (IP)
|
IP20
|
|
Bus system radio frequency
|
no
|
|
Number of actuation points
|
6
|
|
Radio frequency bidirectional
|
-
|
|
With room temperature controller
|
no
|
|
Bus system KNX-RF (Radio Frequency)
|
no
|
|
With anti-theft/dismantling protection
|
no
|
|
Min. depth of built-in installation box
|
-
|
