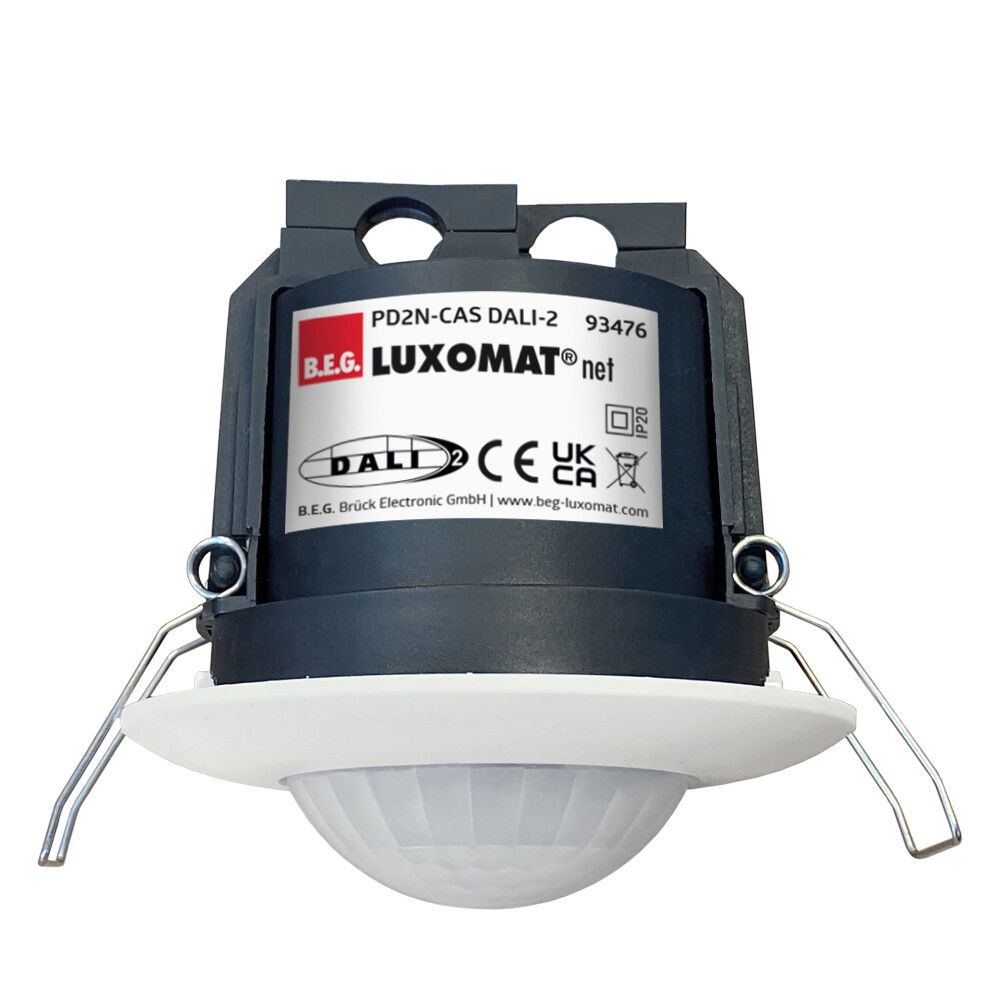

Occupancy detector Casambi 360° white IP20 DALI 10m 1Channel

Occupancy detector Casambi 360° white IP20 DALI 10m 1Channel

Casambi-enabled occupancy detector, DALI-2 interface for controlling digital dimmable ECGs in broadcast/multicast mode, Integrated temperature monitoring and short-circuit detection, Version as single-master device, can be networked wirelessly, Mixed light measurement with internal and external light sensor, Weighting between internal and external light sensor can be adapted to suit the application, Adjustment of the reflection factor and input of the luminosity for the display of the actual luminosity in the app, Extension of the detection area with additional B.E.G. Casambi devices possible, Individual adaption of the PIR sensor sensitivity, Detection area can be restricted with blinds, Functions adjustable via Casambi app, Including pre-assembled spring clamp with strain relief and contact protection cap for recessed ceiling mounting, Accessory for surface mounting available, Accessories for wall mounting optionally available, Further accessories for colour matching optionally available

Product identifiers

SKU: 93476
EAN: 4007529934768
GTIN: 4007529934768
MPN: PD2N-CAS DALI-2

Specifications

Depth -
Model Presence detector
Width -
Colour White
Height 85.0
Diameter 84.0
Material Other
Frequency 50 - 50
Diameter 2 -
Animal zone no
Sensor type Passive infrared
Transparent no
Halogen free yes
Built-in depth -
Surface height 43.0
Built-in length -
Control current 4
Max. duty cycle 60
Nominal voltage 230.0 - 230.0
Material quality Other
Remote operation yes
Switch-off delay 0
Built-in diameter -
Surface finishing Matt
Switching-on delay 0
Max. reach sideways 5
Suitable for C-load no
With alarm function no
Max. reach frontally 6
RAL-number (similar) 9010
Background monitoring no
Min. starting current -
Constant light control yes
Connection cable length 0
IFTTT support available no
Anti-bacterial treatment no
Degree of protection (IP) IP20
Response value luminosity 1 - 4000
Staircase light controller yes
Compatible with Amazon Alexa no
Suitable for ceiling mounting yes
Compatible with Google Assistant no
Suitable for wireless transmission no
Response value sensitivity adjustable yes
Min. depth of built-in installation box -
