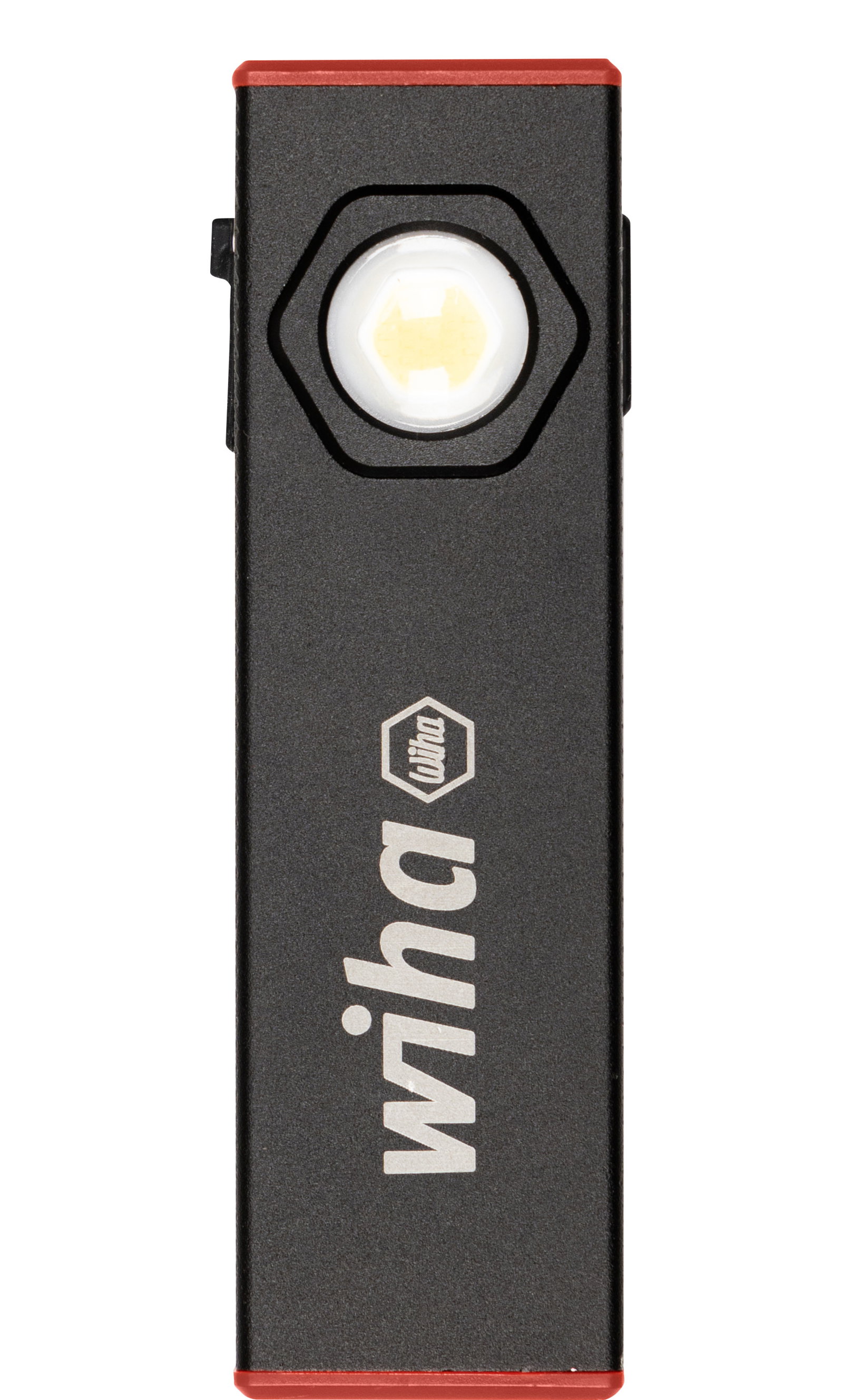

Wiha Handlamp 800 lm (45701)
Application: For illuminating dark work environments. Individually adjustable to different work requirements.
Boost function 800 lumen for better visibility

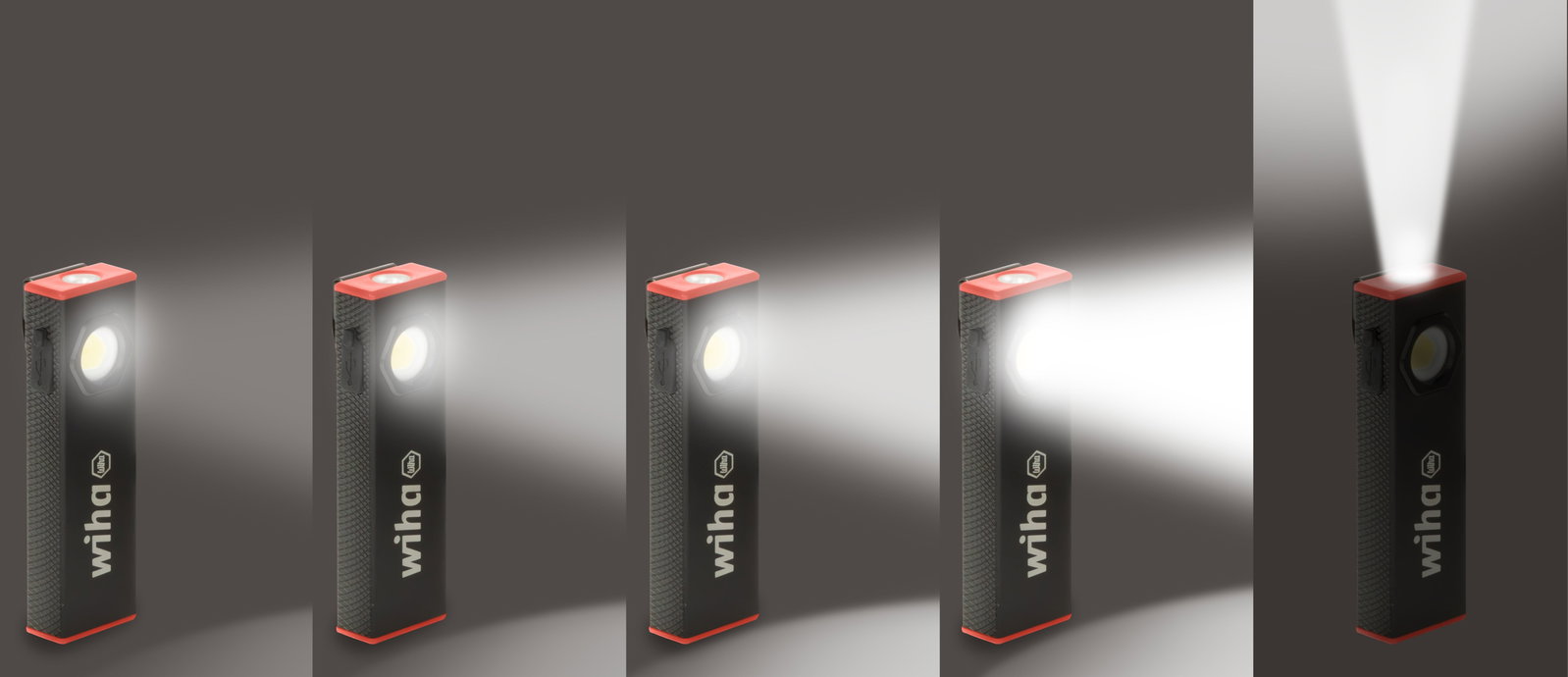

Flexible and efficient thanks to 5 illumination modes

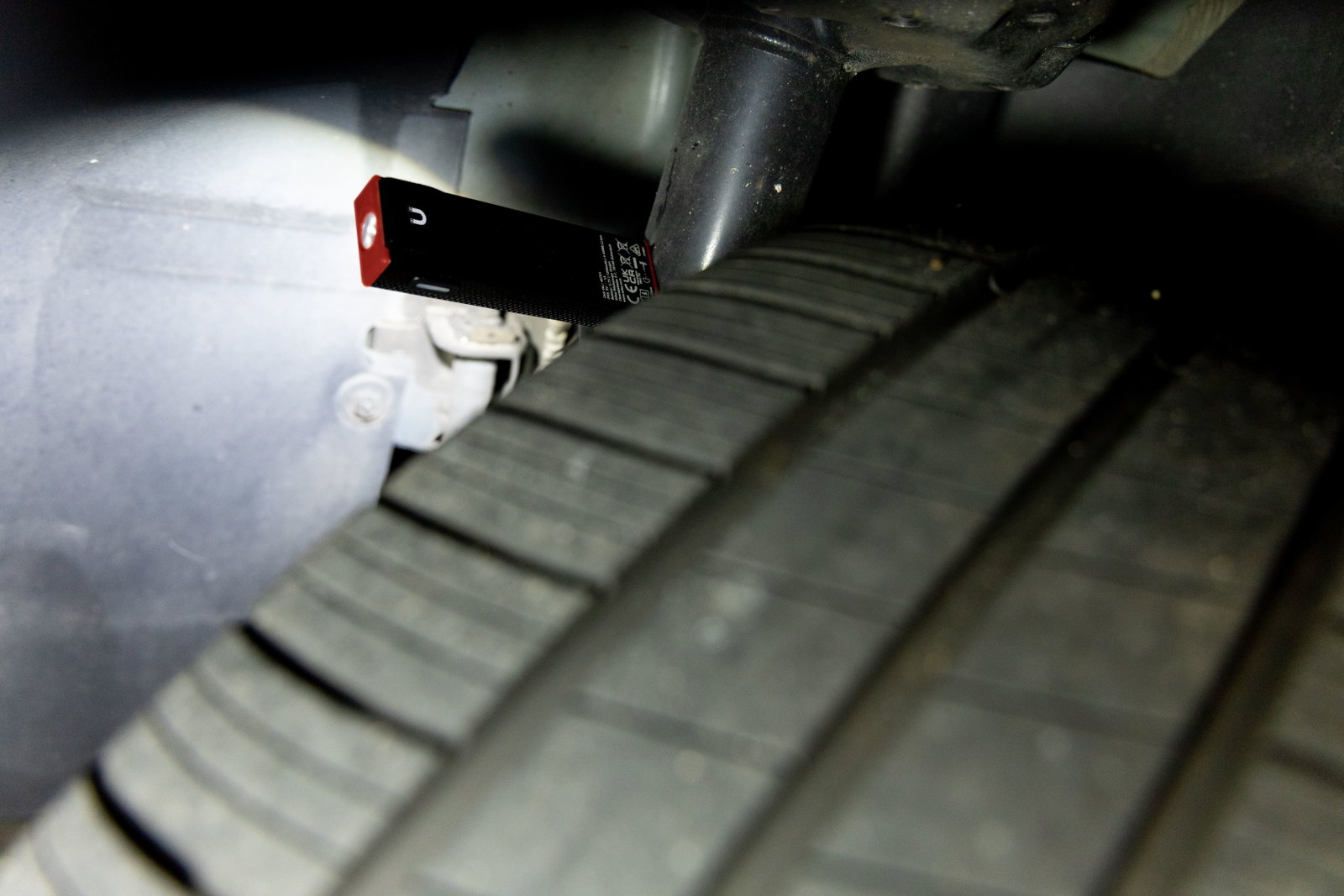

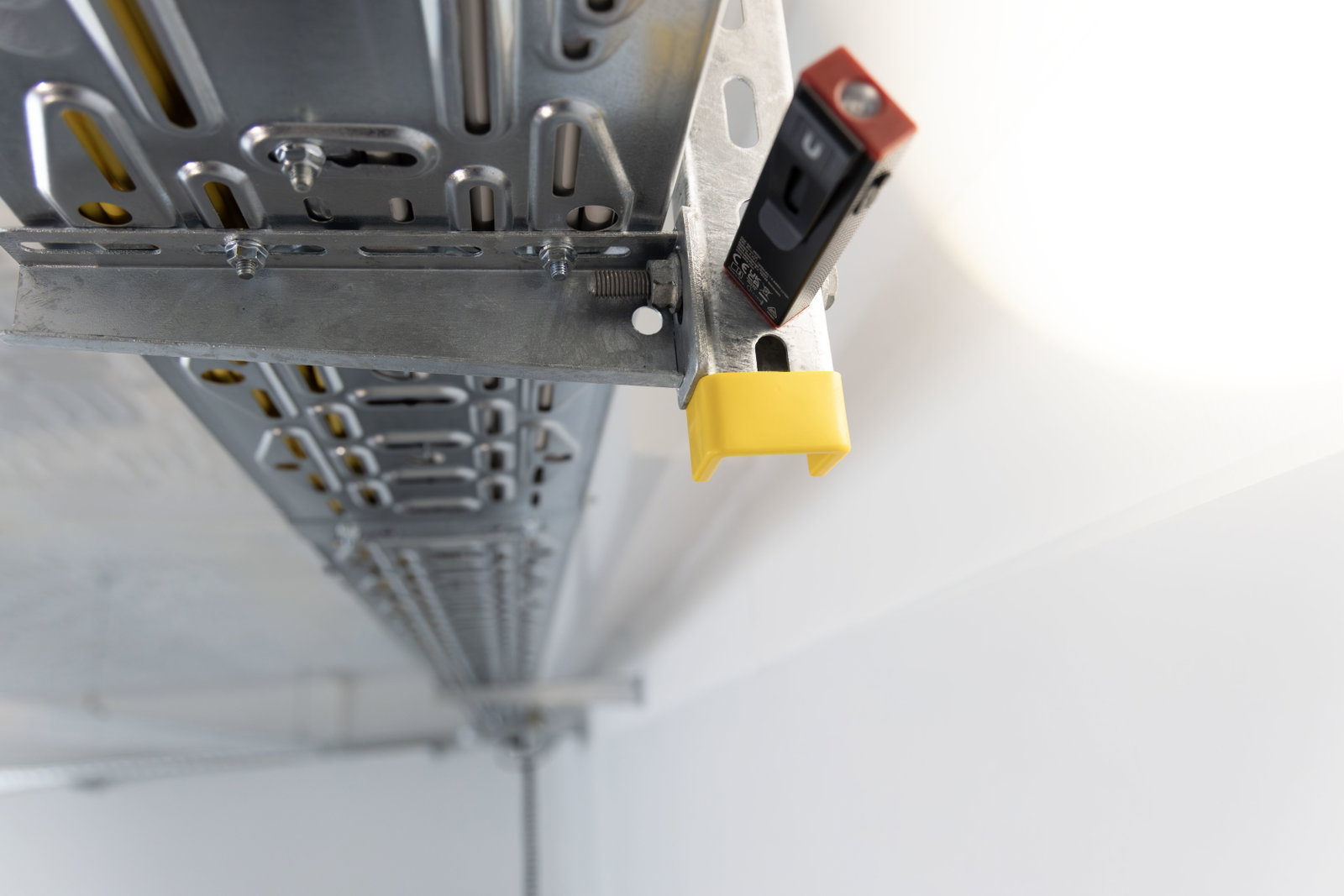

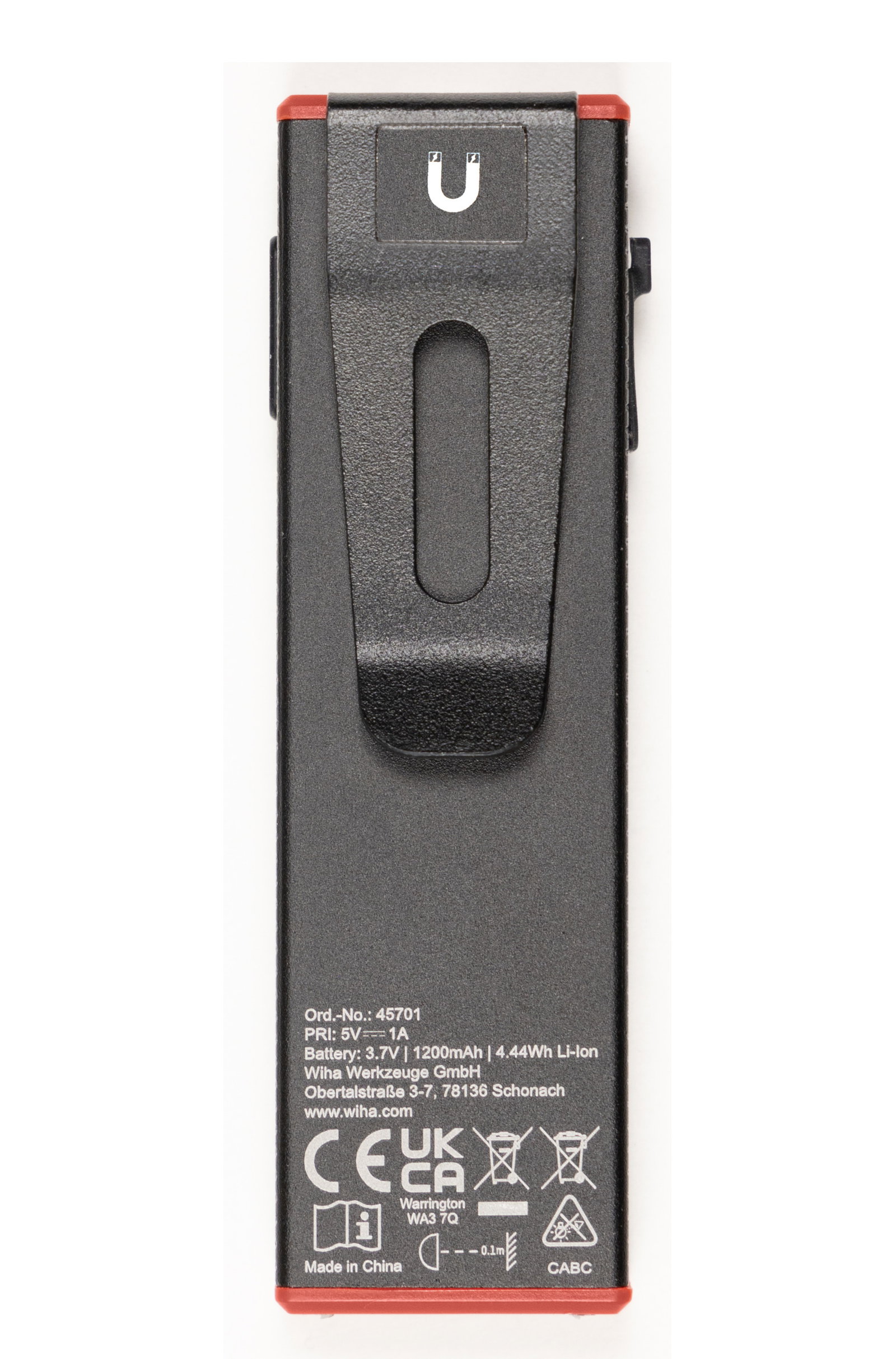

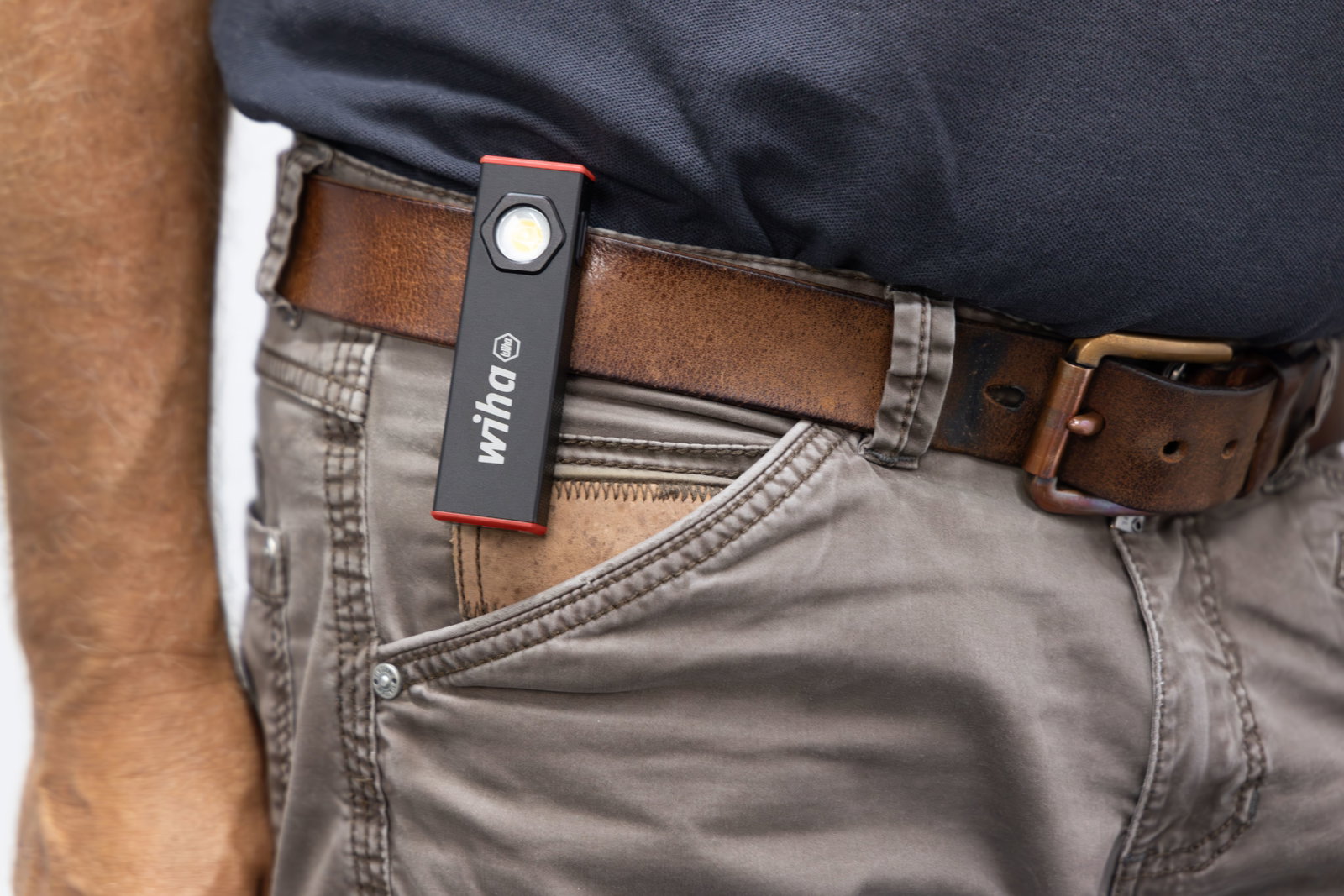

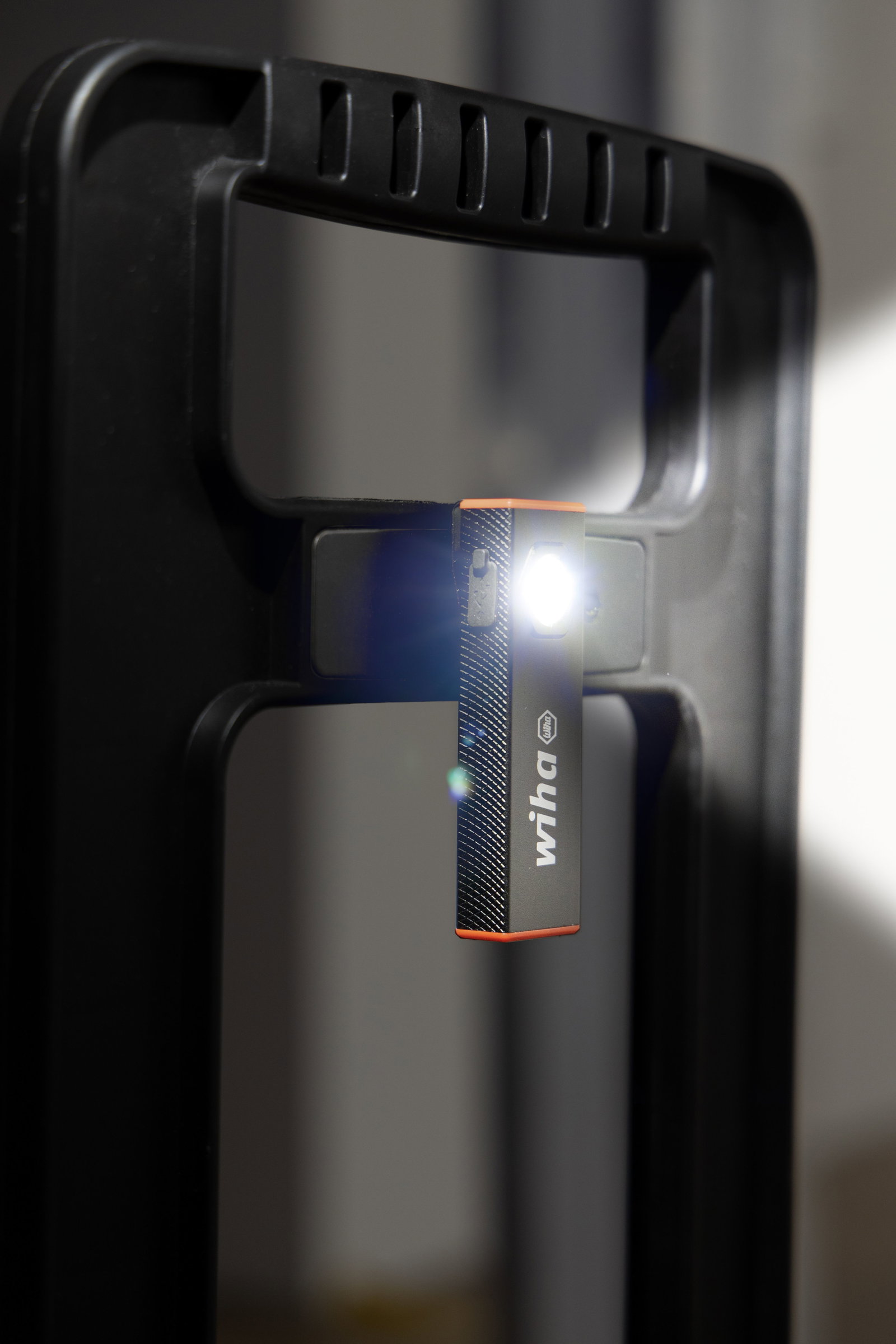

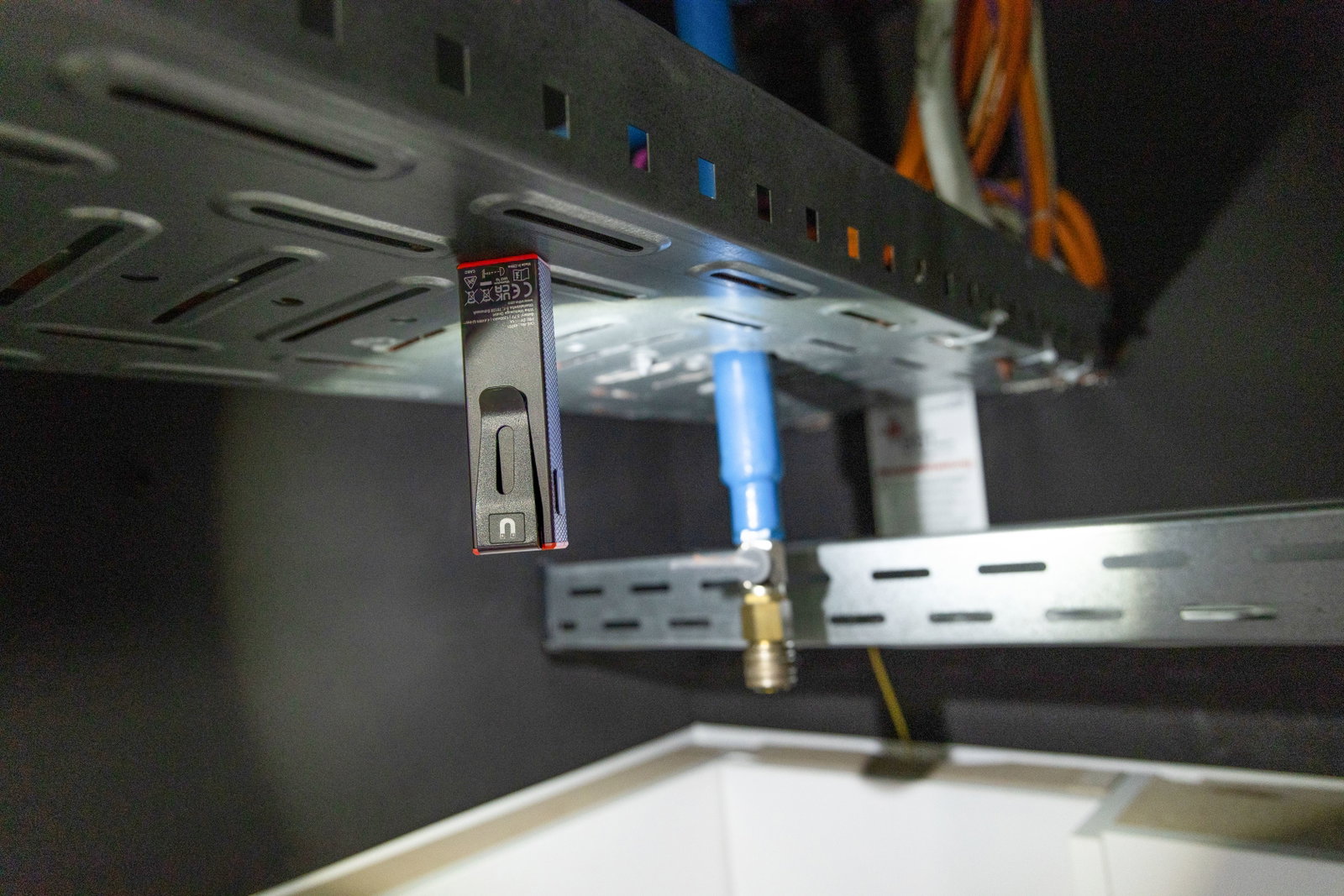

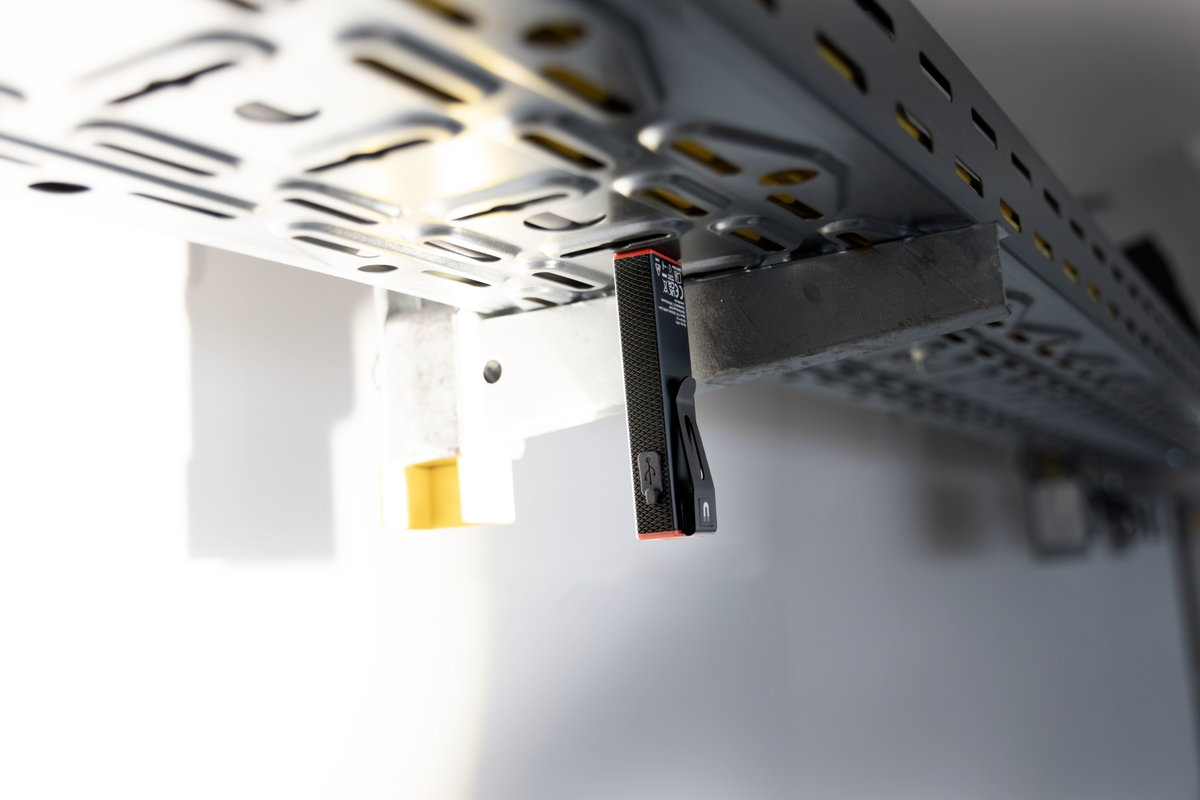

Free hands thanks to magnetic holder and belt clip

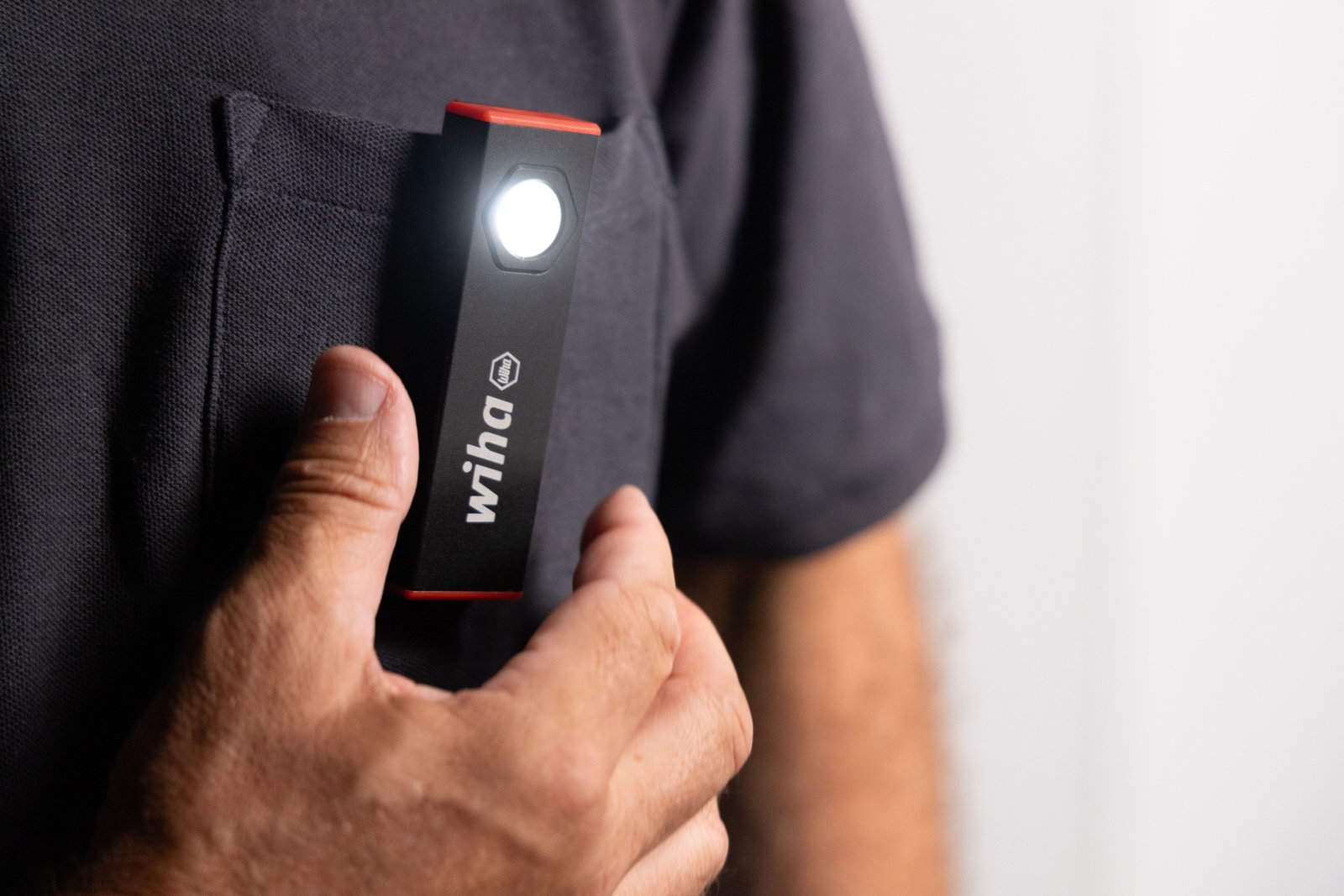

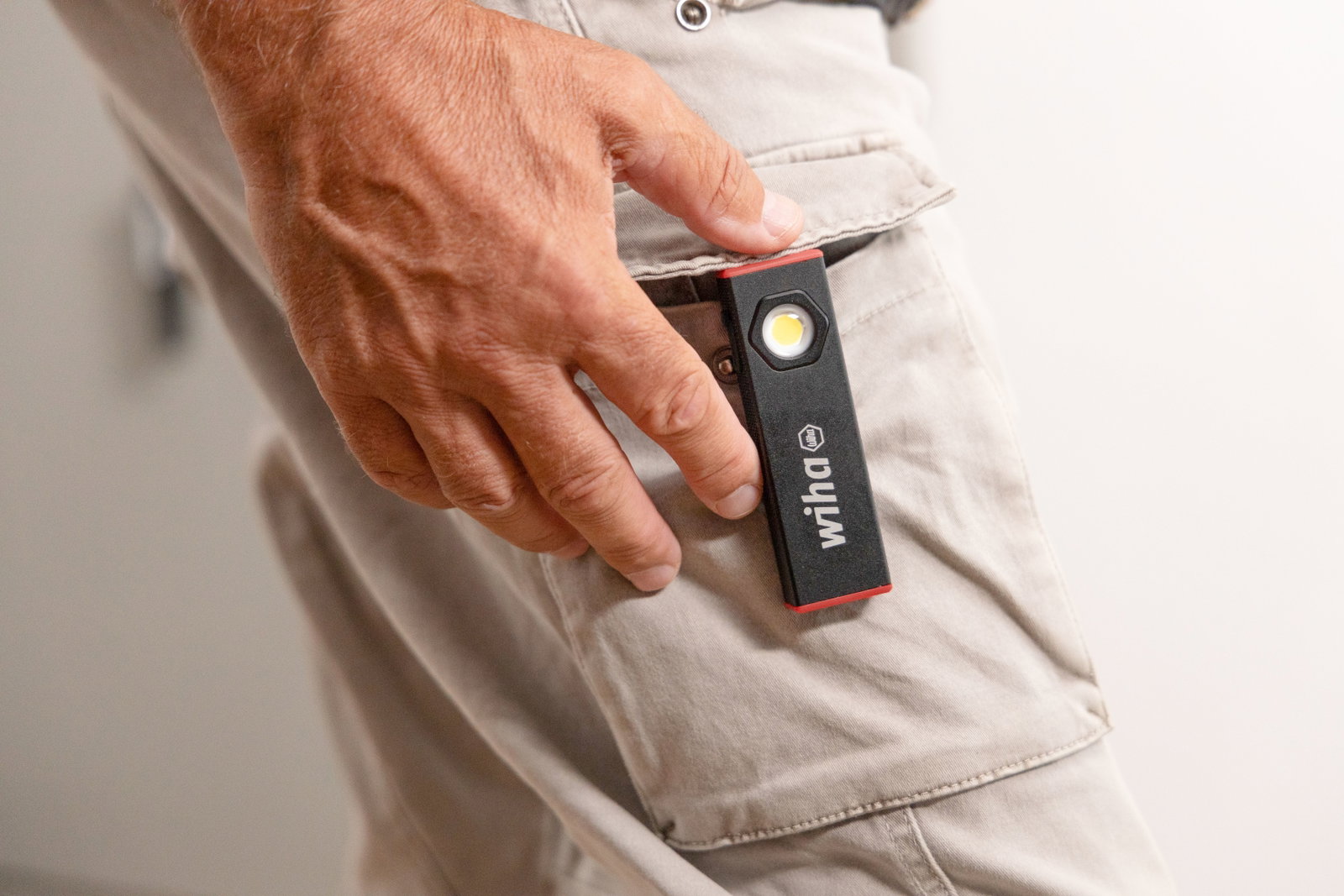

Ultra-light and small – fits into every shirt and trousers pocket
Robust aluminum housing for high shock resistance

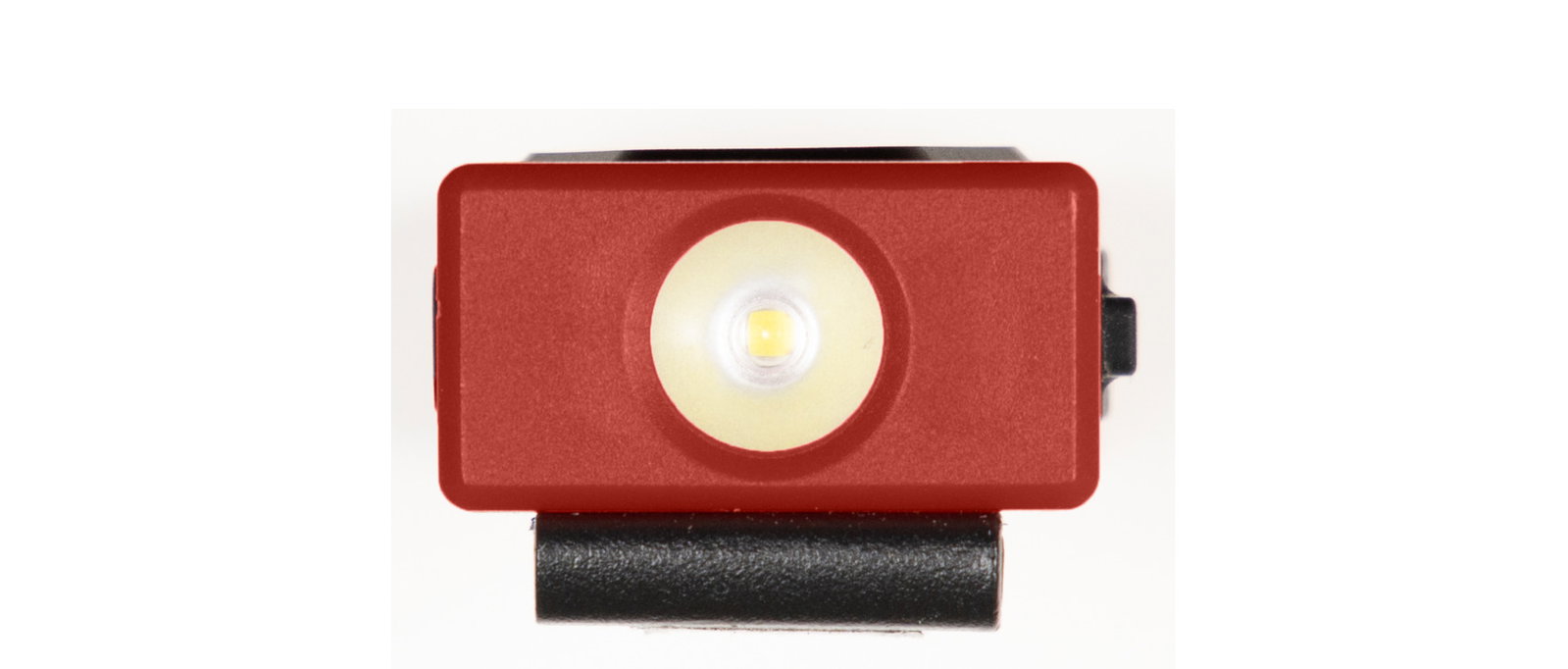

No electricity at the construction site? This is not an exceptional situation, but the everyday reality of professional craftspeople. This is where the rechargeable handlamp from Wiha comes to play, offering reliable illumination up to 800 lm independent of fixed electrical power supply sources. The handlamp is equipped with a powerful COB-LED, which can be set by the push of a button to 60 lm (1 second push in the OFF mode), 100 lm (1 push) or 500 lm (2 pushes). Maximum illumination is ensured by the boost mode with 800 lm (1 second in ON mode). In addition, there is an SMD-LED on the top side with 150 lm (3 pushes). The combination of both lamps offers diverse illumination options for a wide range of work requirements. The handlamp is also distinguished by its minimalist design, which means that it is so light and compact that it fits into every shirt or trousers pocket and is also ideally suited for working in confined spaces. Two strong magnets on the front and rear plus a belt clip offer various attachment options, keeping your hands free while working. Thanks to the sturdy aluminum housing, the compact high-luminosity handlamp is impact resistant (IK07) and splash-water proof (X5). The runtime is up to 11 h, subsequently the handlamp can be recharged with the included standard USB Type-C cable.
Product identifiers
Categories
Features
|
Dimmable
|
No
|
|
Width (mm)
|
30.5
|
|
Height (mm)
|
20.7
|
|
Light level
|
Low COB-LED|Medium COB-LED|High COB-LED|Spot SMD-LED|Boost COB-LED
|
|
LED max (lm)
|
800
|
|
LED min (lm)
|
60
|
|
Rechargeable
|

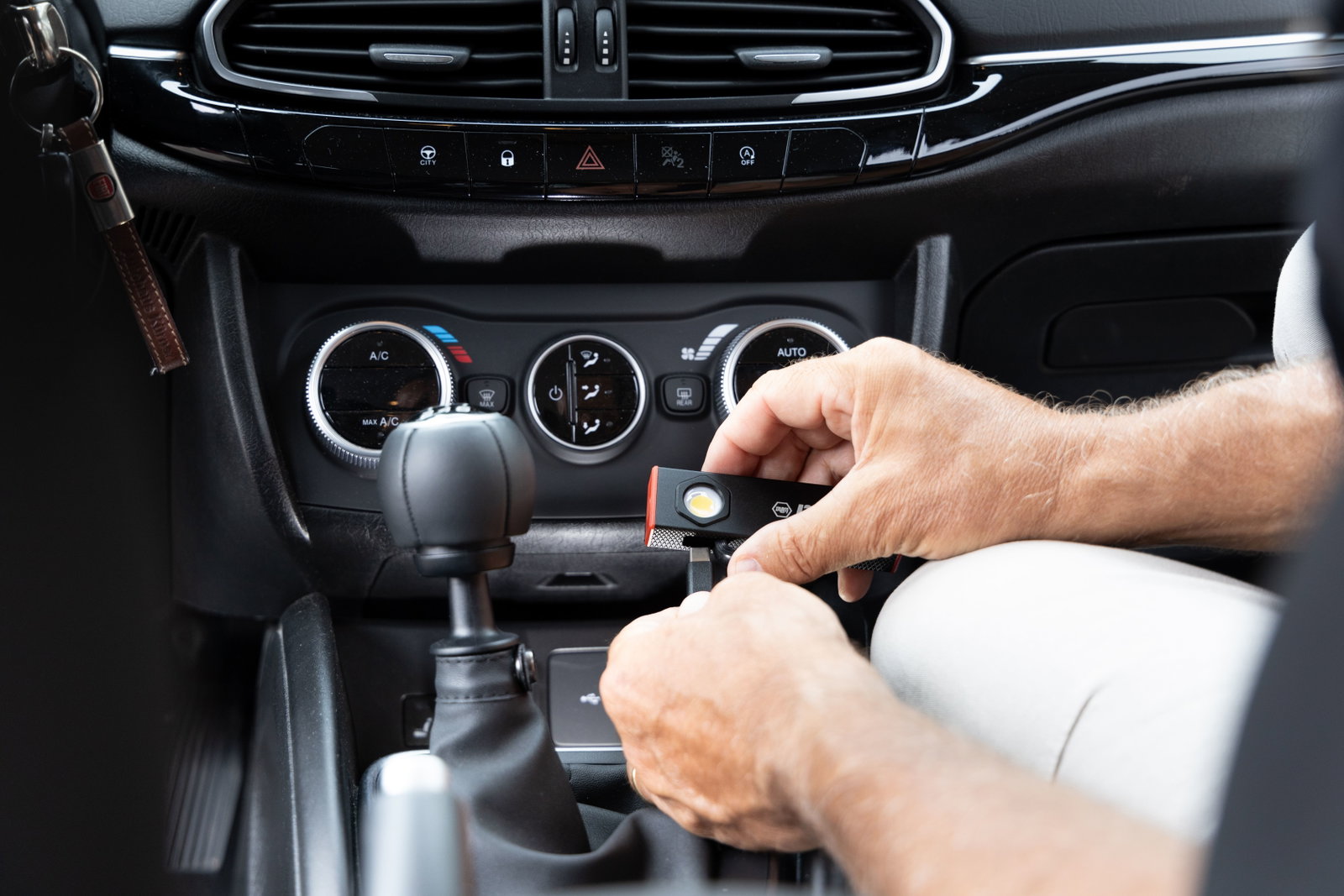

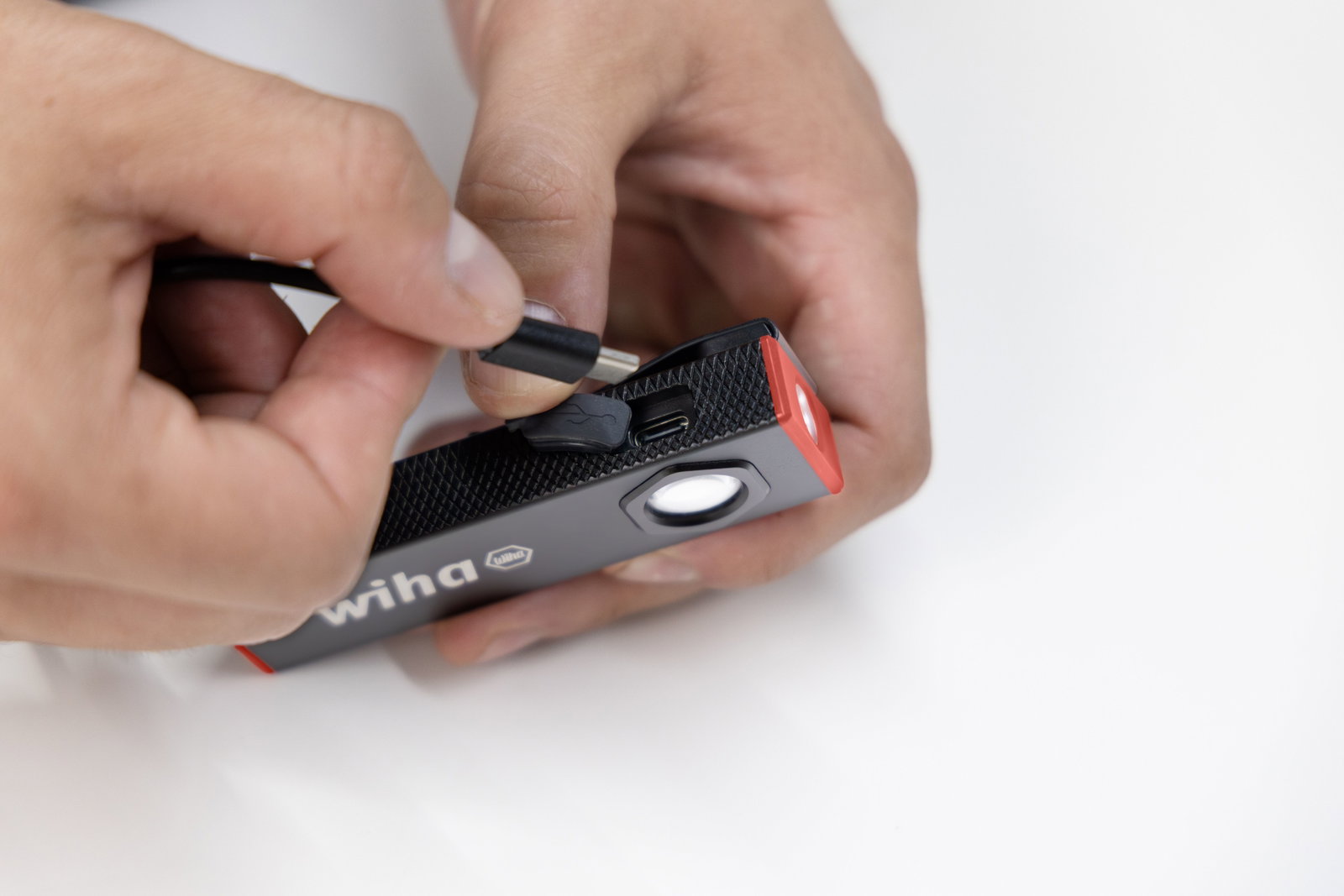

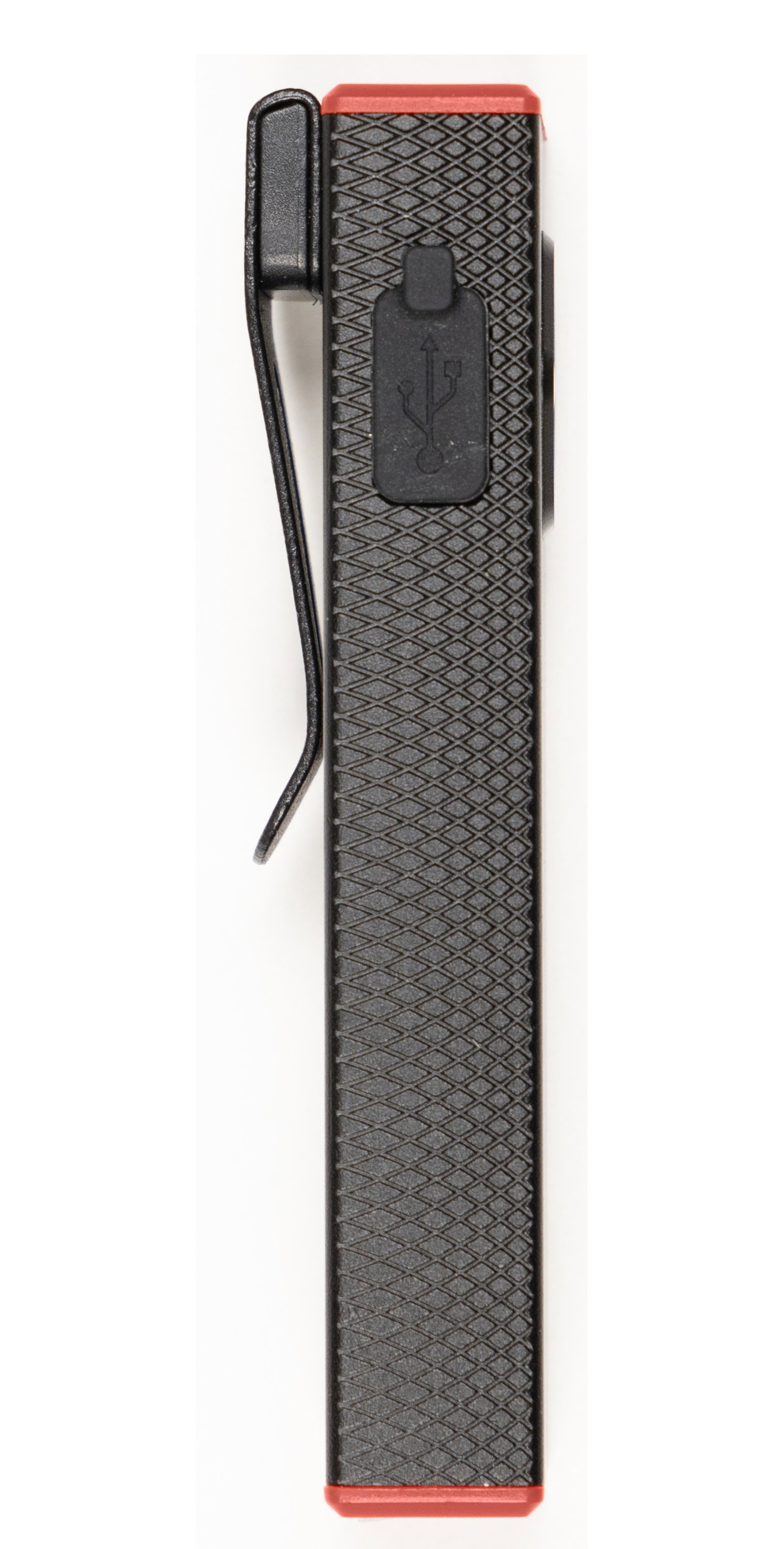

USB-C
|
|
Number of cells
|
1
|
|
Watt/hour (w/h)
|
4.44
|
|
Loading time (h)
|
4
|
|
Battery weight (g)
|
21
|
|
Lighting range (m)
|
42
|
|
"Battery" or "cell"
|
Battery
|
|
Battery designation
|
LI: Lithium (rechargeable)
|
|
Battery voltage (V)
|
3.7
|
|
Overall length (mm)
|
97
|
|
Protection class IK
|
IK07
|
|
LED (min - max) (lm)
|
60 - 800 lm
|
|
Protection class IP
|
IPx5
|
|
Illuminance max (lux)
|
1800
|
|
Battery capacity (mAh)
|
1200
|
|
Self service - packing
|
Yes
|
|
CRI Color rendering index
|
COB: ≥ 80 Ra|SMD: ≥ 70 Ra
|
|
Battery type (IEC designation)
|
1x Prismatic Li-Polymer 3.7V
|
|
Color temperature min (Kelvin)
|
6000
|
|
with battery / rechargeable battery
|
Yes
|
|
Color temperature min - max (Kelvin)
|
6000
|
|
Operating temperature min - max (°C)
|
-10 - 25
|
|
Battery / rechargeable battery removable
|
No
|
|
Operating time with rechargeable battery/battery set (h)
|
11
|
