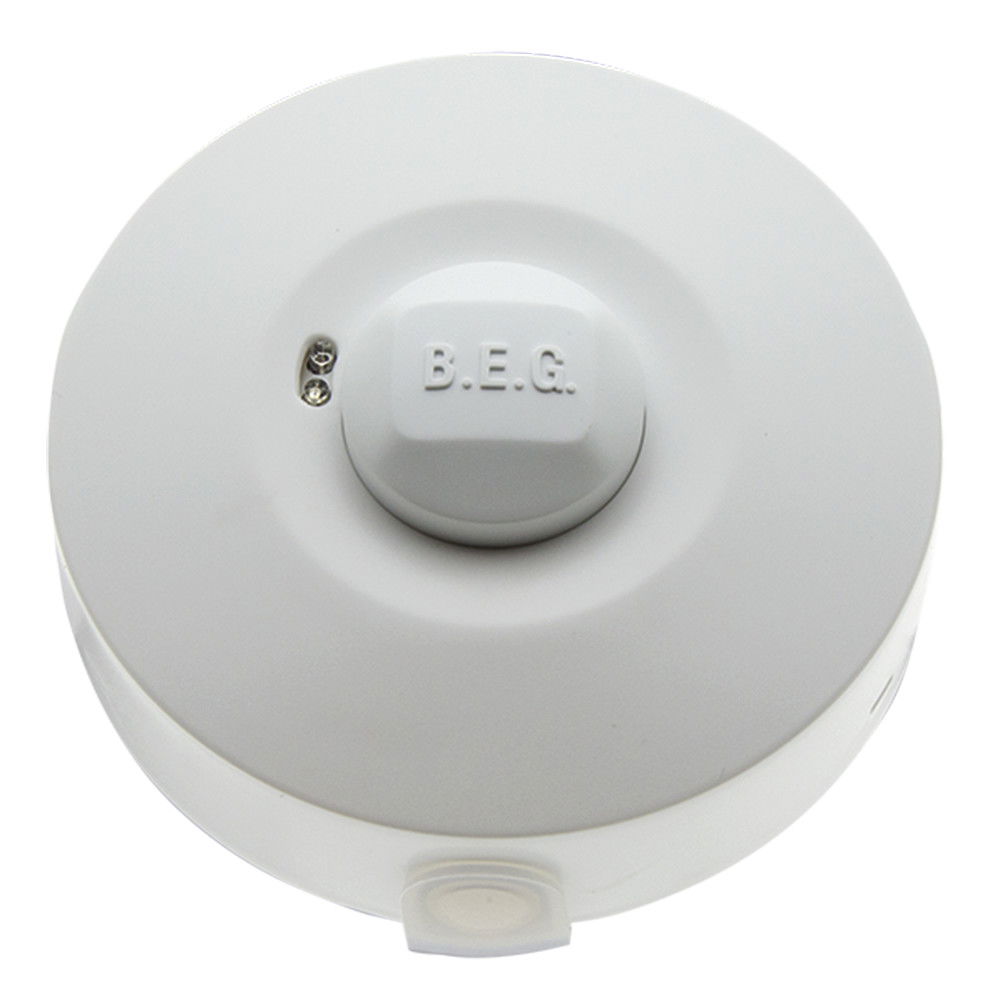

HF detector 360° SM white IP20 16m 1Channel
Microwave motion detector, designed for surface mount, Temperature-independent detection, Detection can be made through various materials, Range, switch-on threshold and follow-up time set via potentiometers
Product identifiers
SKU: 94402
EAN: 4007529944026
GTIN: 4007529944026
MPN: HF-MD2-SM
Categories
Features
|
Depth
|
-
|
|
Model
|
Movement sensor
|
|
Width
|
-
|
|
Colour
|
White
|
|

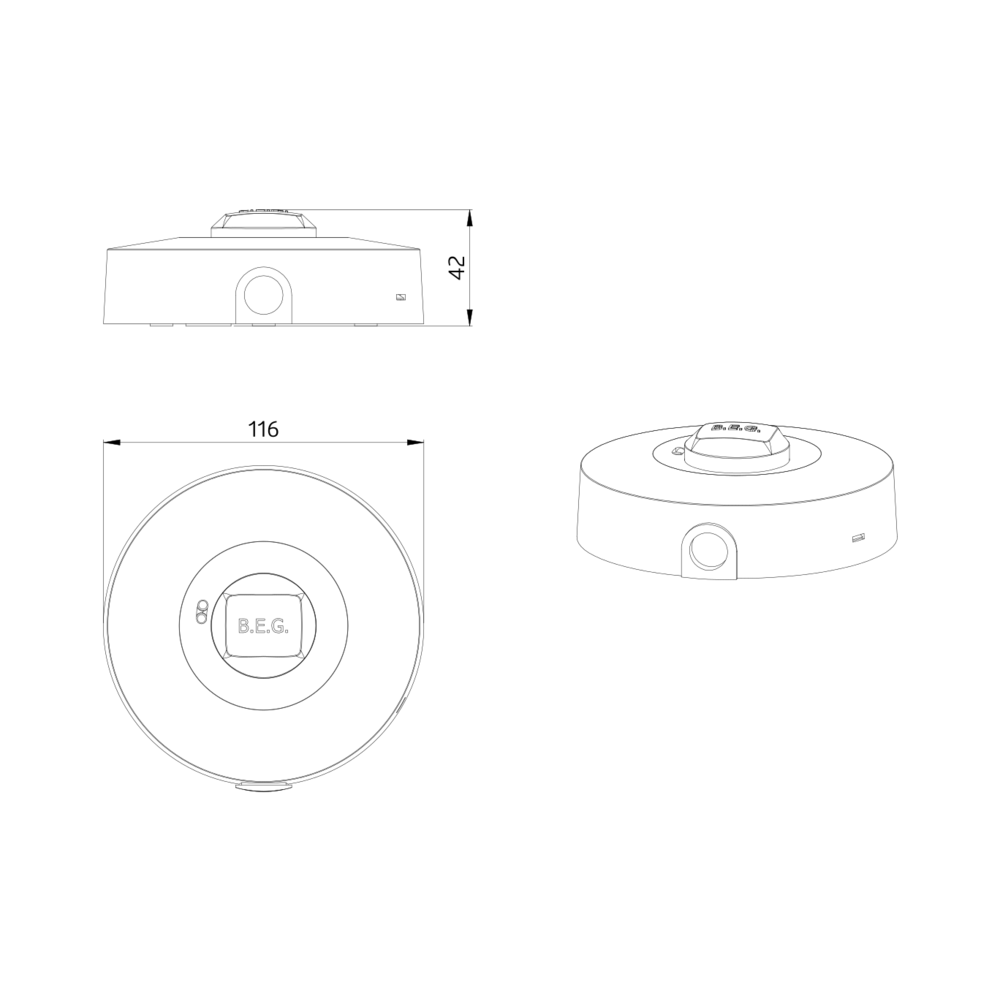

Height
|
45.0
|
|
Diameter
|
117.0
|
|
Material
|
Plastic
|
|
Frequency
|
50 - 60
|
|
Diameter 1
|
117.0
|
|
Diameter 2
|
-
|
|
Scan angle
|
-
|
|
Animal zone
|
no
|
|
Networkable
|
no
|
|
Sensor type
|
High frequency
|
|
Temperature
|
-15 - 50
|
|
Transparent
|
no
|
|
HVAC-control
|
no
|
|
Halogen free
|
yes
|
|
Voltage type
|
AC
|
|
Built-in depth
|
-
|
|
Built-in width
|
-
|
|
Surface height
|
23.0
|
|
Bridging switch
|
no
|
|
Built-in length
|
-
|
|
Connection type
|
-
|
|
Control current
|
5
|
|
Impact strength
|
-
|
|
Max. duty cycle
|
15
|
|
Mounting method
|
EV000384
|
|
Nominal voltage
|
230.0 - 230.0
|
|
Forced switch on
|
-
|
|
Material quality
|
Other
|
|
Operating height
|
45.0
|
|
Remote operation
|
no
|
|
Substation input
|
no
|
|
Switch-off delay
|
0
|
|
With signal unit
|
no
|
|
Built-in diameter
|
-
|
|
Forced switch off
|
-
|
|
Surface finishing
|
Matt
|
|
Surface protection
|
Untreated
|
|
Switching-on delay
|
0
|
|
Max. presence range
|
0
|
|
Max. reach sideways
|
8
|
|
Min. switch-on time
|
5
|
|
Suitable for C-load
|
no
|
|
With DALI interface
|
no
|
|
With alarm function
|
no
|
|
With remote control
|
no
|
|
Max. reach frontally
|
8
|
|
Max. switching power
|
1200
|
|
RAL-number (similar)
|
9010
|
|
With acoustic sensor
|
no
|
|
Background monitoring
|
no
|
|
Max. starting current
|
120
|
|
Min. starting current
|
-
|
|
With connection cable
|
no
|
|
Constant light control
|
-
|
|
Creep-under protection
|
yes
|
|
Connection cable length
|
0
|
|

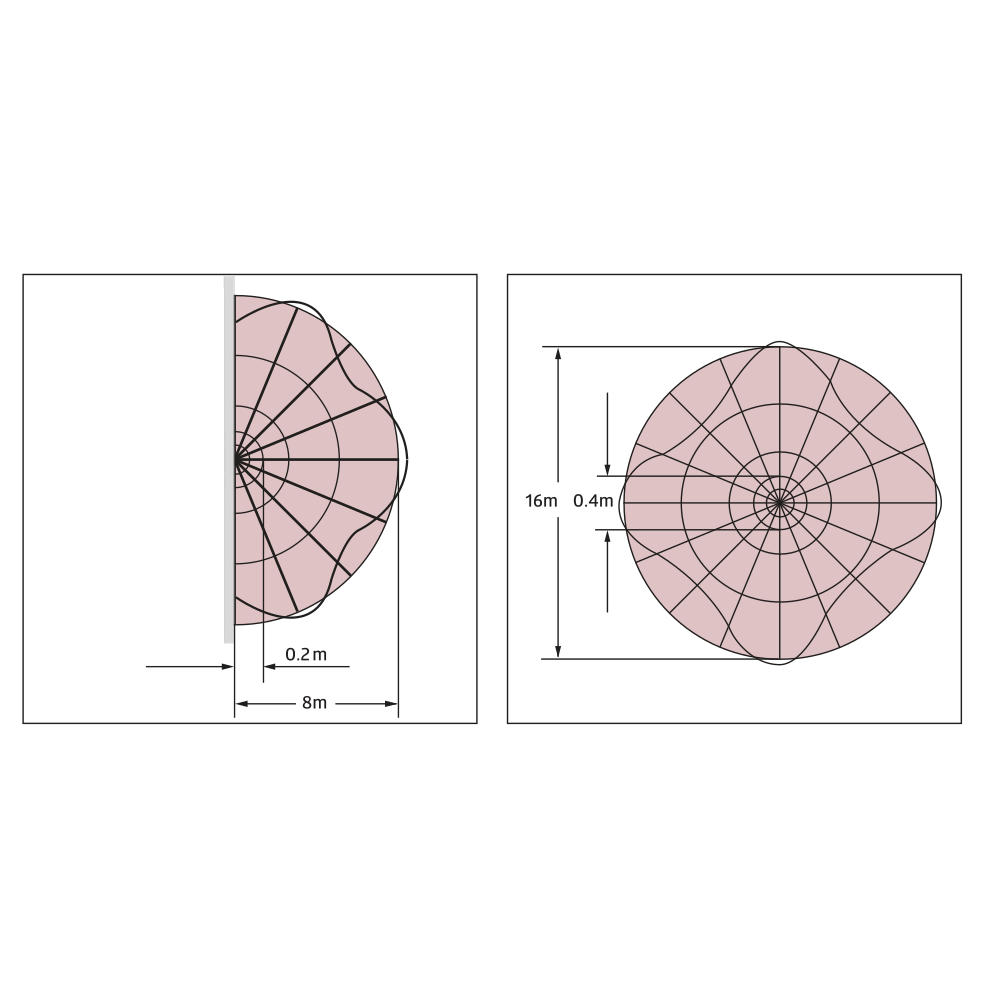

Diameter reach on floor
|
16
|
|
IFTTT support available
|
no
|
|
Optimum mounting height
|
2.5
|
|
Anti-bacterial treatment
|
no
|
|
Max. switching power LED
|
800.0
|
|
Degree of protection (IP)
|
IP20
|
|
Number of switching zones
|
200.0
|
|
Response value luminosity
|
|
|
Detection angle horizontal
|
|
|
Staircase light controller
|
yes
|
|
Suitable for wall mounting
|
no
|
|
Compatible with Amazon Alexa
|
no
|
|
Compatible with Apple HomeKit
|
no
|
|
Suitable for ceiling mounting
|
yes
|
|
Pivoting range sensor, vertical
|
|
|
Compatible with Google Assistant
|
no
|
|
Pivoting range sensor, horizontal
|
|
|
Suitable for wireless transmission
|
no
|
|
Response value luminosity adjustable
|
no
|
|
Response value sensitivity adjustable
|
-
|
|
Dim function with dimmer basic element
|
no
|
|
Min. depth of built-in installation box
|
-
|
|
Teach-function for response value luminosity
|
no
|
