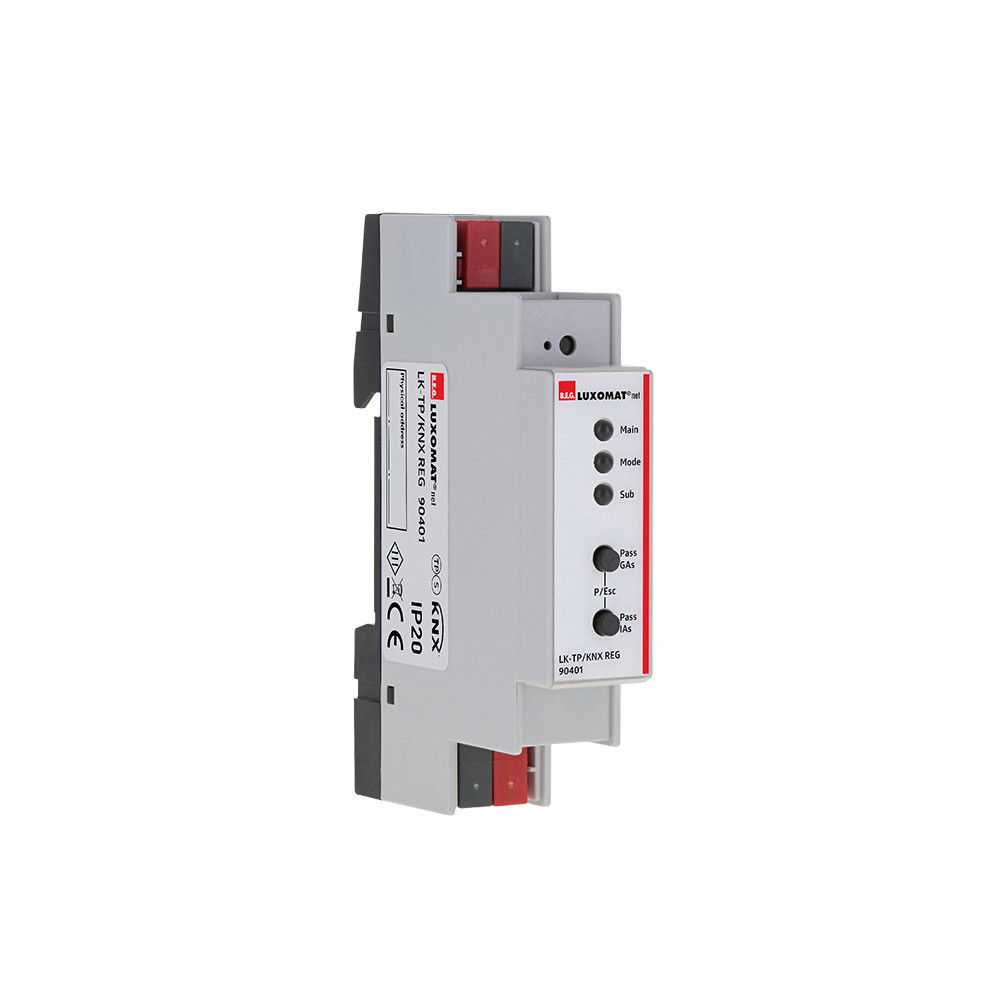

System interface / Coupler DIN-rail (TH35 EN . white IP20 KNX

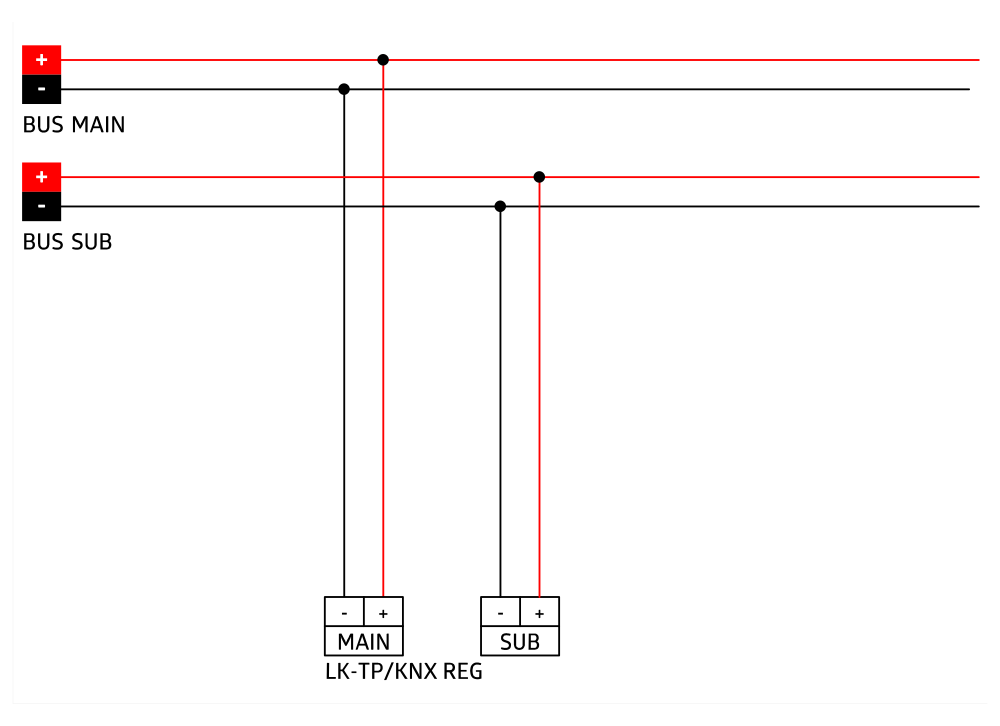

Line coupler in a compact design. It connects two KNX bus segments via twisted pair, for example a KNX line with a KNX area, The device has an extended filter table for main group 0...31 and ensures a galvanic isolation between the lines, The coupler supports KNX longframes and is compatible with the ETS(R) software (ETS4.2 or higher), The buttons on the front panel allow disabling the telegram filter for testing purposes, The LEDs indicate operating conditions as well as communication errors on the KNX bus
