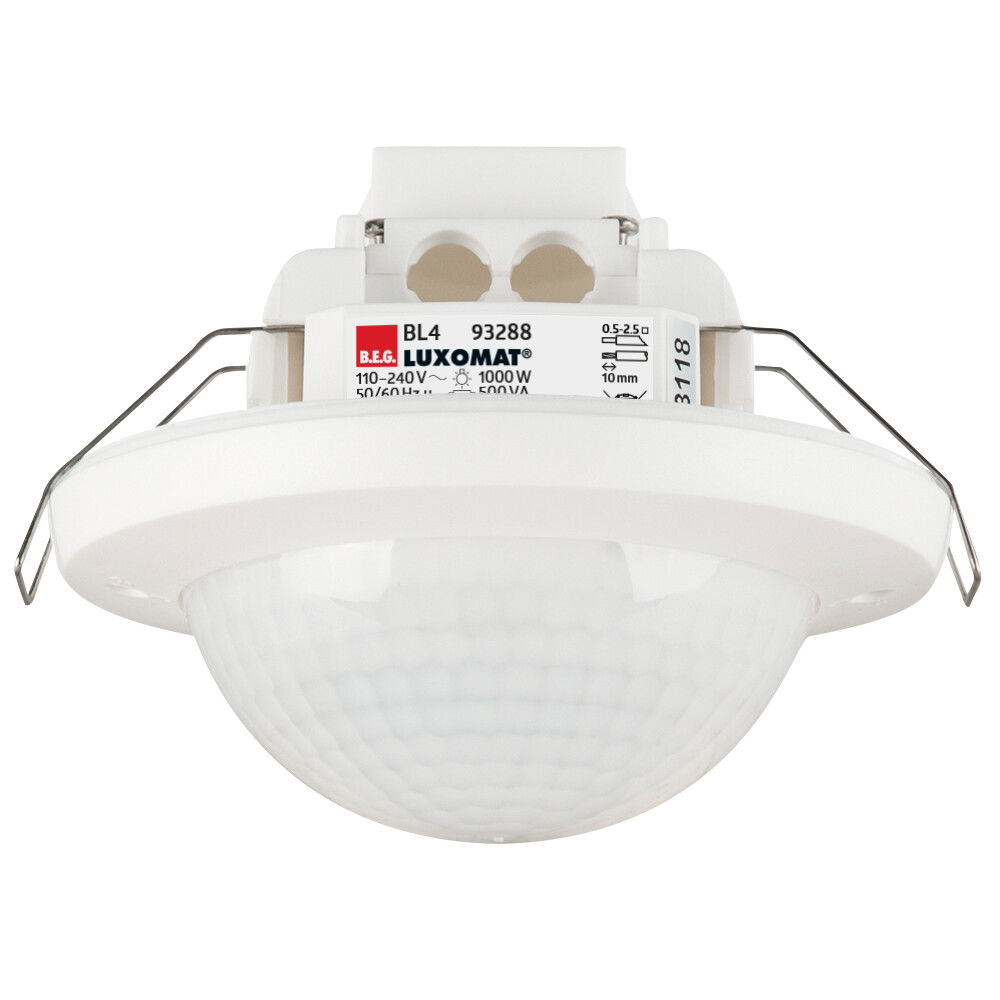

Motion Detector Ceiling mounting 360° FC white IP20 19m 1Channel
Ceiling motion detector for indoor use with a 360° detection area, For mounting in suspended ceilings, One channel for light switching, Manual switching via push-button possible, Easy operation with remote control (required), Basic functions for cost-effective applications, Ready-to-operate thanks to factory settings, Accessory for surface mounting and flush mounting available, Factory setting: High detection sensitivity, follow-up time 10 min, switch-on threshold 500 lux
Product identifiers
SKU: 93288
EAN: 4007529932887
GTIN: 4007529932887
MPN: BL4-FC
Categories
Features
|
Depth
|
-
|
|
Model
|
Movement sensor
|
|
Width
|
-
|
|
Colour
|
-
|
|
Height
|
84.0
|
|
Diameter
|
104.5
|
|
Material
|
Plastic
|
|
Frequency
|
50 - 60
|
|
Diameter 1
|
104.5
|
|
Diameter 2
|
-
|
|
Scan angle
|
-
|
|
Animal zone
|
no
|
|
Networkable
|
no
|
|
Sensor type
|
Passive infrared
|
|
Temperature
|
-25 - 50
|
|
Transparent
|
no
|
|
HVAC-control
|
no
|
|
Halogen free
|
yes
|
|
Voltage type
|
AC
|
|
Built-in depth
|
-
|
|
Built-in width
|
-
|
|
Surface height
|
-
|
|
Bridging switch
|
no
|
|
Built-in length
|
-
|
|
Connection type
|
-
|
|
Control current
|
-
|
|
Impact strength
|
IK04
|
|
Max. duty cycle
|
-
|
|
Mounting method
|
EV000154
|
|
Nominal voltage
|
110.0 - 240.0
|
|
Forced switch on
|
-
|
|
Material quality
|
-
|
|
Operating height
|
-
|
|
Remote operation
|
yes
|
|
Substation input
|
-
|
|
Switch-off delay
|
0
|
|
With signal unit
|
no
|
|
Built-in diameter
|
-
|
|
Forced switch off
|
-
|
|
Surface finishing
|
Matt
|
|
Surface protection
|
Untreated
|
|
Switching-on delay
|
0
|
|
Max. presence range
|
19.0
|
|
Max. reach sideways
|
9.5
|
|
Min. switch-on time
|
-
|
|
Suitable for C-load
|
no
|
|
With DALI interface
|
no
|
|
With alarm function
|
no
|
|
With remote control
|
no
|
|
Max. reach frontally
|
-
|
|
Max. switching power
|
1000
|
|
RAL-number (similar)
|
9010
|
|
With acoustic sensor
|
no
|
|
Background monitoring
|
no
|
|
Max. starting current
|
-
|
|
Min. starting current
|
-
|
|
With connection cable
|
no
|
|
Constant light control
|
-
|
|
Creep-under protection
|
-
|
|
Connection cable length
|
0
|
|
Diameter reach on floor
|
19
|
|
IFTTT support available
|
no
|
|
Optimum mounting height
|
2.5
|
|
Anti-bacterial treatment
|
no
|
|
Max. switching power LED
|
400.0
|
|
Degree of protection (IP)
|
IP20
|
|
Number of switching zones
|
280.0
|
|
Response value luminosity
|
10 - 2000
|
|
Detection angle horizontal
|
|
|
Staircase light controller
|
yes
|
|
Suitable for wall mounting
|
no
|
|
Compatible with Amazon Alexa
|
no
|
|
Compatible with Apple HomeKit
|
no
|
|
Suitable for ceiling mounting
|
yes
|
|
Pivoting range sensor, vertical
|
|
|
Compatible with Google Assistant
|
no
|
|
Pivoting range sensor, horizontal
|
|
|
Suitable for wireless transmission
|
no
|
|
Response value luminosity adjustable
|
yes
|
|
Response value sensitivity adjustable
|
yes
|
|
Dim function with dimmer basic element
|
no
|
|
Min. depth of built-in installation box
|
-
|
|
Teach-function for response value luminosity
|
yes
|
