| Depth |
- |
| Model |
Movement sensor |
| Width |
- |
| Colour |
White |
| Height |
85.0 |
| Diameter |
80.0 |
| Material |
Plastic |
| Frequency |
50 - 60 |
| Diameter 1 |
80.0 |
| Diameter 2 |
- |
| Scan angle |
- |
| Animal zone |
no |
| Networkable |
no |
| Sensor type |
Passive infrared |
| Temperature |
-25 - 50 |
| Transparent |
no |
| HVAC-control |
no |
| Halogen free |
yes |
| Voltage type |
AC |
| Built-in depth |
- |
| Built-in width |
- |
| Surface height |
- |
| Bridging switch |
no |
| Built-in length |
- |
| Connection type |
- |
| Control current |
1 |
| Impact strength |
IK05 |
| Max. duty cycle |
- |
| Mounting method |
EV000154 |
| Nominal voltage |
110.0 - 240.0 |
| Forced switch on |
- |
| Material quality |
Other |
| Operating height |
- |
| Remote operation |
no |
| Substation input |
- |
| Switch-off delay |
0 |
| With signal unit |
no |
| Built-in diameter |
- |
| Forced switch off |
- |
| Surface finishing |
Matt |
| Surface protection |
Untreated |
| Switching-on delay |
0 |

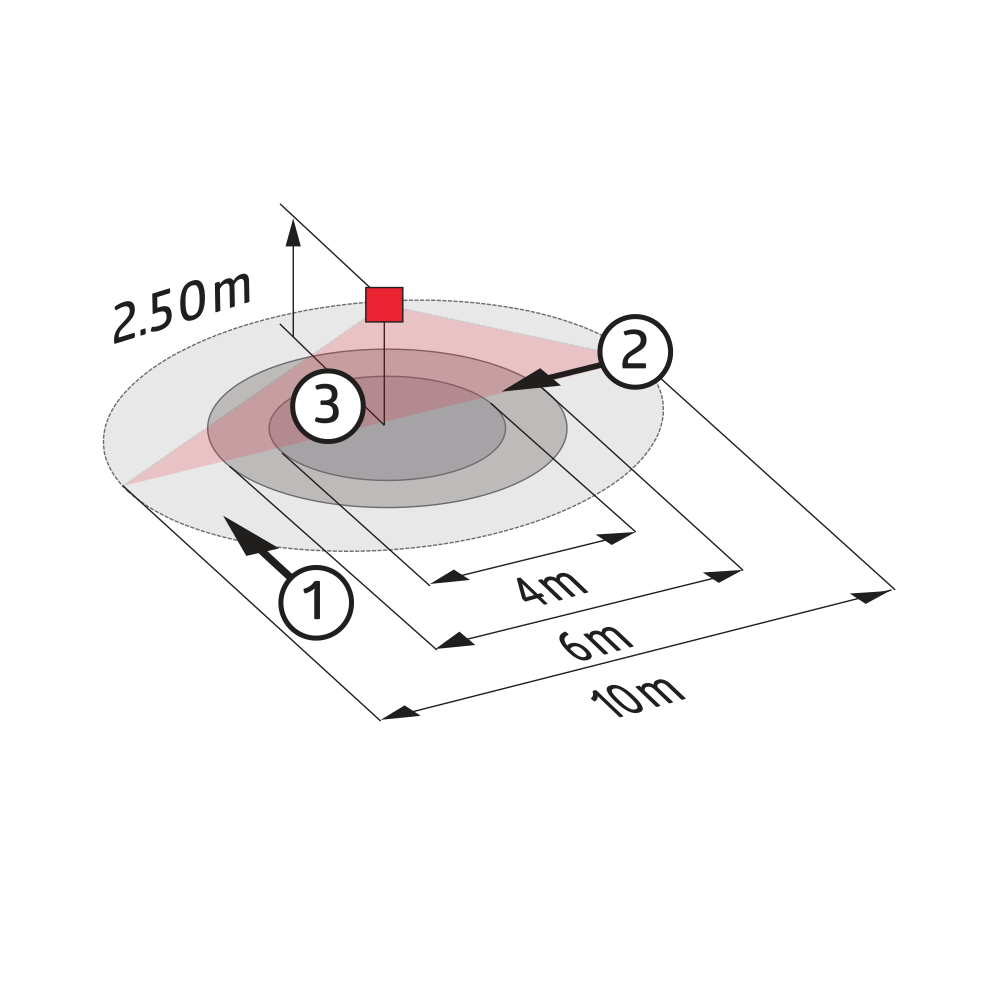

| Max. presence range |
12.0 |
| Max. reach sideways |
5 |
| Min. switch-on time |
- |
| Suitable for C-load |
no |
| With DALI interface |
no |
| With alarm function |
no |
| With remote control |
no |
| Max. reach frontally |
6 |
| Max. switching power |
- |
| RAL-number (similar) |
9010 |
| With acoustic sensor |
no |
| Background monitoring |
no |
| Max. starting current |
- |
| Min. starting current |
- |
| With connection cable |
no |
| Constant light control |
- |
| Creep-under protection |
yes |
| Connection cable length |
0 |
| Diameter reach on floor |
10 |
| IFTTT support available |
no |
| Optimum mounting height |
2.5 |
| Anti-bacterial treatment |
no |
| Max. switching power LED |
- |
| Degree of protection (IP) |
IP20 |
| Number of switching zones |
78.0 |
| Response value luminosity |
|
| Detection angle horizontal |
|
| Staircase light controller |
yes |
| Suitable for wall mounting |
no |
| Compatible with Amazon Alexa |
no |
| Compatible with Apple HomeKit |
no |
| Suitable for ceiling mounting |
yes |
| Pivoting range sensor, vertical |
|
| Compatible with Google Assistant |
no |
| Pivoting range sensor, horizontal |
|
| Suitable for wireless transmission |
no |
| Response value luminosity adjustable |
no |
| Response value sensitivity adjustable |
- |
| Dim function with dimmer basic element |
no |
| Min. depth of built-in installation box |
- |
| Teach-function for response value luminosity |
no |
