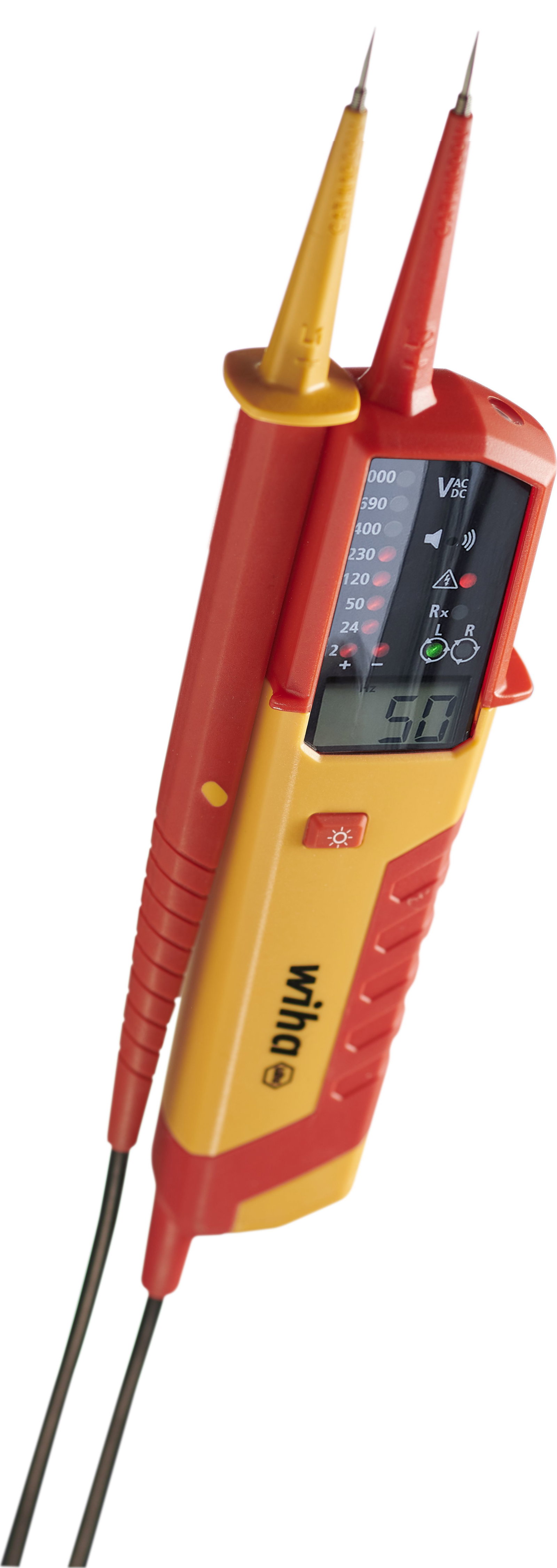

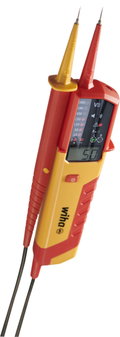

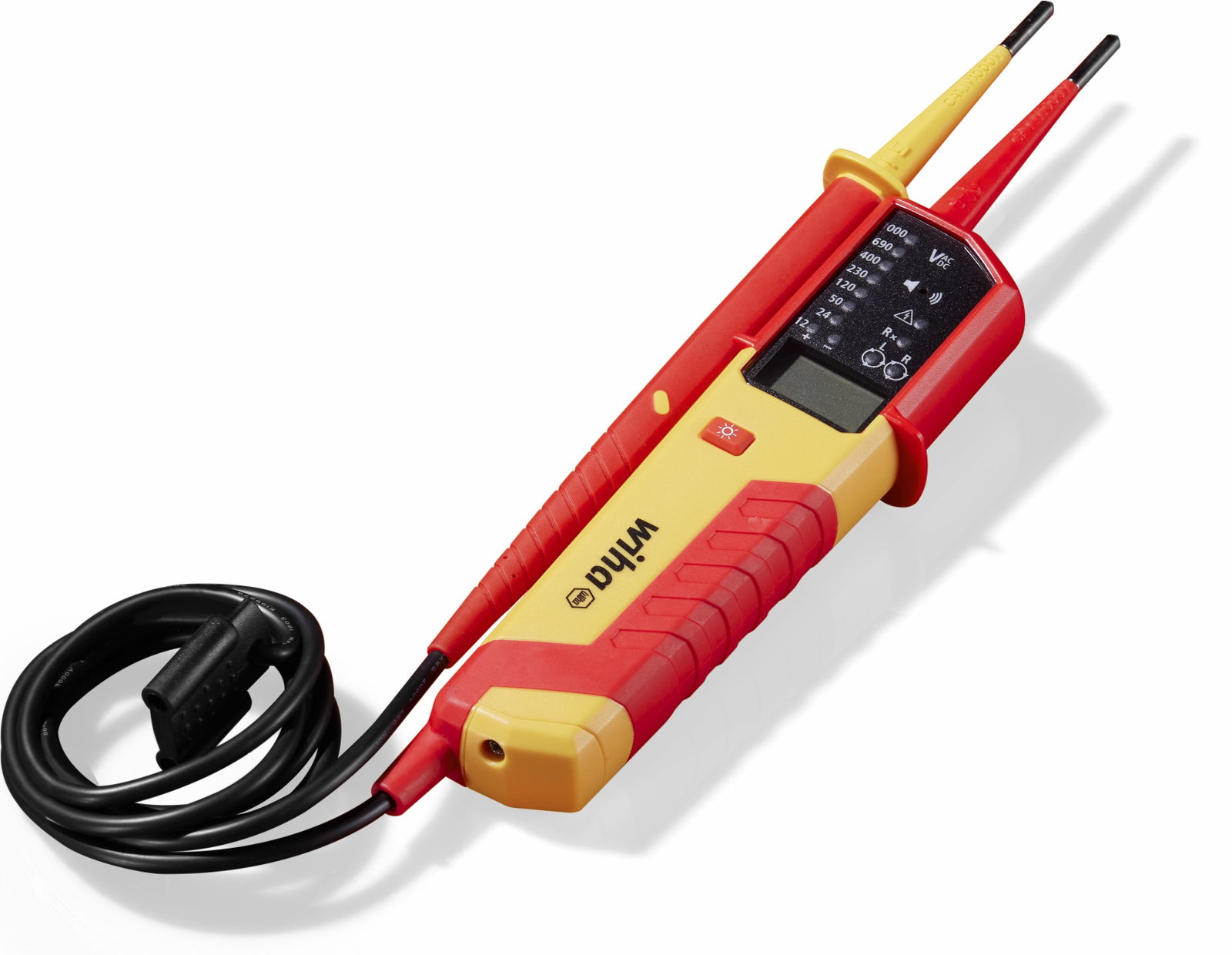

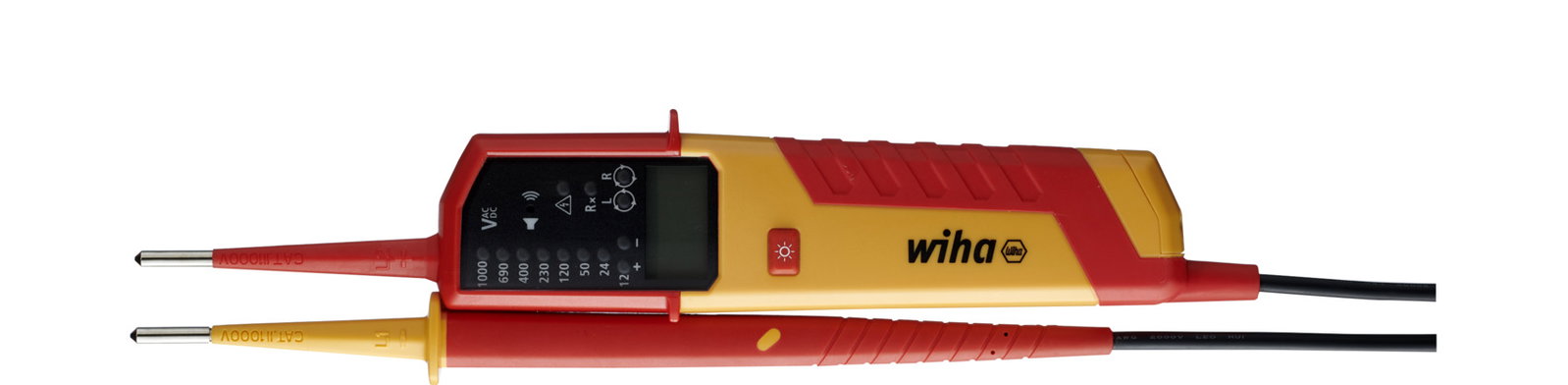

Wiha Voltage and continuity tester eMobility 12 – 1,000 V AC, CAT IV incl. 2x AAA batteries (44319)
Simplifies your work: Illuminated LC display, LED scale and signal sound for easy to read measurement results.

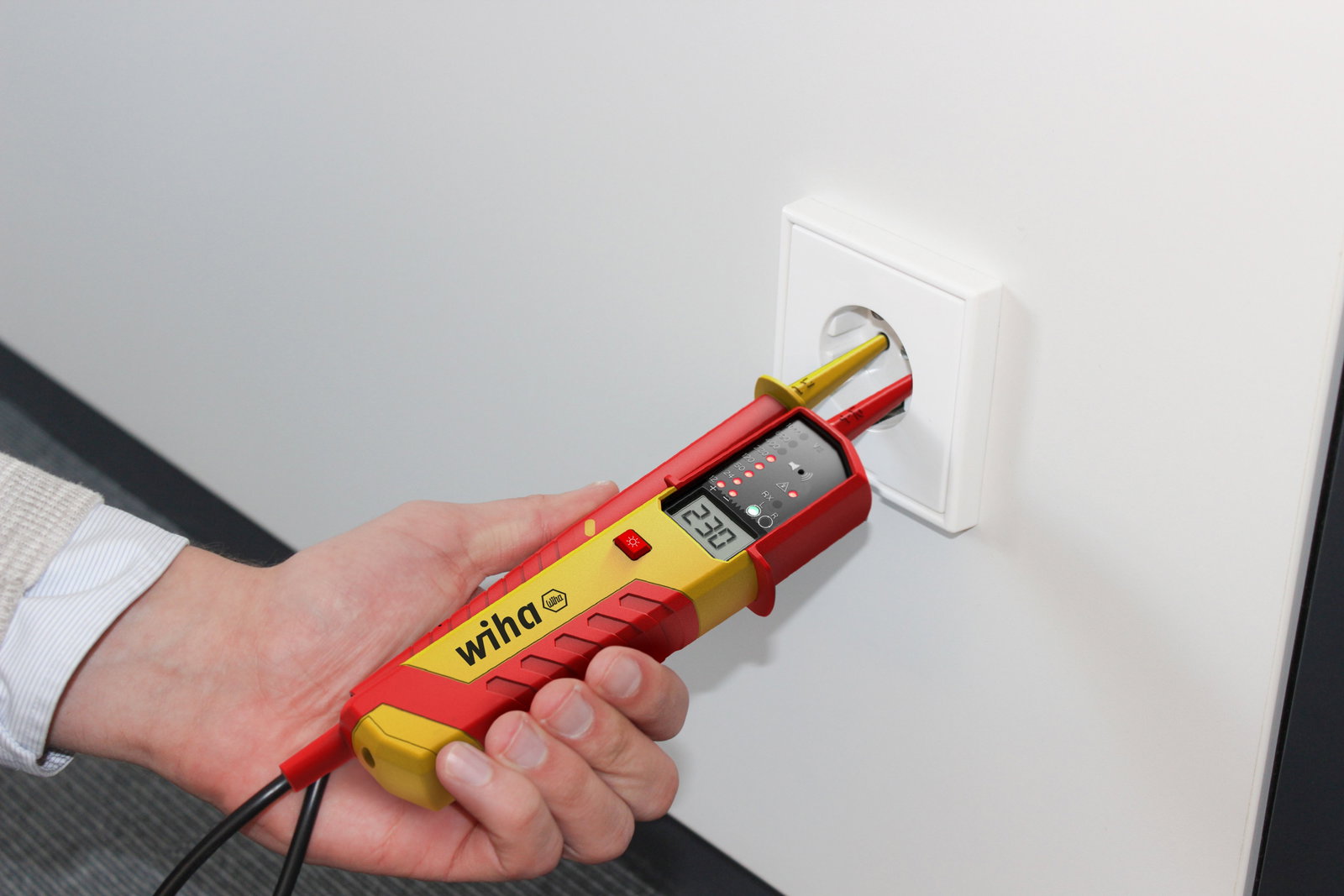

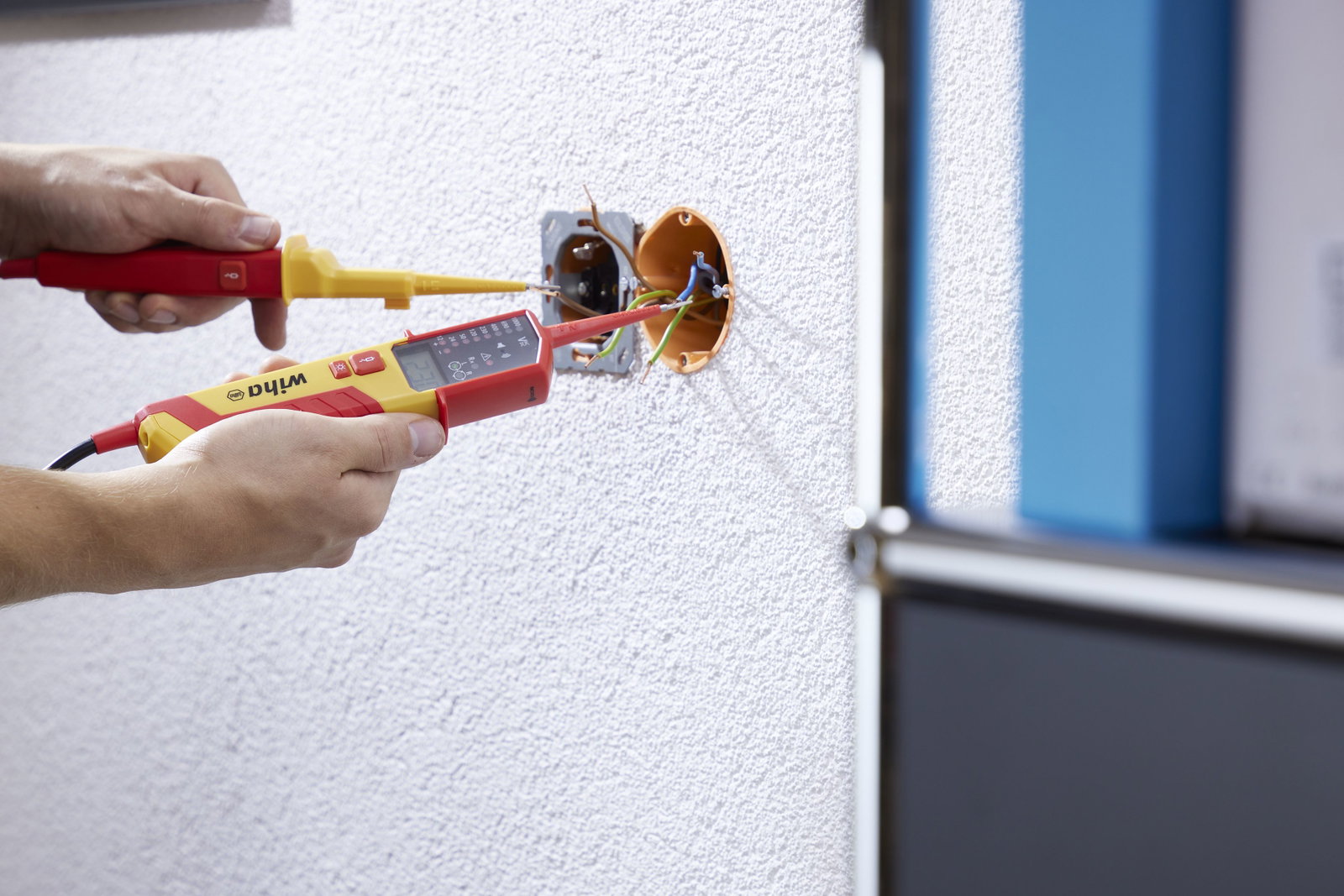

Simplifies your work: Quick one-hand testing on power sockets due to the 19 mm contact distance.
Increases your flexibility: Two-pin voltage tester covers a large voltage range from 12 - 1,000 V AC, as well as 12 - 1,500 V DC.
Product dimensions: 240 x 75 x 30 mm
Application: To ensure electrical isolation.For voltage testing, flow testing and rotational field testing.Also suited for testing hybrid and electric vehicles as well as photovoltaic systems.
Measuring category: CAT IV 1.000 V
Standards:
Suitable for eMobility
Suitable for photovoltaic systems
12 - 1,000 V AC / 1,500 V DC
Cat IV, 1,000 V
One-handed test
Rotary field measurement

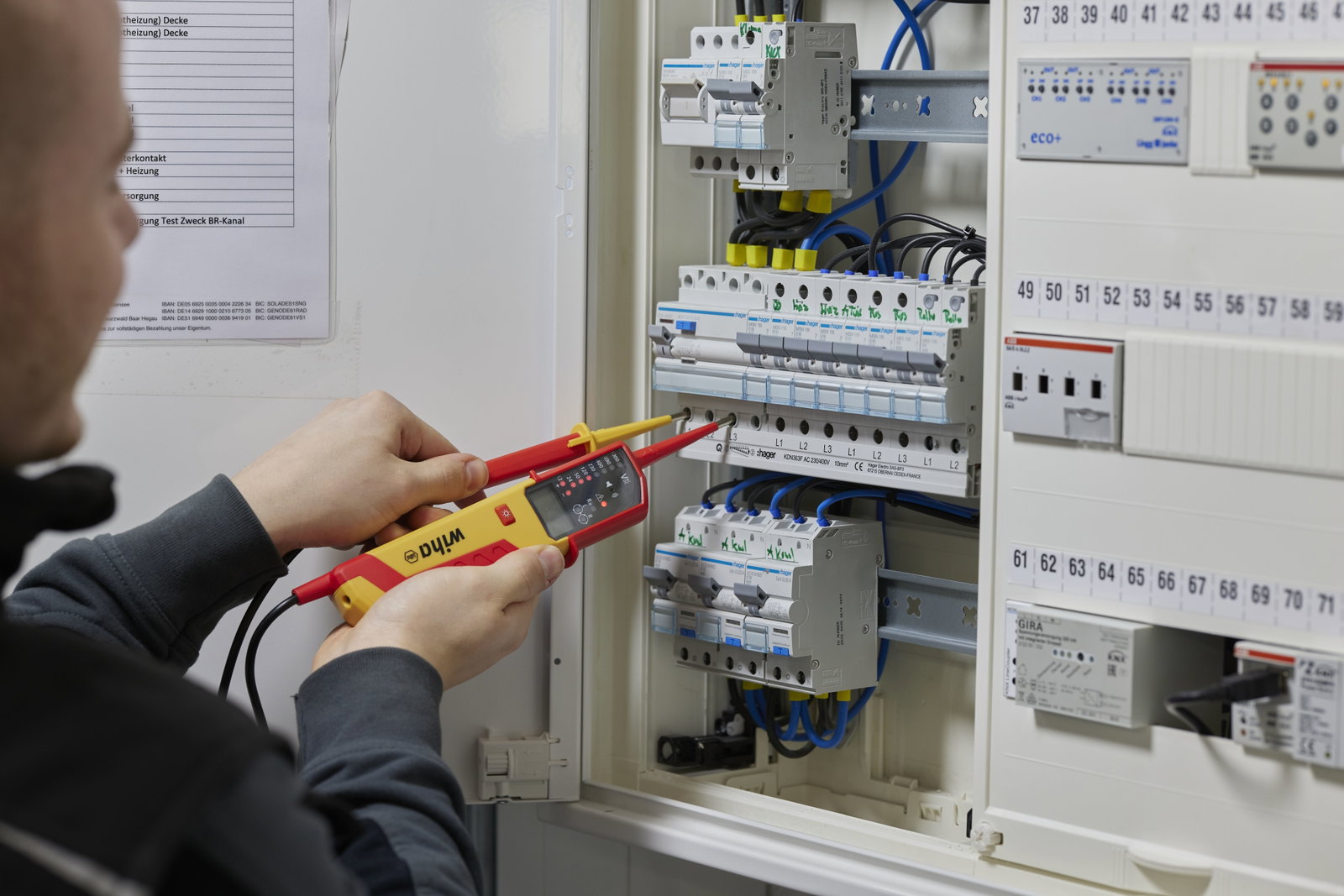

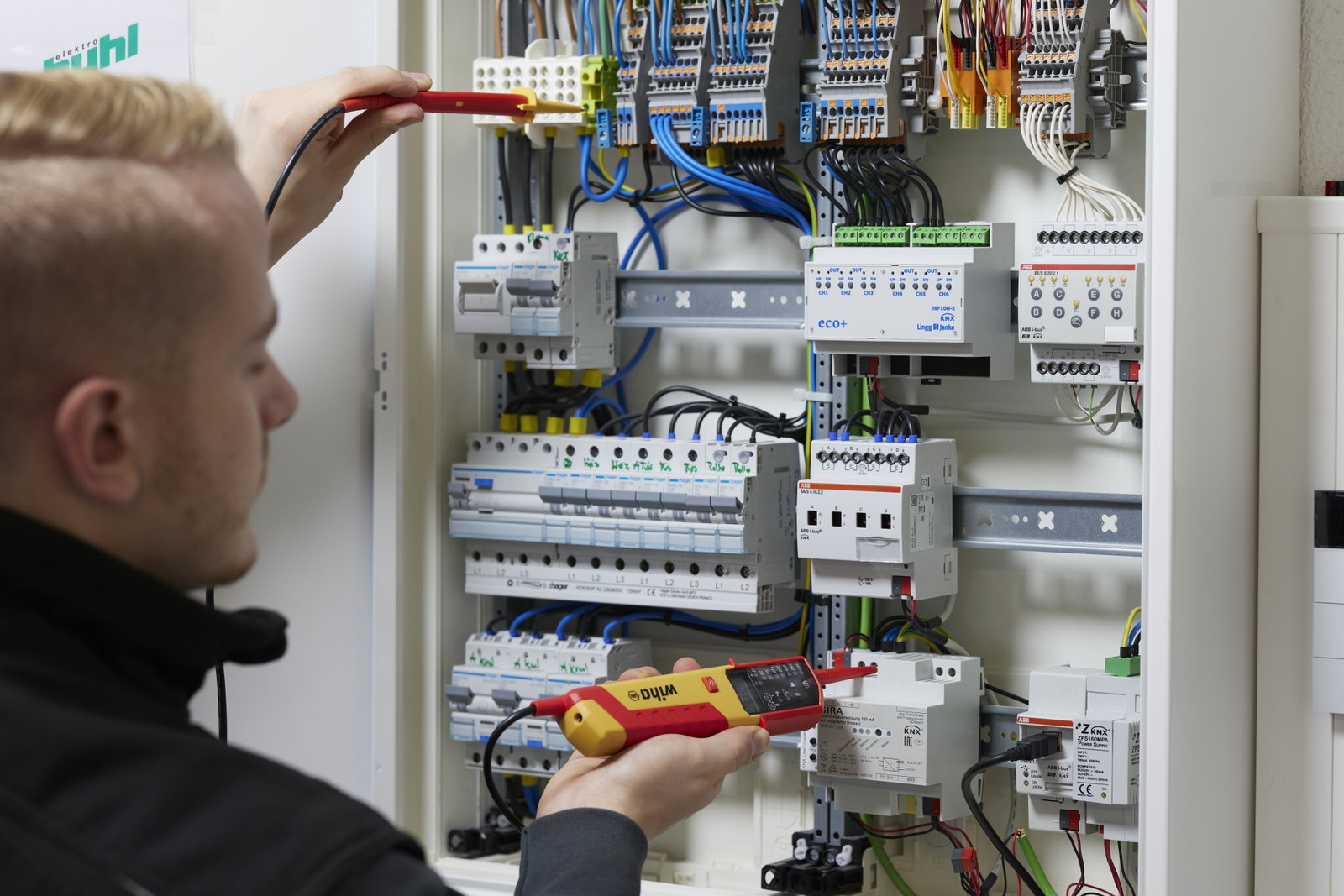

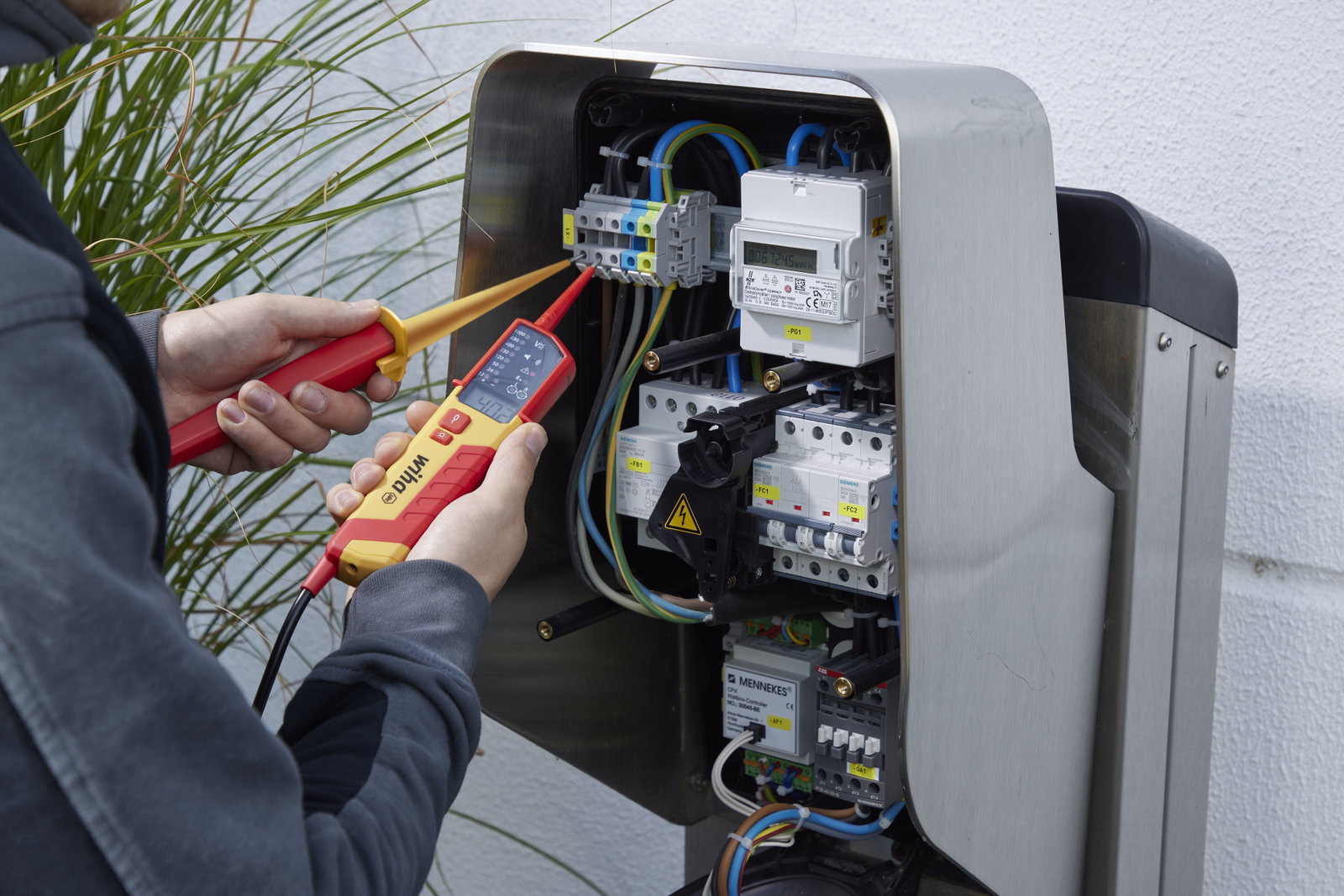

Before starting work on live parts, it must be ensured that the system is electrically isolated. In addition to the standard work of electricians or electrical specialists, this now also applies to work on electrical cars and e-scooters, which is why the two-pole voltage tester is also part of 'every car repair workshop's basic equipment. Thanks to the large measuring range from 12 to 1,000 V AC or 1,500 V DC and compliance with the highest safety level CAT IV, the voltage tester is also suited for testing hybrid and electric vehicles as well as photovoltaic systems. Thanks to the illuminated LED display, during a measurement, the present voltage is 'shown' on an 8-level scale, as well as 'the' actual value in the illuminated LC display. The voltage and continuity tester additionally offers the option of single-pole phase testing, optical rotational field display, as well as automatic polarity recognition. In addition, it can be used for quick one-handed testing thanks to the integrated spacer. Due to the integrated 'measuring' point illumination, the two-pole voltage tester is also suited for work in poorly 'lit working' environments. For additional safety, a low battery charge is indicated directly on the LC display. It is complaint with the standards EN 61010-1 and EN 61243-3:2014.
IEC/EN 61010-1, IEC/EN 61243-3:2014, IP64, CE
Product identifiers
Categories
Features
|
Display
|
LCD|LED
|
|
FI check
|
No
|
|
LCD range
|
4-digit LC display
|
|
Width (mm)
|
110
|
|
ESD article
|
No
|
|
Height (mm)
|
50
|
|
ATEX approval
|
No
|
|
LCD precision
|
+/- 3 %, +/- 3 digit
|
|
Frequency (Hz)
|
400
|
|
LCD resolution
|
1 V
|
|
Measuring mode
|
30 s ON (operating time), 240 s OFF (recovery time)
|
|
Acoustic signal
|
Yes
|
|
LED ELV display
|
> 50 VAC, > 120 V DC
|
|
Number of cells
|
2
|
|
Watt/hour (w/h)
|
1.95
|
|
Continuity check
|
LED and audible tone
|
|
Inherent time (s)
|
1 s
|
|
Permeability test
|
Measuring range 0 - 500 kΩ + 50%
|
|
Battery weight (g)
|
8
|
|
Measuring category
|
CAT IV 1.000 V
|
|
Tool for electrics
|
No
|
|
Voltage V AC (max)
|
1000
|
|
Voltage V AC (min)
|
12
|
|
Voltage V DC (max)
|
1500
|
|
Voltage V DC (min)
|
12
|
|
"Battery" or "cell"
|
Battery
|
|
Battery designation
|
Zinc / Carbon Battery ZN/C
|
|
Battery voltage (V)
|
1.5
|
|
Contamination level
|
2
|
|
Humidity RH max (%)
|
85
|
|
Overall length (mm)
|
282
|
|
Remote voltage test
|
No
|
|
Rotation field test
|
170 - 1,000 V phase to phase
|
|
Safety circuit (mA)
|
Is < 3.5 mA (at 1,000 V)
|
|
Handle diameter (mm)
|
28.5
|
|
LCD overflow display
|
OL
|
|
Protection class IP
|
IP64
|
|
eMobility-compatible
|
Yes
|
|
Battery capacity (Ah)
|
1.3
|
|
Integrated flashlight
|
No
|
|
Battery capacity (mAh)
|
1300
|
|
Height above sea level
|
2000
|
|
Self service - packing
|
No
|
|
Single-pole phase test
|
100
|
|
Photovoltaic-compatible
|
No
|
|
Battery consumption (mA)
|
80
|
|
Voltage V AC min – max
|
12 - 1000
|
|
Voltage V DC min – max
|
12 - 1500
|
|
Rotation field indication
|
LED L, R
|
|
Battery included in package?
|
Yes
|
|
Storage temperature min (°C)
|
-20
|
|
Battery type (IEC designation)
|
2x AAA batteries
|
|
Einpolige Phasenpruefung max (V AC)
|
700
|
|
Total weight battery in product (g)
|
16
|
|
with battery / rechargeable battery
|
Yes
|
|
Operating temperature min - max (°C)
|
-15 - 40
|
|
Einpolige Phasenpruefung min - max (V AC)
|
100 - 700
|
