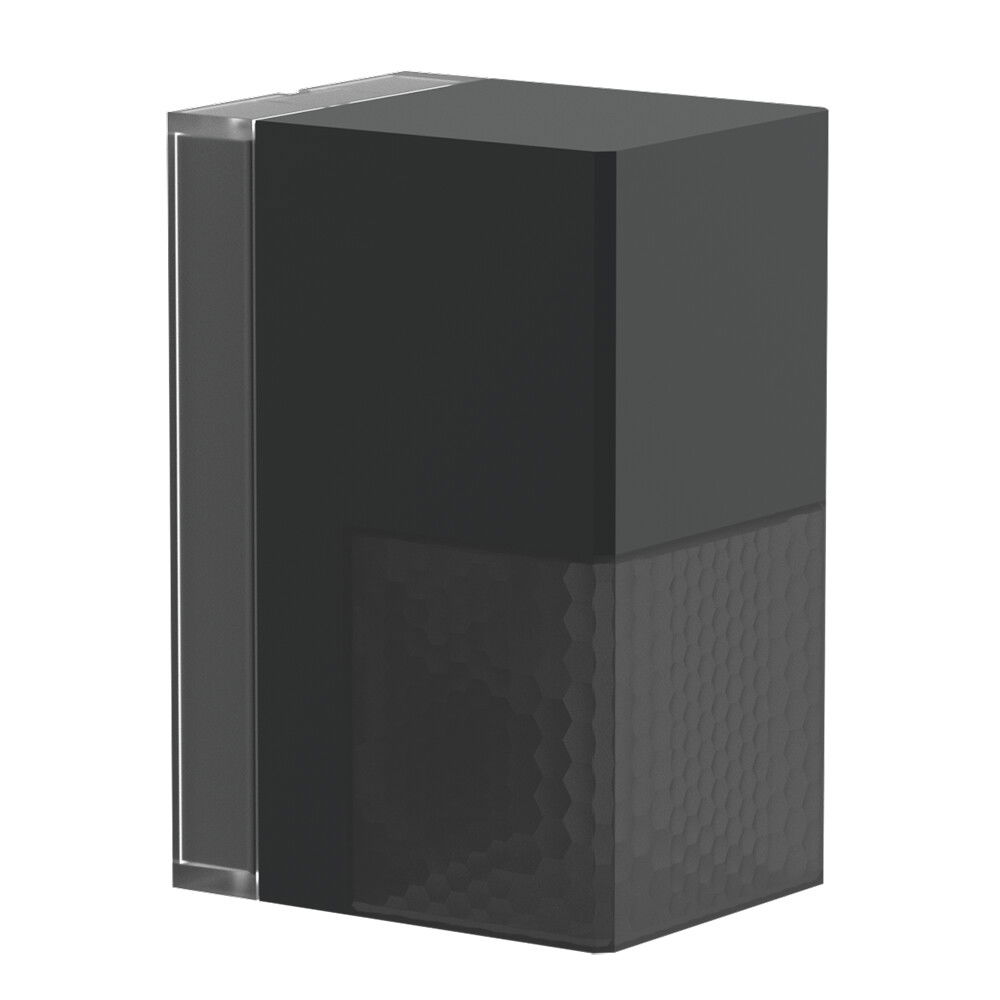

Motion Detector 180° Mounting bracket f. anthracite IP54 16m 1Channel
Motion detector with 180° detection area and anti-creep zone, Ambient light, Further functions can be set via Bluetooth using the B.E.G. app, Mechanical range adjustment of different PIRs, Different follow-up time depending on direction of movement, Uninterrupted parallel circuit detection of several detectors, Immediate operation using factory settings, Zero crossing switching, Faulty switching due to animals can be avoided by reducing the sensitivity, Easy mounting thanks to plug base, Bluetooth can be switched off, Wall installation, Factory settings 3 min, 20 lux, PIR sensitivity: max ambient light colour: white; brightness: 100%; follow-up time: 5 min
Product identifiers
SKU: 93134
EAN: 4007529931347
GTIN: 4007529931347
MPN: Aleum Glow AD anthracite
Categories
Features
|
Depth
|
105.0
|
|
Model
|
Movement sensor
|
|
Width
|
54.0
|
|
Colour
|
Black
|
|
Height
|
71.0
|
|
Diameter
|
-
|
|
Material
|
Plastic
|
|
Frequency
|
50 - 60
|
|
Diameter 1
|
-
|
|
Diameter 2
|
-
|
|
Scan angle
|
-
|
|
Animal zone
|
-
|
|
Networkable
|
no
|
|
Sensor type
|
Passive infrared
|
|
Temperature
|
-25 - 50
|
|
Transparent
|
-
|
|
HVAC-control
|
no
|
|
Halogen free
|
-
|
|
Voltage type
|
AC
|
|
Built-in depth
|
-
|
|
Built-in width
|
-
|
|
Surface height
|
-
|
|
Bridging switch
|
-
|
|
Built-in length
|
-
|
|
Connection type
|
-
|
|
Control current
|
2
|
|
Impact strength
|
IK03
|
|
Max. duty cycle
|
30
|
|
Mounting method
|
-
|
|
Nominal voltage
|
230.0 - 230.0
|
|
Forced switch on
|
-
|
|
Material quality
|
Other
|
|
Operating height
|
-
|
|
Remote operation
|
yes
|
|
Substation input
|
no
|
|
Switch-off delay
|
-
|
|
With signal unit
|
no
|
|
Built-in diameter
|
-
|
|
Forced switch off
|
-
|
|
Surface finishing
|
Matt
|
|
Surface protection
|
Untreated
|
|
Switching-on delay
|
-
|
|
Max. presence range
|
14.0
|
|
Max. reach sideways
|
16
|
|
Min. switch-on time
|
5
|
|
Suitable for C-load
|
no
|
|
With DALI interface
|
no
|
|
With alarm function
|
no
|
|
With remote control
|
no
|
|
Max. reach frontally
|
5
|
|
Max. switching power
|
2300
|
|
RAL-number (similar)
|
7016
|
|
With acoustic sensor
|
no
|
|
Background monitoring
|
no
|
|
Max. starting current
|
165
|
|
Min. starting current
|
-
|
|
With connection cable
|
no
|
|
Constant light control
|
-
|
|
Creep-under protection
|
yes
|
|
Connection cable length
|
0
|
|
Diameter reach on floor
|
20
|
|
IFTTT support available
|
no
|
|
Optimum mounting height
|
2.5
|
|
Anti-bacterial treatment
|
no
|
|
Max. switching power LED
|
800.0
|
|
Degree of protection (IP)
|
IP54
|
|
Number of switching zones
|
400.0
|
|
Response value luminosity
|
10 - 2500
|
|
Detection angle horizontal
|
|
|
Staircase light controller
|
-
|
|
Suitable for wall mounting
|
yes
|
|
Compatible with Amazon Alexa
|
no
|
|
Compatible with Apple HomeKit
|
no
|
|
Suitable for ceiling mounting
|
no
|
|
Pivoting range sensor, vertical
|
|
|
Compatible with Google Assistant
|
no
|
|
Pivoting range sensor, horizontal
|
|
|
Suitable for wireless transmission
|
no
|
|
Response value luminosity adjustable
|
yes
|
|
Response value sensitivity adjustable
|
yes
|
|
Dim function with dimmer basic element
|
no
|
|
Min. depth of built-in installation box
|
-
|
|
Teach-function for response value luminosity
|
yes
|
