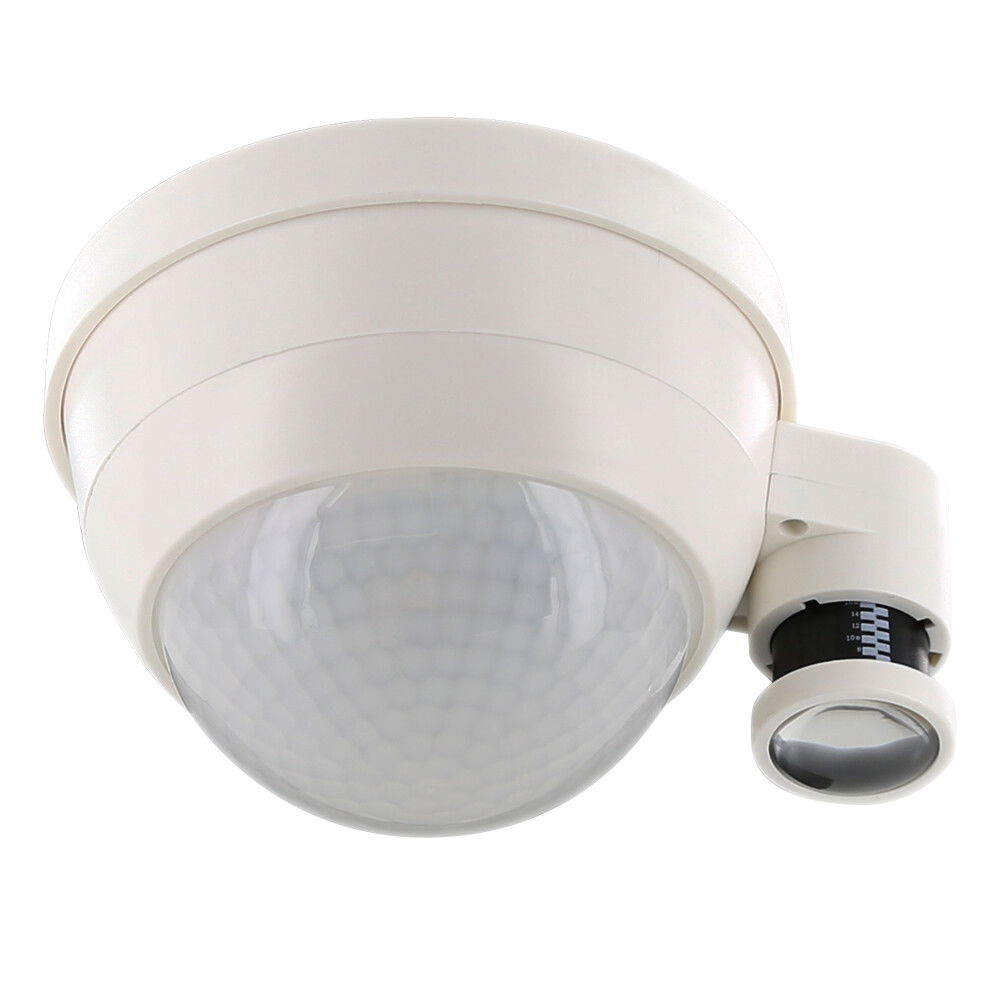

Occupancy detector Casambi 360° SM white IP54 30m 1Channel

Occupancy detector Casambi 360° SM white IP54 30m 1Channel

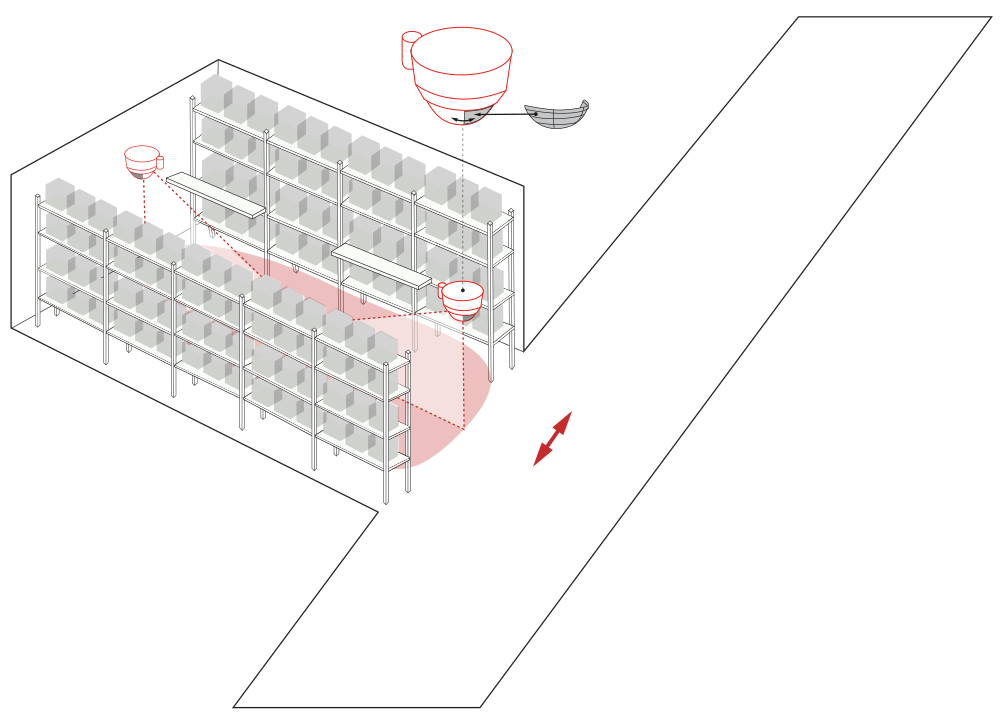

Casambi occupancy detector for surface mounting in large mounting heights, Bright LED indication for commissioning, External telescopic light sensor for a mounting height between 5 and 16 m (mechanically adjustable) for measuring the light according to the application., Mixed light measurement with external light sensor, Adjustment of the reflection factor and input of the luminosity for the display of the actual luminosity in the app, Extension of the detection area with additional B.E.G. Casambi devices possible, Individual adaption of detection sensitivity for each PIR sensor, Detection area can be restricted with blinds, There are markings to ensure correct alignment during installation, When used in high-bay warehouses, care should be taken that, in the cross-aisles of the warehouse, detectors are installed that can detect movement only in the desired aisle locations, by using blinds or other technical arrangements., Manual switching and dimming via push button possible, Functions adjustable via Casambi app

Product identifiers

SKU: 93472
EAN: 4007529934720
GTIN: 4007529934720
MPN: PD4-CAS-GH

Categories

Features

Depth
-
Model
Presence detector
Width
-
Colour
White
Height
76.0
Diameter
101.0
Material
-
Frequency
50 - 50
Diameter 1
101.0
Diameter 2
-
Scan angle
-
Animal zone
no
Networkable
no
Sensor type
Passive infrared
Temperature
-5 - 45
Transparent
no
HVAC-control
no
Halogen free
yes
Voltage type
AC
Built-in depth
-
Built-in width
-
Surface height
38.0
Bridging switch
no
Built-in length
-
Connection type
-
Control current
4
Impact strength
IK04
Max. duty cycle
-
Mounting method
EV000384
Nominal voltage
230.0 - 230.0
Forced switch on
-
Material quality
Other
Operating height
76.0
Remote operation
yes
Substation input
yes
Switch-off delay
0
With signal unit
no
Built-in diameter
-
Forced switch off
yes
Surface finishing
Matt
Surface protection
Untreated
Switching-on delay
0
Max. presence range
0
Max. reach sideways
15
Min. switch-on time
-
Suitable for C-load
no
With DALI interface
no
With alarm function
no
With remote control
no
Max. reach frontally
30
Max. switching power
-
RAL-number (similar)
9010
With acoustic sensor
no
Background monitoring
no
Max. starting current
-
Min. starting current
-
With connection cable
no
Constant light control
yes
Creep-under protection
-
Connection cable length
0
Diameter reach on floor
30
IFTTT support available
no
Optimum mounting height
14
Anti-bacterial treatment
no
Max. switching power LED
-
Degree of protection (IP)
IP54
Number of switching zones
700.0
Response value luminosity
1 - 4000
Detection angle horizontal
Staircase light controller
yes
Suitable for wall mounting
no
Compatible with Amazon Alexa
no
Compatible with Apple HomeKit
no
Suitable for ceiling mounting
yes
Pivoting range sensor, vertical
Compatible with Google Assistant
no
Pivoting range sensor, horizontal
Suitable for wireless transmission
no
Response value luminosity adjustable
yes
Response value sensitivity adjustable
yes
Dim function with dimmer basic element
no
Min. depth of built-in installation box
-
Teach-function for response value luminosity
yes
