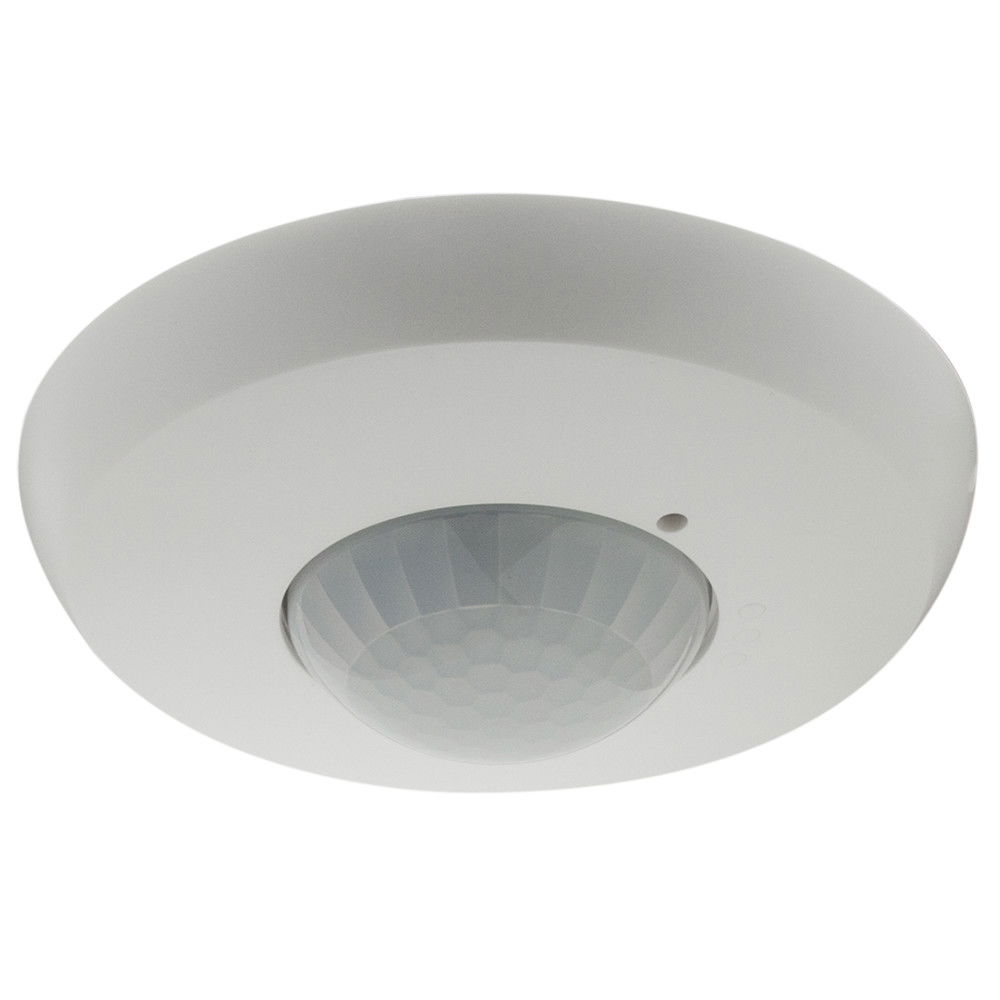

Multi-sensor 360° FM white IP20 DALI-2 10m
B.E.G.

Multi-sensor 360° FM white IP20 DALI-2 10m

DALI-2 multisensor (input device), DALI-2 certified product, Powered via DALI bus, Bright LED indication for commissioning, DALI multimaster technology according to IEC 62386 part 103, Instance 0 provides information regarding occupancy and movement for the DALI-Bus according to IEC 62386 part 303, Instance 1 provides LUX values for the DALI-Bus according to IEC 62386 part 304, Parameterisation is possible via mandatory Multimaster-Application-Controller of any manufacturer. This controller must support IEC 62386 parts 101/103/303/304., Mixed light measurement with internal and external light sensor, Detection area can be restricted with blinds, Individual adaption of the PIR sensor sensitivity, Status LEDs can be activated / deactivated

Product identifiers

SKU: 93544
EAN: 4007529935444
GTIN: 4007529935444
MPN: PD2N-BMS-FM DALI-2

Categories

Building Controls & Automation Sensors

Specifications

Depth -
Model Other
Width -
Colour White

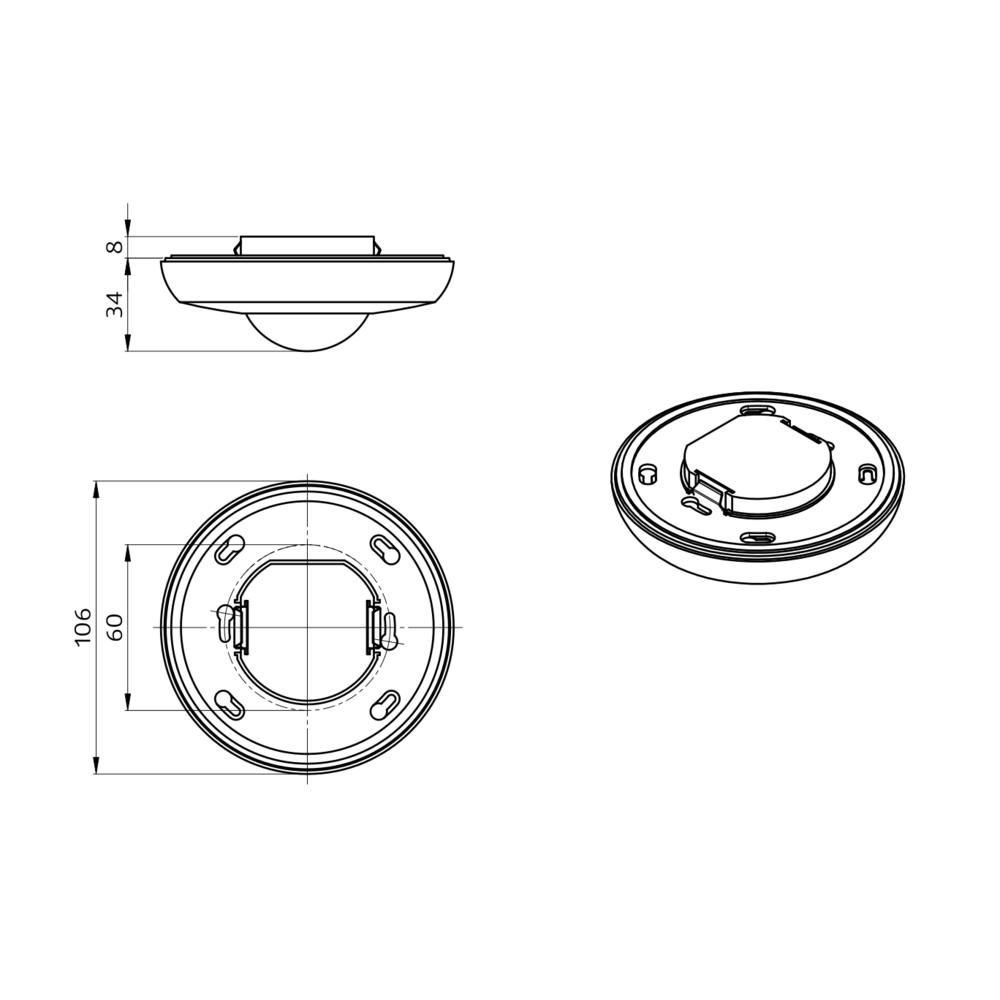

Height 42.0
Diameter 106.0
Material Plastic
Diameter 1 106.0
Animal zone no
Built-in depth -
Bus system KNX no
Surface height -
Max. duty cycle -
Switching power -
Material quality Other
Substation input no
Other bus systems Other
Number of channels 1
Bus system Powernet no
Min. switch-on time 1

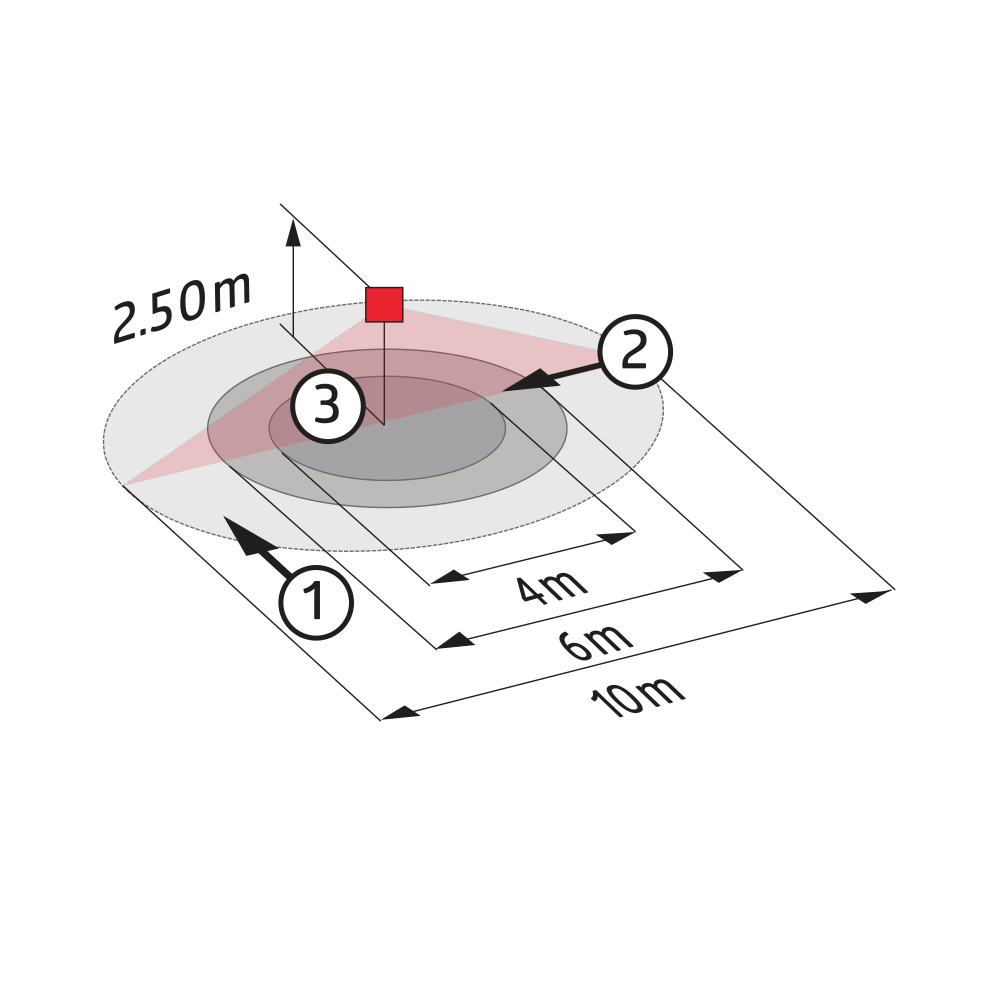

Max. reach frontally 6
With acoustic sensor no
Operation mode switch no
Creep-under protection yes
Diameter reach on floor 10
Voltage supply over bus yes
Bus system radio frequency no
Staircase light controller yes
Radio frequency bidirectional no
Switch-off delay self-learning no
Response value luminosity adjustable no
Teach-function for response value luminosity no
