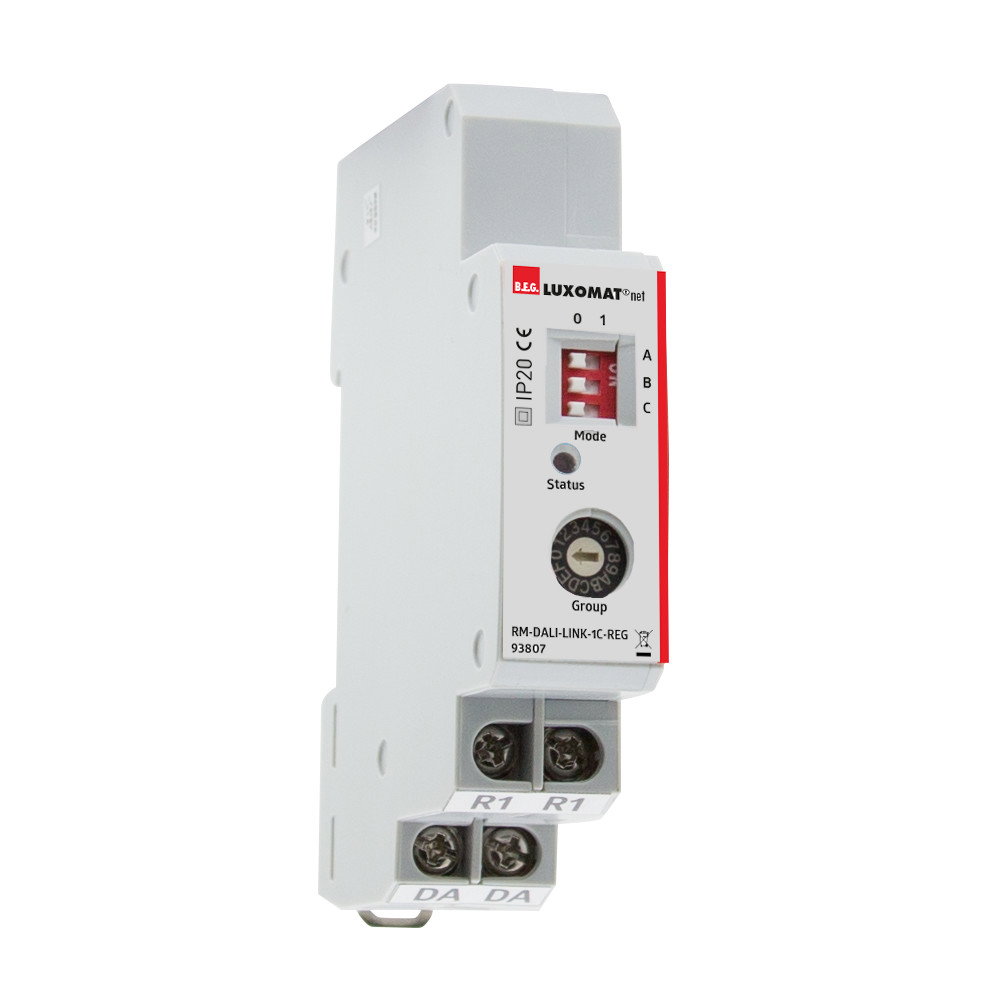

Relay module DIN-rail (TH35 EN . white IP20 DALI-LINK
DIN-rail DALI relay module with 1 switching channel, High-output and potential-free contact for loads with high inrush current, Integrated application controller with different operating modes, Operating modes: Standard, Cut-off, HVAC, Impulse, Alarm, DIP- and HEX-switch for quick commissioning with basic functionality, Full range of functions can only be activated with other products of the product group B.E.G. LUXOMAT(R)net DALI-LINK
Product identifiers
SKU: 93807
EAN: 4007529938070
GTIN: 4007529938070
MPN: RM-DALI-LINK-1C-REG white
Categories
Features
|
Output power
|
3000
|
|
Rated current
|
-
|
|
Bus system KNX
|
no
|
|
Bus system LON
|
no
|
|
Mounting method
|
DRA (DIN-rail adapter)
|
|
Other bus systems
|
Other
|
|
Power consumption
|
-
|
|
Bus system Powernet
|
no
|
|
Suitable for C-load
|
no
|
|
With LED indication
|
-
|
|
With bus connection
|
yes
|
|
Max. switching power
|
3000
|
|
Bus module detachable
|
-
|
|
Modular expandability
|
-
|
|
Max. switching current
|
16
|
|
Rated operating voltage
|
10 - 22
|
|
Max. switching power LED
|
-
|
|
Number of digital inputs
|
-
|
|
Degree of protection (IP)
|
IP20
|
|
Bus system radio frequency
|
no
|
|
Different phases connectable
|
-
|
|
Radio frequency bidirectional
|
-
|
|
Local operation/hand operation
|
no
|
|
Max. number of switching contacts
|
1
|
|
Bus system KNX-RF (Radio Frequency)
|
-
|
|
Width in number of modular spacings
|
1
|
|
Min. depth of built-in installation box
|
-
|
