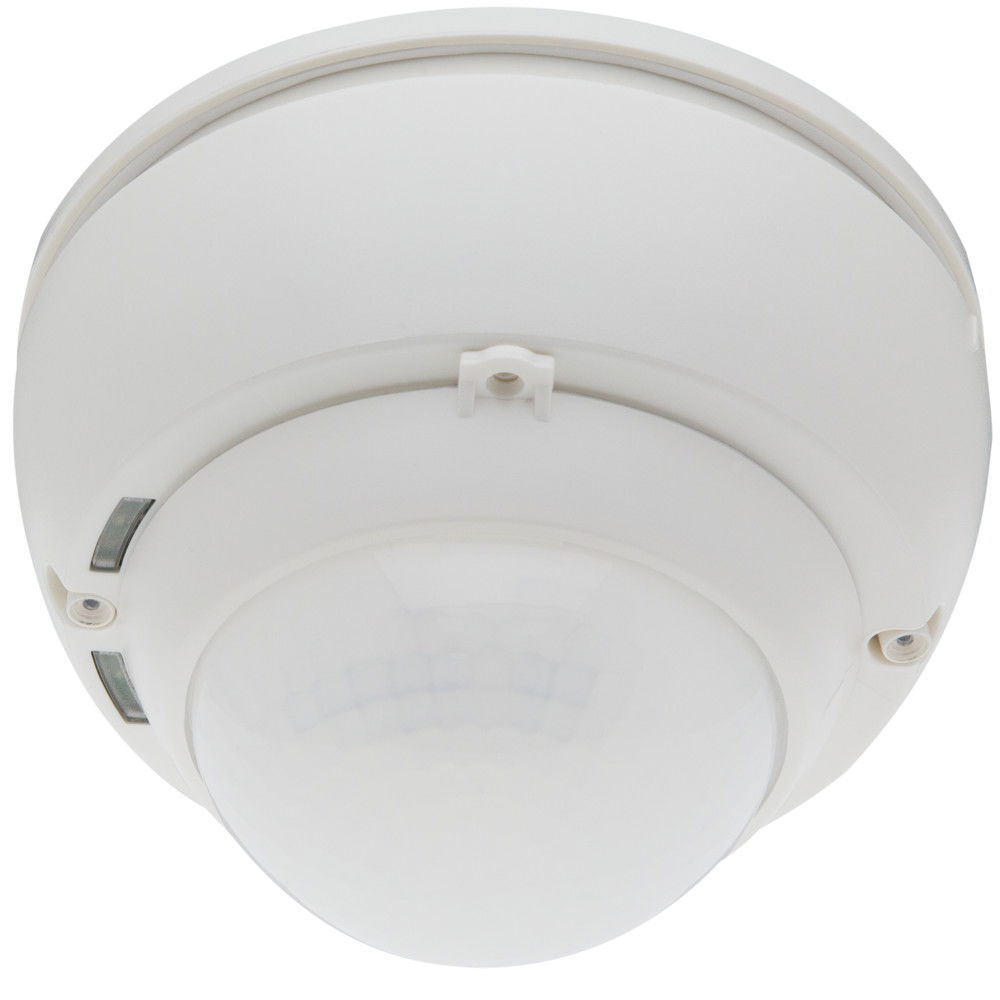

Occupancy detector 3xDALI 360° SM white IP20 DALI 24m 3Channel

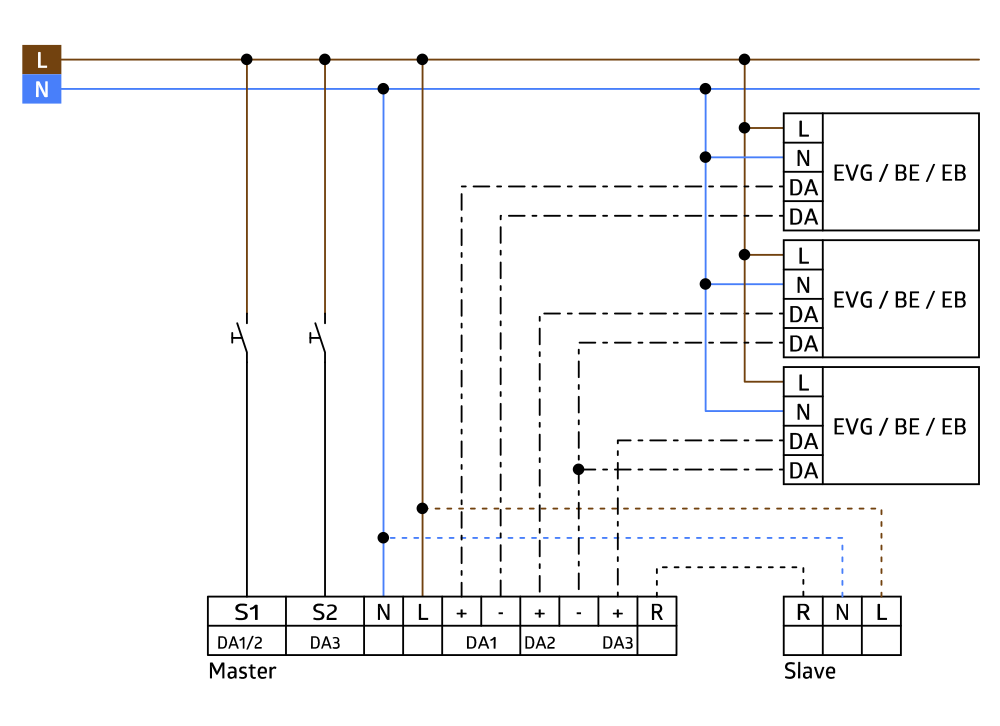

Occupancy detector for two lighting groups for daylight-dependent lighting regulation and a third lighting group for light switching, Control of up to 25 digital dimming electronic ballasts and control modules as a group per DALI output 1 and 2, and up to 10 for DALI output 3, Two independent, movable light sensors, One common detection area, Switching between DALI and DSI possible with remote control, Version as master device, Detection area can be extended by using slave devices, Manual switching and dimming via push button possible, Additional functions can be set up using the optional remote control., Orientation light function, Semi-automatic, full-automatic or twilight switch mode
Product identifiers
SKU: 92750
EAN: 4007529927500
GTIN: 4007529927500
MPN: PD4-M-TRIO-DALI/DSI-SM
Categories
Features
|
Depth
|
-
|
|
Model
|
Presence detector
|
|
Width
|
-
|
|
Colour
|
White
|
|

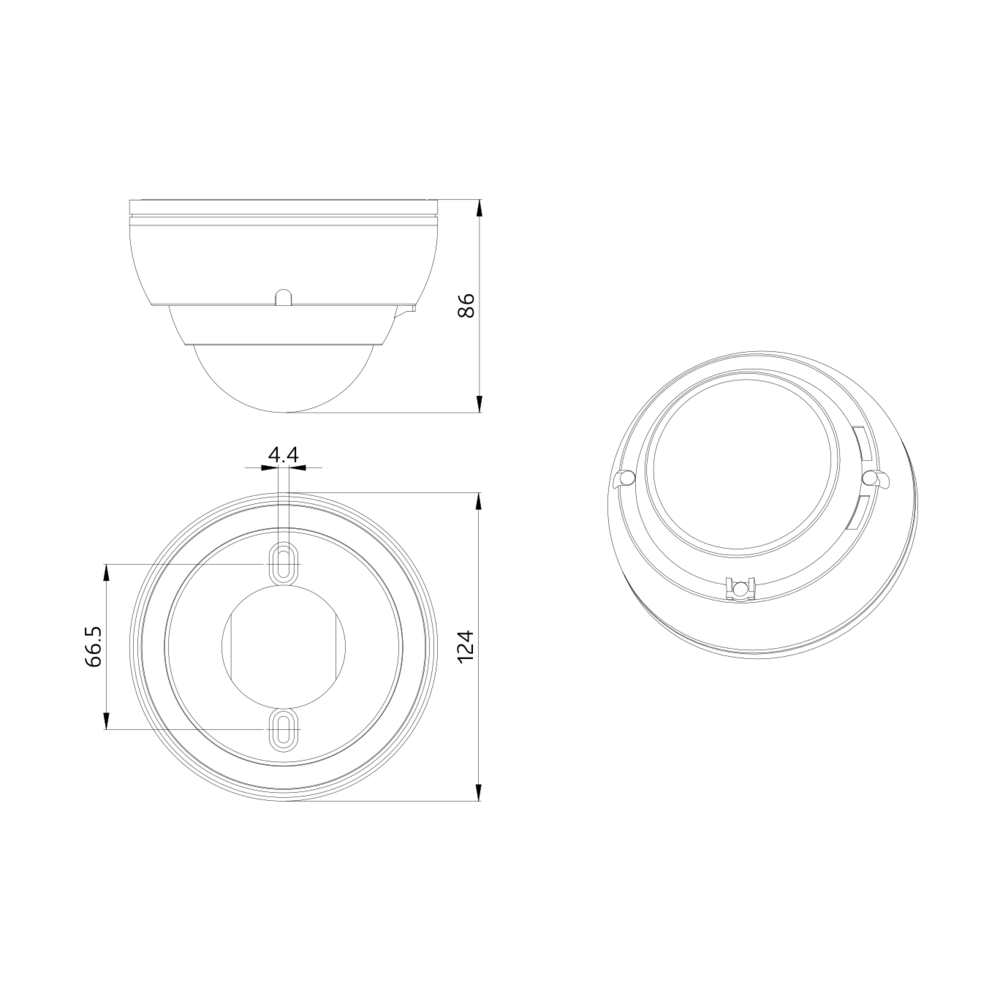

Height
|
85.0
|
|
Diameter
|
124.0
|
|
Material
|
Plastic
|
|
Frequency
|
50 - 60
|
|
Diameter 1
|
124.0
|
|
Diameter 2
|
-
|
|
Scan angle
|
-
|
|
Animal zone
|
no
|
|
Networkable
|
no
|
|
Sensor type
|
Passive infrared
|
|
Temperature
|
-25 - 50
|
|
Transparent
|
no
|
|
HVAC-control
|
no
|
|
Halogen free
|
yes
|
|
Voltage type
|
AC
|
|
Built-in depth
|
-
|
|
Built-in width
|
-
|
|
Surface height
|
43.0
|
|
Bridging switch
|
no
|
|
Built-in length
|
-
|
|
Connection type
|
-
|
|
Control current
|
5
|
|
Impact strength
|
IK04
|
|
Max. duty cycle
|
60
|
|
Mounting method
|
EV000384
|
|
Nominal voltage
|
110.0 - 240.0
|
|
Forced switch on
|
-
|
|
Material quality
|
Other
|
|
Operating height
|
85.0
|
|
Remote operation
|
yes
|
|
Substation input
|
yes
|
|
Switch-off delay
|
0
|
|
With signal unit
|
no
|
|
Built-in diameter
|
-
|
|
Forced switch off
|
yes
|
|
Surface finishing
|
Matt
|
|
Surface protection
|
Untreated
|
|
Switching-on delay
|
0
|
|
Max. presence range
|
32.0
|
|
Max. reach sideways
|
12
|
|
Min. switch-on time
|
60
|
|
Suitable for C-load
|
no
|
|
With DALI interface
|
yes
|
|
With alarm function
|
no
|
|
With remote control
|
no
|
|
Max. reach frontally
|
8
|
|
Max. switching power
|
-
|
|
RAL-number (similar)
|
9010
|
|
With acoustic sensor
|
no
|
|
Background monitoring
|
no
|
|
Max. starting current
|
-
|
|
Min. starting current
|
-
|
|
With connection cable
|
no
|
|
Constant light control
|
yes
|
|
Creep-under protection
|
yes
|
|
Connection cable length
|
0
|
|

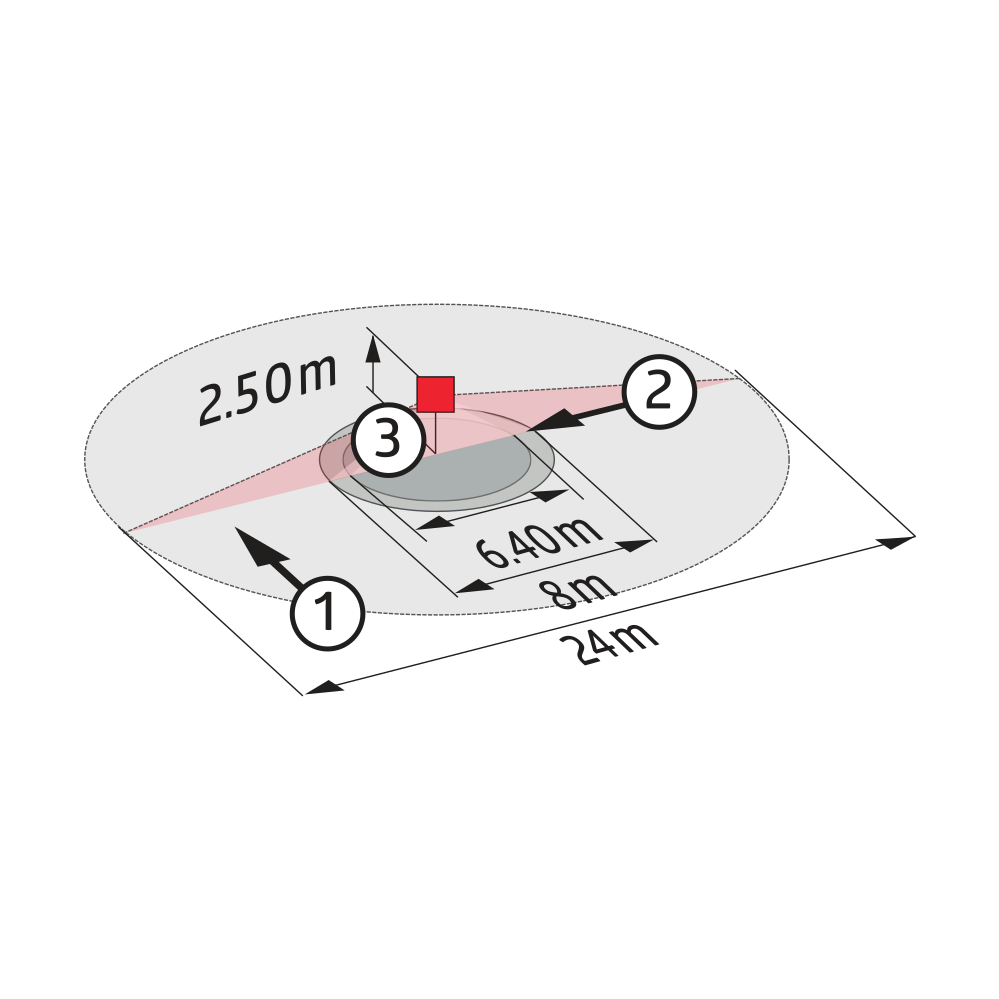

Diameter reach on floor
|
24
|
|
IFTTT support available
|
no
|
|
Optimum mounting height
|
2.5
|
|
Anti-bacterial treatment
|
no
|
|
Max. switching power LED
|
-
|
|
Degree of protection (IP)
|
IP20
|
|
Number of switching zones
|
450.0
|
|
Response value luminosity
|
100 - 1200
|
|
Detection angle horizontal
|
|
|
Staircase light controller
|
yes
|
|
Suitable for wall mounting
|
no
|
|
Compatible with Amazon Alexa
|
no
|
|
Compatible with Apple HomeKit
|
no
|
|
Suitable for ceiling mounting
|
yes
|
|
Pivoting range sensor, vertical
|
|
|
Compatible with Google Assistant
|
no
|
|
Pivoting range sensor, horizontal
|
|
|
Suitable for wireless transmission
|
no
|
|
Response value luminosity adjustable
|
yes
|
|
Response value sensitivity adjustable
|
yes
|
|
Dim function with dimmer basic element
|
no
|
|
Min. depth of built-in installation box
|
-
|
|
Teach-function for response value luminosity
|
yes
|
