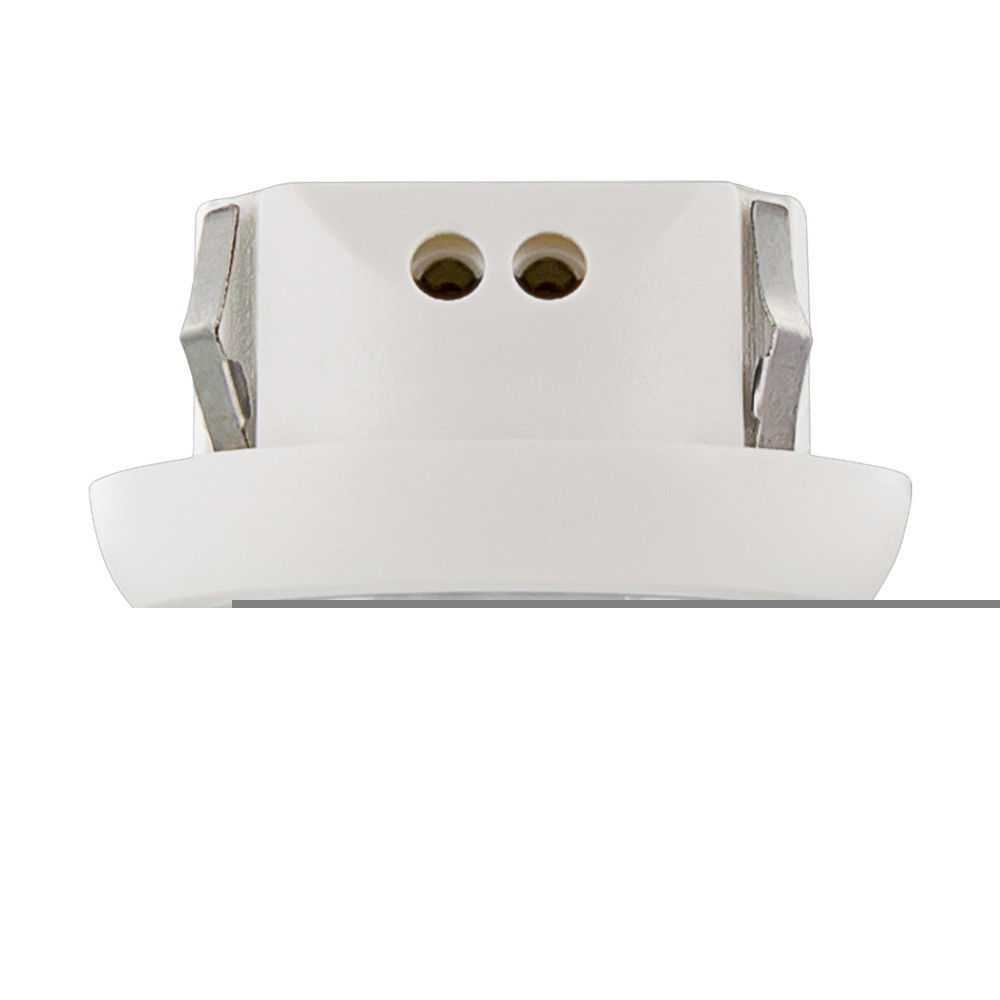

Mini Multi-sensor 360° FC white IP20 DALI-2 10m
Particularly small DALI-2 multisensor (input device) with only 11mm installation depth for installation in luminiares, DALI-2 certified product, Powered via DALI bus, DALI multimaster technology according to IEC 62386 part 103, Instance 0 provides information regarding occupancy and movement for the DALI-Bus according to IEC 62386 part 303, Instance 1 provides LUX values for the DALI-Bus according to IEC 62386 part 304, Parameterisation is possible via mandatory Multimaster-Application-Controller of any manufacturer. This controller must support IEC 62386 parts 101/103/303/304., Measuring of mixed light thanks to internal light sensor, Detection area can be restricted with blinds, Individual adaption of the PIR sensor sensitivity, Status LEDs can be activated / deactivated
Product identifiers
SKU: 93547
EAN: 4007529935475
GTIN: 4007529935475
MPN: PICO-BMS DALI-2
Categories
Features
|
Depth
|
-
|
|
Model
|
Other
|
|
Width
|
-
|
|
Colour
|
White
|
|

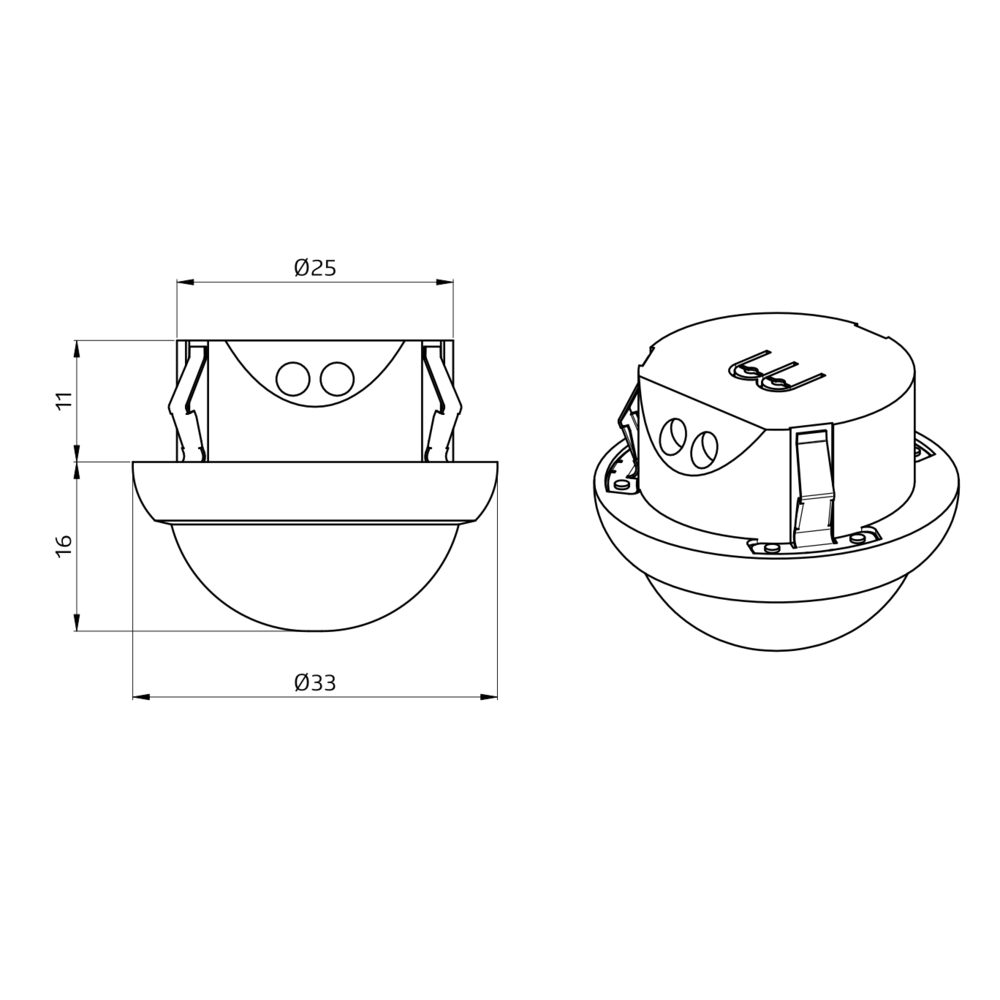

Height
|
27.0
|
|
Diameter
|
33.0
|
|
Material
|
Plastic
|
|
Diameter 1
|
33.0
|
|
Diameter 2
|
-
|
|
Animal zone
|
no
|
|
Transparent
|
no
|
|
Built-in depth
|
-
|
|
Built-in width
|
-
|
|
Bus system KNX
|
no
|
|
Bus system LON
|
no
|
|
Surface height
|
-
|
|
Built-in length
|
-
|
|
Max. duty cycle
|
30
|
|
Mounting method
|
EV000154
|
|
Switching power
|
-
|
|
DALI-2 certified
|
yes
|
|
Material quality
|
Other
|
|
Operating height
|
-
|
|
Substation input
|
no
|
|
Built-in diameter
|
-
|
|
Other bus systems
|
Other
|
|
Surface finishing
|
Matt
|
|
Number of channels
|
1
|
|
Surface protection
|
Other
|
|
Bus system Powernet
|
no
|
|
Max. reach sideways
|
5
|
|
Min. switch-on time
|
1
|
|
With bus connection
|
yes
|
|
Max. reach frontally
|
6
|
|
RAL-number (similar)
|
9010
|
|
With acoustic sensor
|
no
|
|
Background monitoring
|
no
|
|
Operation mode switch
|
no
|
|
With connection cable
|
no
|
|
Creep-under protection
|
yes
|
|
Connection cable length
|
0
|
|

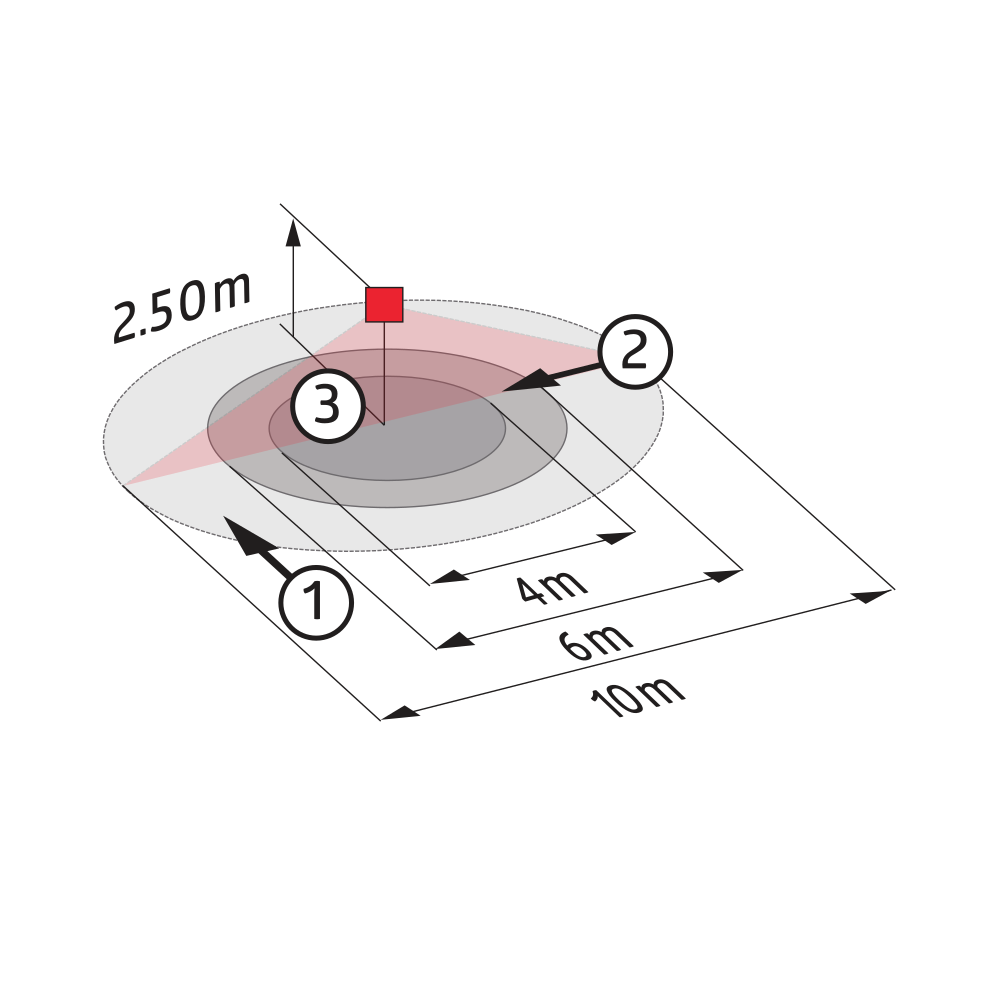

Diameter reach on floor
|
10
|
|
Optimum mounting height
|
2.5
|
|
Voltage supply over bus
|
yes
|
|
Detection angle vertical
|
|
|
Bus system radio frequency
|
no
|
|
Detection angle horizontal
|
|
|
Staircase light controller
|
yes
|
|
Suitable for wall mounting
|
no
|
|
Radio frequency bidirectional
|
no
|
|
Suitable for ceiling mounting
|
yes
|
|
Switch-off delay self-learning
|
no
|
|
Bus system KNX-RF (Radio Frequency)
|
no
|
|
Response value luminosity adjustable
|
no
|
|
Min. depth of built-in installation box
|
-
|
|
Teach-function for response value luminosity
|
no
|
