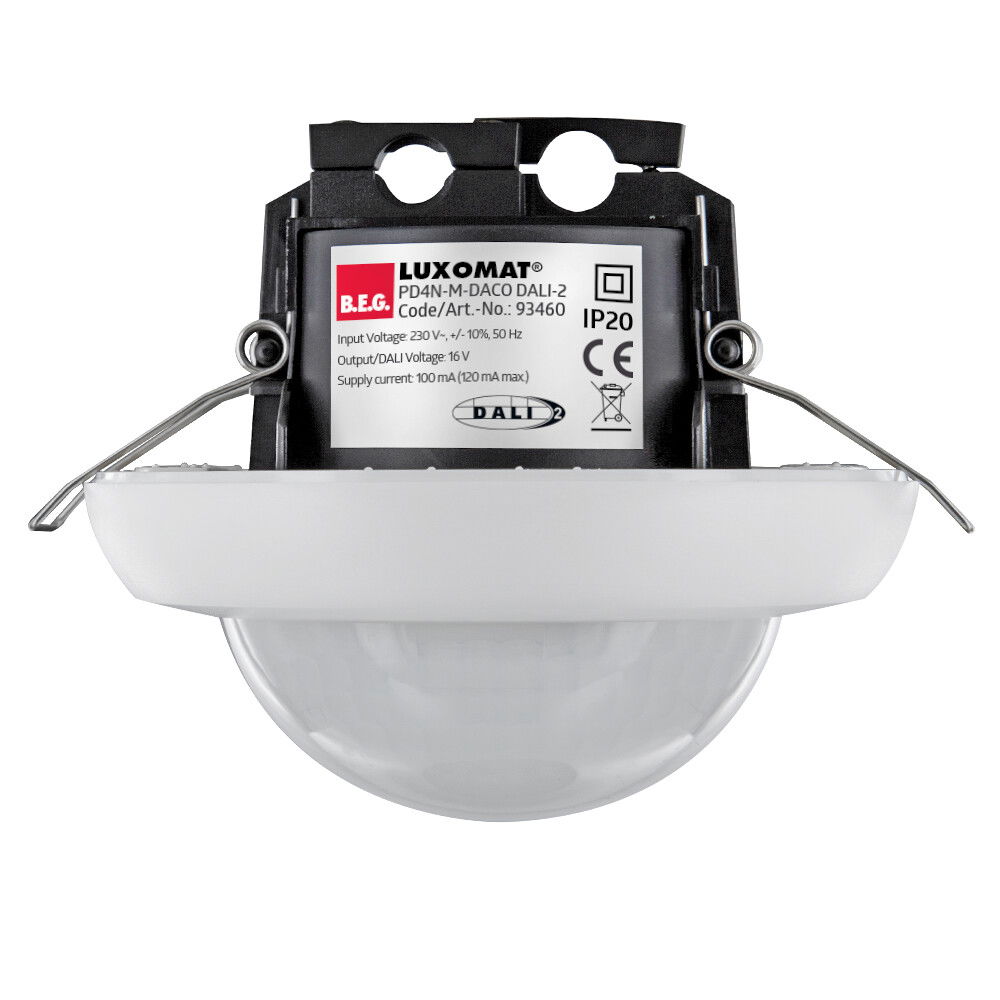

Occupancy detector 1C 360° FC white IP20 DALI 24m 1Channel

Occupancy detector 1C 360° FC white IP20 DALI 24m 1Channel

Occupancy detector with integrated DALI application controller for energy-efficient lighting control, DALI-2 certified product, Integrated DALI power supply, DALI interface for controlling digital, dimmable ECGs in broadcast mode, Manual switching or dimming via conventional pushbuttons, Bidirectional IR communication enables fast integration into the project management function of the B.E.G. One app, Complete range of functions can only be activated using the BLE-IR-Adapter and a compatible Smartphone or Tablet (Android, iOS)., Semi-automatic, full automatic, presence-independent or light-independent mode adjustable, Intelligent regulation algorithm with extensive setting options, Software is backwards compatible with the first generation (except DSI, double lock and corridor function), Factory setting 10 min follow-up time and 500 lux brightness set value, Including pre-assembled spring clamp with strain relief and contact protection cap for recessed ceiling mounting, Accessory for surface mounting available, Accessories for wall mounting optionally available, Further accessories for colour matching optionally available

Product identifiers

SKU: 93460
EAN: 4007529934607
GTIN: 4007529934607
MPN: PD4N-M-DACO DALI-2

Specifications

Depth -
Model Presence detector
Width -
Colour White

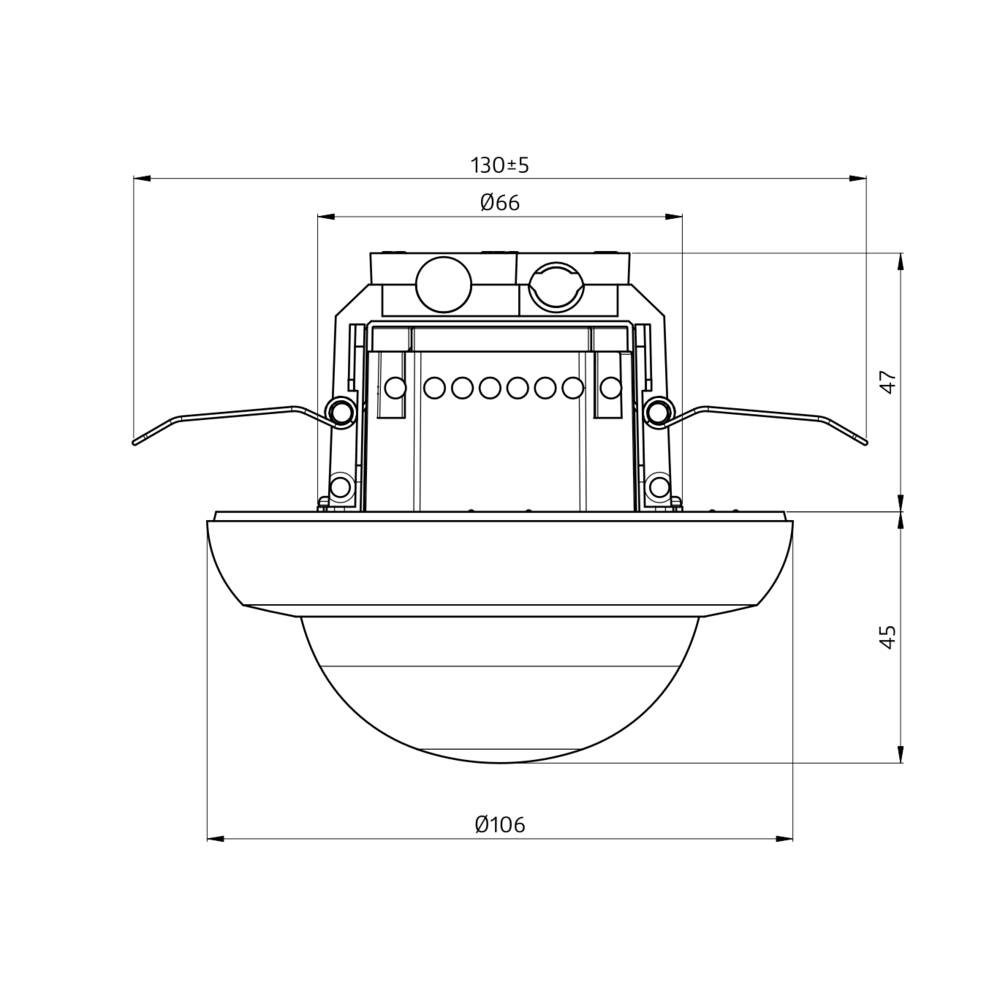

Height 95.0
Diameter 106.0
Material Plastic
Diameter 1 106.0
Animal zone no
Built-in depth -
Bus system KNX no
Surface height -
Max. duty cycle 30
Switching power -
Material quality Other
Substation input yes
Other bus systems Other
Number of channels 1
Bus system Powernet no
Min. switch-on time 60
Max. reach frontally 4
With acoustic sensor no
Operation mode switch yes
Creep-under protection yes
Diameter reach on floor 24
Voltage supply over bus no
Bus system radio frequency no
Staircase light controller yes
Radio frequency bidirectional no
Switch-off delay self-learning no
Response value luminosity adjustable yes
Teach-function for response value luminosity yes
