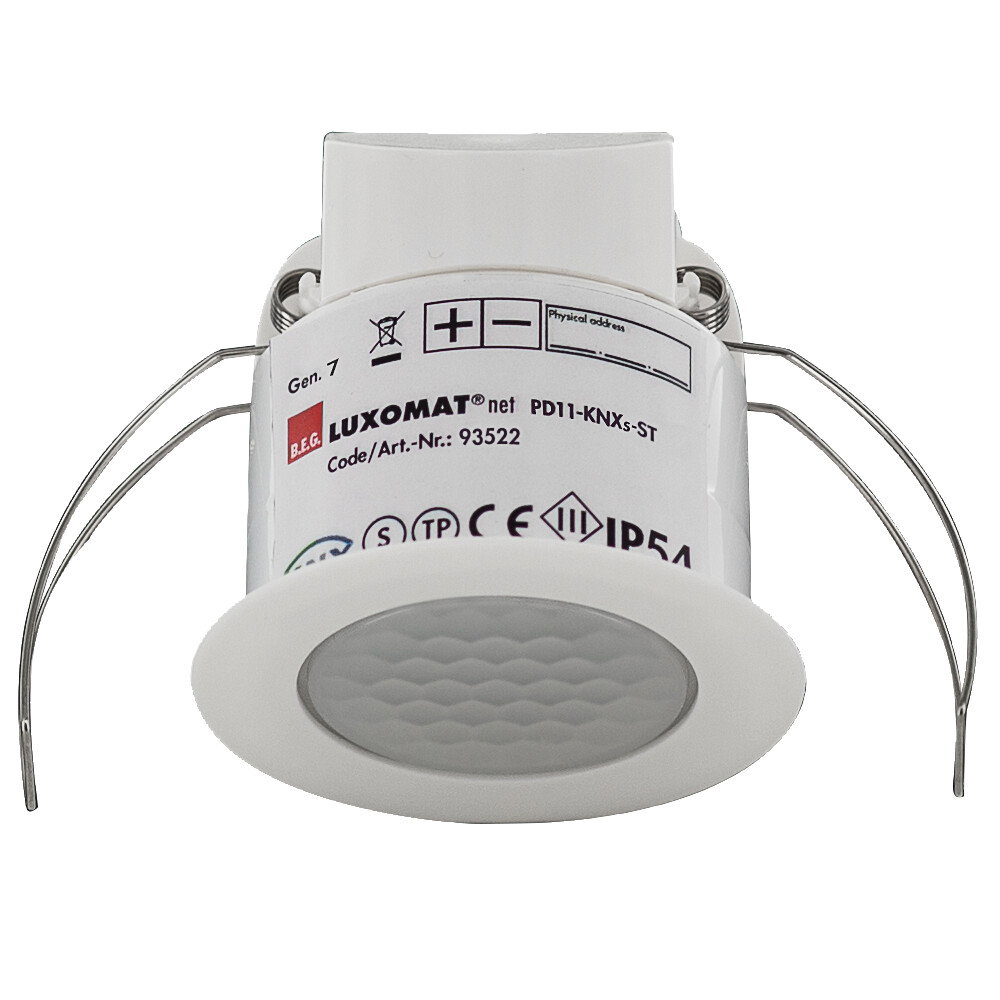

Occupancy detector FLAT-ST 360° FC white IP54 KNX Secure 9m

Occupancy detector FLAT-ST 360° FC white IP54 KNX Secure 9m

Low profile KNX occupancy detector with integrated KNX bus connector, KNX Secure ready, Parameterisation from ETS 5 for integration into KNX systems, Individual adaption of the PIR sensor sensitivity, Mixed light measurement using internal and remote (optional) light sensors, Intelligent semi-automatic mode, occupancy-independent regulating mode (photoelectric switch), full automatic mode, 1 x light output (for regulating or switching), 1 x slave output, 3 x HVAC outputs (separately programmable), Regulation of up to three lighting groups using offset (external influence possible), Short presence, self-adjusting follow-up time, corridor function, Various locking functions, Soft-start, Recall of light scenes, Deactivatable status indicators, Flush mounting with accessory 92833, surface mounting with accessories 92833 and 92121

Product identifiers

SKU: 93522
EAN: 4007529935222
GTIN: 4007529935222
MPN: PD11-KNXs-FLAT-ST-FC

Specifications

Depth -
Model Presence detector
Width -
Colour White

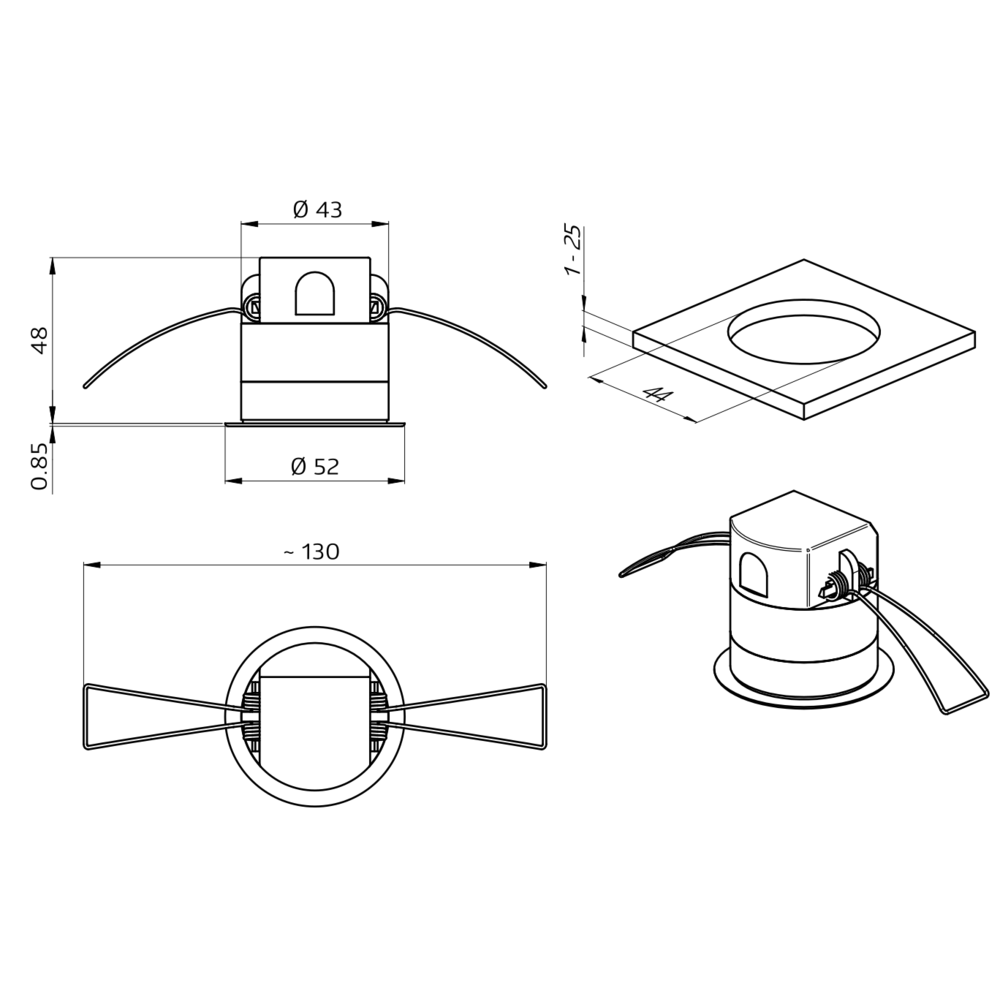

Height 48.0
Diameter 52.0
Material Plastic
Diameter 1 52.0
Animal zone no
Built-in depth -
Bus system KNX yes
Surface height -
Max. duty cycle 1440
Switching power -
Material quality Other
Substation input yes
Other bus systems -
Number of channels -
Bus system Powernet -
Min. switch-on time 1
Max. reach frontally -
With acoustic sensor no
Operation mode switch no
Creep-under protection yes

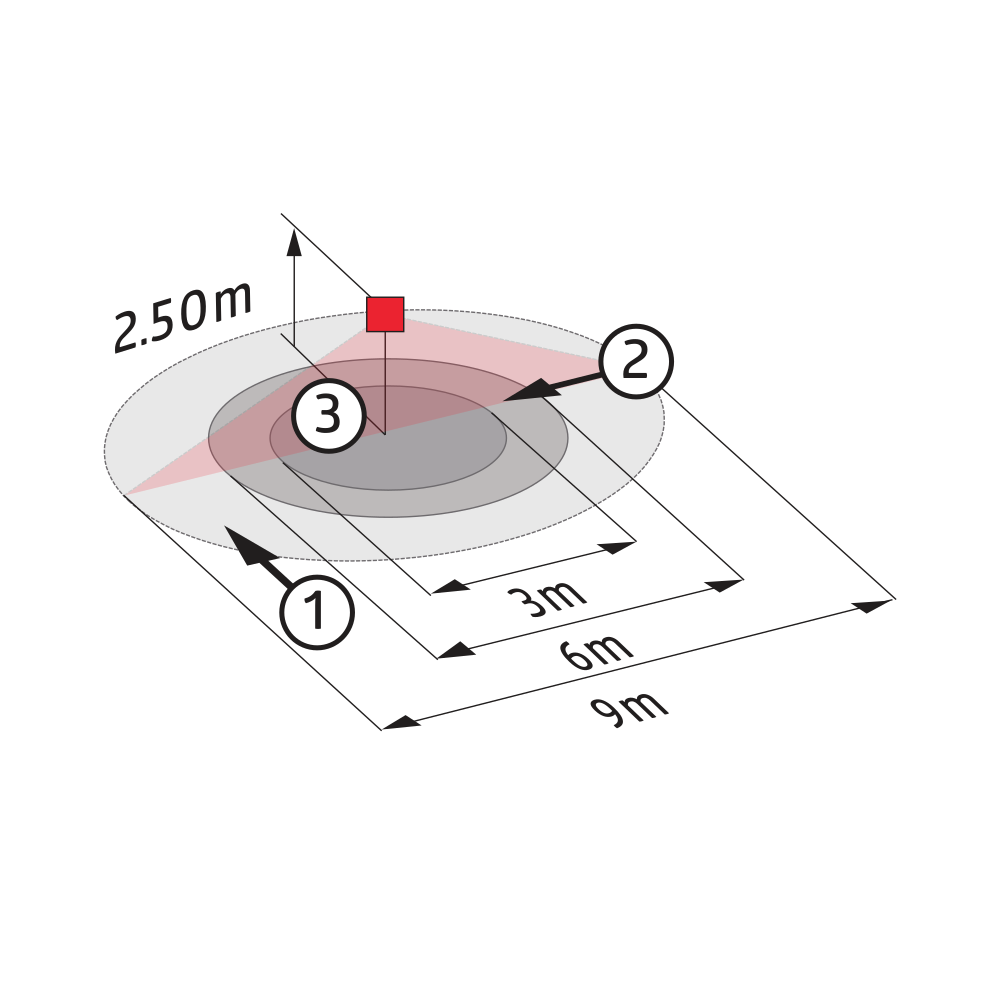

Diameter reach on floor 9
Voltage supply over bus yes
Bus system radio frequency -
Staircase light controller yes
Radio frequency bidirectional -
Switch-off delay self-learning -
Response value luminosity adjustable yes
Teach-function for response value luminosity yes
