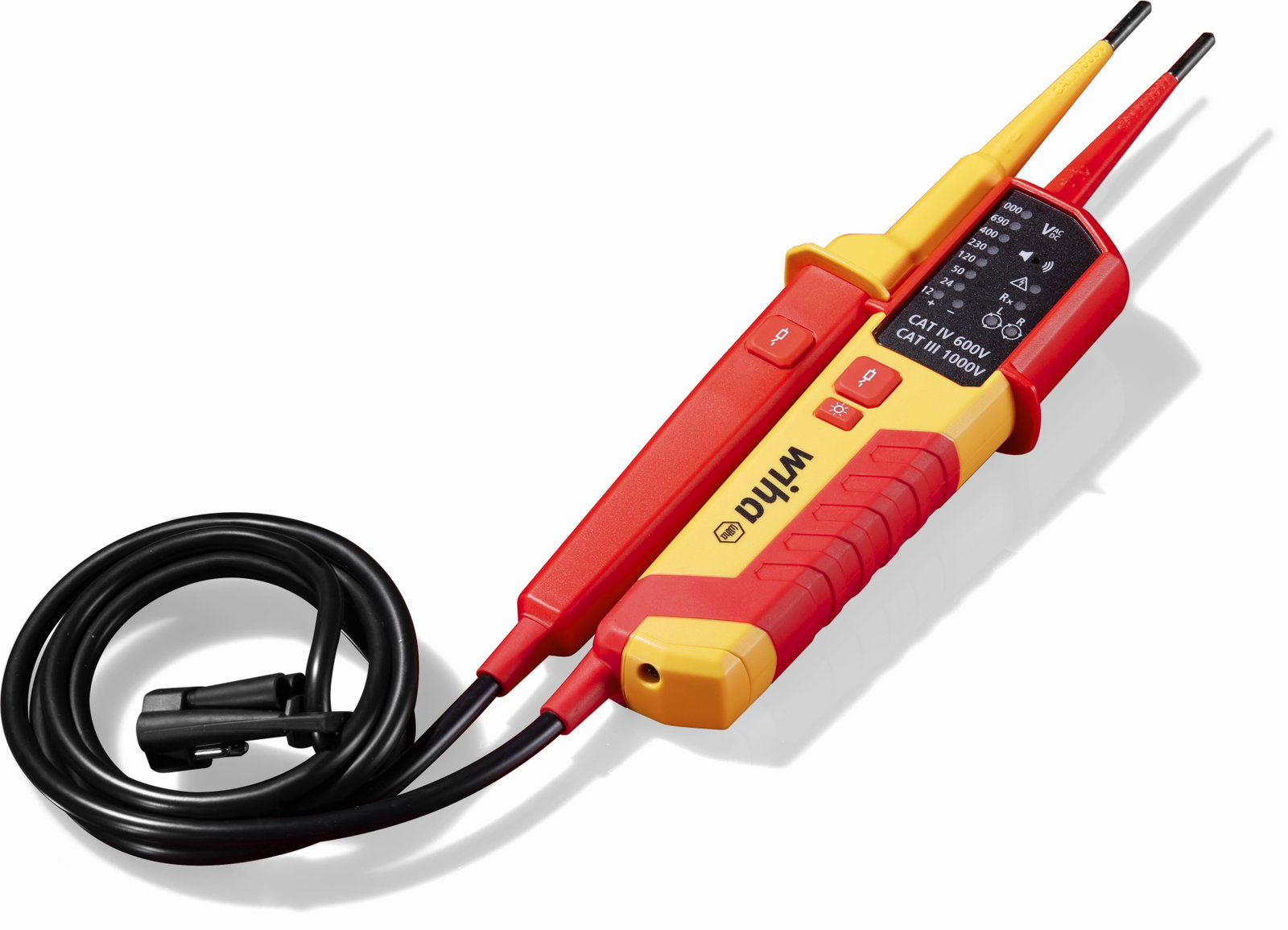

Wiha Voltage and continuity tester 0.5 - 1,000 V AC, CAT IV incl. 2x AAA batteries (45217)
Increases your flexibility: Covers the relevant voltage range for the work of an electrician.

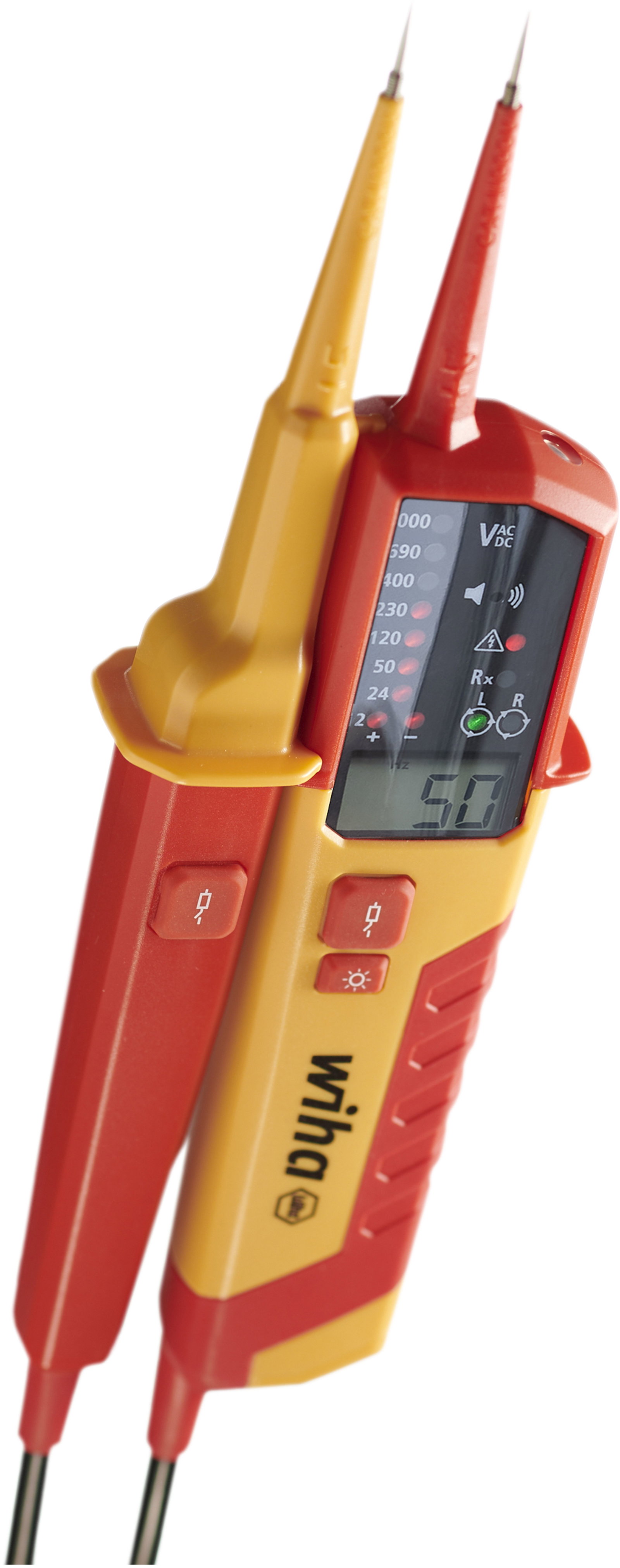

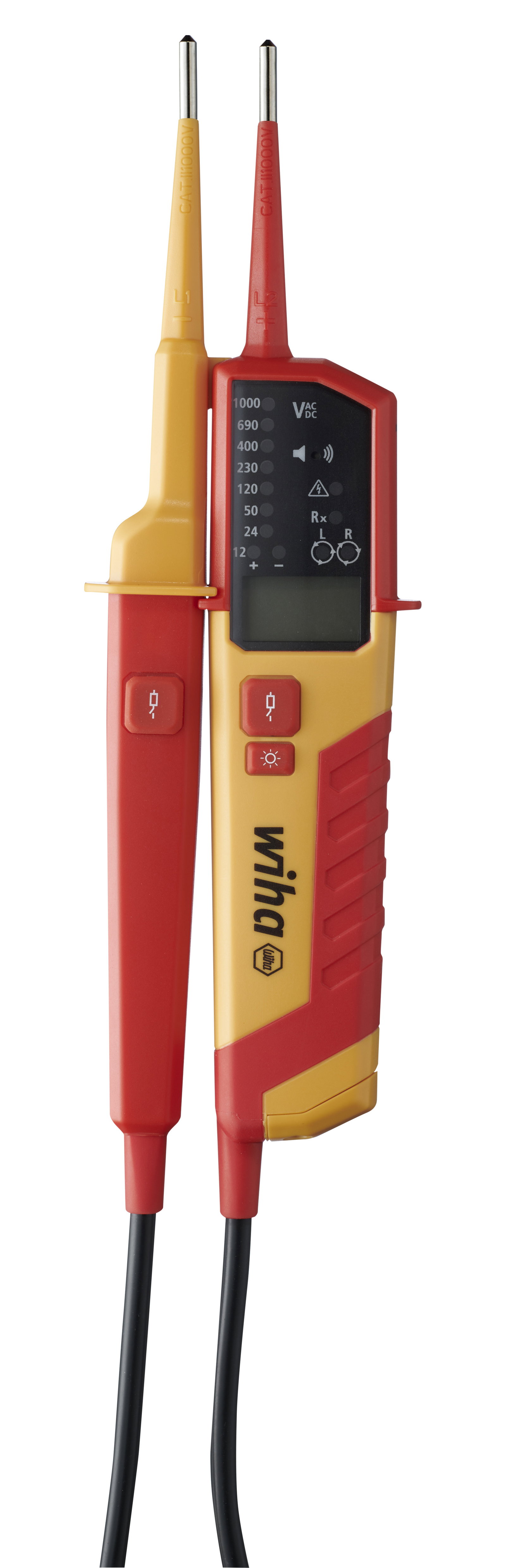

Simplifies your work: Large LCD display with background illumination, LED scale and signal sound for easy to read measurement results.
Simplifies your work: An integrated flashlight function ensures optimal illumination.
Meets your requirements: Checking the FI trigger by means of two load buttons.
Product dimensions: 240 x 75 x 30 mm
Application: To determine zero voltage.
Application: For standardized voltage testing, continuity testing, rotational field testing and resistance testing incl. FI protective switch measurement.
Measuring category: CAT III 1.000 V / CAT IV 600 V
Standards:
Suitable for photovoltaic systems
0.5 - 1,000 V AC / 1,500 V DC
CAT III 1,000 V / CAT IV 600 V

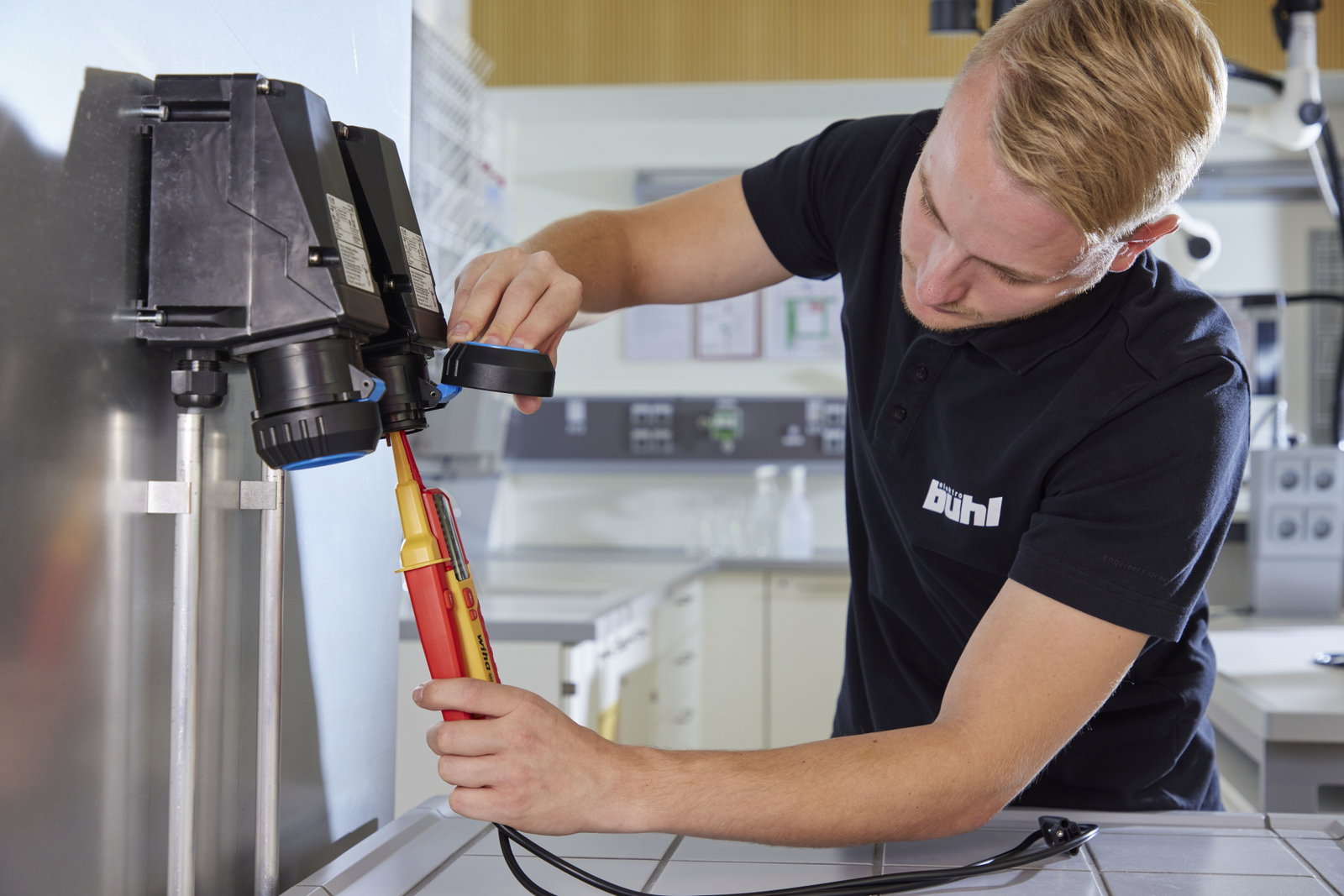

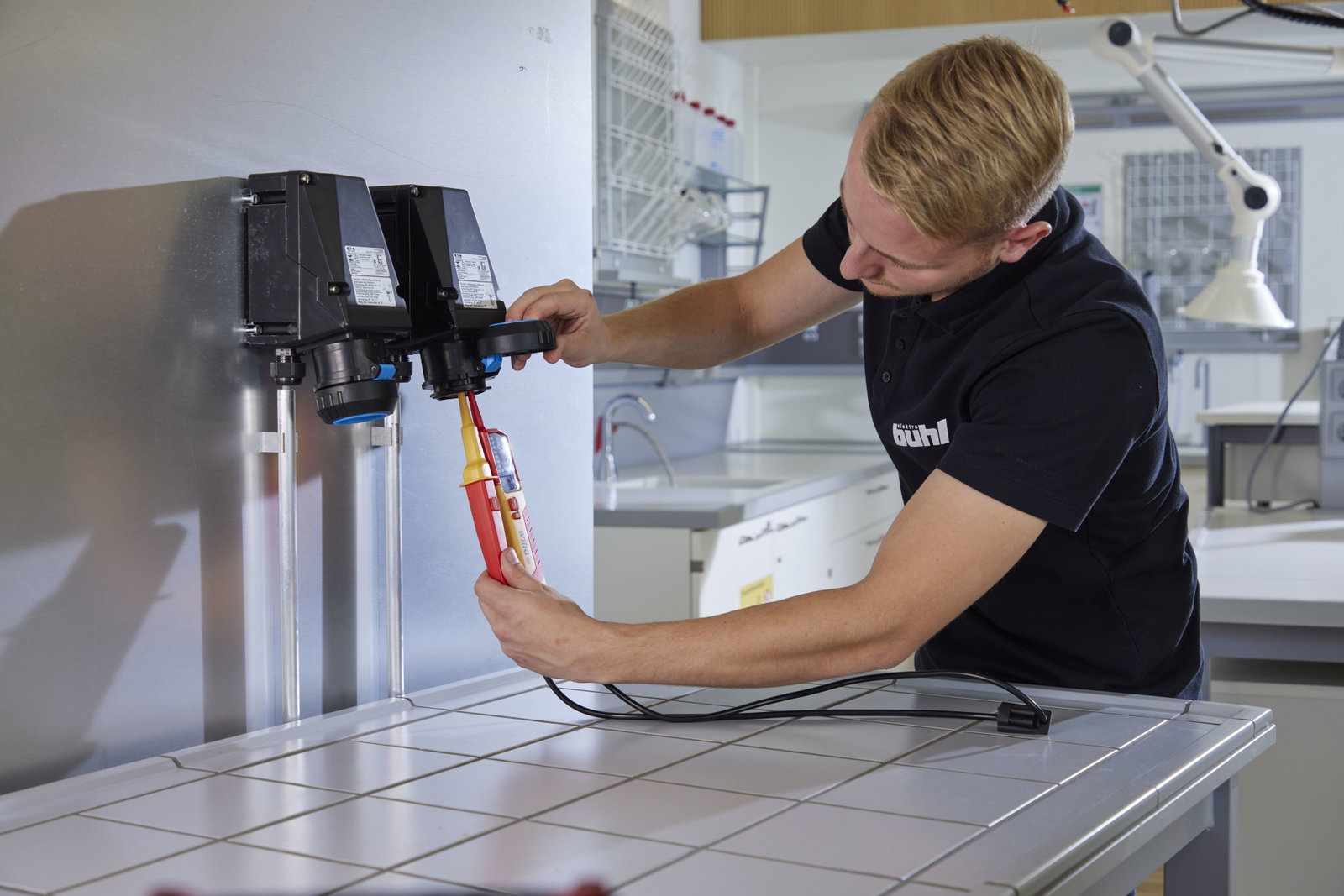

One-handed test
Rotary field measurement
FI load buttons

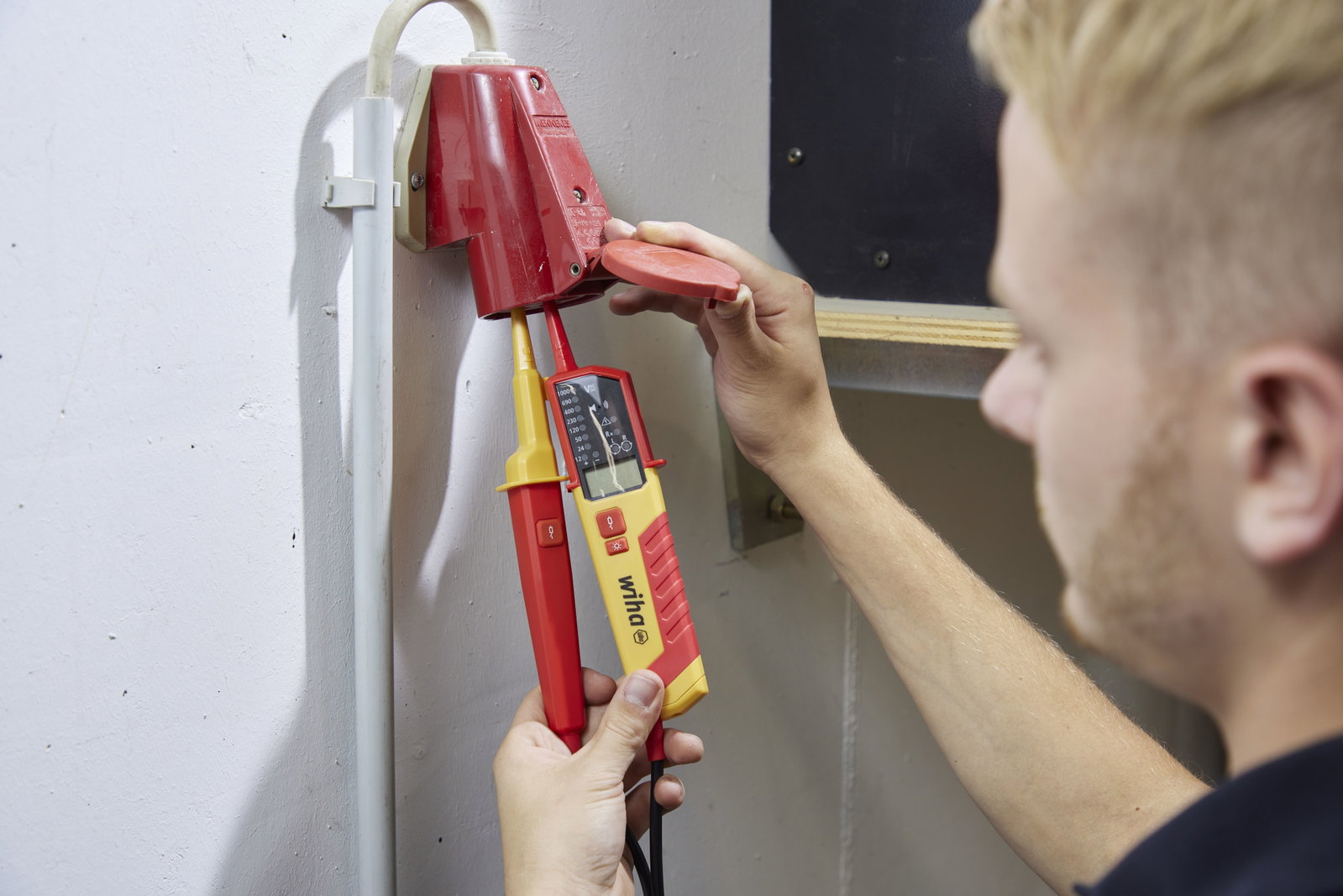

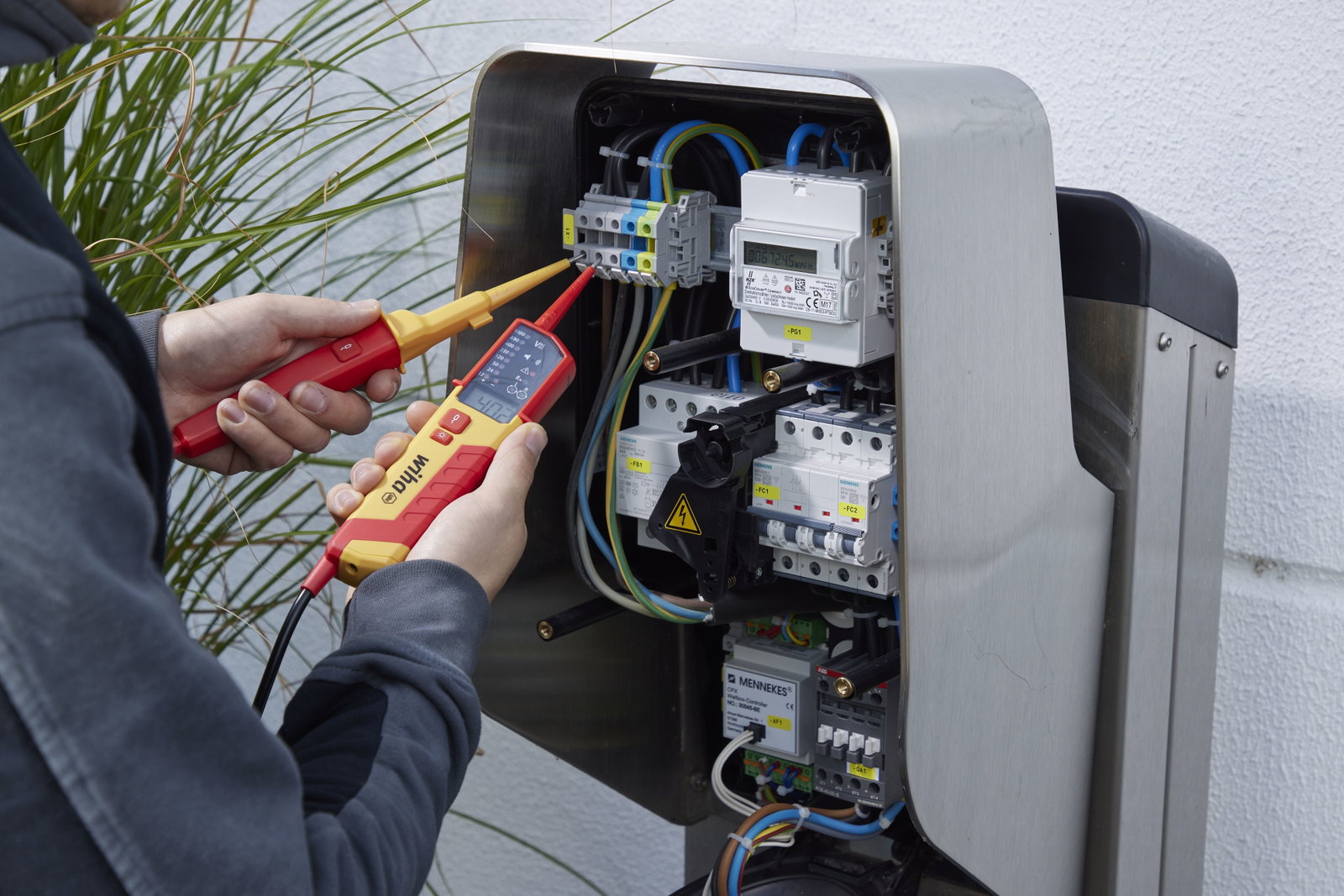

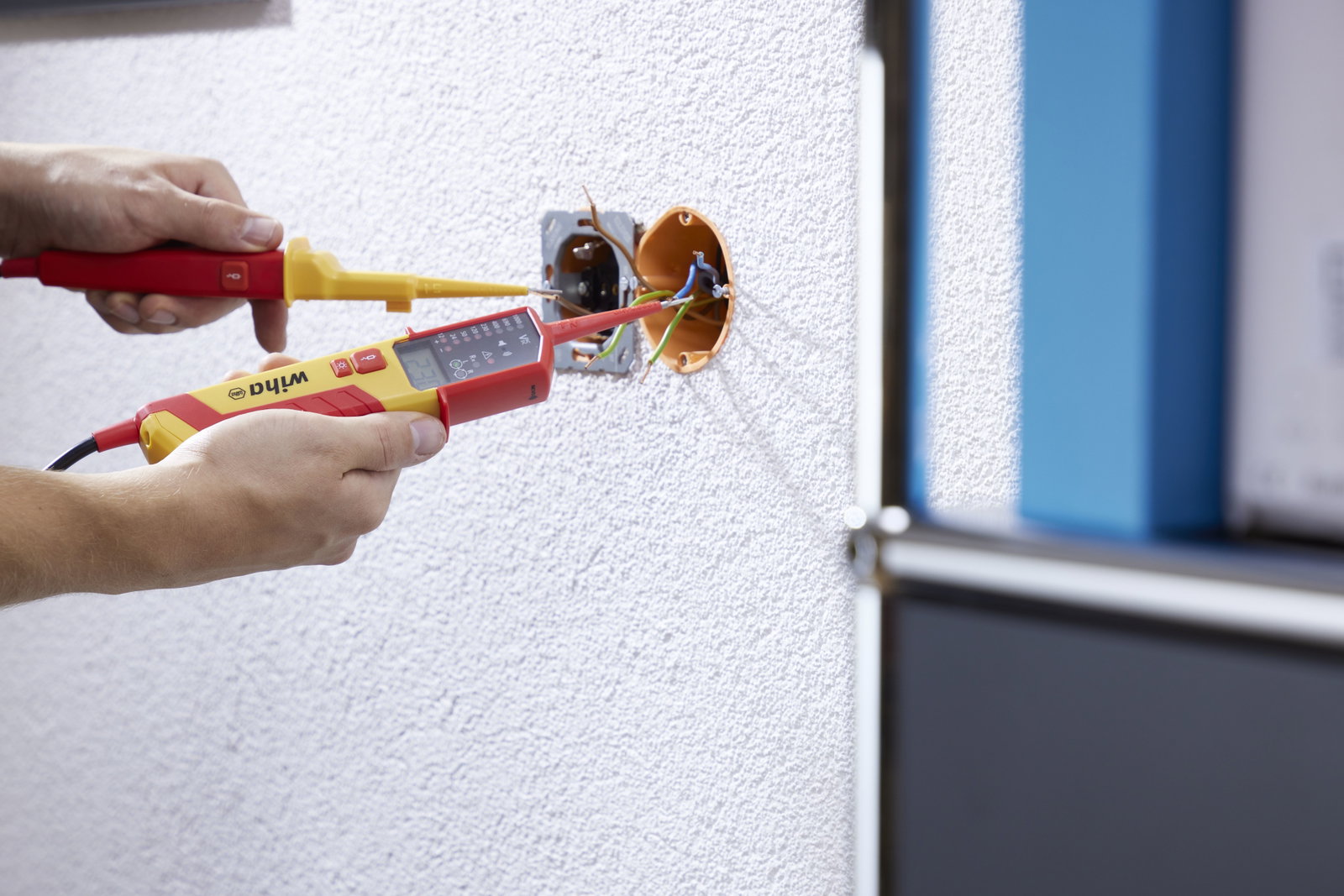

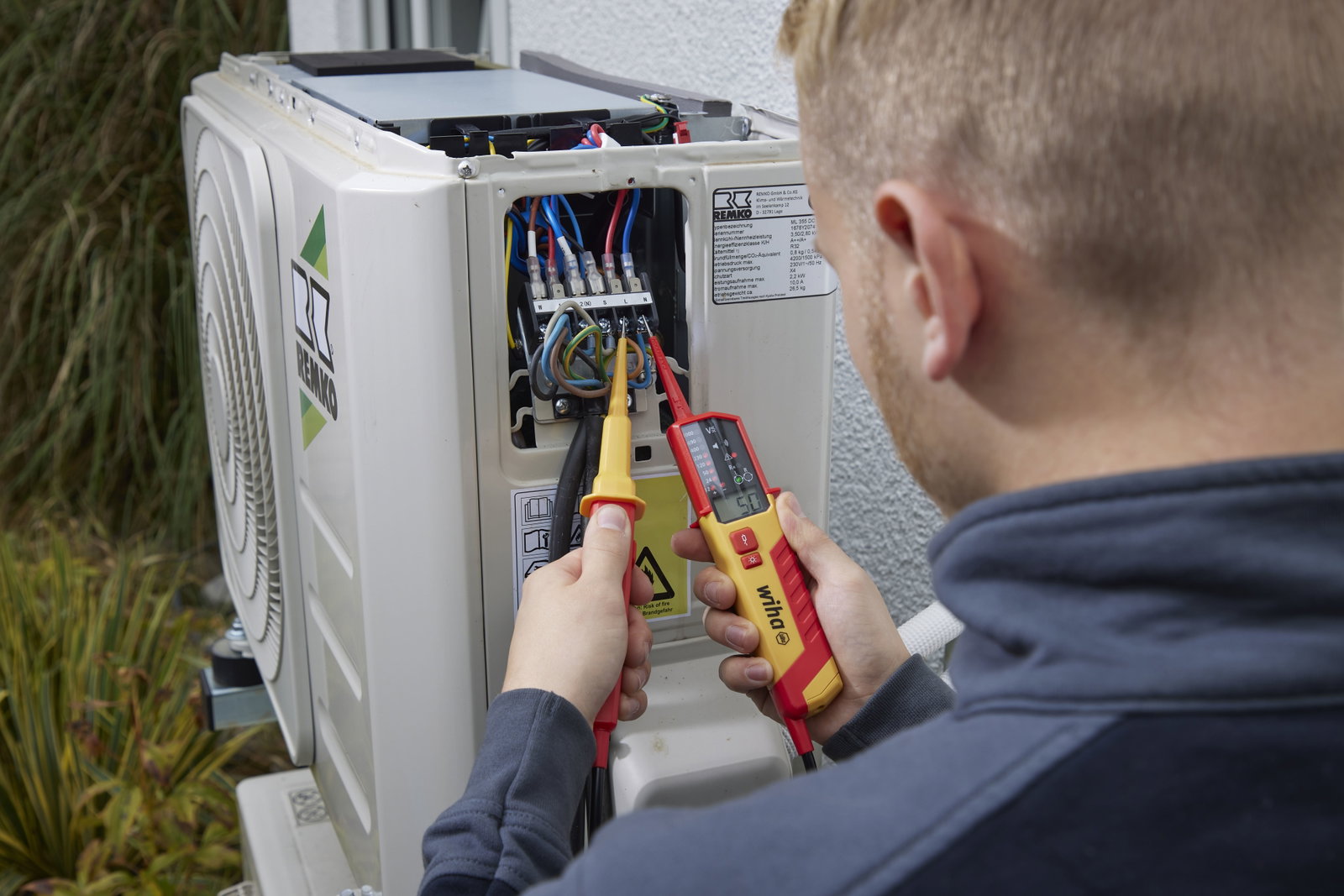

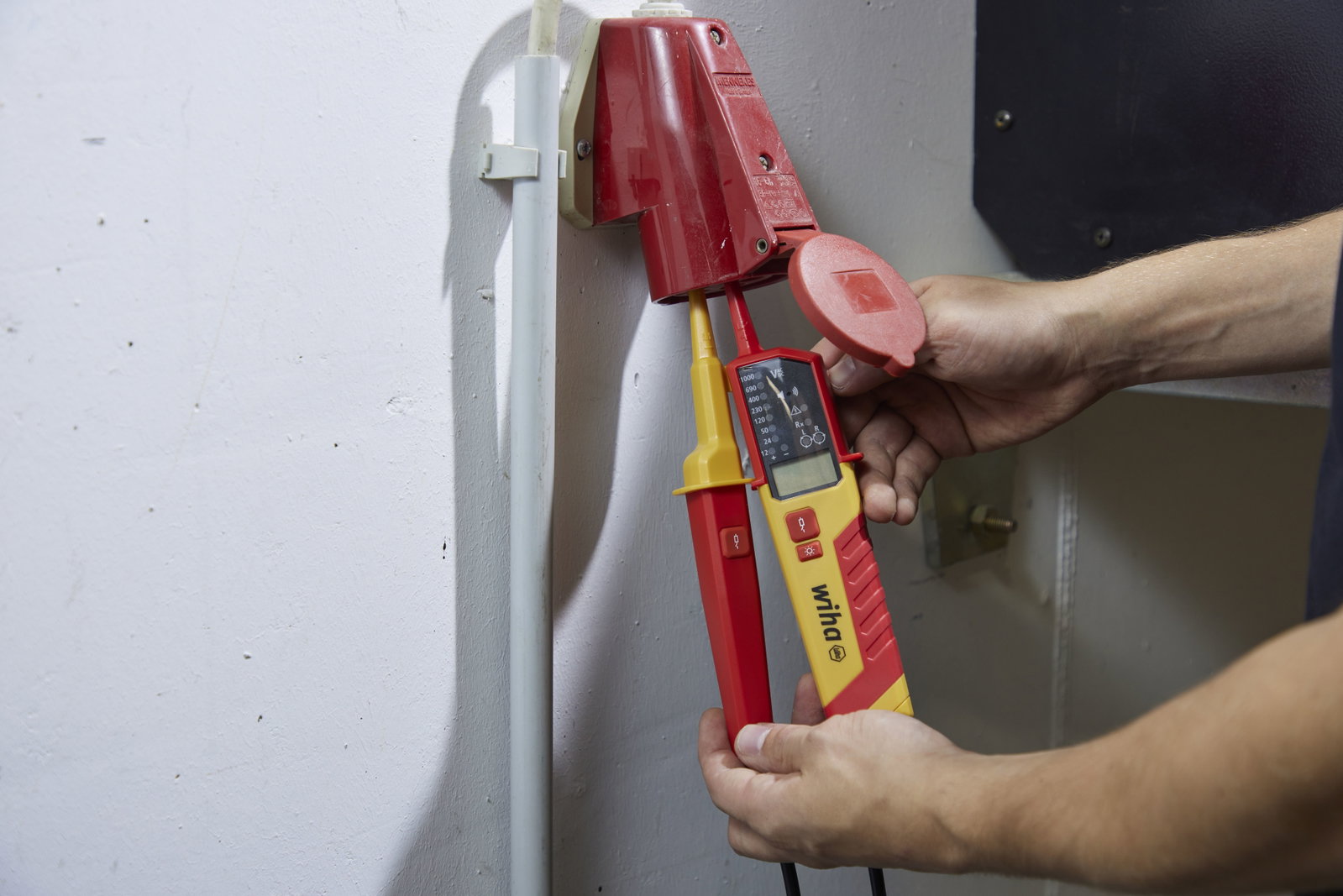

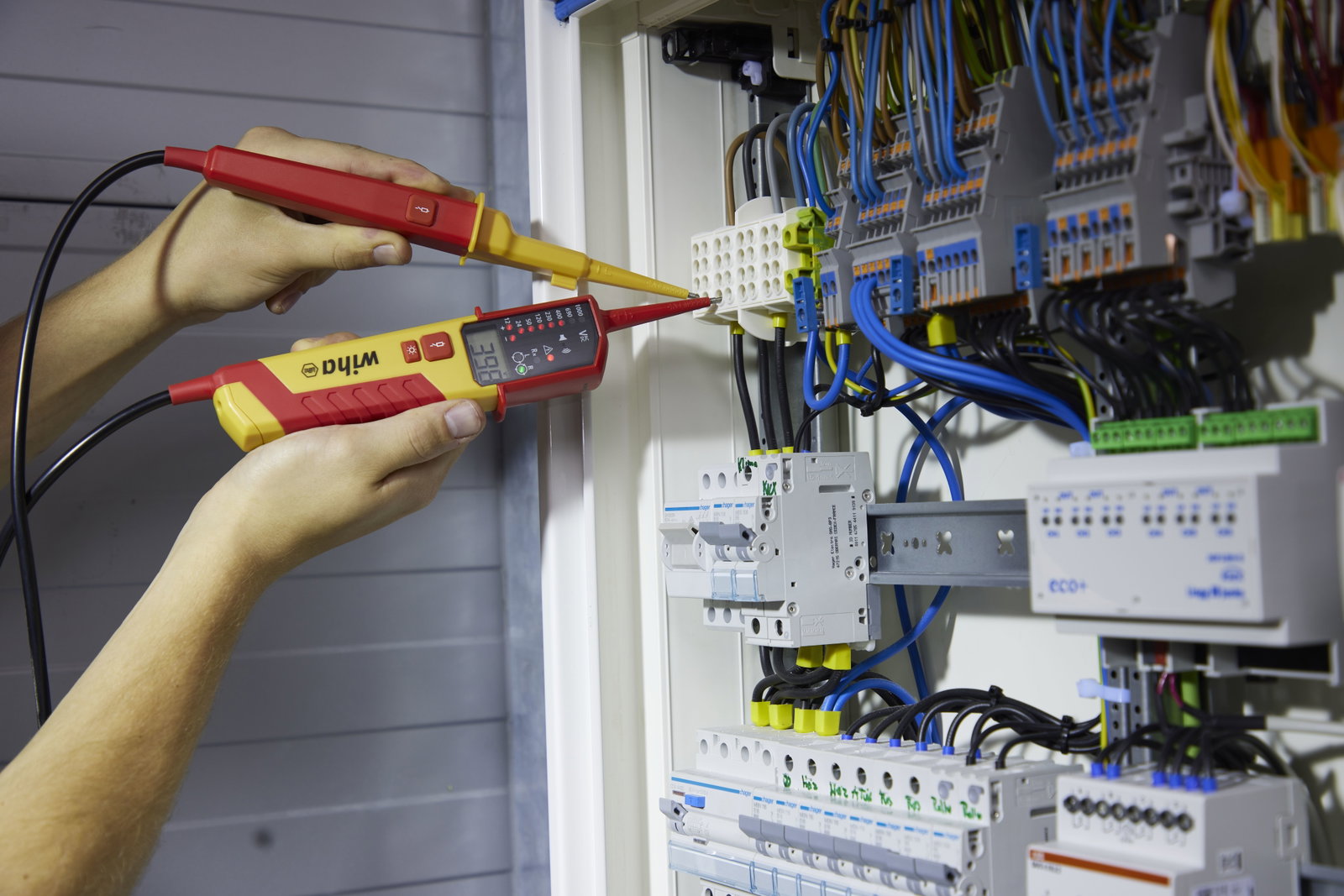

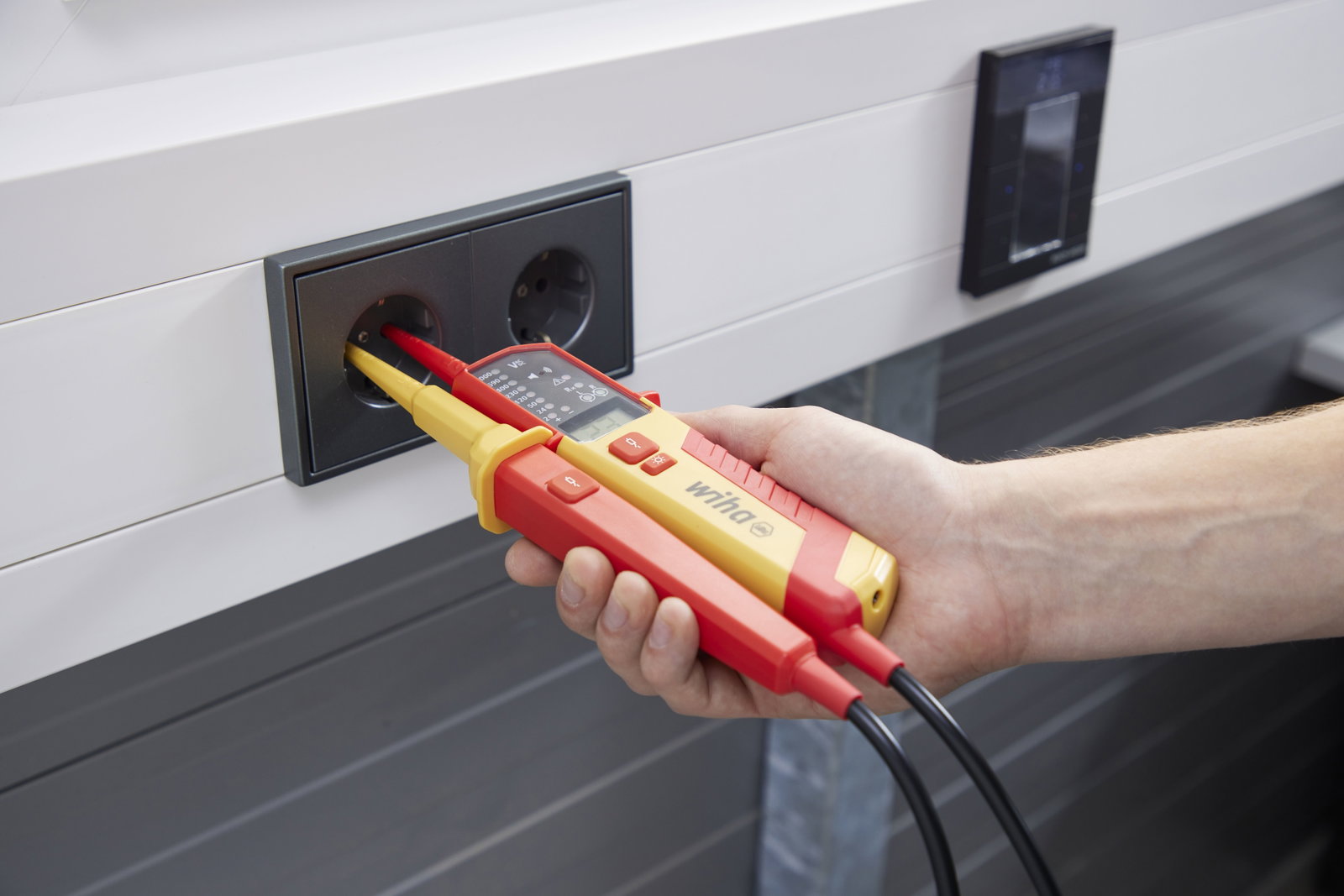

Safety rule: determine zero voltage! The voltage and continuity tester from Wiha is your ideal daily companion to easily check this prerequisite of the safety rule and to support you with the various requirements in your daily work. It allows voltage testing of an extensive range from 0.5 V to 1,000 V AC or 1,500 V DC. In addition, the voltage tester can be used for continuity testing, optical rotational field testing, single-pole testing, and automatic polarity detection. Plus, resistance measurements and frequency measurements can also be conducted. Thanks to a large digital LCD display with background illumination and an LED display, the measurement results are immediately readable. An additional signal sound indicates the current flow during the continuity check. The check can also be conveniently carried out on sockets with a single hand thanks to the integrated spacer. In addition, the voltage tester from Wiha has an integrated flashlight function, providing optimal illumination conditions even in poorly lit work environments. Simultaneous pressing of both buttons on both handles of the test tips allows the functional test of the FI protective switch by connecting a load. According to the measurement categories CAT III up to 1000 V and CAT IV up to 600 V, the voltage and continuity tester from Wiha offers maximum safety for working on building installation and directly on the sources of low-voltage installations.
IEC/EN 61243-3:2014, IP64, CE
Product identifiers
Categories
Features
|
Display
|
LCD|LED
|
|
FI check
|
Yes
|
|
LCD range
|
0,5 V - 1.000 V AC, 0,5 V - 1.500 V DC
|
|
Width (mm)
|
110
|
|
Height (mm)
|
50
|
|
ATEX approval
|
No
|
|
LCD precision
|
+/- 3 %, +/- 3 digit (< 10 V) and +/- 3 %, +/- 5 digit (> 10 V)
|
|
Frequency (Hz)
|
950
|
|
LCD resolution
|
0.1 V (< 10 V) und 1 V (> 10 V)
|
|
LED tolerances
|
according to EN 61243-3
|
|
Measuring mode
|
30 s ON (operating time), 240 s OFF (recovery time)
|
|
Acoustic signal
|
Yes
|
|
LED ELV display
|
> 50 V AC, > 120 V DC
|
|
Number of cells
|
2
|
|
Resistance (Ω)
|
1999
|
|
Watt/hour (w/h)
|
1.95
|
|
Continuity check
|
LED and audible tone
|
|
Inherent time (s)
|
< 0.5 s LED and < 1 s LCD
|
|
Permeability test
|
Measuring range 0 - 500 kΩ + 50%
|
|
Battery weight (g)
|
8
|
|
Measuring category
|
CAT IV 600 V / CAT III 1.000 V
|
|
Voltage V AC (max)
|
1000
|
|
Voltage V AC (min)
|
0.5
|
|
Voltage V DC (max)
|
1500
|
|
Voltage V DC (min)
|
0.5
|
|
"Battery" or "cell"
|
Battery
|
|
Battery designation
|
Zinc / Carbon Battery ZN/C
|
|
Battery voltage (V)
|
1.5
|
|
Contamination level
|
2
|
|
Humidity RH max (%)
|
85
|
|
Overall length (mm)
|
282
|
|
Remote voltage test
|
Yes
|
|
Rotation field test
|
170 - 7,000 V phase to phase AC 40-70 Hz
|
|
Safety circuit (mA)
|
Is < 3.5 mA (at 1,000 V)
|
|
LCD overflow display
|
OL
|
|
Protection class IP
|
IP64
|
|
eMobility-compatible
|
No
|
|
Battery capacity (Ah)
|
1.3
|
|
Integrated flashlight
|
Yes
|
|
Battery capacity (mAh)
|
1300
|
|
Height above sea level
|
2000
|
|
Self service - packing
|
No
|
|
Single-pole phase test
|
100
|
|
Photovoltaic-compatible
|
Yes
|
|
Battery consumption (mA)
|
80
|
|
Voltage V AC min – max
|
0.5 - 1000
|
|
Voltage V DC min – max
|
0.5 - 1500
|
|
Rotation field indication
|
LED L, R
|
|
Battery included in package?
|
Yes
|
|
Storage temperature min (°C)
|
-20
|
|
Battery type (IEC designation)
|
2x AAA batteries
|
|
Einpolige Phasenpruefung max (Hz)
|
70
|
|
Einpolige Phasenpruefung min (Hz)
|
40
|
|
Einpolige Phasenpruefung max (V AC)
|
700
|
|
Total weight battery in product (g)
|
16
|
|
with battery / rechargeable battery
|
Yes
|
|
Operating temperature min - max (°C)
|
-15 - 50
|
|
Einpolige Phasenpruefung min - max (Hz)
|
40 - 70
|
|
Einpolige Phasenpruefung min - max (V AC)
|
100 - 700
|
