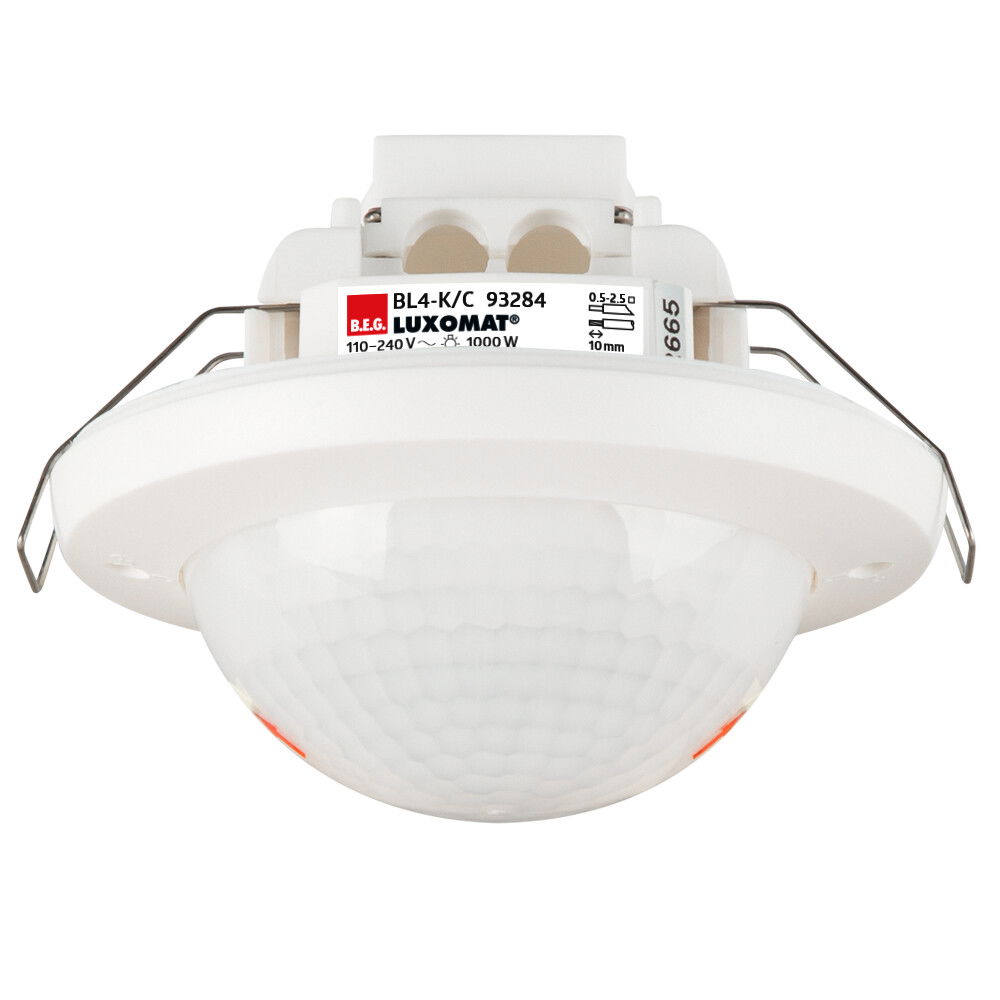

Motion Detector corridors BL 360° FC white IP20 32m 1Channel

Motion Detector corridors BL 360° FC white IP20 32m 1Channel

Remote control-capable ceiling motion detector designed for corridors, For mounting in suspended ceilings, One channel for light switching, Zero crossing switching, Manual switching via push-button possible, Easy operation with remote control (required), Basic functions for cost-effective applications, Ready-to-operate thanks to factory settings, Accessory for surface mounting and flush mounting available, There are markings to ensure correct alignment during installation, Factory setting: High detection sensitivity, follow-up time 10 min, switch-on threshold 500 lux

Product identifiers

SKU: 93284
EAN: 4007529932849
GTIN: 4007529932849
MPN: BL4-C-FC

Specifications

Depth -
Model Movement sensor
Width -
Colour -
Height 84.0
Diameter 104.5
Material Plastic
Frequency 50 - 60
Diameter 2 -
Animal zone no
Sensor type Passive infrared
Transparent no
Halogen free yes
Built-in depth -
Surface height -
Built-in length -
Control current -
Max. duty cycle -
Nominal voltage 110.0 - 240.0
Material quality -
Remote operation yes
Switch-off delay 0
Built-in diameter -
Surface finishing Matt
Switching-on delay 0
Max. reach sideways 16
Suitable for C-load no
With alarm function no
Max. reach frontally -
RAL-number (similar) 9010
Background monitoring no
Min. starting current -
Constant light control -
Connection cable length 0
IFTTT support available no
Anti-bacterial treatment no
Degree of protection (IP) IP20
Response value luminosity 10 - 2000
Staircase light controller yes
Compatible with Amazon Alexa no
Suitable for ceiling mounting yes
Compatible with Google Assistant no
Suitable for wireless transmission no
Response value sensitivity adjustable yes
Min. depth of built-in installation box -
