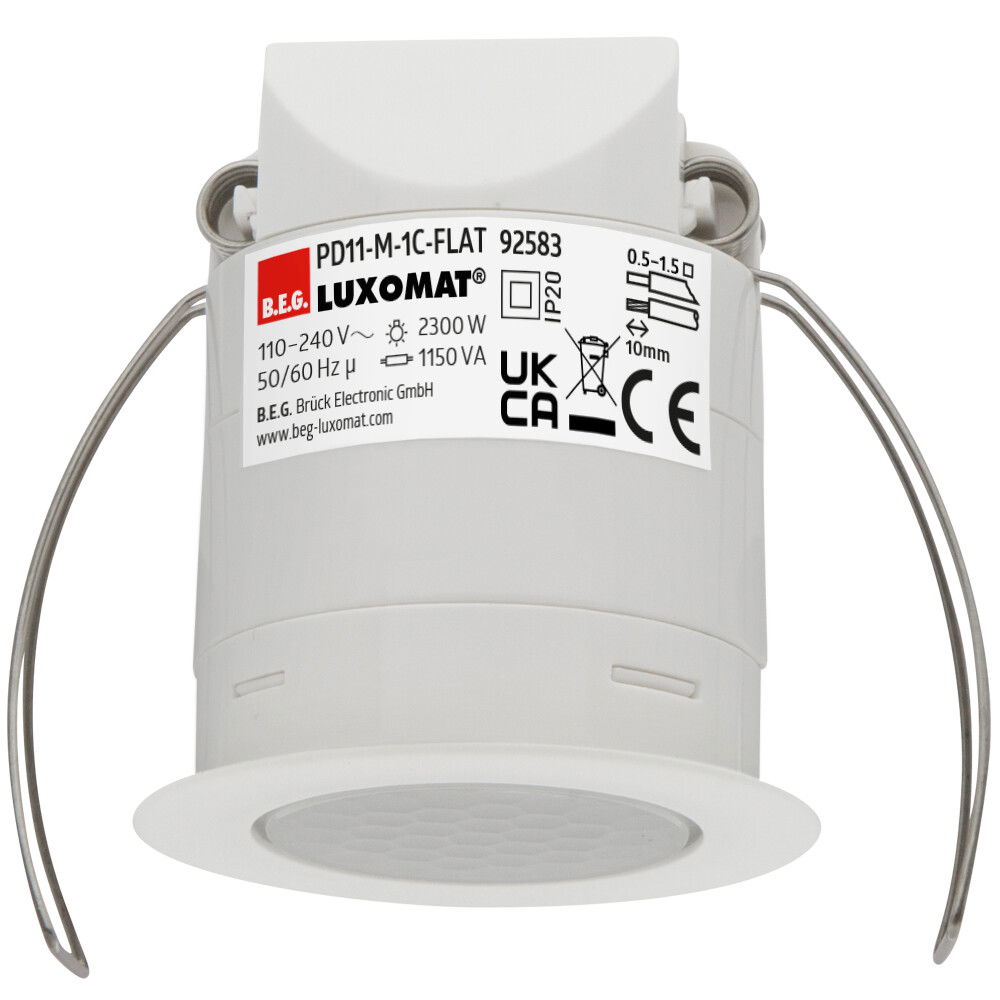

Occupancy detector FLAT 360° FC white IP20 9m 1Channel
Particularly flat occupancy detector without additional power supply, Visible portion when built into ceiling: height 0.85 mm, One channel for light switching, Manual switching via push-button possible, Easy operation with remote control (required), Version as master device, Detection area can be extended by using slave devices, Spring clips for quick and easy installation in suspended ceilings, Includes blinds and clamp ring for installation into light fittings, With accessories for flush-mounting in ceiling and exposed concrete, Factory settings 10 min and 500 lux
Product identifiers
SKU: 92583
EAN: 4007529925834
GTIN: 4007529925834
MPN: PD11-M-1C-FLAT-FC
Categories
Features
|
Depth
|
-
|
|
Model
|
Presence detector
|
|
Width
|
-
|
|
Colour
|
White
|
|
Height
|
60.0
|
|
Diameter
|
52.0
|
|
Material
|
Plastic
|
|
Frequency
|
50 - 60
|
|
Diameter 1
|
52.0
|
|
Diameter 2
|
-
|
|
Scan angle
|
-
|
|
Animal zone
|
no
|
|
Networkable
|
no
|
|
Sensor type
|
Passive infrared
|
|
Temperature
|
-25 - 50
|
|
Transparent
|
no
|
|
HVAC-control
|
no
|
|
Halogen free
|
yes
|
|
Voltage type
|
AC
|
|
Built-in depth
|
-
|
|
Built-in width
|
-
|
|
Surface height
|
-
|
|
Bridging switch
|
no
|
|
Built-in length
|
-
|
|
Connection type
|
-
|
|
Control current
|
1
|
|
Impact strength
|
IK02
|
|
Max. duty cycle
|
30
|
|
Mounting method
|
EV000154
|
|
Nominal voltage
|
110.0 - 240.0
|
|
Forced switch on
|
-
|
|
Material quality
|
Other
|
|
Operating height
|
-
|
|
Remote operation
|
yes
|
|
Substation input
|
yes
|
|
Switch-off delay
|
0
|
|
With signal unit
|
no
|
|
Built-in diameter
|
-
|
|
Forced switch off
|
yes
|
|
Surface finishing
|
Matt
|
|
Surface protection
|
Untreated
|
|
Switching-on delay
|
0
|
|
Max. presence range
|
7.0
|
|
Max. reach sideways
|
4.5
|
|
Min. switch-on time
|
300
|
|
Suitable for C-load
|
no
|
|
With DALI interface
|
no
|
|
With alarm function
|
no
|
|
With remote control
|
no
|
|
Max. reach frontally
|
6
|
|
Max. switching power
|
2300
|
|
RAL-number (similar)
|
9010
|
|
With acoustic sensor
|
no
|
|
Background monitoring
|
no
|
|
Max. starting current
|
165
|
|
Min. starting current
|
-
|
|
With connection cable
|
no
|
|
Constant light control
|
-
|
|
Creep-under protection
|
yes
|
|
Connection cable length
|
0
|
|
Diameter reach on floor
|
9
|
|
IFTTT support available
|
no
|
|
Optimum mounting height
|
2.5
|
|
Anti-bacterial treatment
|
no
|
|
Max. switching power LED
|
800.0
|
|
Degree of protection (IP)
|
IP20
|
|
Number of switching zones
|
63.0
|
|
Response value luminosity
|
20 - 2000
|
|
Detection angle horizontal
|
|
|
Staircase light controller
|
yes
|
|
Suitable for wall mounting
|
no
|
|
Compatible with Amazon Alexa
|
no
|
|
Compatible with Apple HomeKit
|
no
|
|
Suitable for ceiling mounting
|
yes
|
|
Pivoting range sensor, vertical
|
|
|
Compatible with Google Assistant
|
no
|
|
Pivoting range sensor, horizontal
|
|
|
Suitable for wireless transmission
|
no
|
|
Response value luminosity adjustable
|
yes
|
|
Response value sensitivity adjustable
|
yes
|
|
Dim function with dimmer basic element
|
no
|
|
Min. depth of built-in installation box
|
-
|
|
Teach-function for response value luminosity
|
yes
|
