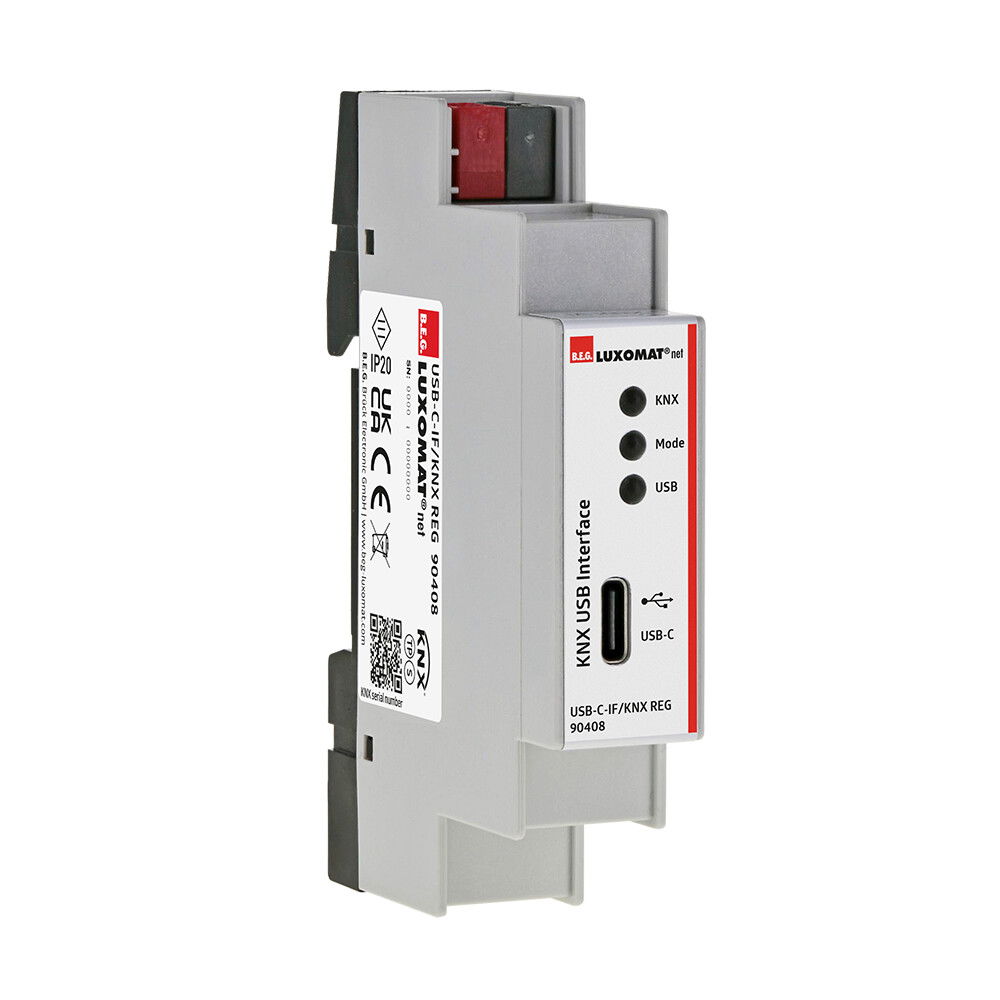

DIN-rail mount device DIN-rail (TH35 EN . - IP20 KNX
USB-C data interface and programming interface between PC/laptop and the KNX bus, Compact DIN rail mounting device with a width of just 18 mm (1 HP), Supports KNX long frames from ETS 5 onwards, LED status indicators for USB and KNX bus, Powered via KNX bus
Product identifiers
SKU: 90408
EAN: 4007529904082
GTIN: 4007529904082
MPN: USB-C-IF/KNX REG
Categories
Features
|
Model
|
USB
|
|
Colour
|
Grey
|
|
Material
|
Plastic
|
|
Transparent
|
no
|
|
Bus system KNX
|
yes
|
|
Bus system LON
|
no
|
|
Mounting method
|
DRA (DIN-rail adapter)
|
|
With label area
|
yes
|
|
Material quality
|
Other
|
|
Other bus systems
|
None
|
|
Surface finishing
|
Matt
|
|
Surface protection
|
Other
|
|
Bus system Powernet
|
no
|
|
With LED indication
|
yes
|
|
With bus connection
|
yes
|
|
RAL-number (similar)
|
-
|
|
Degree of protection (IP)
|
IP20
|
|
Bus system radio frequency
|
no
|
|
Max. data transmission rate
|
9600
|
|
Radio frequency bidirectional
|
no
|
|
Bus system KNX-RF (Radio Frequency)
|
no
|
|
Width in number of modular spacings
|
1
|
|
Min. depth of built-in installation box
|
-
|
