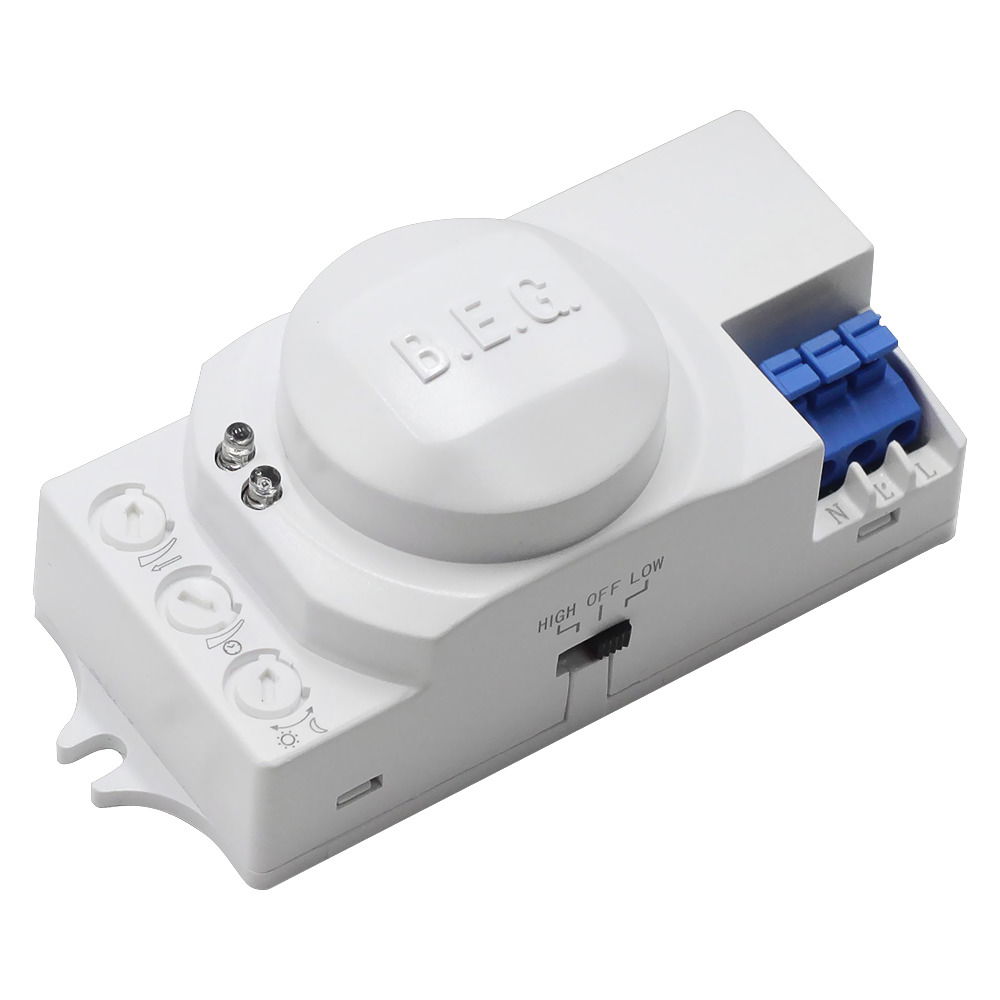

HF detector 360° Flush-mounting and. white IP20 16m 1Channel

Name: HF detector 360° Flush-mounting and. white IP20 16m 1Channel
Brand: B.E.G.
SKU: 94401

Microwave motion detector, designed for surface mount and installation in lights, Temperature-independent detection, Detection can be made through various materials, Range, switch-on threshold and follow-up time set via potentiometers

Product identifiers

SKU: 94401

EAN: 4007529944019

GTIN: 4007529944019

MPN: HF-MD1 white

Specifications

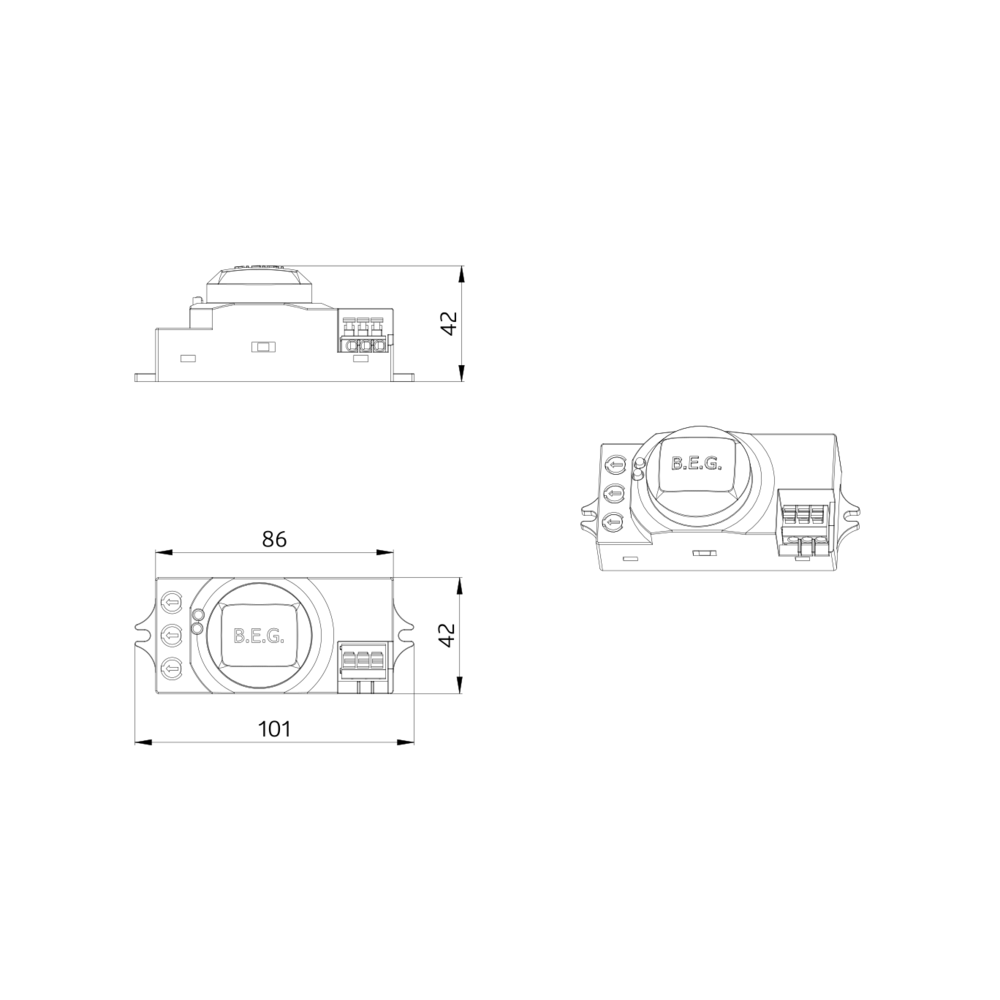

Depth	101.0
Model	Movement sensor
Width	42.0
Colour	White
Height	42.0
Diameter	-
Material	Plastic
Frequency	50 - 60
Diameter 1	-
Diameter 2	-
Scan angle	-
Animal zone	no
Networkable	no
Sensor type	High frequency
Temperature	-15 - 50
Transparent	no
HVAC-control	no
Halogen free	yes
Voltage type	AC
Built-in depth	-
Built-in width	-
Surface height	-
Bridging switch	no
Built-in length	-
Connection type	-
Control current	5
Impact strength	-
Max. duty cycle	-
Mounting method	-
Nominal voltage	230.0 - 230.0
Forced switch on	-
Material quality	Other
Operating height	-
Remote operation	no
Substation input	no
Switch-off delay	0
With signal unit	no
Built-in diameter	-
Forced switch off	-
Surface finishing	Matt
Surface protection	Untreated
Switching-on delay	0
Max. presence range	0
Max. reach sideways	8
Min. switch-on time	-
Suitable for C-load	no
With DALI interface	no
With alarm function	no
With remote control	no
Max. reach frontally	8
Max. switching power	1200
RAL-number (similar)	9010
With acoustic sensor	no
Background monitoring	no
Max. starting current	120
Min. starting current	-
With connection cable	no
Constant light control	-
Creep-under protection	yes
Connection cable length	0

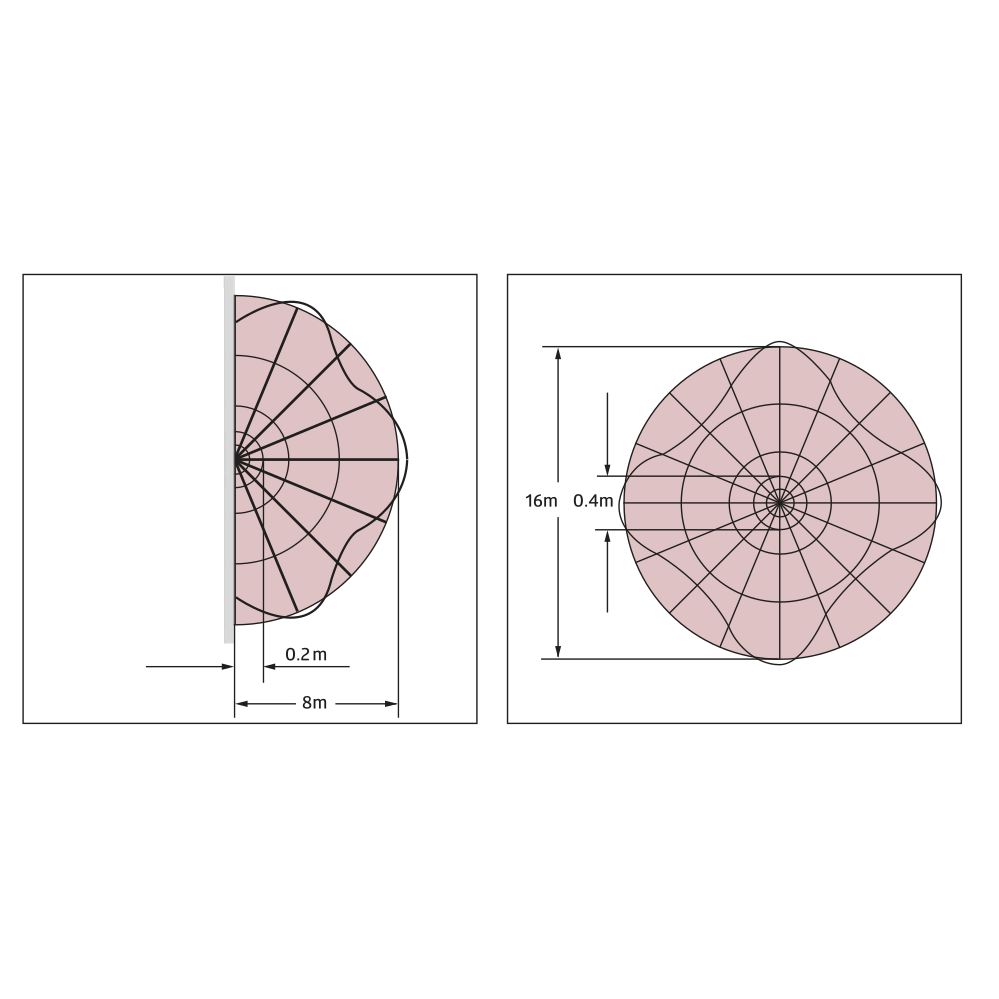

Diameter reach on floor	16
IFTTT support available	no
Optimum mounting height	2.5
Anti-bacterial treatment	no
Max. switching power LED	800.0
Degree of protection (IP)	IP20
Number of switching zones	200.0
Response value luminosity
Detection angle horizontal
Staircase light controller	yes
Suitable for wall mounting	no
Compatible with Amazon Alexa	no
Compatible with Apple HomeKit	no
Suitable for ceiling mounting	yes
Pivoting range sensor, vertical
Compatible with Google Assistant	no
Pivoting range sensor, horizontal
Suitable for wireless transmission	no
Response value luminosity adjustable	no
Response value sensitivity adjustable	-
Dim function with dimmer basic element	no
Min. depth of built-in installation box	-
Teach-function for response value luminosity	no
