Published:
27 August 2014
Category:
Manufacturer News

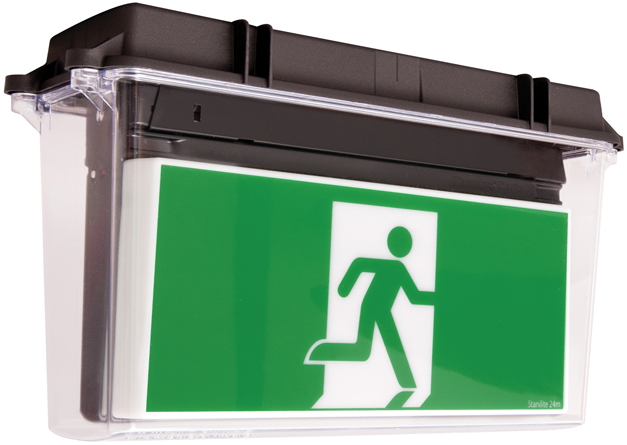

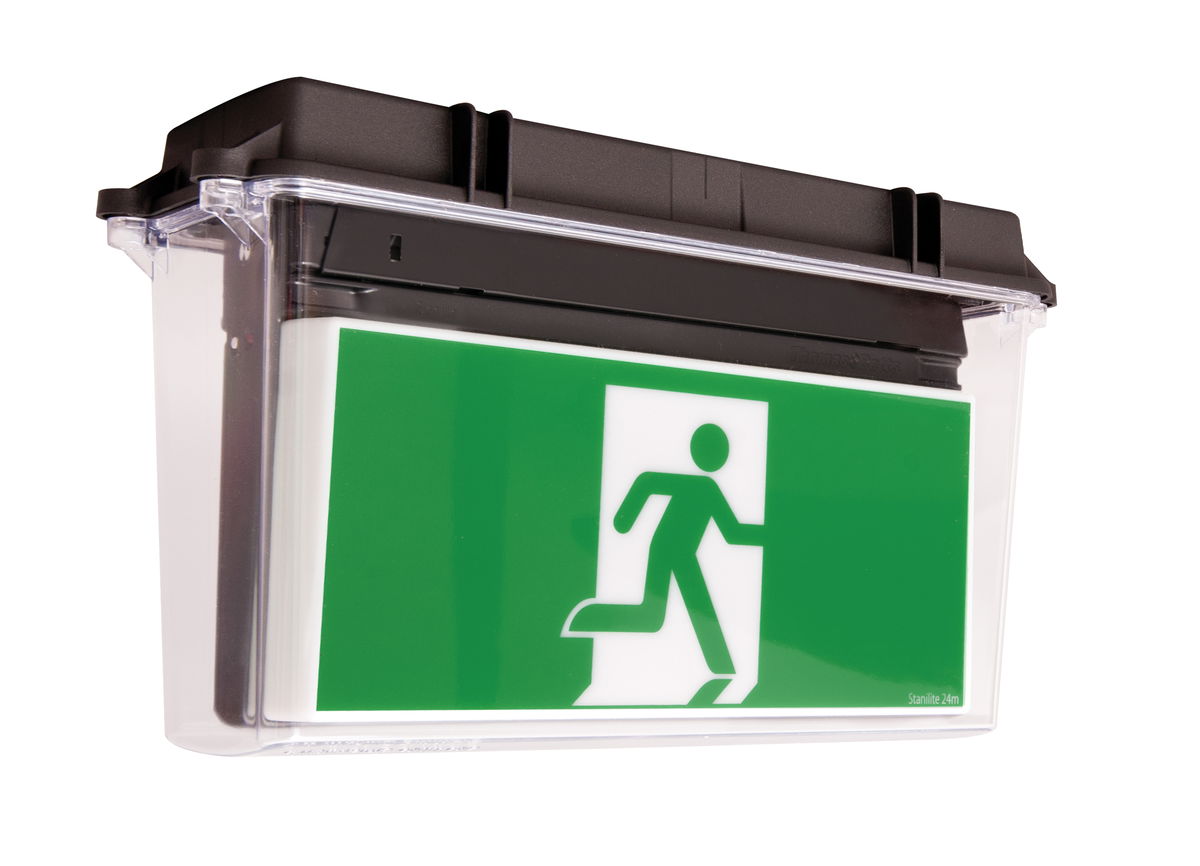

With electronics mounted remote from the weatherproof exit body, the PWQFFRLEDP series of emergency exit luminaires are designed for use in extreme environments and are purpose built for freezer and cold room applications. The luminaire is delivered as a “one-box solution”, with all pictograph inserts supplied.
Specified for operations to -30oC at the exit sign, remote electronics are available for monitored Nexus® LX and Nexus RF, and non-monitored configurations, with the electronics also available housed in an IP55 weatherproof enclosure.
The remote electronics modules, in all configurations, employ advanced dual rate charging control of integral high temperature NiCad batteries, delivering optimal performance and energy consumption. The remote electronics may be located up to 10m from the exit sign, utilising the interconnecting cable supplied.
Features & Benefits
- Used in combination with remote power supply; exit mounted inside the freezer or coolroom and remote power supply mounted outside up to 10m away from the exit
- Unique steel Quickfit® mounting bracket that provides strength and enables quick and easy maintenance
- PerpetuLED® LED technology 100,000 hours plus lamp life
- Advanced PulseTIME® dual rate battery charger with high temperature NiCad batteries
- UV stabilised vandal resistant polycarbonate cover
- Increased safety and no shock hazard by isolating the AC primary circuits from the unit
- Includes all pictograph diffuser options for single or double sided installation
- Can be wall or ceiling mounted and optional bracket kits available for strengthened wall and

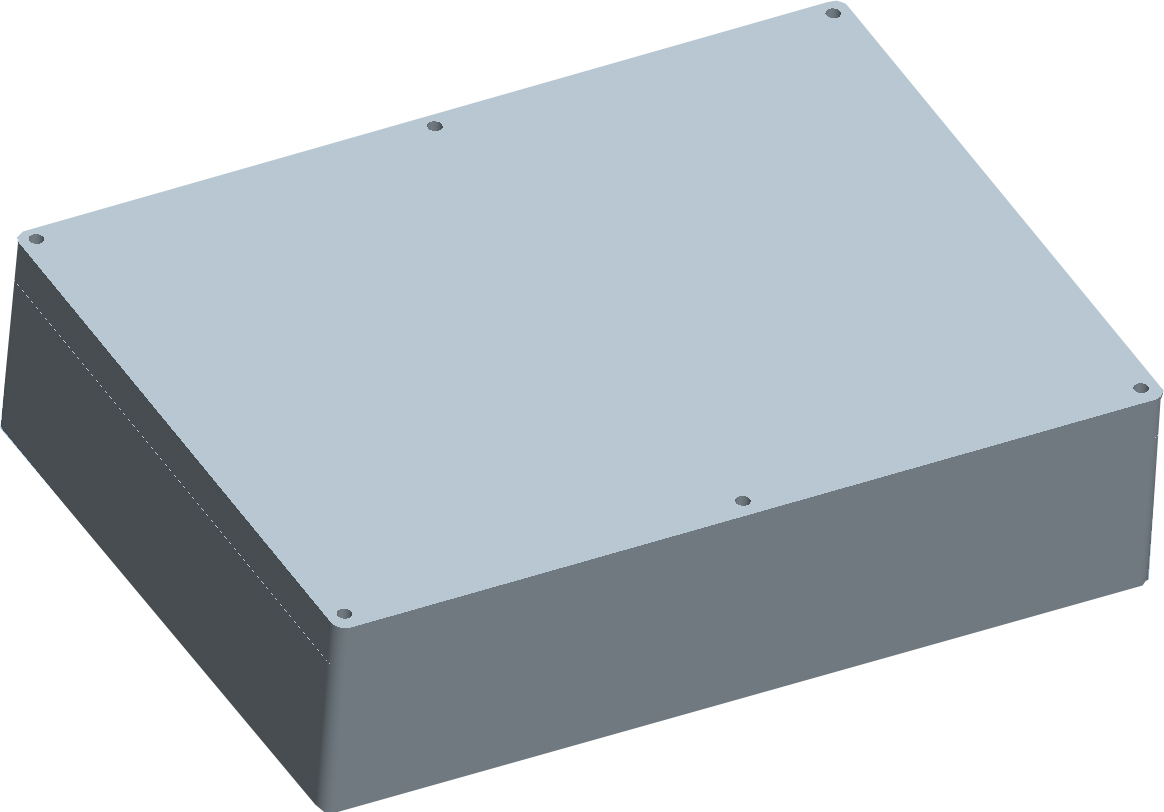

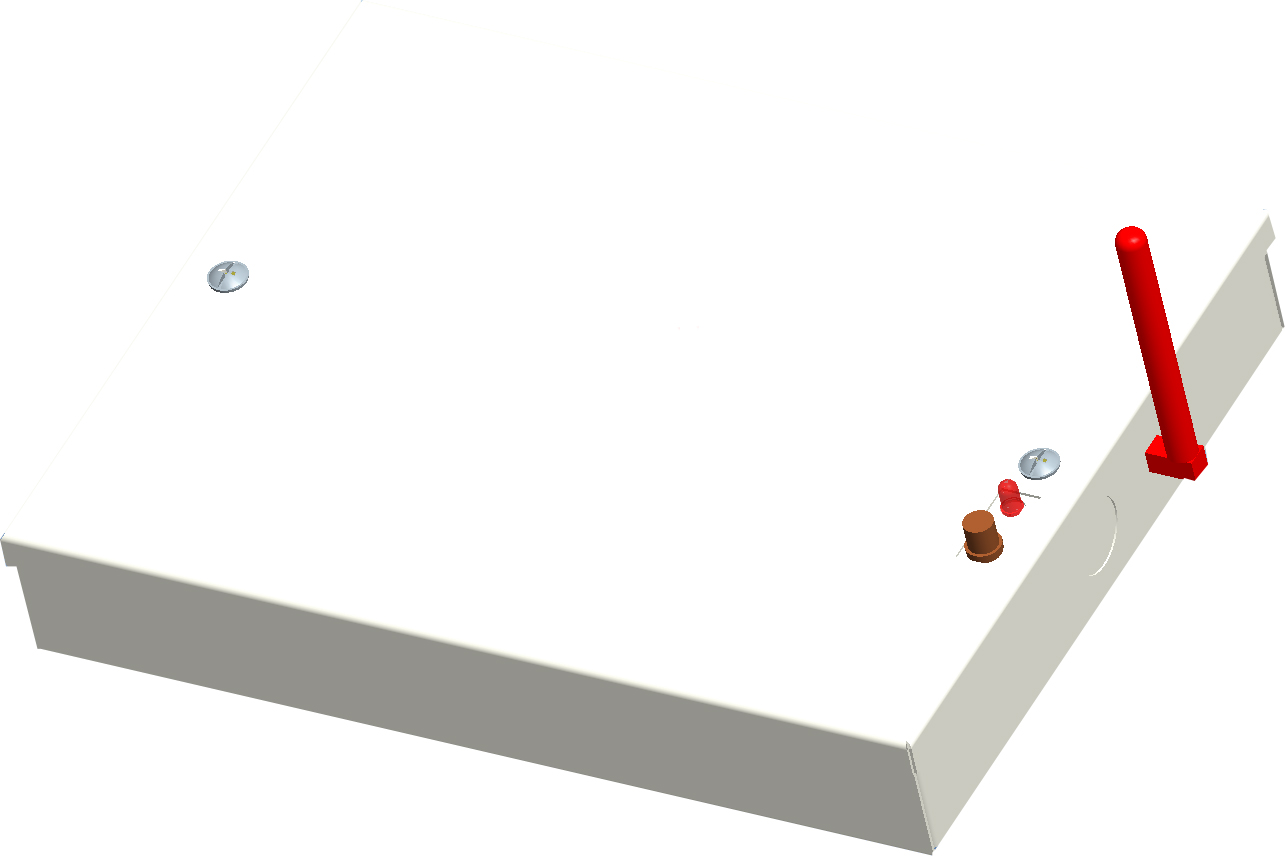

LED Quickfit Remote Power Supply Unit
- Used in combination with weatherproof remote exit; exit mounted inside the freezer or coolroom and remote power supply mounted outside up to 10m away from the exit (see separate technical data sheet PWQFFRLED)
- Advanced dual rate battery charger with high temperature NiCad batteries
- Includes 10m interconnection cable
- Option - Standard, Nexus® LX monitored or Nexus RF monitored
