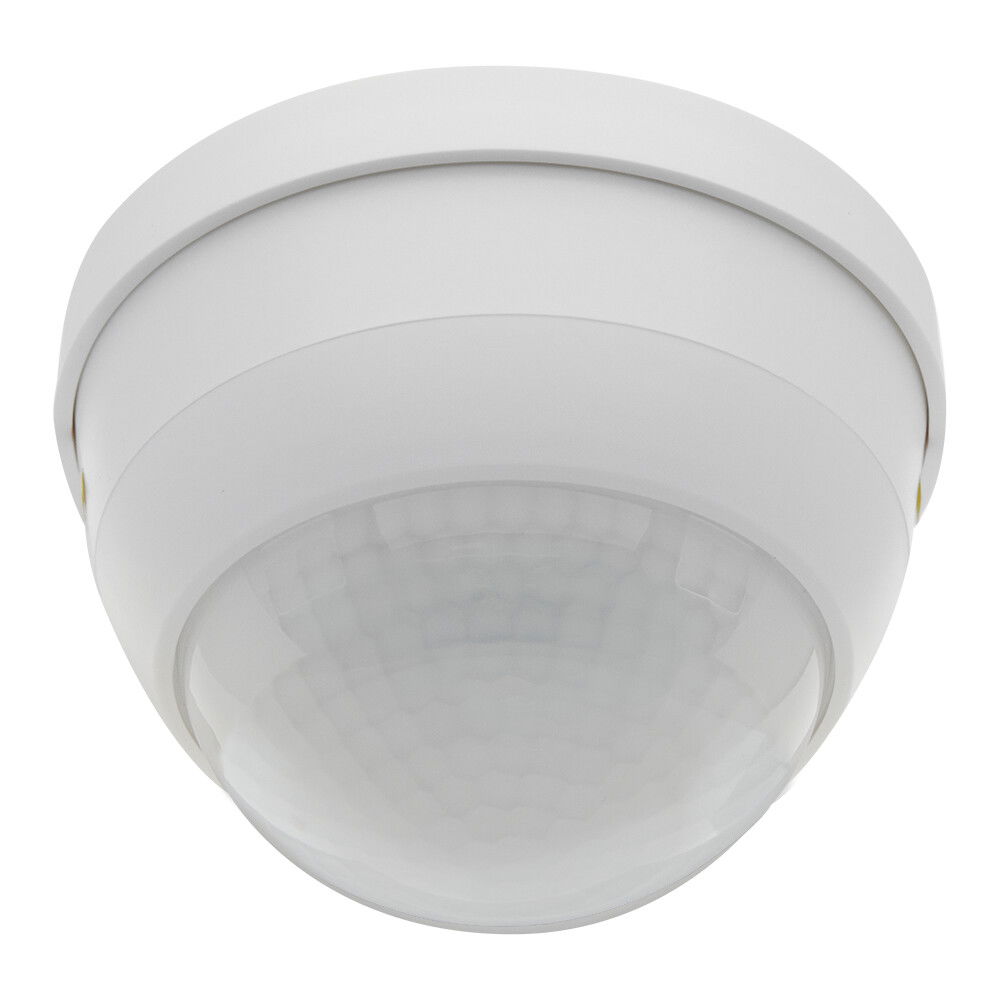

Slave device corridors 360° SM white IP54 40m 1Channel

Name: Slave device corridors 360° SM white IP54 40m 1Channel
Brand: B.E.G.
SKU: 92442

Slave device detector designed for corridors, For extending the detection area of a Master device, Trigger pulse to master device upon detected movement independent of the ambient light level, Compatible with 230 V devices. Concerning exceptions please see the respective master device., There are markings to ensure correct alignment during installation

Product identifiers

SKU: 92442

EAN: 4007529924424

GTIN: 4007529924424

MPN: PD4-S-C-SM

Specifications

Depth	-
Model	Movement sensor
Width	-
Colour	White
Height	76.0
Diameter	101.0
Material	Plastic
Frequency	50 - 60
Diameter 1	101.0
Diameter 2	-
Scan angle	-
Animal zone	no
Networkable	no
Sensor type	Passive infrared
Temperature	-25 - 50
Transparent	no
HVAC-control	no
Halogen free	yes
Voltage type	AC
Built-in depth	-
Built-in width	-
Surface height	38.0
Bridging switch	no
Built-in length	-
Connection type	-
Control current	1
Impact strength	IK04
Max. duty cycle	-
Mounting method	EV000384
Nominal voltage	110.0 - 240.0
Forced switch on	-
Material quality	Other
Operating height	76.0
Remote operation	no
Substation input	no
Switch-off delay	0
With signal unit	no
Built-in diameter	-
Forced switch off	-
Surface finishing	Matt
Surface protection	Untreated
Switching-on delay	0
Max. presence range	0
Max. reach sideways	20
Min. switch-on time	-
Suitable for C-load	no
With DALI interface	no
With alarm function	no
With remote control	no
Max. reach frontally	20
Max. switching power	-
RAL-number (similar)	9010
With acoustic sensor	no
Background monitoring	no
Max. starting current	-
Min. starting current	-
With connection cable	no
Constant light control	-
Creep-under protection	yes
Connection cable length	0
Diameter reach on floor	24
IFTTT support available	no
Optimum mounting height	2.5
Anti-bacterial treatment	no
Max. switching power LED	-
Degree of protection (IP)	IP54
Number of switching zones	1200.0
Response value luminosity
Detection angle horizontal
Staircase light controller	yes
Suitable for wall mounting	no
Compatible with Amazon Alexa	no
Compatible with Apple HomeKit	no
Suitable for ceiling mounting	yes
Pivoting range sensor, vertical
Compatible with Google Assistant	no
Pivoting range sensor, horizontal
Suitable for wireless transmission	no
Response value luminosity adjustable	no
Response value sensitivity adjustable	-
Dim function with dimmer basic element	no
Min. depth of built-in installation box	-
Teach-function for response value luminosity	no
