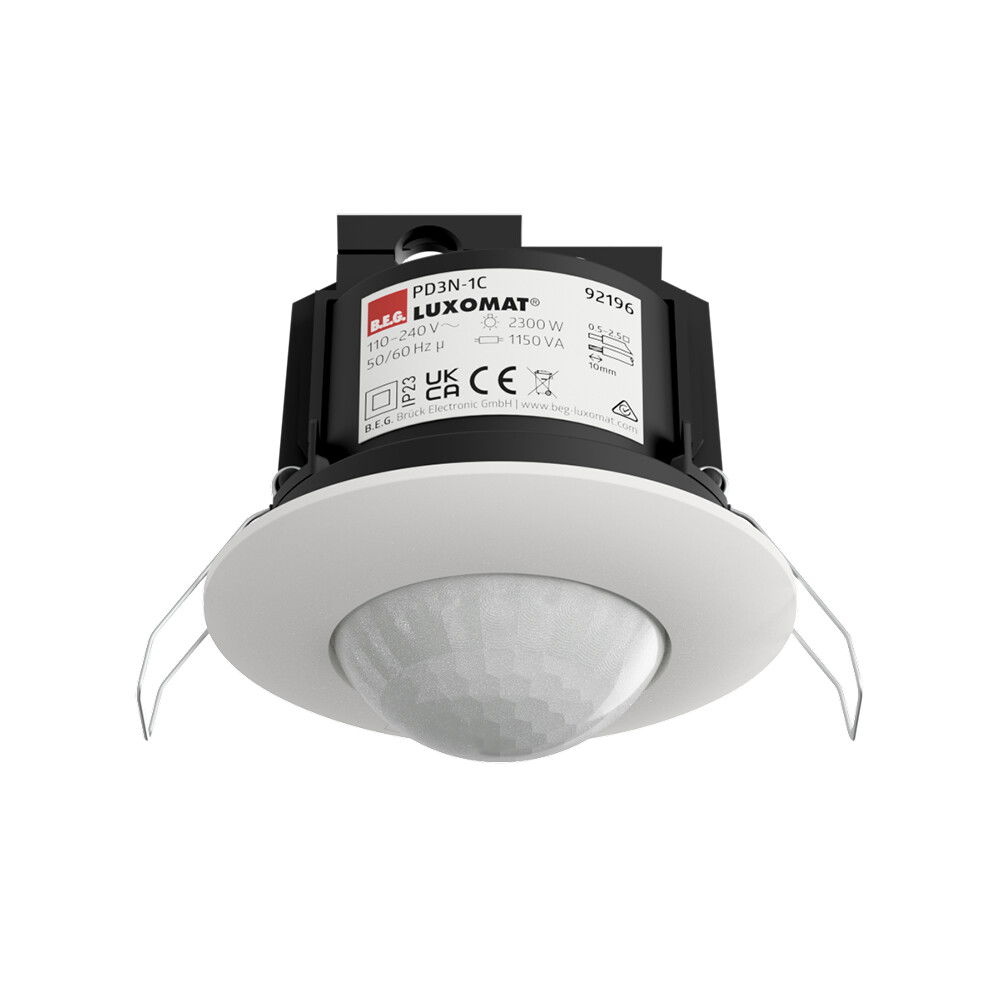

Motion Detector Ceiling mounting 360° FC white IP23 10m 1Channel

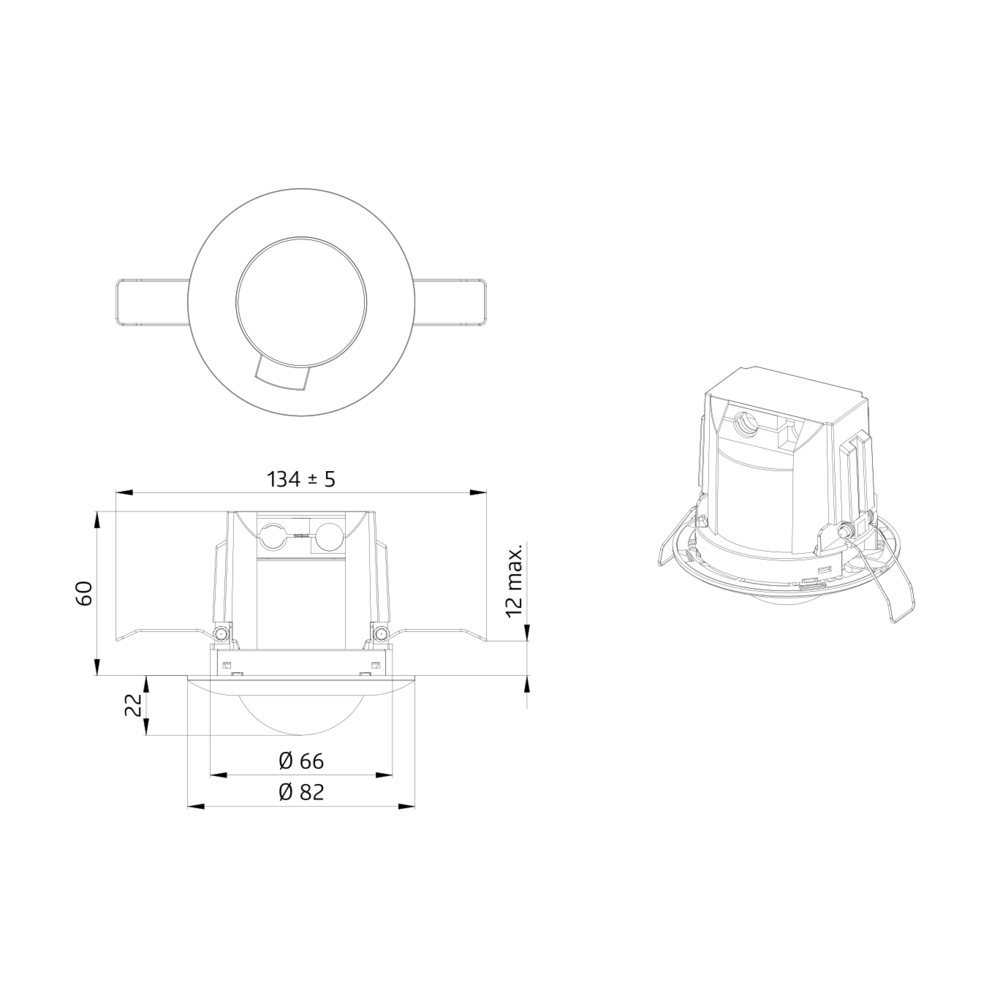

Motion Detector Ceiling mounting 360° FC white IP23 10m 1Channel – Image 2 of 4

Motion Detector Ceiling mounting 360° FC white IP23 10m 1Channel – Image 3 of 4

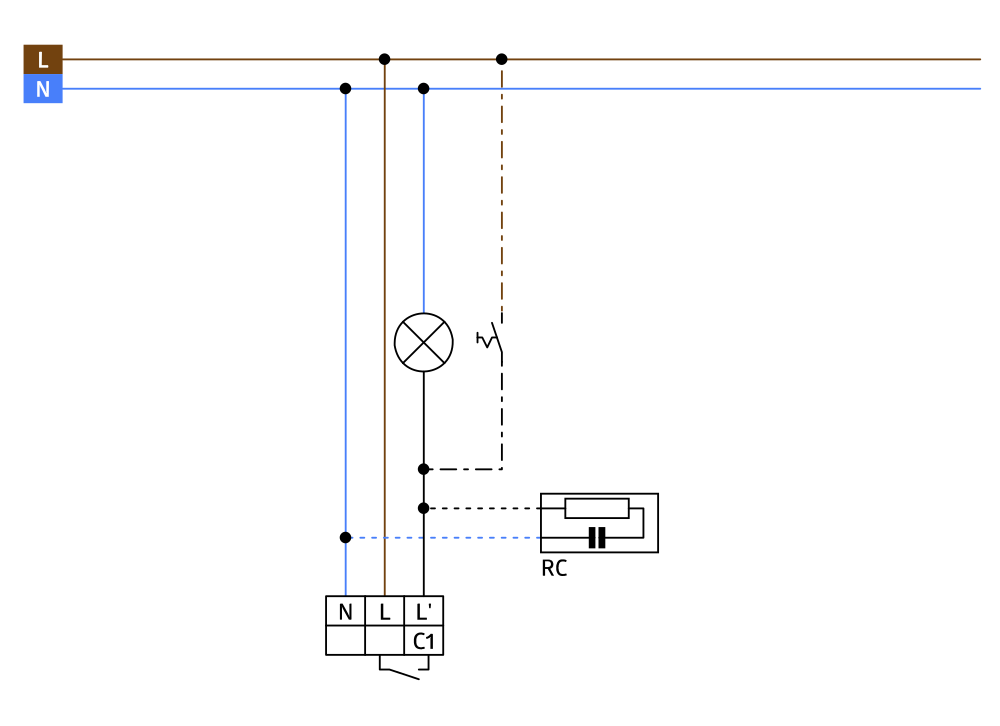

Motion Detector Ceiling mounting 360° FC white IP23 10m 1Channel – Image 4 of 4

1 / 4

Motion Detector Ceiling mounting 360° FC white IP23 10m 1Channel

Name: Motion Detector Ceiling mounting 360° FC white IP23 10m 1Channel
Brand: B.E.G.
SKU: 92196

Remote control-capable ceiling motion detector, One channel for light switching, Zero crossing switching, Special optical system for detection of even the smallest movements, Uninterrupted parallel circuit detection of several detectors, Manual switching via push-button possible, Additional functions can be set up using the optional remote control., Factory settings 10 min and 500 lux

Product identifiers

SKU: 92196

EAN: 4007529921966

GTIN: 4007529921966

MPN: PD3N-1C-FC

Specifications

Depth	-
Model	Movement sensor
Width	-
Colour	White
Height	81.0
Diameter	83.0
Material	Plastic
Frequency	50 - 60
Diameter 1	83.0
Diameter 2	-
Scan angle	-
Animal zone	no
Networkable	no
Sensor type	Passive infrared
Temperature	-25 - 50
Transparent	no
HVAC-control	no
Halogen free	yes
Voltage type	AC
Built-in depth	-
Built-in width	-
Surface height	-
Bridging switch	no
Built-in length	-
Connection type	-
Control current	2
Impact strength	IK04
Max. duty cycle	30
Mounting method	EV000154
Nominal voltage	110.0 - 240.0
Forced switch on	-
Material quality	Other
Operating height	-
Remote operation	yes
Substation input	no
Switch-off delay	0
With signal unit	no
Built-in diameter	-
Forced switch off	-
Surface finishing	Matt
Surface protection	Untreated
Switching-on delay	0
Max. presence range	12.0
Max. reach sideways	5
Min. switch-on time	15
Suitable for C-load	no
With DALI interface	no
With alarm function	no
With remote control	no
Max. reach frontally	6
Max. switching power	2300
RAL-number (similar)	9010
With acoustic sensor	no
Background monitoring	no
Max. starting current	165
Min. starting current	-
With connection cable	no
Constant light control	-
Creep-under protection	yes
Connection cable length	0
Diameter reach on floor	10
IFTTT support available	no
Optimum mounting height	2.5
Anti-bacterial treatment	no
Max. switching power LED	800.0
Degree of protection (IP)	IP23
Number of switching zones	78.0
Response value luminosity	20 - 2000
Detection angle horizontal
Staircase light controller	yes
Suitable for wall mounting	no
Compatible with Amazon Alexa	no
Compatible with Apple HomeKit	no
Suitable for ceiling mounting	yes
Pivoting range sensor, vertical
Compatible with Google Assistant	no
Pivoting range sensor, horizontal
Suitable for wireless transmission	no
Response value luminosity adjustable	yes
Response value sensitivity adjustable	yes
Dim function with dimmer basic element	no
Min. depth of built-in installation box	-
Teach-function for response value luminosity	yes
