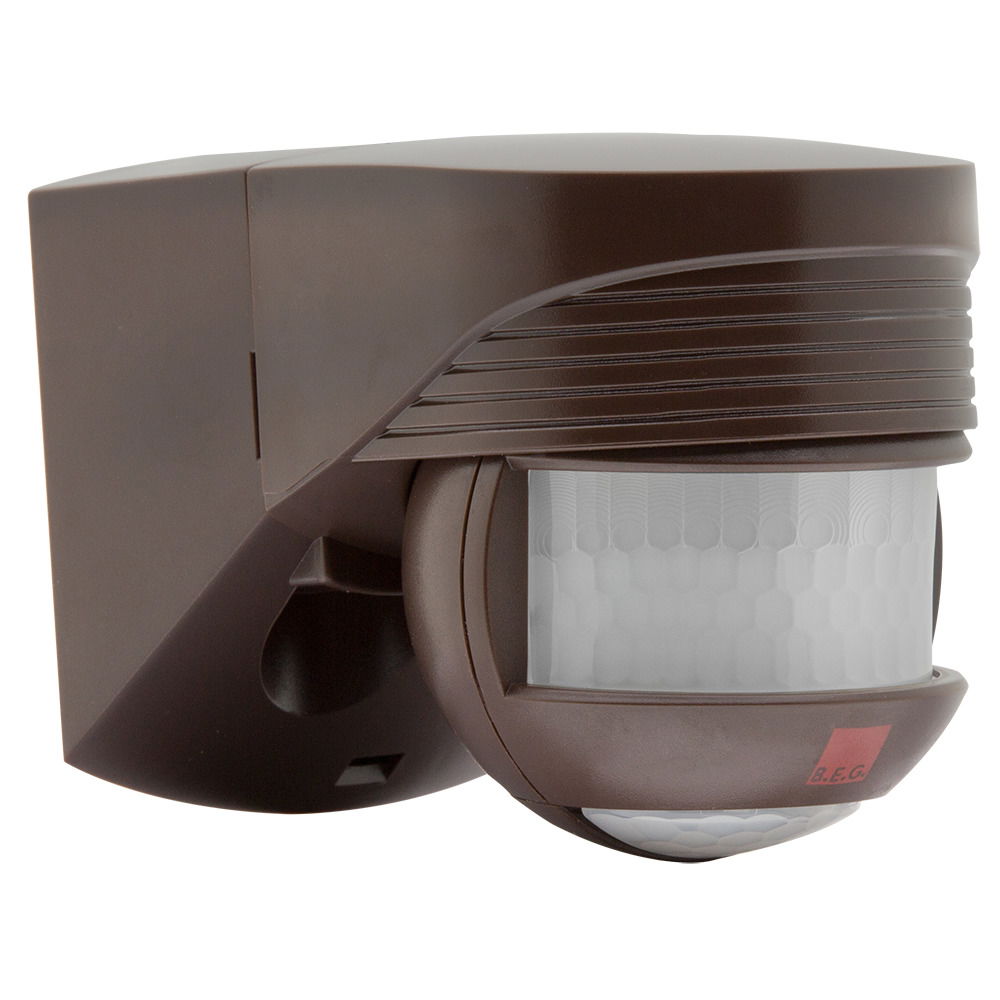

Motion Detector 200° Wall mounting brown IP54 12m 1Channel
Motion detector with 200° detection area and 180° anti-creep zone, Adjustable ball head, Detection area can be restricted with blinds, Zero crossing switching, Simple mounting thanks to plug base, Cable entry possible from above, from below and from behind, Can be mounted on standard flush-mount boxes
Product identifiers
SKU: 91012
EAN: 4007529910120
GTIN: 4007529910120
MPN: LC-Click-N 200 brown
Categories
Features
|

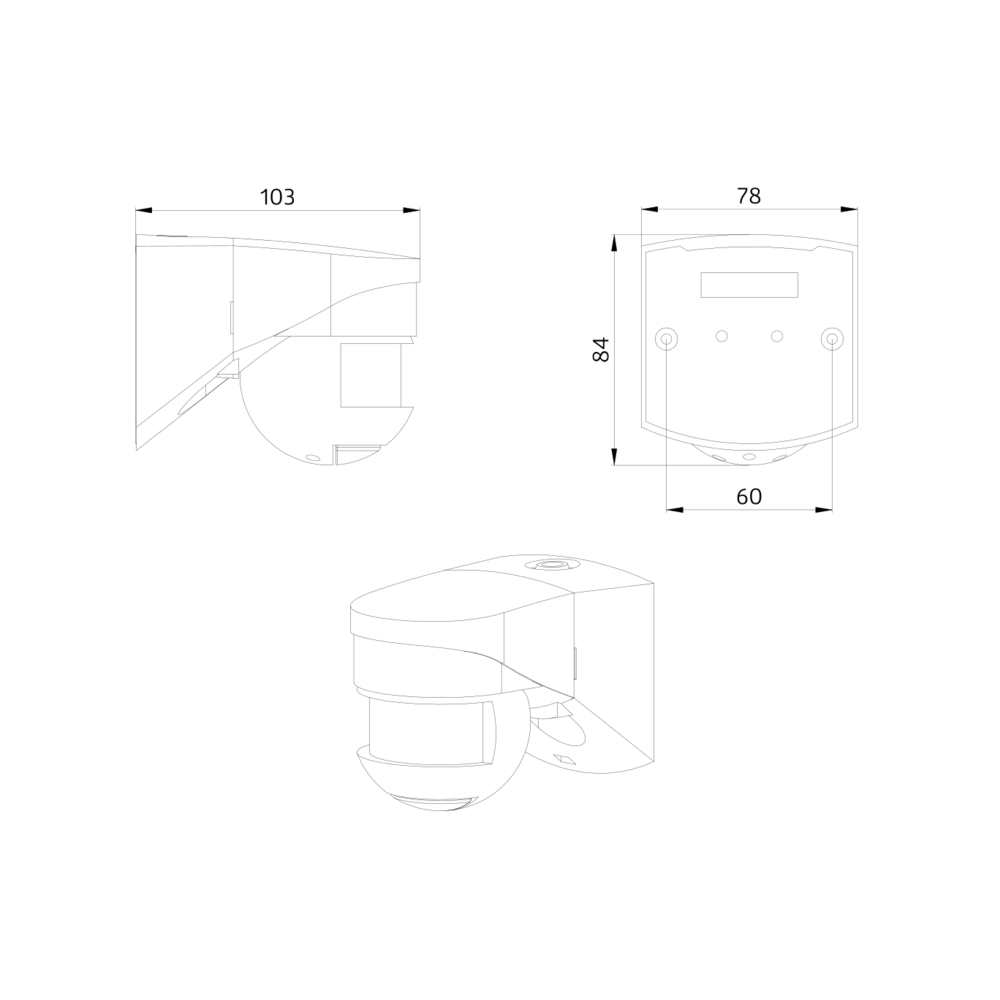

Depth
|
103.0
|
|
Model
|
Movement sensor
|
|
Width
|
78.0
|
|
Colour
|
-
|
|
Height
|
84.0
|
|
Diameter
|
-
|
|
Material
|
Plastic
|
|
Frequency
|
50 - 60
|
|
Diameter 1
|
-
|
|
Diameter 2
|
-
|
|
Scan angle
|
-
|
|
Animal zone
|
no
|
|
Networkable
|
no
|
|
Sensor type
|
Passive infrared
|
|
Temperature
|
-25 - 50
|
|
Transparent
|
no
|
|
HVAC-control
|
no
|
|
Halogen free
|
yes
|
|
Voltage type
|
AC
|
|
Built-in depth
|
-
|
|
Built-in width
|
-
|
|
Surface height
|
-
|
|
Bridging switch
|
no
|
|
Built-in length
|
-
|
|
Connection type
|
-
|
|
Control current
|
2
|
|
Impact strength
|
IK04
|
|
Max. duty cycle
|
20
|
|
Mounting method
|
-
|
|
Nominal voltage
|
110.0 - 240.0
|
|
Forced switch on
|
-
|
|
Material quality
|
Other
|
|
Operating height
|
-
|
|
Remote operation
|
no
|
|
Substation input
|
no
|
|
Switch-off delay
|
0
|
|
With signal unit
|
no
|
|
Built-in diameter
|
-
|
|
Forced switch off
|
-
|
|
Surface finishing
|
Matt
|
|
Surface protection
|
Untreated
|
|
Switching-on delay
|
0
|
|
Max. presence range
|
6.0
|
|
Max. reach sideways
|
12
|
|
Min. switch-on time
|
4
|
|
Suitable for C-load
|
no
|
|
With DALI interface
|
no
|
|
With alarm function
|
no
|
|
With remote control
|
no
|
|
Max. reach frontally
|
4
|
|
Max. switching power
|
1000
|
|
RAL-number (similar)
|
8014
|
|
With acoustic sensor
|
no
|
|
Background monitoring
|
no
|
|
Max. starting current
|
-
|
|
Min. starting current
|
-
|
|
With connection cable
|
no
|
|
Constant light control
|
-
|
|
Creep-under protection
|
yes
|
|
Connection cable length
|
0
|
|
Diameter reach on floor
|
10
|
|
IFTTT support available
|
no
|
|
Optimum mounting height
|
2.5
|
|
Anti-bacterial treatment
|
no
|
|
Max. switching power LED
|
400.0
|
|
Degree of protection (IP)
|
IP54
|
|
Number of switching zones
|
250.0
|
|
Response value luminosity
|
2 - 500
|
|
Detection angle horizontal
|
|
|
Staircase light controller
|
yes
|
|
Suitable for wall mounting
|
yes
|
|
Compatible with Amazon Alexa
|
no
|
|
Compatible with Apple HomeKit
|
no
|
|
Suitable for ceiling mounting
|
no
|
|
Pivoting range sensor, vertical
|
-20 - 20
|
|
Compatible with Google Assistant
|
no
|
|
Pivoting range sensor, horizontal
|
-45 - 45
|
|
Suitable for wireless transmission
|
no
|
|
Response value luminosity adjustable
|
no
|
|
Response value sensitivity adjustable
|
no
|
|
Dim function with dimmer basic element
|
no
|
|
Min. depth of built-in installation box
|
-
|
|
Teach-function for response value luminosity
|
-
|
