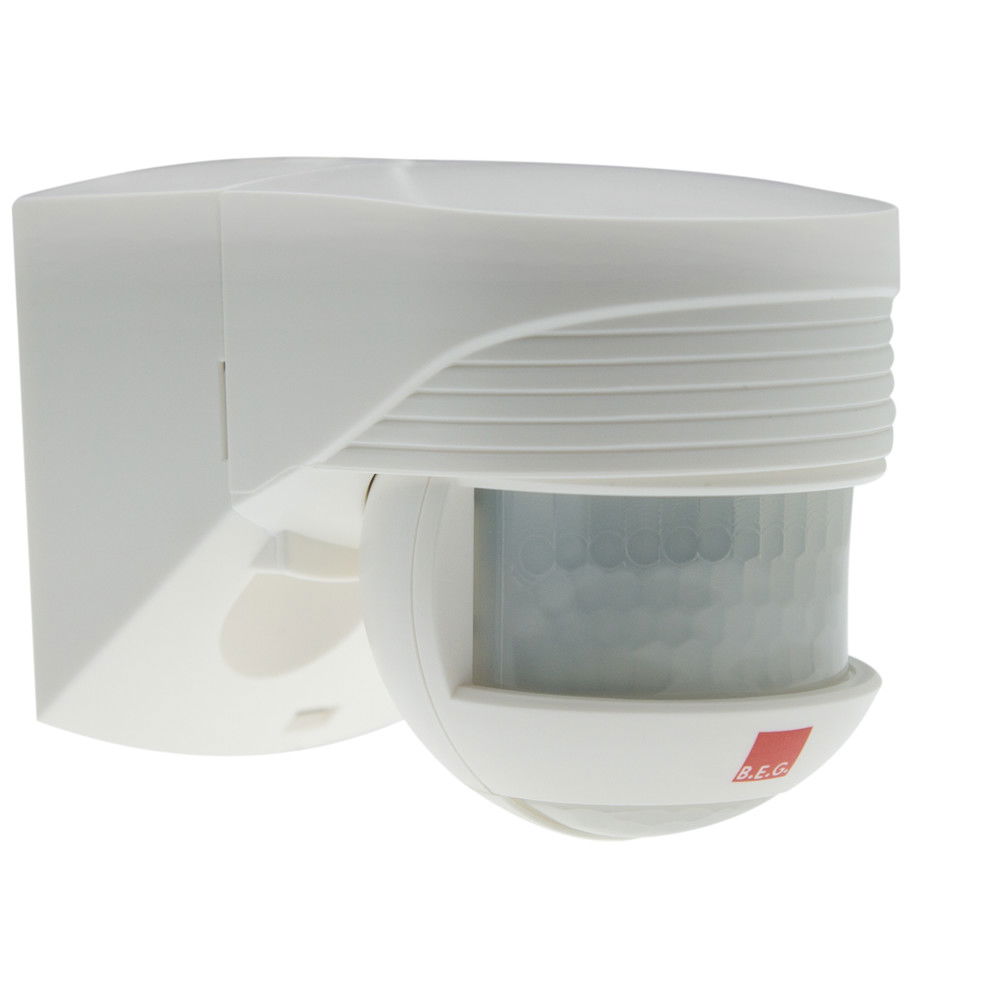

Motion Detector 200° Wall mounting white IP54 12m 1Channel
B.E.G.

Motion Detector 200° Wall mounting white IP54 12m 1Channel

Motion detector with 200° detection area and 180° anti-creep zone, Adjustable ball head, Detection area can be restricted with blinds, Zero crossing switching, Simple mounting thanks to plug base, Cable entry possible from above, from below and from behind, Can be mounted on standard flush-mount boxes

Product identifiers

SKU: 91002
EAN: 4007529910021
GTIN: 4007529910021
MPN: LC-Click-N 200 white

Categories

Security & Access Control Security Accessories

Specifications

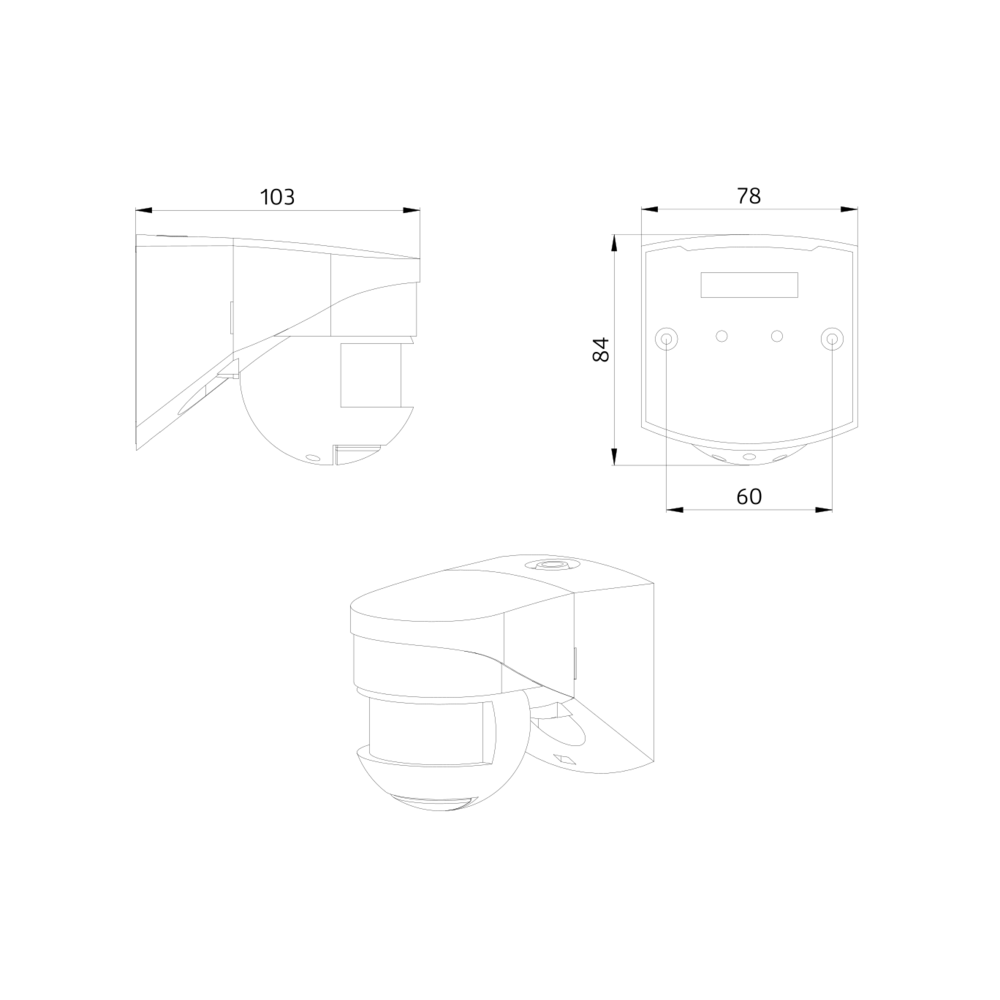

Depth 103.0
Model Movement sensor
Width 78.0
Colour White
Height 84.0
Diameter -
Material Plastic
Frequency 50 - 60
Diameter 2 -
Animal zone no
Sensor type Passive infrared
Transparent no
Halogen free yes
Built-in depth -
Surface height -
Built-in length -
Control current 2
Max. duty cycle 20
Nominal voltage 110.0 - 240.0
Material quality Other
Remote operation no
Switch-off delay 0
Built-in diameter -
Surface finishing Matt
Switching-on delay 0
Max. reach sideways 12
Suitable for C-load no
With alarm function no
Max. reach frontally 4
RAL-number (similar) 9010
Background monitoring no
Min. starting current -
Constant light control -
Connection cable length 0
IFTTT support available no
Anti-bacterial treatment no
Degree of protection (IP) IP54
Response value luminosity 2 - 500
Staircase light controller yes
Compatible with Amazon Alexa no
Suitable for ceiling mounting no
Compatible with Google Assistant no
Suitable for wireless transmission no
Response value sensitivity adjustable no
Min. depth of built-in installation box -
